SMART SENSOR DIGITAL SOUND LEVEL METER AS844+
Sound Decibel Meter with data logging
Do you want to test the sound level? Need to know the noise level? Try our digital sound level meter. It's featured with wide measuring range (30-130dB). It's portable and easy to use as a handy instrument for sound quality control in factory, office, home, school and construction site.
Features
1. 2.7" large LCD display for easy reading, convenient to use.
2. Both AC and PWM signal output are available.
3. Real time display the current temperature(℃/℉ switchable) and humidity.
4. Equipped with sponge ball and a sturdy storage case. Compact and light,convenient to hold and carry.
5. Portable and easy to use, suitable for checking, monitoring or controlling the sound level for personal, families, business, studies, industrial, etc.
Specification
Brand name | Smart Sensor | Color | Yellow and black |
Model number | AS844+ | Calibration sound source | 94dB@1KHz |
Measurement range | 30-130dBA/35-130dBC | Accuracy | ±1.5dB |
Resolution | 0.1dB | Dynamic range | 50dB/100dB |
Overload indication | OVER/UNDER | Frequency weighting characteristic | A and C |
Digital display | 31/2 digits | Analogy bar graph | 1dB/1 bar graph |
Sampling rate | 20times/second | AC signal out | 1 Vrms/full bar grph |
Dynamic characteristic | FAST/SLOW | Data storage quantity | 15000 |
The maximum value holding | MAX | Auto power off | (after o operation for 10 minutes) |
Microphone | 1/2inch polarization capacitance | Operation volyage | 3.7V Lithium battery/USDB 5V |
Battery life | 12hr(continue use) | Temperature measure range | 0-45°C |
Temperature accuracy | ±2°C | Humidity measure range | 10-99%RH |
Humidity accuracy | ±5%RH | Item size | 225*66*31cm |
Item weight | 153g | Package size | 260*215*60cm |
Package weight | 760g | LCD display | Color screen |
Product Details
The working principle of the noise meter is that the sound is converted into an electrical signal by the microphone, and then the impedance is transformed by the preamplifier to match the microphone and the attenuator. The amplifier adds the output signal to the weighting network, performs frequency weighting on the signal (or an external filter), and then amplifies the signal to a certain amplitude through the attenuator and amplifier, and sends it to an effective plant detector (or an external power supply). flat recorder), the numerical value of the noise level is given on the indicator head
Sound Decibel Meter with data logging

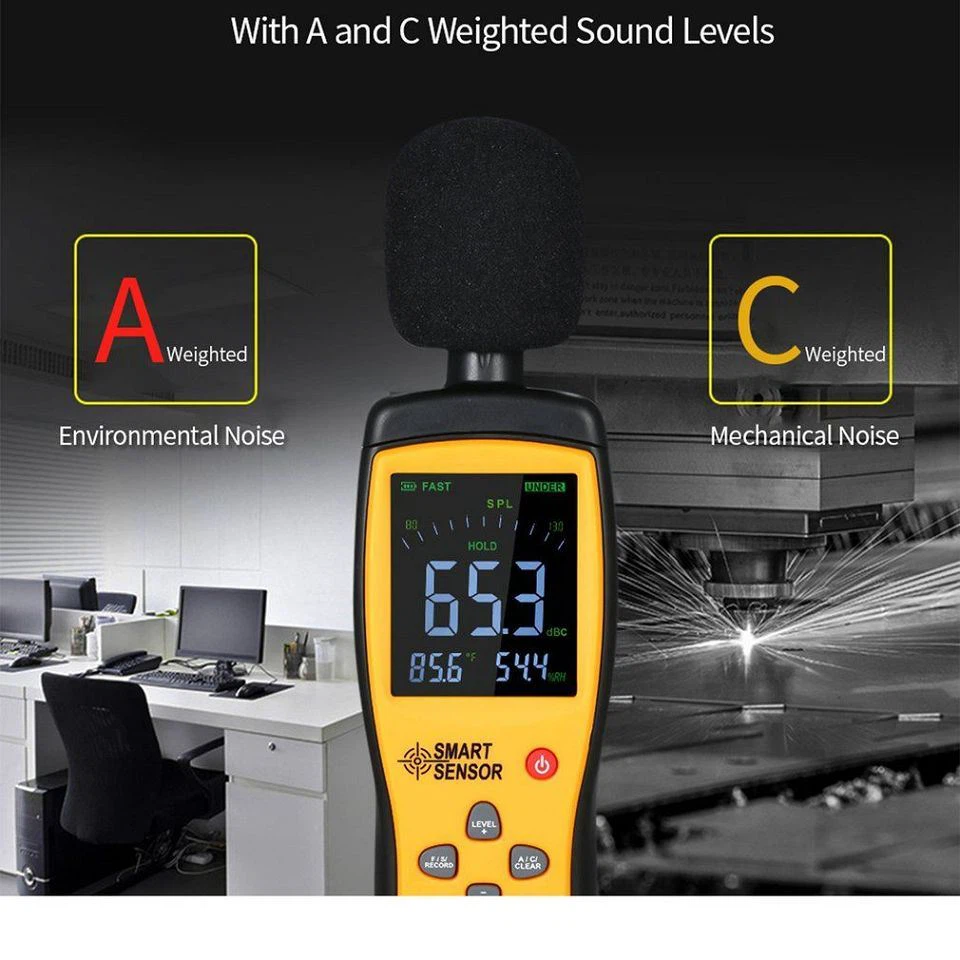

With A and C Weighted Sound Levels

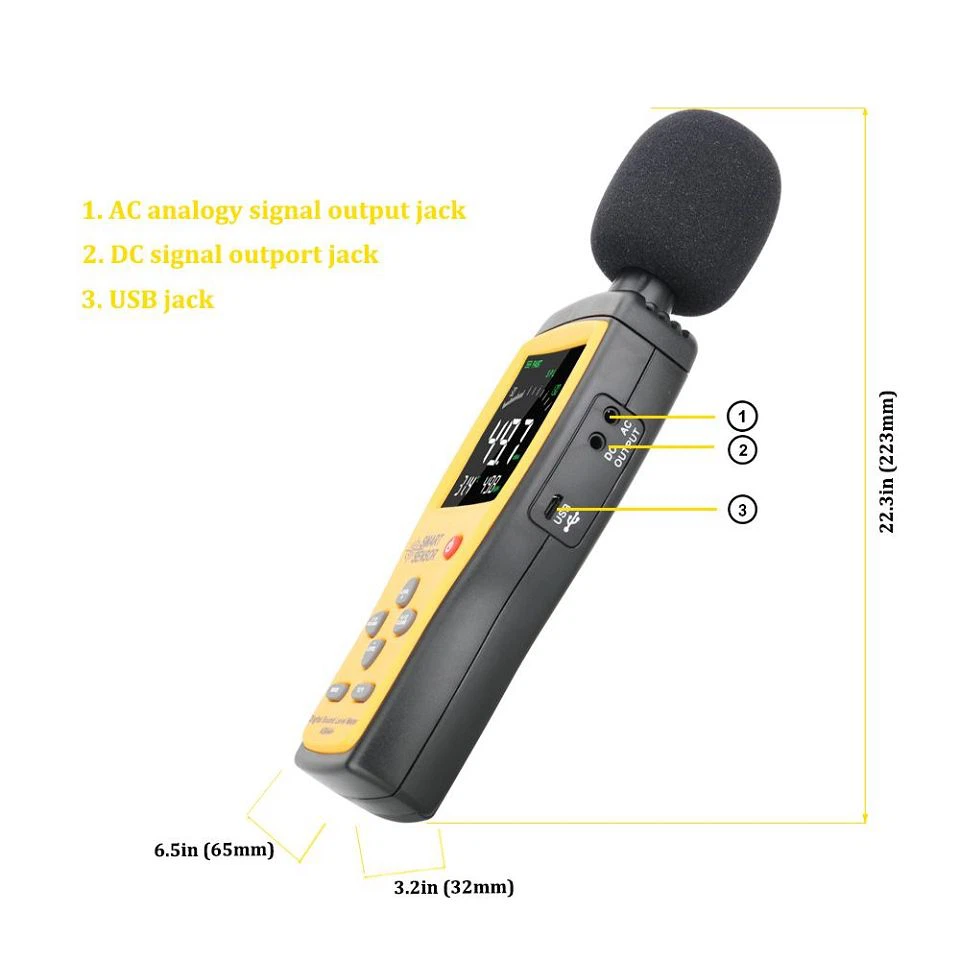

AC DC Signal Output Jack
Wide Application

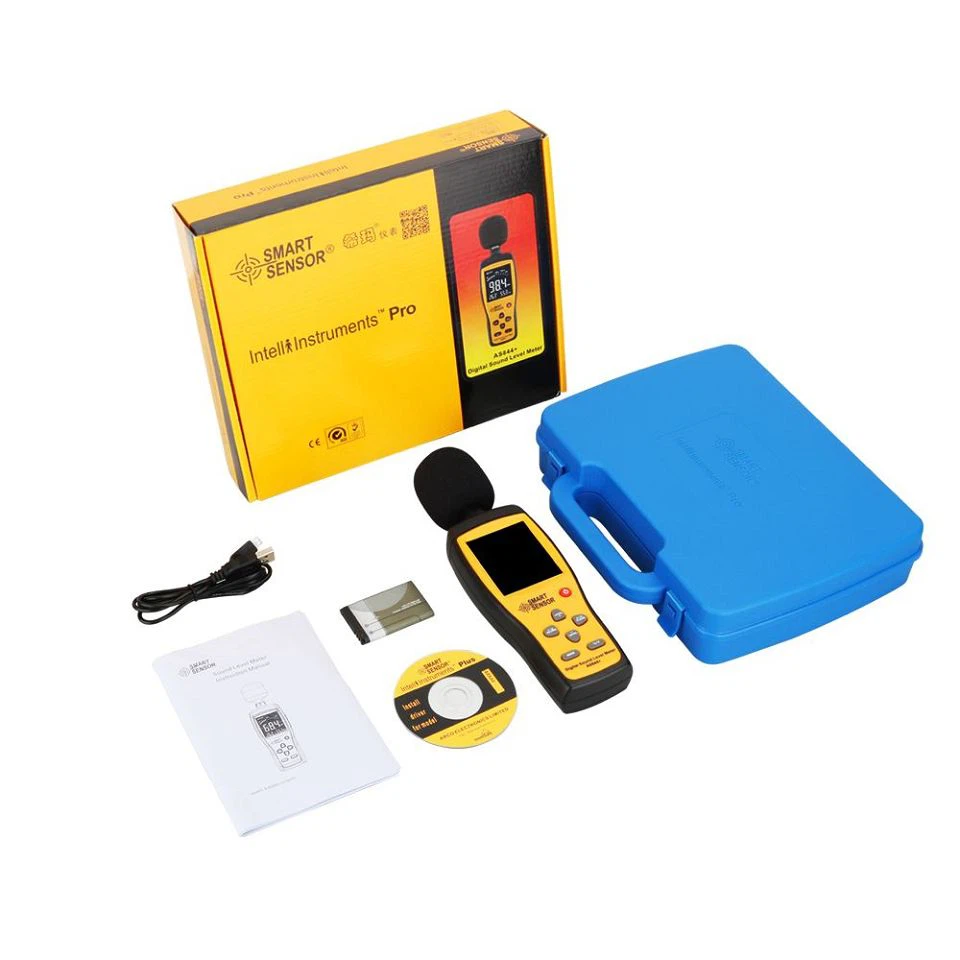

Product Size and Paking Details
