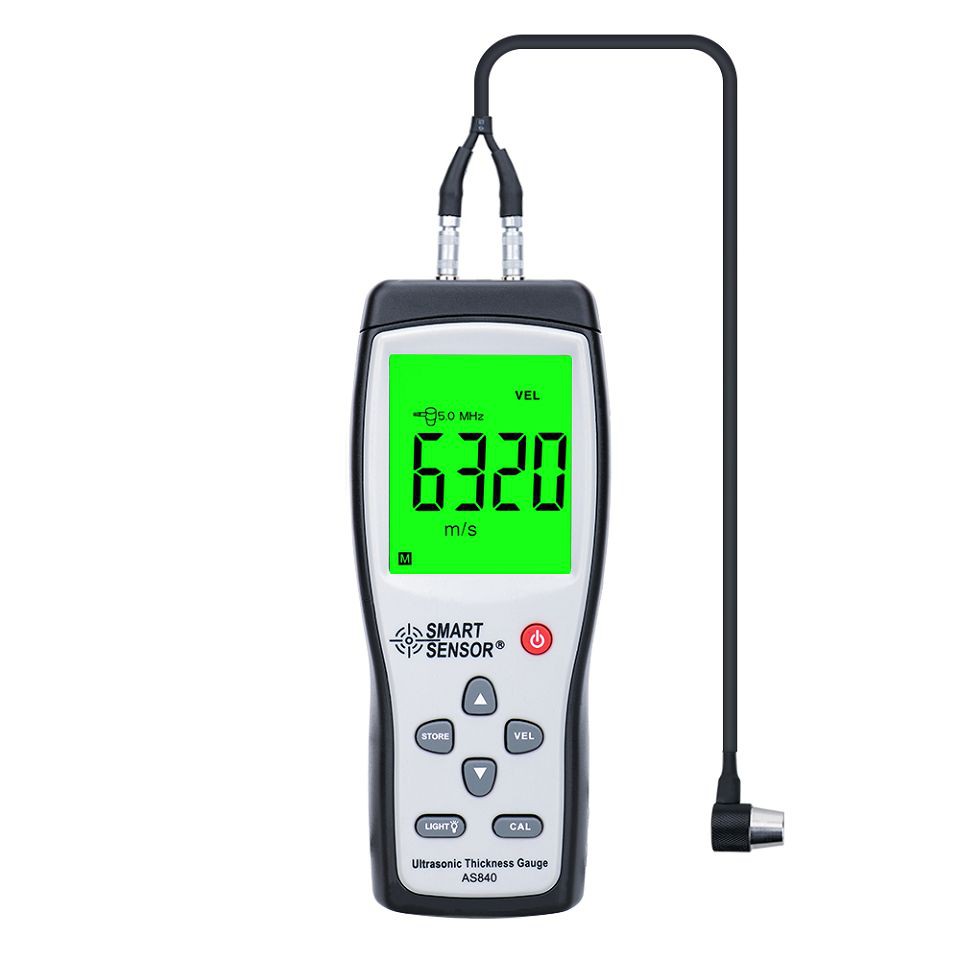

Digital Ultrasonic Thickness Gauge Sound Velocity Meter Metal Depth tester 1.2-225mm Smart Sensor AS840 with LCD display ultrasonic thickness gauge for plastic metal aluminum
Product Features
1. Auto calibration to assure the accuracy.
2. Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.
3. Use and keys to make a quick adjustment for the sound velocity /thickness,and a quick recall to the stored data.
4. Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not.
5. 10 thickness measurement storage and recall function is available,
6. which facilitates the height work or working in wild area.
7. Sound velocity measurement: With a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table.
8. 12 sound velocity for different material
9. Low battery indication
10. Auto power off mode designed to conserve battery power.
11. More than 10000 times long lift keys.
Product Specification
Display | 4-digital LCD display |
Minimum display unit | 0.1 mm |
Measuring range | 1.2 to 225.0mm (steel) |
Working frequency | 5MHz |
Accuracy | (1%H+0.1)mm,H denotes the measured thickness. |
Minimum limit for tube measuring | 20*3mm (steel) |
Sound velocity range | 1000 to 9999 m/s |
Measuring sound velocity with a given thickness | measuring range: 1000 to 9999 m/s. |
When the given thickness > 20mm, the accuracy is +/-5%; | |
when the given thickness < 20mm, the accuracy is +/-1mm/H*100%. | |
Operation Condition | Temperature: 0°C~40°C Relative humidity: <90%RH |
Hardware/workpiece/material temperature: <60°C | |
Operation current | Normal operation current: 50mA |
With Backlight turn on current: 120mA | |
Stand-by current: 20uA | |
Packing Contents | main unit-1PCS |
transducer-1 PCS(10mm 5MHz ) | |
coupling agent-1PCS(50ml) | |
4mmSample block-1PCS | |
Power supply | 1.5V AAA * 3 PCS (not include due to air limit) |
Minimum limit for tube measuring | Ф20*3mm(steel) |
Auto Zero Calibration | V |
Auto linear compensation | V |
Coupling Indicator | V |
Metric / Imperial Switchable | --- |
Battery Indication / Auto Power Off | V |
Product Net Weight / Product Size | 200g / 150*80.5*34mm |
Product Details
Ultrasonic thickness gauge for plastic metal aluminum
