Uni-T Ut71d Intelligent Digital Multimeter

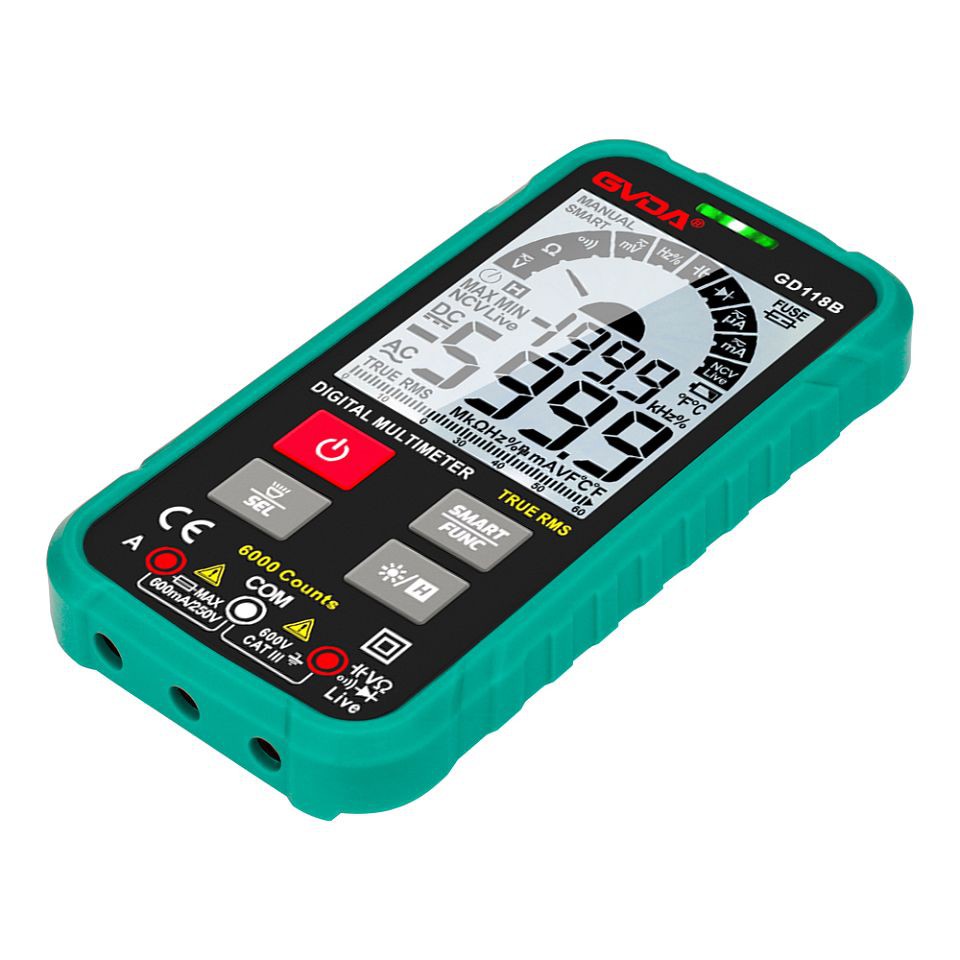

GVDA smart digital multimeter auto true rms DMM 600V Smart Intelligent Phone Digital Ohm Capacitance Hz AC DC Voltage Current NCV Multimetro Tester

This meter is an intelligent true effective value multimeter. Intelligent identification and manual function are integrated, which can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode, NCV, etc.;It is the best choice for professional electrician, engineer, electronic enthusiast or family use.

Safety Instructions

This meter conforms to iec61010-1 international electrical safety standard. The design and manufacture of instruments shall strictly comply with iec61010-1 CAT.III 600V safety standard and pollution level 2.

Product Features

1. Made of high‑quality ABS material, durable, wear‑resistant and heat‑resistant.

2. The digital large screen automatically measures without manual gear shifting, which is convenient and quick.

3. Equipped with a screen light and a flashlight on the back, it can be measured even in dark places. .

4. High‑accuracy multi‑function digital display, good stability, accurate test results.

5. This Digital Multimeter can used to measure AC/DC Voltage, AC/DC Current, Resistance, Continuity, Capacitance, Tests Diodes Transistors, NCV Live Line.

Product Specifications

General technical

● Environmental conditions:

CAT. III 600V；

Pollution：2

Altitude< 2000m

Working temperature and humidity：0~40°C（<80% RH，<10°Cnon-condensing）

Storage temperature and humidity：-10~60°C（<70% RH, without batteries）

● Temperature coefficient：0.1´Accuracy /°C（<18°C or >28°C）

● Maximum voltage allowed between input terminals：600V

● Current protection：F600mA/250V fuse

● Sampling: approx. 3 times / second.

● Display: maximum 6000 count.

● Over range indication: display "OL".

● Low battery: Display“ ”.

● Polarity indication: display "-" sign.

● Power：2 x 3V CR2032 batteries.

Accuracy

Accuracy is applicable within one year after calibration

Reference conditions: ambient temperature 18°C to 28°C, relative humidity no more than 80%

Accuracy: ± (% reading + word)

DC voltage

Input impedance：10MΩ

Maximum voltage：600V

AC voltage

Input impedance：10MΩ;Maximum voltage：600V

Frequency Response：40Hz ~ 1kHz；True RMS

DC current

Overload protection：F600mA/250V Fuse；Maximum current：600mA

AC current

Overload protection：F600mA/250V Fuse；Maximum current：600mA

Frequency Response：40Hz ~ 1kHz；True RMS

Diode & Continuity

Resistance

Overload protection：250V

Capacitance

Overload protection：250V

Frequency/Duty

Hz/% Position：

1) Range：10Hz ~ 10MHz

2) Voltage response：0.5~10V AC

3) Overload protection：250V

ACV Position:

1) Range：10Hz ~ 2 kHz

2) Voltage response：≥ 0.5V AC

3) Overload protection：250V

mA or mA Position：

1) Range：10Hz ~ 2 kHz

2) Current response：≥ 2mA

3) Overload protection：F600mA/250V fuse；

Package List:

1 * Multimeter

1 * Test Lead

1 * Storage Bag

1 * User Manual (English)

Product Details

Smart digital multimeter auto true rms
