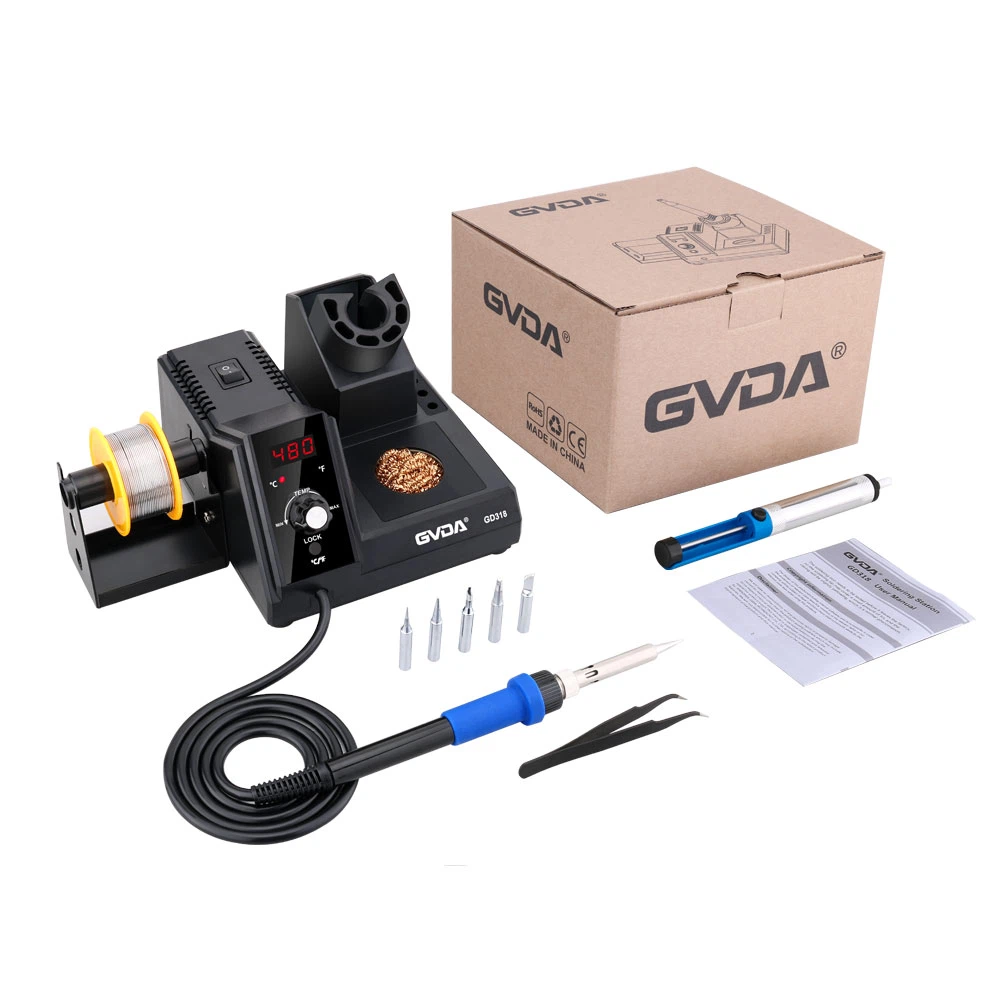

A soldering station is a hand tool frequently used in electronic soldering procedures to melt the solder, also known as tin wire, and fuse two devices together.
Because lead-free tin wires have a higher melting point than lead-containing tin wires do, several nations have outlawed the use of lead-containing solder wires in order to safeguard the environment. This raises the soldering temperature. The soldering station's temperature compensation, as well as the heating and temperature recovery speeds, have higher standards. The rate of heating and temperature recovery is a crucial metric for assessing production effectiveness. As a result, the capacity of a soldering station to control temperature is important.This is the huge gap with traditional soldering irons.
There are various techniques to regulate temperature, but one of the most straightforward is adjustable power control, in which the soldering station regulates the temperature by quickly delivering heat to the workpiece via the soldering iron. A thermostat can also be used to regulate the temperature by turning on or off the power. There is also a more sophisticated method that monitors the temperature of the soldering iron tip using an embedded chip and then modifies the thermostat's power to control the temperature. The host is turned on and electricity is sent to the thermostat to heat up when the soldering iron tip's temperature falls below the predetermined level.
The host is turned off and stops heating when the soldering iron tip temperature rises above the predetermined temperature.
Although soldering stations are employed as soldering tools in a variety of applications, from routine electronic appliance maintenance to the assembly of PCB circuit boards in electronics factories, they are most frequently utilized for this task.
Function:
Digital display temperature: easy to adjust.
Sleep function: save energy and prolong the life of the soldering iron tip.
Password lock temperature: Prevent workers from changing temperature settings arbitrarily.
Anti-static function: prevent the precision chip welding from being broken down by static electricity.
Compared with the difference between the soldering iron:
1. Compared with the efficiency, the efficiency of the constant temperature soldering station is relatively high, the thermal efficiency can reach about 80%, and the electric soldering iron can generally have 50%.
2. Compared with energy consumption, the energy consumption of the constant temperature soldering station is relatively low, because when the temperature is adjusted, it will not be heated, and the corresponding energy consumption is lower, that is to say, the same welding effect, the soldering station consumes less electricity;
3. Compared with the temperature recovery, the temperature recovery speed of the soldering station is faster, and the corresponding workers have higher work efficiency;
4. Compared with the life of consumables, the temperature of the soldering station is controlled and will not increase indefinitely. Therefore, the life of the soldering iron tip and the life of the heating core are relatively high;
5. For safety comparison, the handle voltage of the soldering station is only 24 volts AC, which is a safe voltage, and there is generally no electric shock;
6. Compared with anti-static, the soldering station has the function of removing static electricity, but the electric soldering iron generally does not have it.
