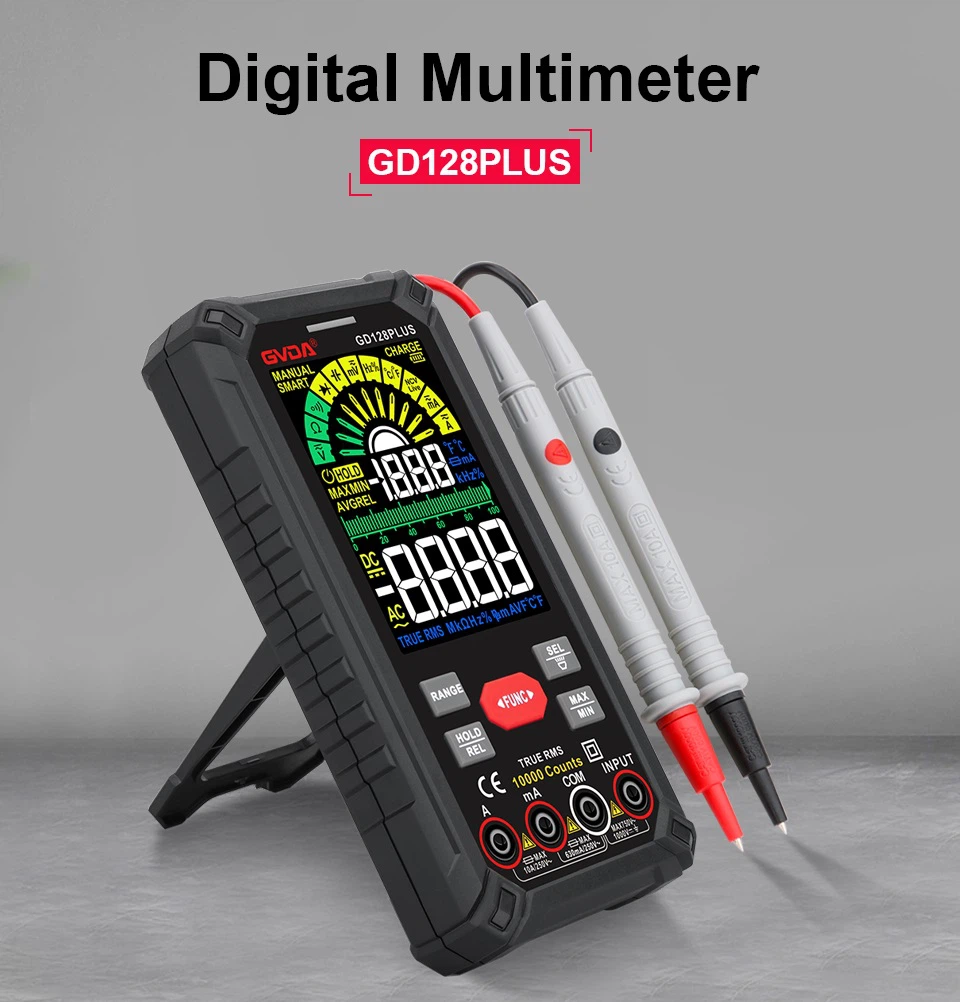

Rechargeable Smart True RMS 10000 Counts Digital Multimeter

GVDA New 9999 Counts Digital Multimeter Smart Function Auto Range 1000V 10A Tester Meter Ohm Hz Capacitance REL True RMS Non Contact AC DC Voltage Curret Tester DMM Multitester True RMS auto range



GVDA Digital Multimeter is an Professional Multimeter which can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode, NCV,etc.; It is the best choice for professional electrician, engineer, electronic enthusiast or family use.



Features

---

1) VA Color Large HD LCD Display

2) Display: Maximum 9999 Counts

3) Auto range and Manual Range

4) Sampling Rate: About 3 times per second

5) Over range display: the highest position shows "OL"

6) Low voltage display: low battery indication

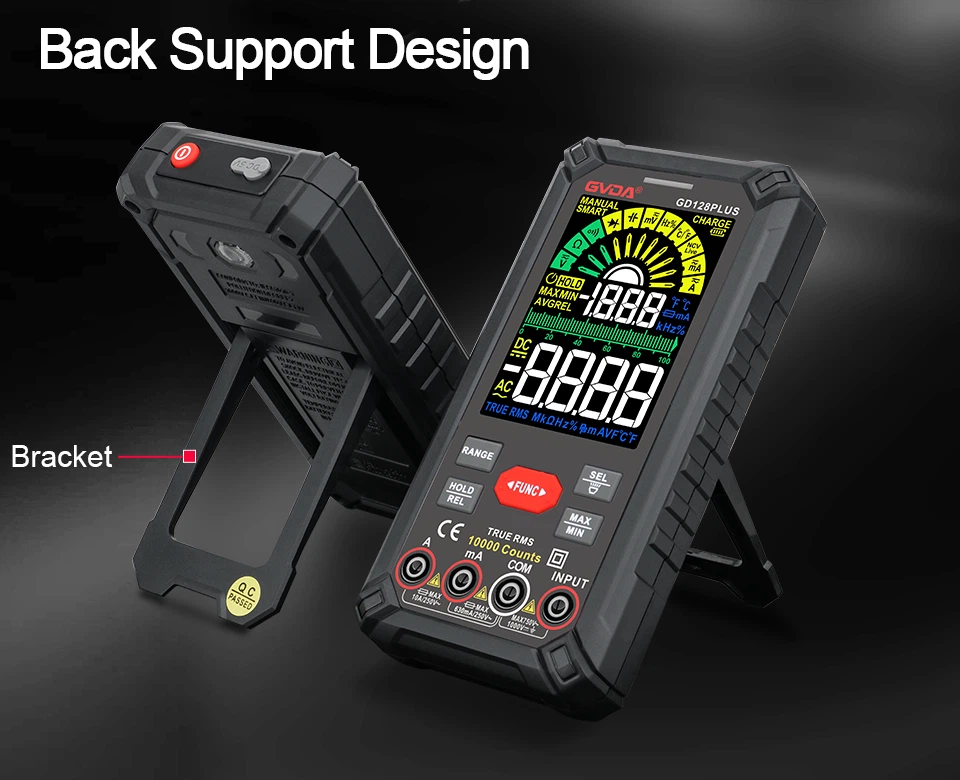

7) Support bracket

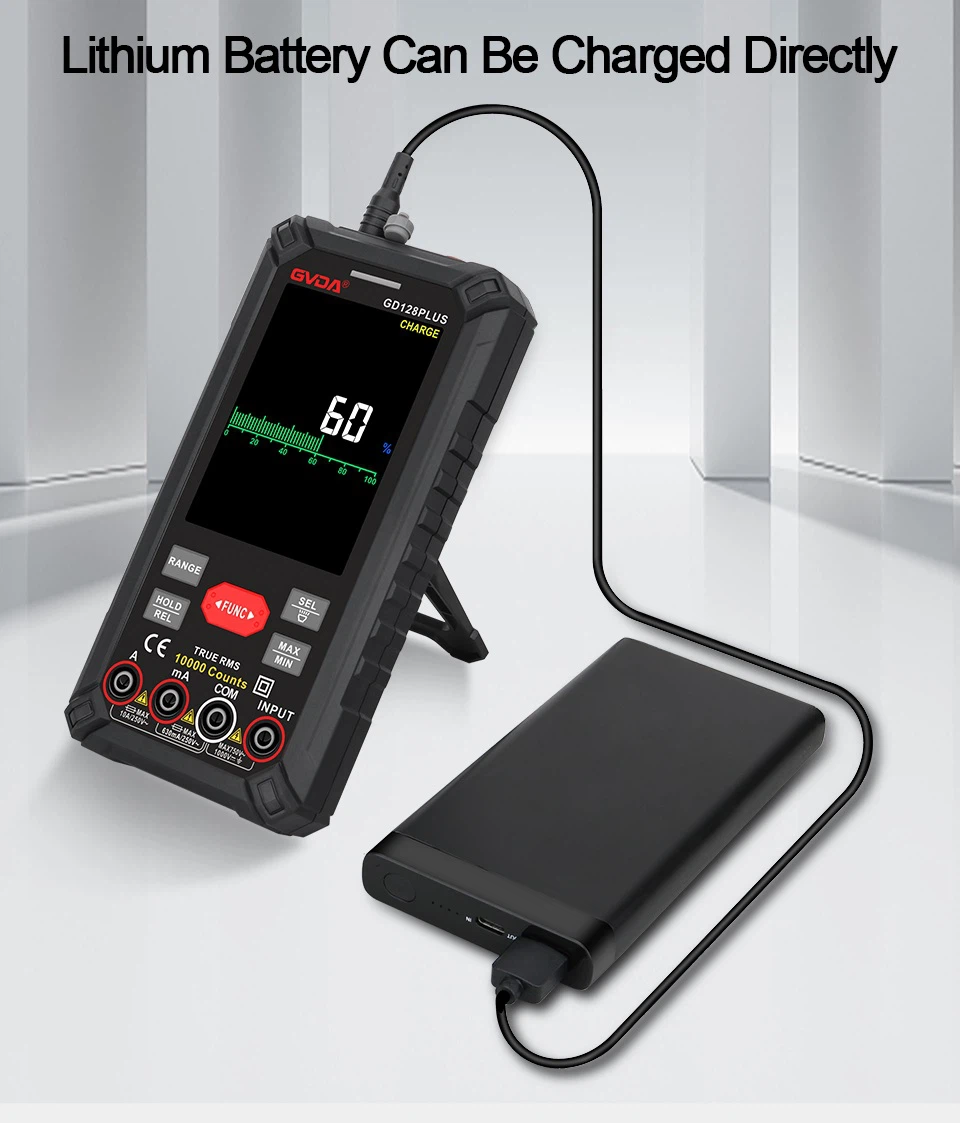

8) 3.7V Li battery rechargeable

9) Input Jack Indication



Specification

---



DC Voltage: 99.99mV/999.9mV/9.999V/99.9V/999.9V ±(0.5%+3)

AC Voltage: 99.9mV/999.9/mV/9.999V/99.9V/750V ±(0.8%+3)

DC/AC Current: 9.999mA/99.99mA/600.0mA ±(0.8%+3);9.999A ±(1.2%+3)

Resistance: 999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ ±(1.0%+5);

9.999MΩ/99.99MΩ ±(2.0%+10)

Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF ±(4.0%+3);9.999mF/99.99mF ±(5.0%+5)

Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999mHz ±(1.0%+3)

Duty: 1.0%-99.0% ±(1.0%+3)

Temperature:-40~1000°C; -40-1832°F

Fuse: F630mA/250V, F10A/250V

Counts: 9999 counts

Display:VA Color Display Screen

Auto identification of current input:yes

Relative value Measurement:yes

Max/Min Measurement:yes

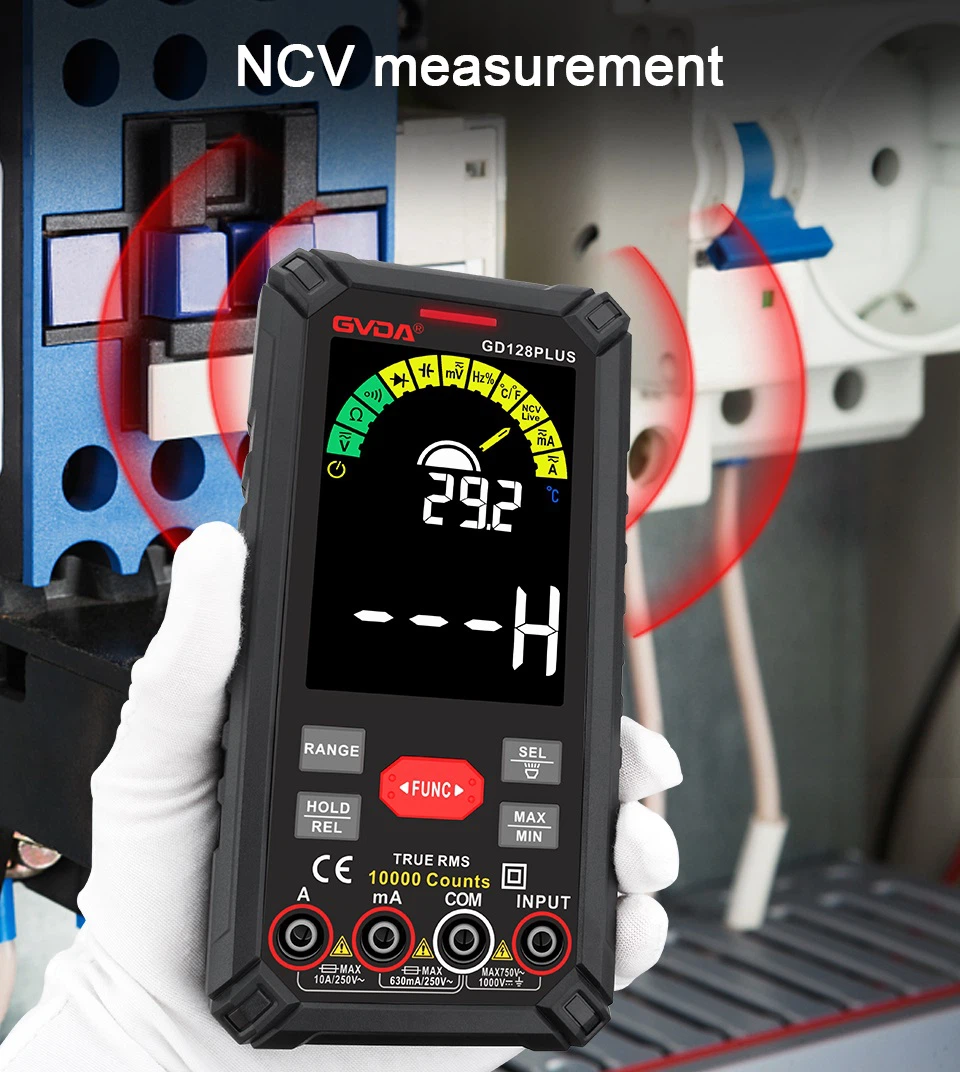

NCV:yes

Diode test:yes

Continuity test:yes

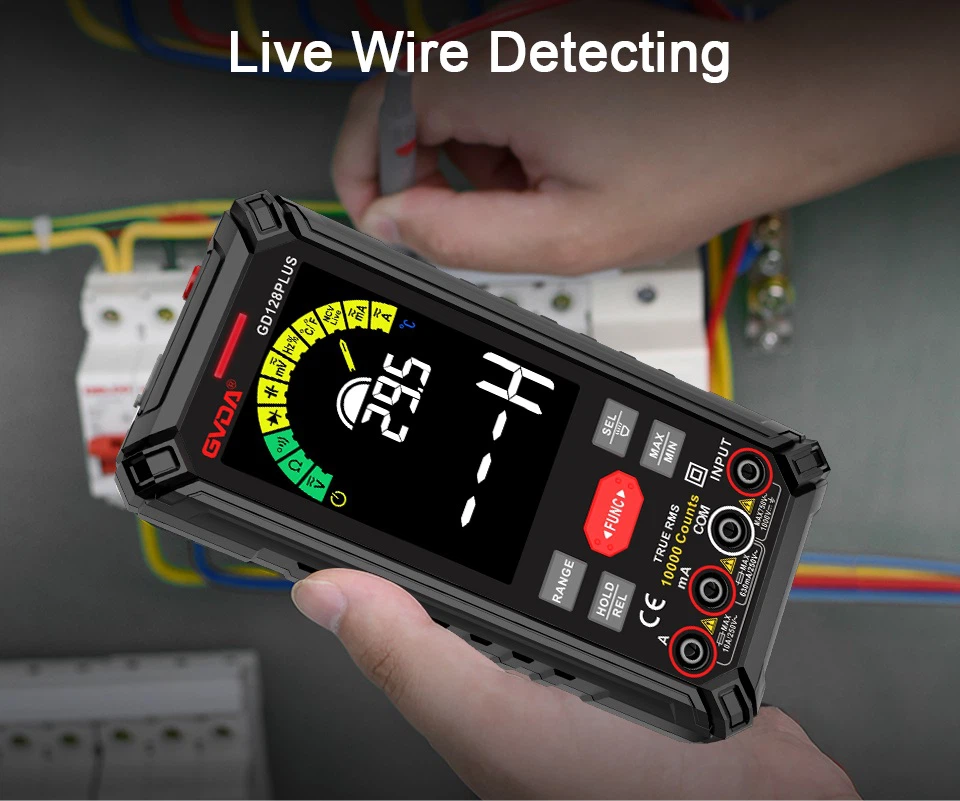

Live wire detection::yes

True RMS:yes

Auto Range/manual range:yes

Fuse Burning Prompt:yes

Input Jack indication:yes

Low battery indication:yes

Auto power off:yes

Data hold:yes

Flashlights:yes

Environment condition of use: CAT.IV 600V,CAT.III 1000V

Max voltage between terminals and earth ground: DC1000V/AC600V

Power supply:3.7V Li battery rechargeable

Product Weight: 272g

Product Size: 166x83x29cm

Package Weight: 570g

Packing Size: 210x120x70mm

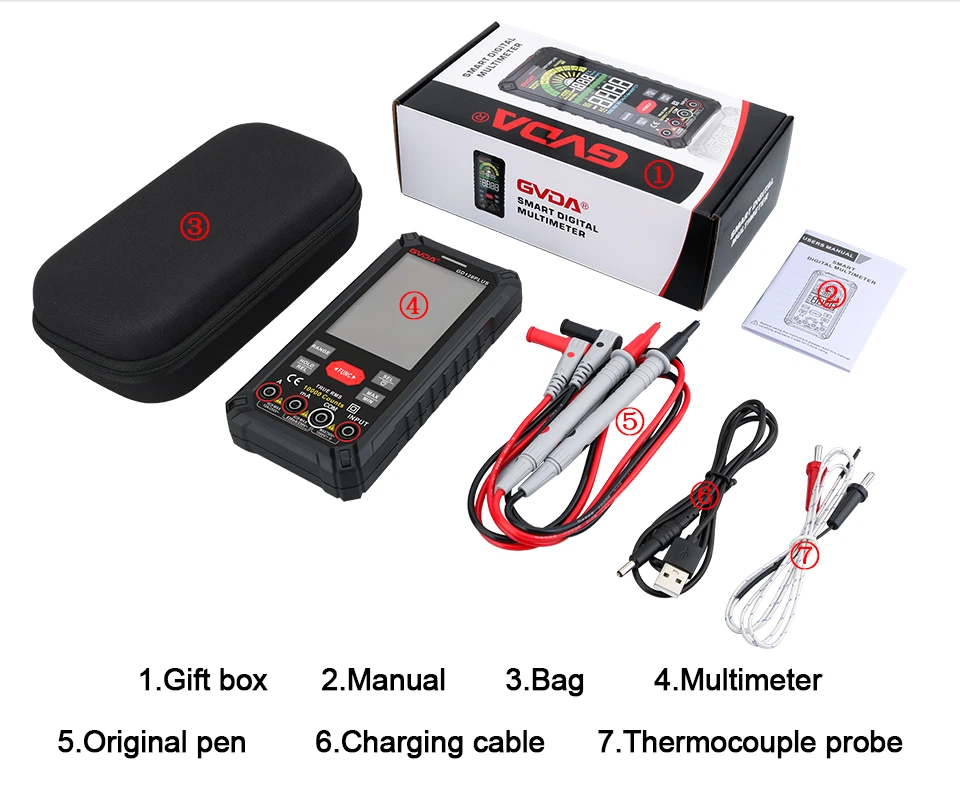

Packing Contents

1pc Multimeter

1pc Pen cable

1pc Cloth bag

1pc Thermocouple probe

1pc Charging cable



Product Details



---













Our Service

---

* Warranty Term: 12 months warranty

* Delivery time: 3-45 days base on different q;ty

* Online presentation if necessary

* Spare parts delivery

* Company & Factory Visit ( Site or Online)

* New product exchange

* Free Samples (Shipping Cost Excluded)

* All of items have CE FCC certificate .

* Russia Oversea Warehouse



Product Certificates:

---



FAQ

---

1. Q: Is your company accept customization?

A: We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.

2. Q: What's the delivery time after an order placed?

A: It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.

3. Q: How long have your company run on Electric Instruments?

A: We have been manufacturing and developing Electric Instruments since 2010.

4. Q: What's the MOQ?

A: Regular products only 1 standard carton. but no limit for sample order!

5. Q: What's the warranty of the product?

A: We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
