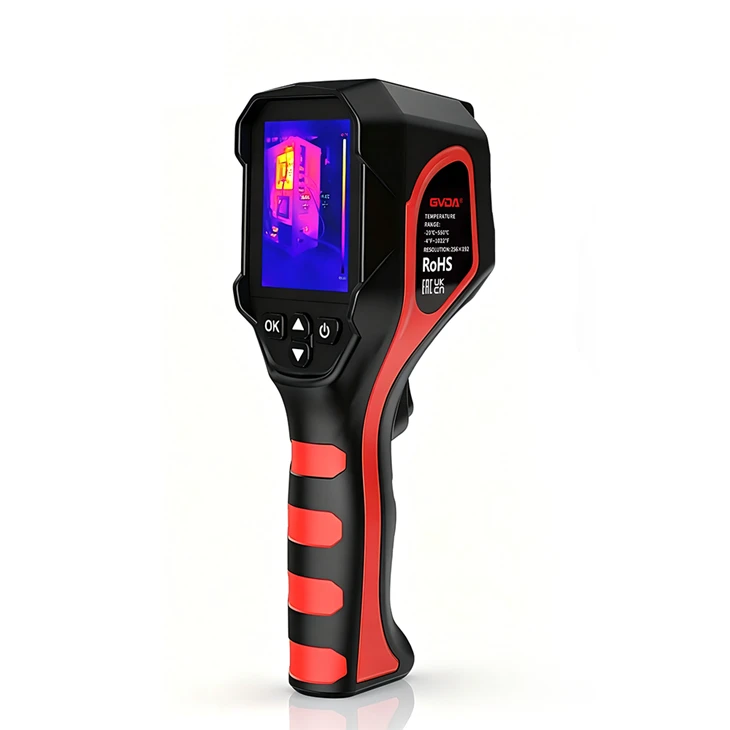

Portable Thermal Imager 256X192 For Electronics Repair

This is 2026 New Portable GVDA GD256 Thermal Imager 256X192 rechargeable Thermal Imaging Camera Infrared Temperature Meter -20 ℃~550 ℃ waterproof, dustproof, and anti drop handheld thermal imaging For Repair, PCB, Pipeline Detection,

High Resolution: 256x192 thermal pixels for precise temperature readings. Wide Temperature Range: -20°C to 550°C for comprehensive thermal analysis.6 Color Palettes: Choose from multiple palettes for better visual differentiation. Rechargeable Battery: Long-lasting up to 7 hours on a single charge.Compact Design: Portable and lightweight for easy handling.

Features

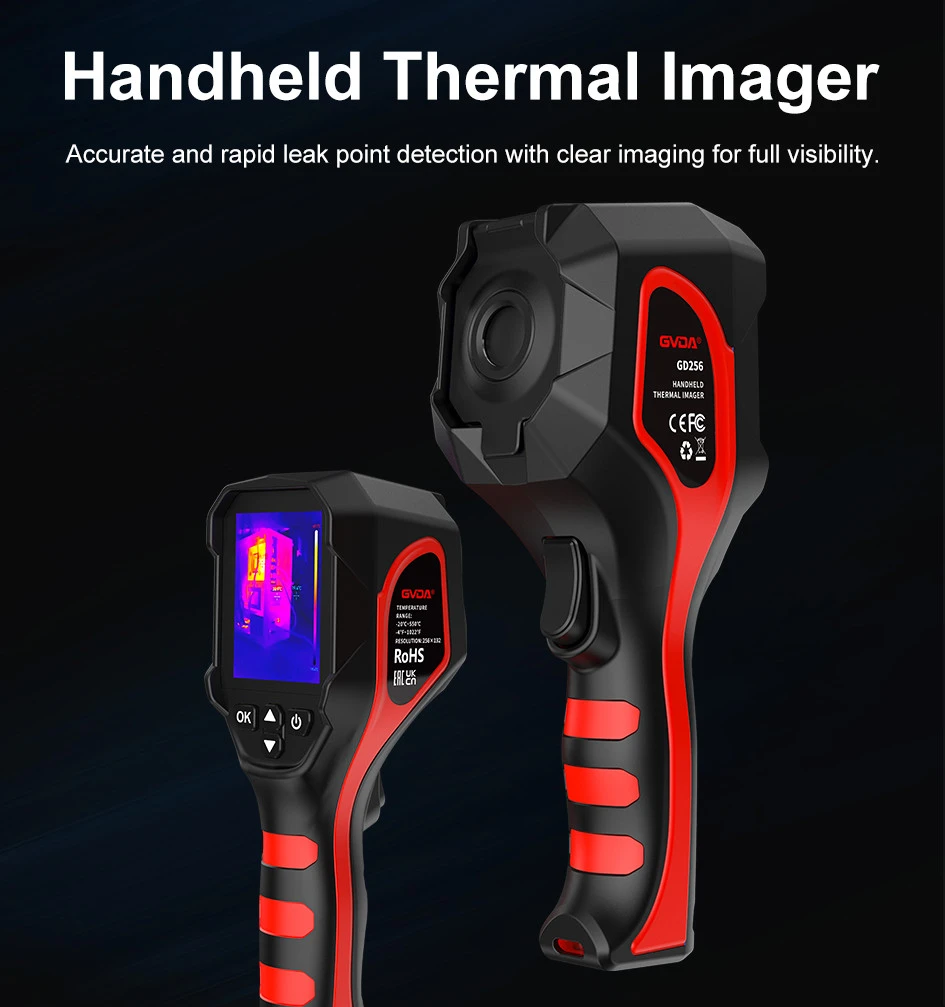

●Handheld Design

The handheld style of the GD256 makes it easy to carry and use in various work environments, increasing efficiency.

●Wide Temperature Range

Capable of measuring temperatures from -20°C to 550°C, this thermal imager is ideal for a variety of industrial applications.

●High Resolution Thermal Imaging

With a 256x192 IR resolution, the GD256 provides clear thermal images, enhancing diagnostic accuracy in industrial inspections.

●CE Certified

GD256 is CE certified, ensuring compliance with safety standards and reliability in professional use.

●Multiple Color Palettes

Equipped with 6 color palettes, users can choose the one that best suits their needs, improving visual analysis during inspections.

Product Details

1. Below is Safety Instruction for our Thermal Imager GVDA GD256 X 192
To protect yourself and others from injury or to protect your device from damage, please read
all the information below before using your device.
1) Notes
① Do not direct the equipment at very high intensity thermal radiation sources, such as the
sun.asers.,spot weders,etc.., which may cause damage to the equipment
② Do not use or store the instrument in an environment that exceeds the permitted operating
temperature or storage temperature of the equipment, which may cause damage to the
equipment.
③ Do not knock, throw or vibrate instruments and accessories to avoid damage.
④ Do not touch the device or USB port with your wet hand to avoid damage
⑤ Do not use dissoved or similar liquids on equipment and cables, as this may cause
damage to the equipment.
⑥ Please follow the below instructions when you wipe the device:
a, Non-optica surface: the user coud user the cean and soft coth to wipe it:
b. Optical surface: When using the thermal camera, please avoid staining the optical
surface of the lens, especially touching the lens with your hands, because the sweat on your
hands will leave traces on the lens glass and may corrode the optical coating layer on the
glass surface. When the surface of the optical lens is contaminated, carefully wipe it with
professional lens paper.
⑦ When using the equipment, please try to keep it stable and avoid vioent shaking.
⑧ This product will emit a slight "cick" sound when working, which is the "shutter refresh"
sound of the lens, which is a normal phenomenon in the operation of the equipment.

Below is Top 10 Core Advantages for Portable GVDA GD256 Thermal imager:

1. IR ResolutionL: 256 x 192 Professinal grade, 40mK high sensitivity

2. Temperature range -20 ℃~550 ℃

3. 6 Color Palettes: Choose from multiple palettes for better visual differentiation

4. Image Mode: Infrared / vision light / fusion /  P in P

5. Phot/ Vision Function

6. Temperature Unit C/F/K optional

7. Led Light

8.  Built in 16GB

9. 3200mAH Rechargeable Lithium battery

10.  IP54, 1.5M drop-proof

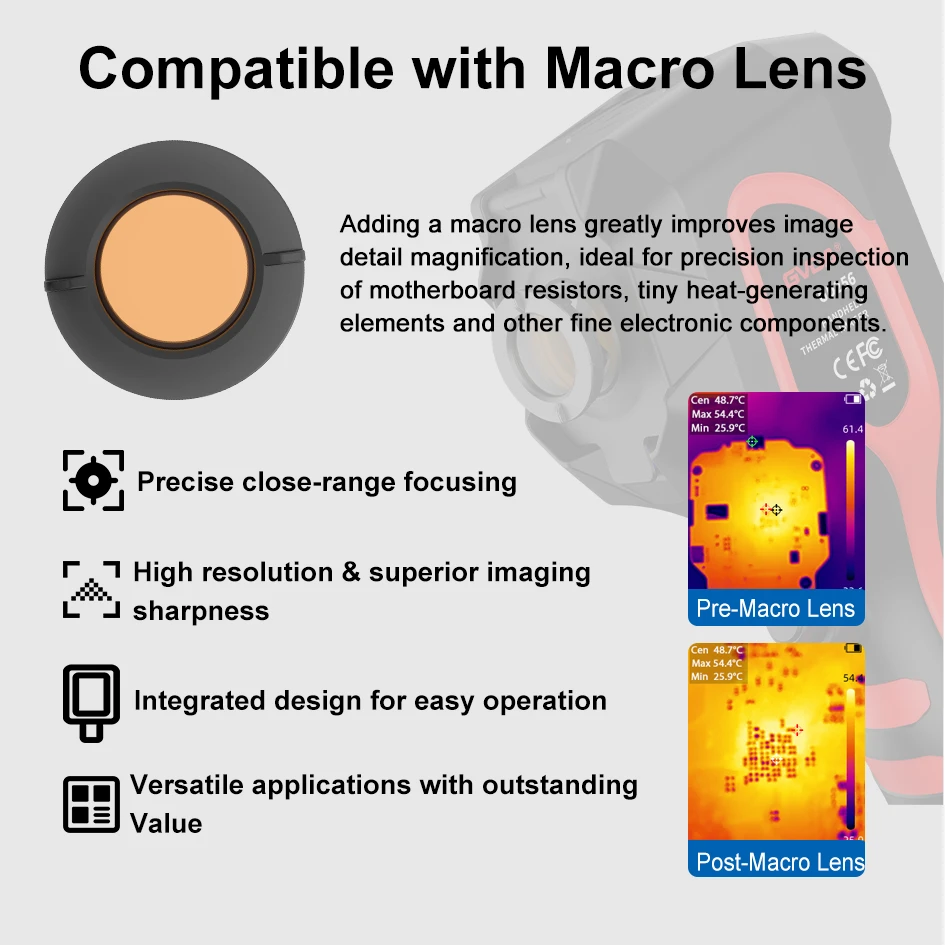

This GVDA GD256 thermal imager are Compatible with Marco Lens ( Marco Len is optional)

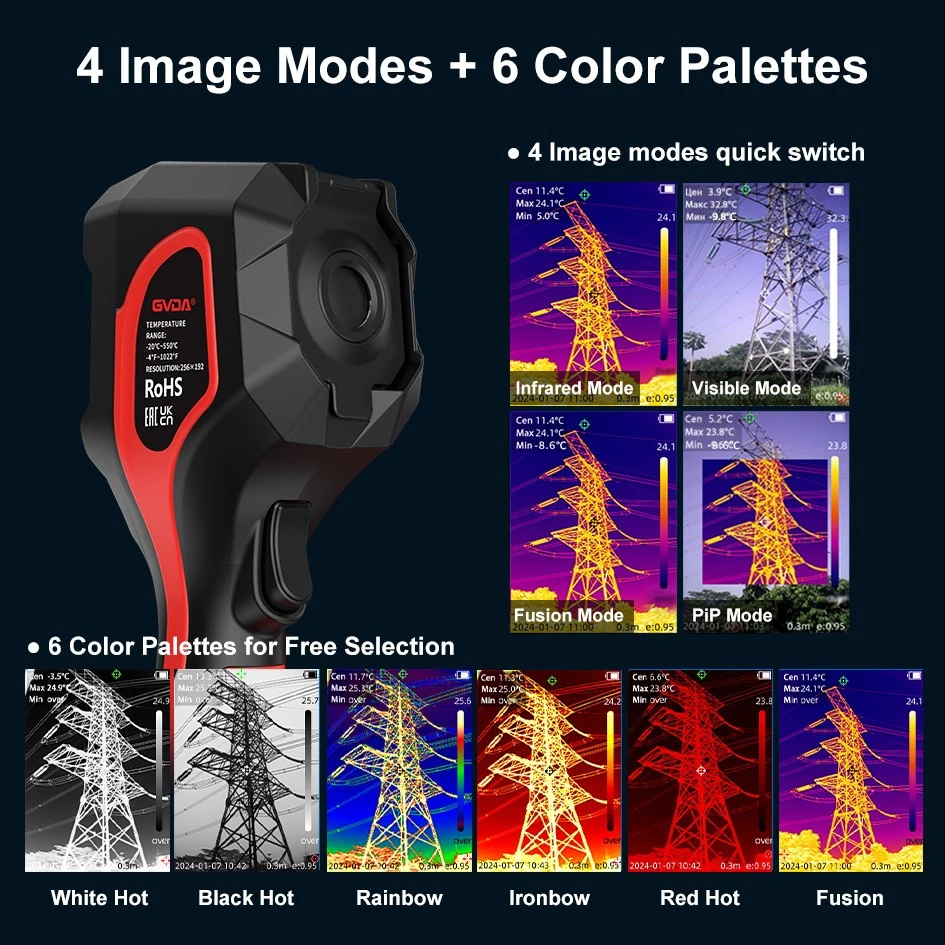

This GVDA GD256 Portable thermal Imager is with 4 Image Modes and 6 Colors Palettes

4 images Models: Infrared / Vision / Fusion / PiP

6 Color Paletters: White hot / Black hot/  Rainbow / Ironbow/ Red hot / Fusion

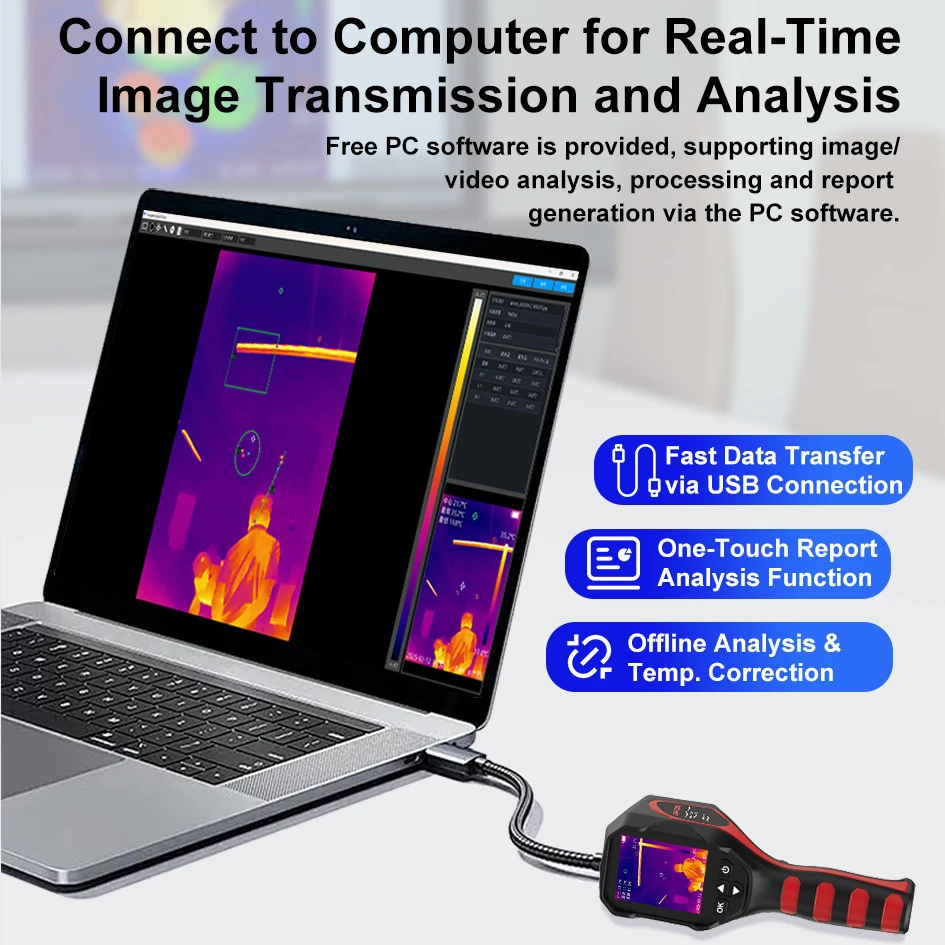

Connect to Computer for Image Transmission and Analysis

PC software is free proved, supporting image/ video analysis, procession and report generation via the PC Software

Wide Application

In addition to non-invasively and in real-time monitoring of health conditions such as inflammation, blood circulation, and soft tissue injury by capturing the temperature distribution on the human body surface, this GVDA GD256 infrared thermal imagers have a much wider range of applications, having penetrated into many key fields such as industry, security, and construction.

The core principle of the GVDA GD256 thermal imager is based on the blackbody radiation law, which can display the temperature distribution in real-time planar imaging and support hot spot tracking, quantitative analysis and detection of completely dark environments [1] [3]. The equipment functions include smoke penetration detection, automated temperature calibration and acoustic-thermal composite analysis, which can simultaneously capture abnormal sound and temperature changes. Some products also have a wide temperature measurement range, micro-thermal distribution detection and accuracy and stability of long-term temperature measurement [2]. In terms of technological development, infrared detectors have undergone multiple generations of evolution. Modern equipment integrates AI analysis, dual-spectrum monitoring and other technologies and is applied to industrial inspection and scientific research fields, such as power inspection, metallurgical high-temperature monitoring and automotive R&D thermal analysis.
