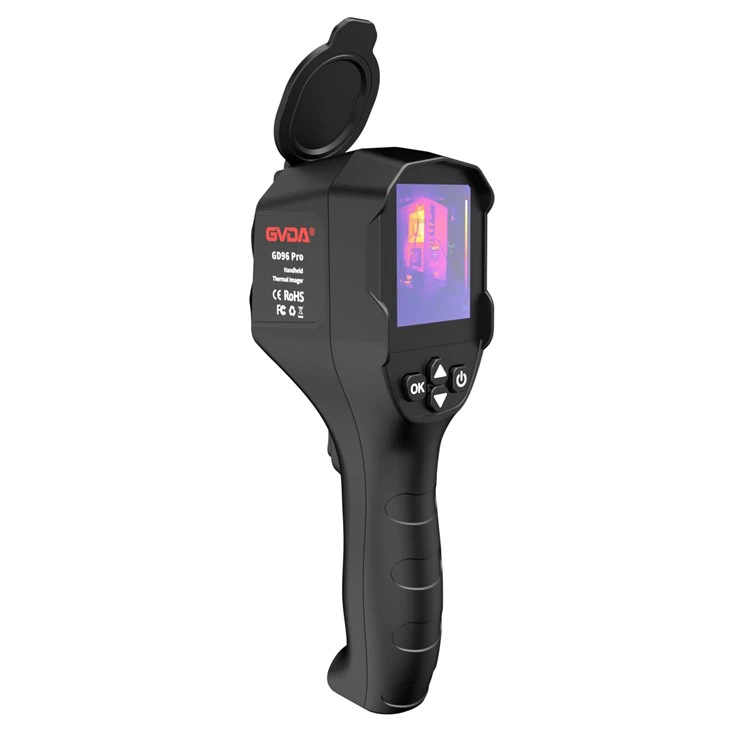

GVDA GD96 96PRO Thermal Imaging Camera 96x96 Pixel Construction Thermal Imager For Repair Floor Heating Tube Testing
The initial thermal imaging module of GD96PRO infrared thermal imager is 96 * 96, but with our technical support, it can be extended to 240 * 240, making the observation effect clearer and achieving ultra clear image quality. this is GVDA New GD96 GD96PRO High Definition Imaging Handheld Thermal Imaging Device with visible light camera, widely used for Power inspection, underfllor heating pipeline, with measurement range -20 to 550C.
Compared with traditional infrared thermometers, it is more efficient , Automatically track and locae defects wihout leaving any hidden dangers.
Features
● infrared resolution: 96x96
● temperature measurement range: - 25-550 ℃
● Visible light camera and Thermal Imaging
● Bult in Rechargeable Lithium Battery
● Suport SD Card Dats Storages
● Three-proof design: IP54/1.5m anti-drop
● TISR Support, resolution: 240*240
● Temp analysis PC Analysis tool
Specifications
● Basic parameters: Detector type VOx
● IR resolution 96*96 / IR wavelength 8~14μm / Pixel spacing 12μm
● Focal length 1.35mm / IFOV 8.89mrad
● Image frame rate 25Hz / NETD ≤60 mK(@25°℃,F#1.0)
● Focal adjustment Mode Fixed focal
● Display screen 2.4inch / Resolutior 240*320
● Field angle 50°×50° / Temp measured range -20°C~550°C
●Temp accuracy ±2C or±2% of the reading, whichever is greater
● Minimum scale 0.1℃ / Temp unit ℃/°F/K
● Temp measurement mode Industrial temp measurement

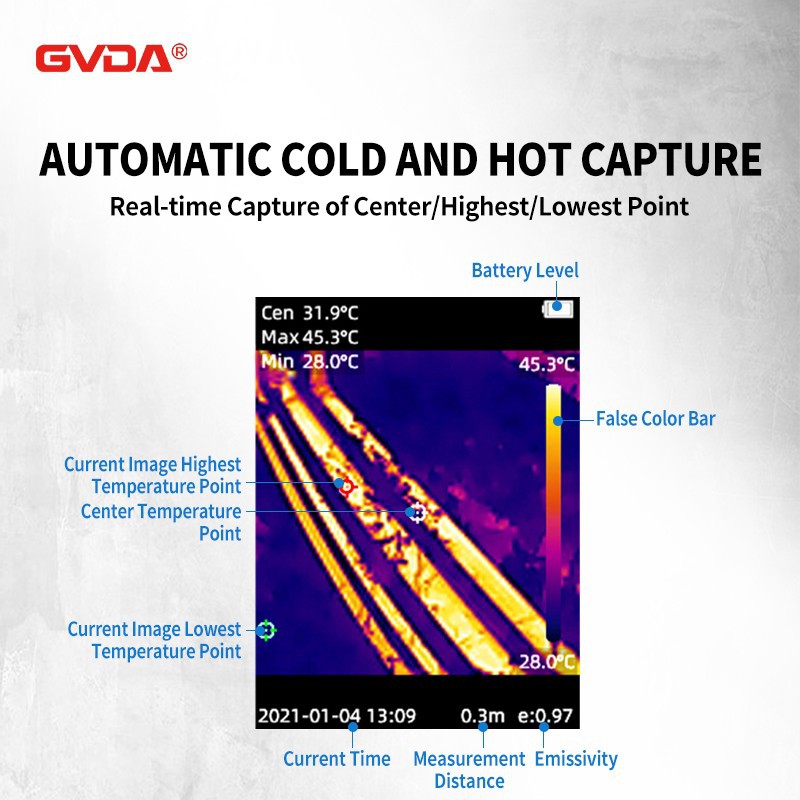

● Temp measurement display Center point/Maxtemp/Minimum temp
● Image mode GD96: Not Supported GD96PRO: IR/Visible/Fusion/PIP
● Visible light camera: GD96: Not Supported GD96PRO: 2 million
● LED: GD96: Not Supported GD96PRO: Supported
● Image/Nideo format JPEG/MP4 / Temp analysis PCAnalysis tool
● TISR Support, resolution: 240*240
● Photo/Video Support / Language Supports 10 Languages
● Storage External SD card / Data port Type-C / Charge time ≤4h
● Battery: GD96: 2000mAh(Non-removable) GD96PRO: 3200mAh(Non-removable)
● Power of device : GD96: ≤0.9W GD96PRO: ≤1.4W
● Duration of use ≥9h
● Working temperature -10~50°℃
● Work humidity 10%~90%RH non-condensing
● Storage temperature -20~60℃
● IP rating IP54
● Drop level 1.5m
● Certifications CE,FCC,ROHS
● Other parameters
● Device weight 310g
● Device size 225mm*70mm*86.44mm
● Execution standards GB/T19870-2018
Product Details

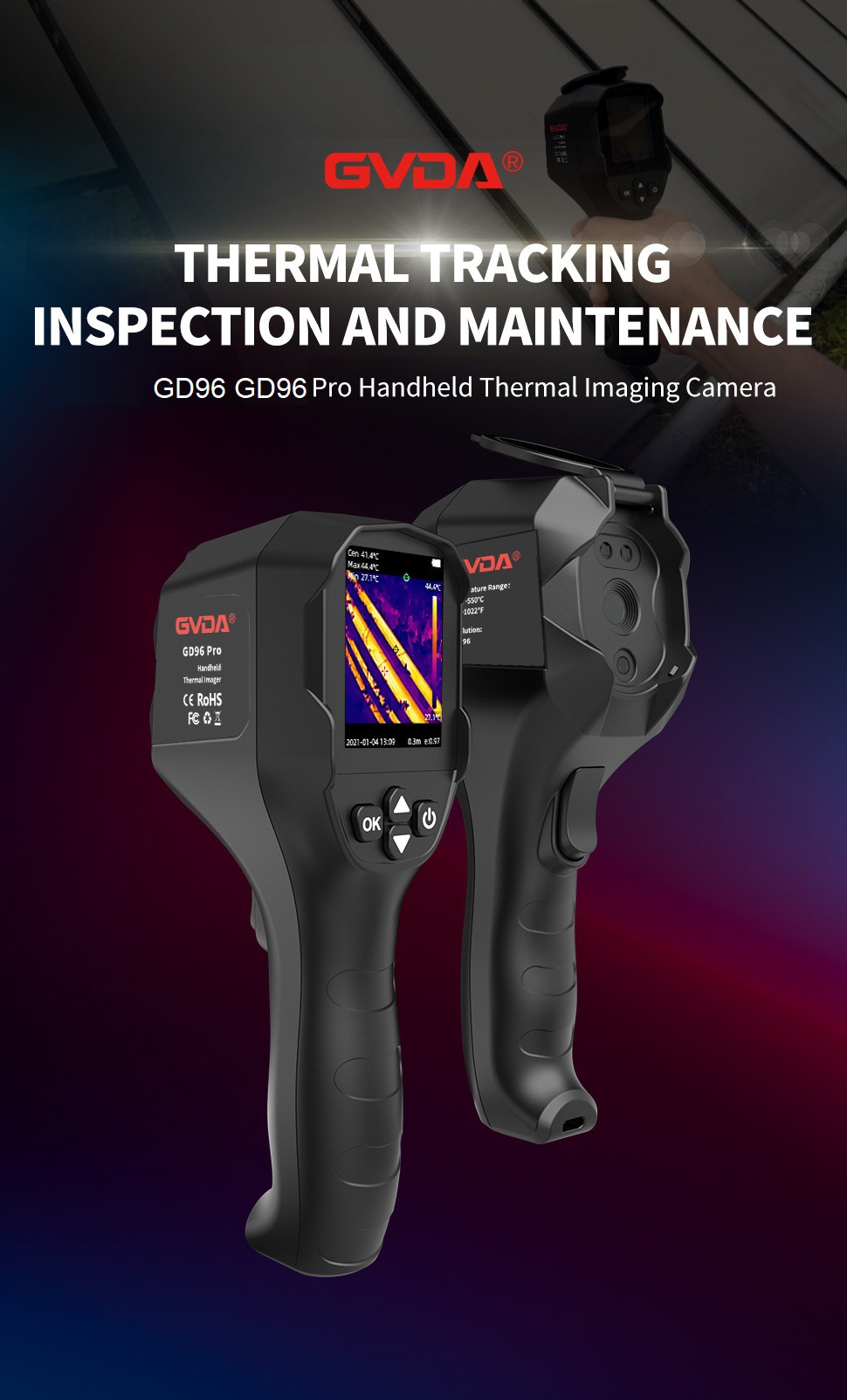

GVDA THERMAL TRACKING Inspection and maintenance
New Arrive GVDA GD96 GD96PRO Handheld Thermal Imaging Camera is Ideal for PCB circuit testing, floor heating tube inspections, and more with its infrared thermal camera.with its user-friendly interface, designed for ease of use.Built to last, the thermal camera withstands the rigors of industrial environments.
It is Multifunction Thermal Imaging Camera,More Surprieses for you

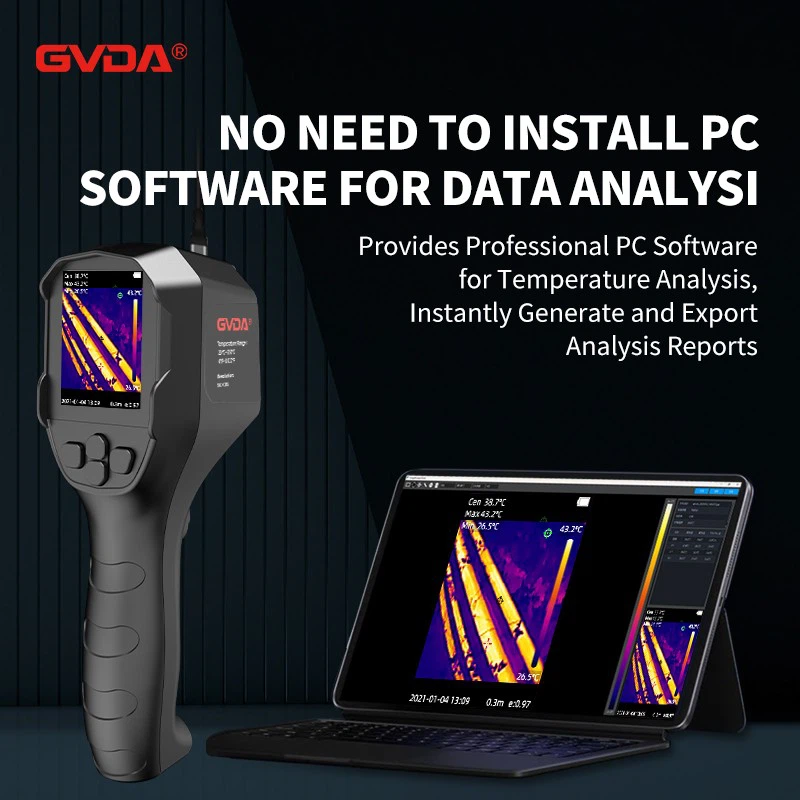

NO need to Install PC Software for Temperature Analysis
Provides Professional PC Software for point, Line and Suface Temperature Analysis Instantly Generates and Export Analysis Reports

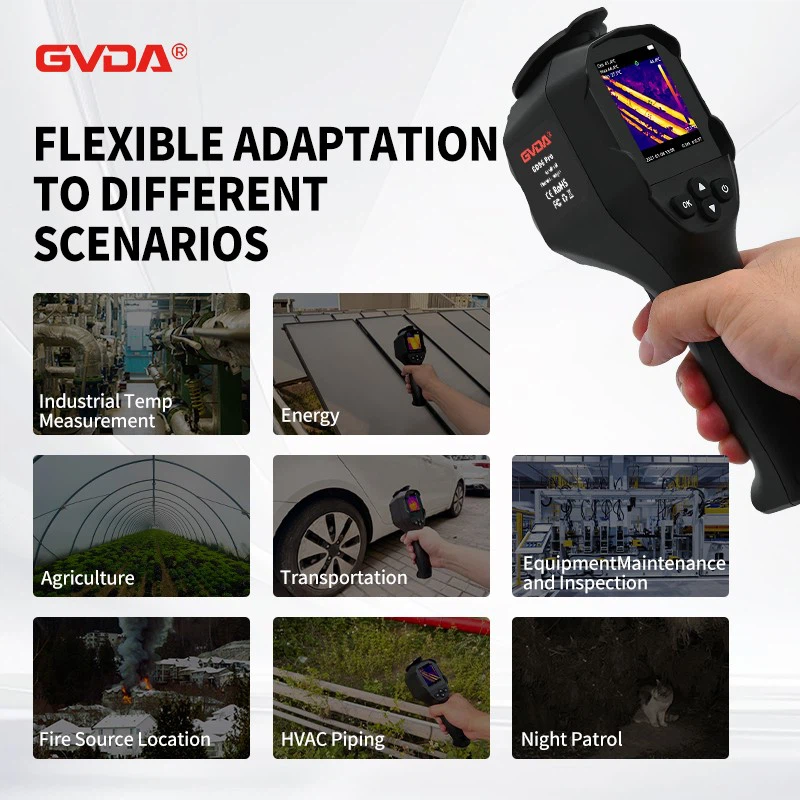

GVDA GD96PRO Handheld Thermal Imaging Camera is with Wide Temperature Measurement -20~550C
Esistant to high and Lww Temperatures,Suitable for Various Applications

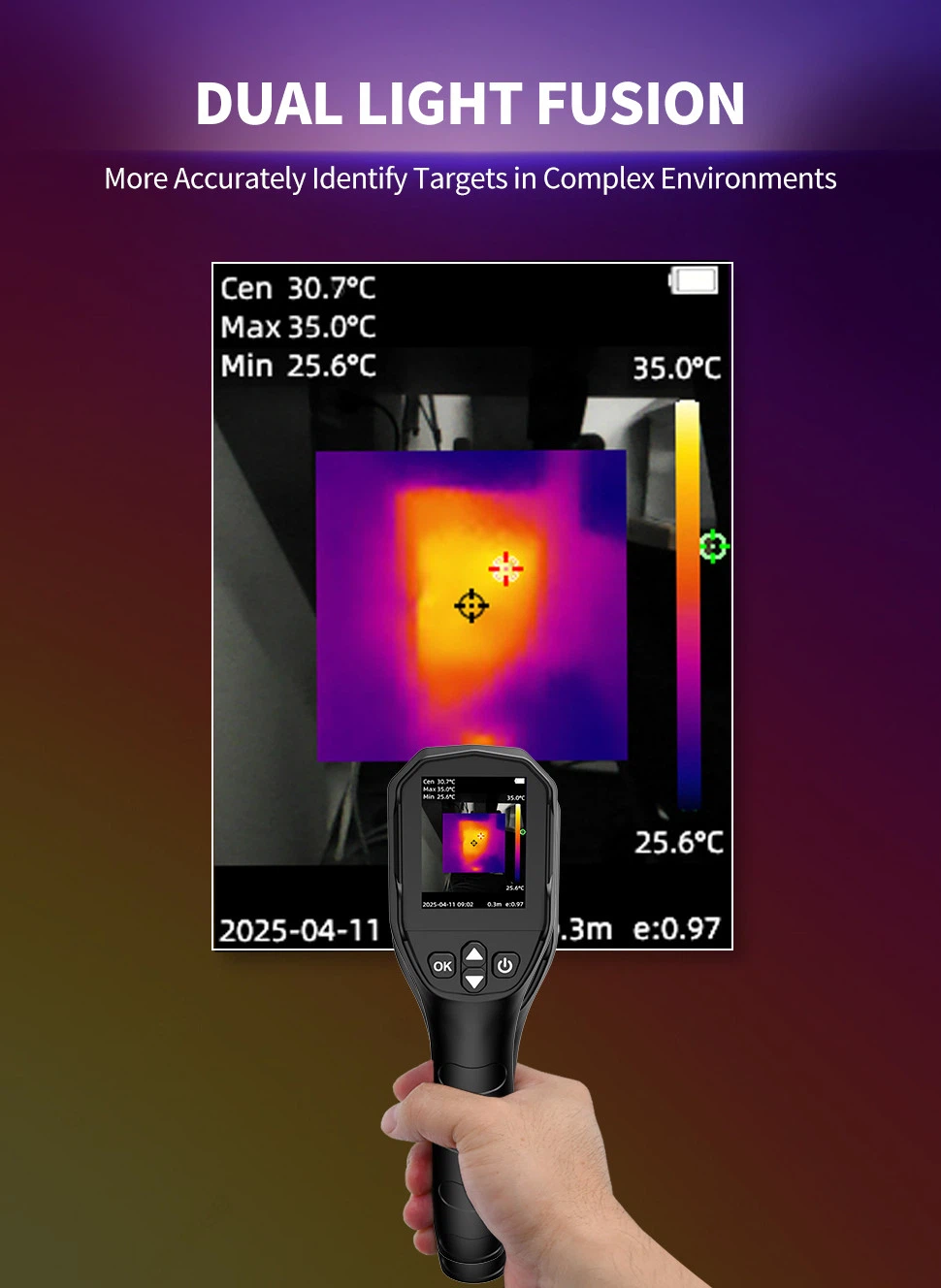

Dual Light Fusion
More Accurately Identify Targets in Complet Environments

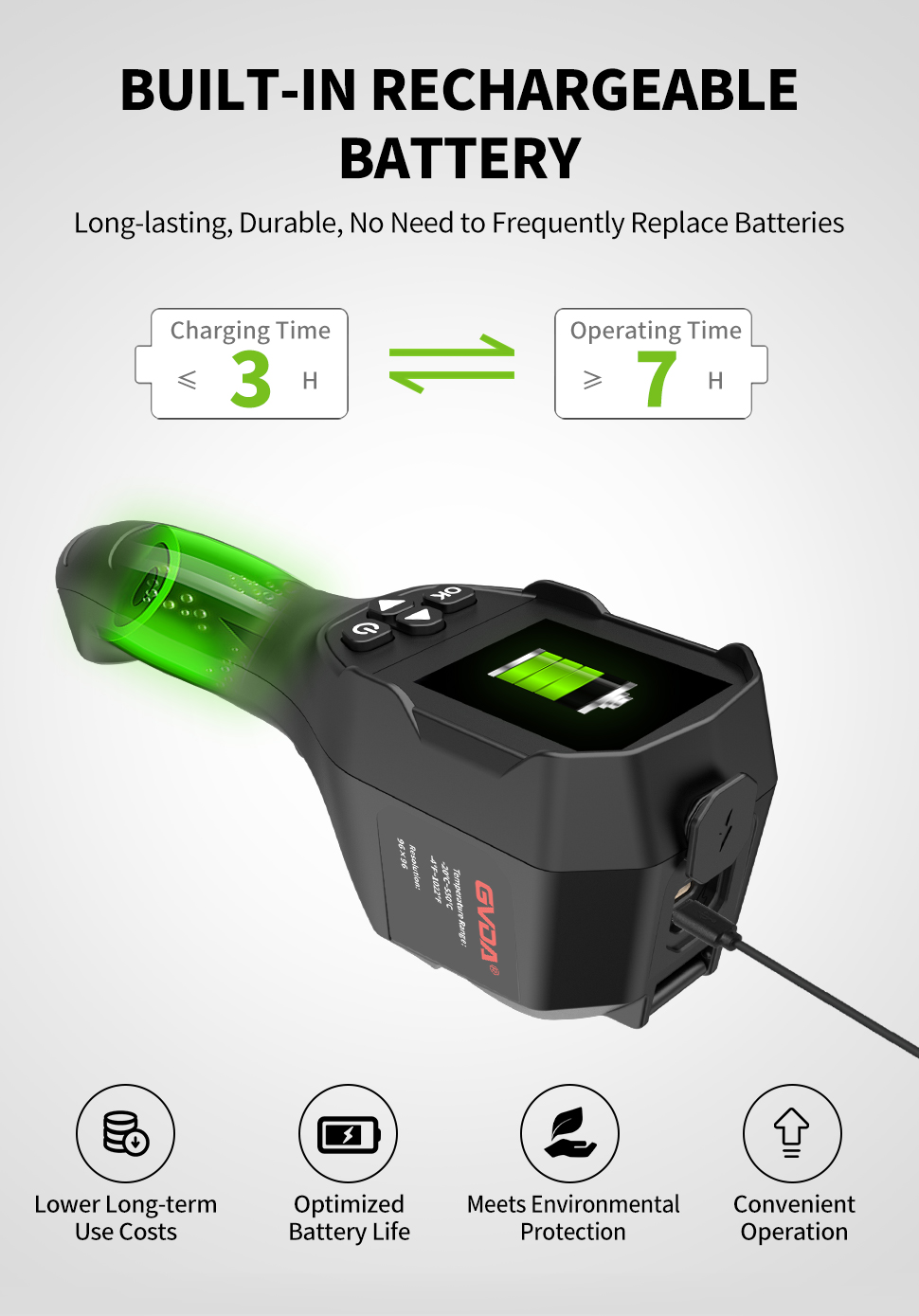

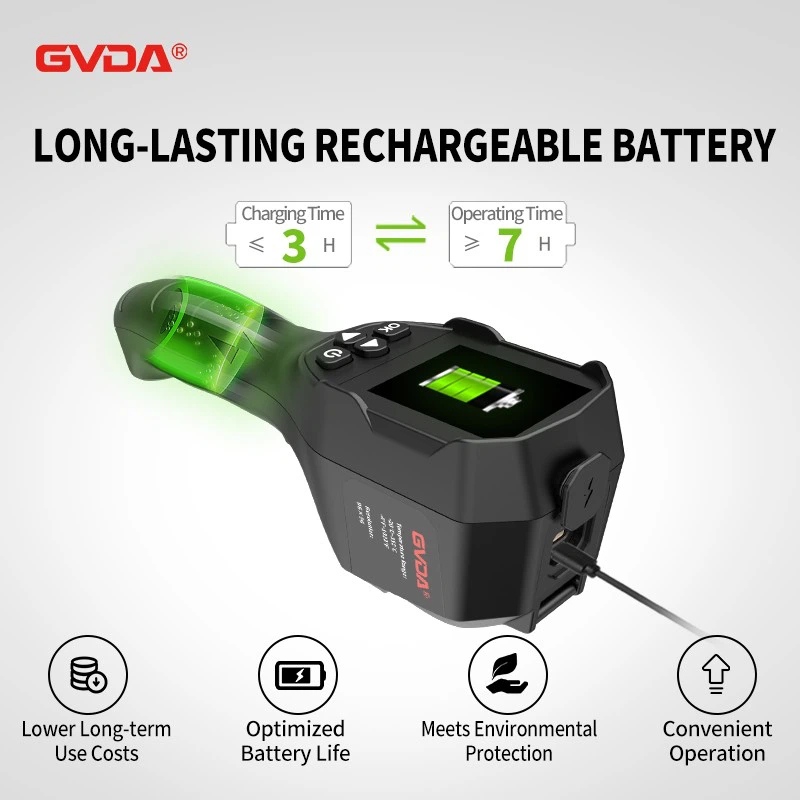

GVDA GD96PRO Thermal Imaging Camera is Built in Rechargeable Battery
Long Lasting, Durable, No Need Frequently Replace Batteries

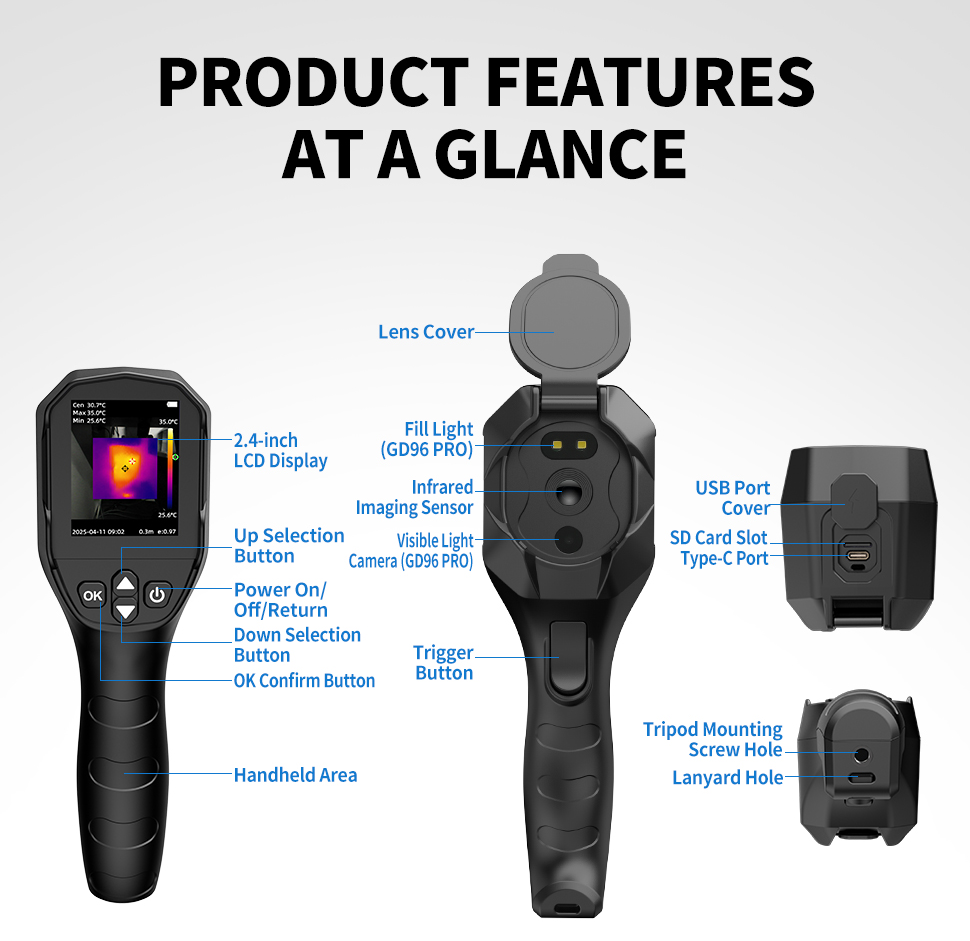

Product Features At A Glance
Thermal imaging Camera convert invisible heat energy into a visible image by detecting the infrared radiation emitted by objects, thus reflecting temperature distribution.
Basic Principle: The core principle of thermal imaging Cameras is based on the fact that all objects with temperatures above absolute zero (-273.15°C) emit infrared radiation, and the intensity of this radiation is positively correlated with temperature. The higher the temperature, the stronger the infrared energy emitted by the object; the lower the temperature, the weaker the radiation. This phenomenon follows the blackbody radiation theory (Planck's law) and is the physical basis of thermal imaging technology.
Thermal Imaging Camers visualize invisible thermal energy and provide a clear view of temperature distribution by capturing an object's infrared radiation, converting it into electrical signals, and then digitally processing it to generate a thermal image. This technology is widely used in industry, medicine, military, and scientific research, providing reliable data for non-contact temperature detection and thermal analysis.
The development trend of thermal imagers
With the continuous improvement of infrared technology, infrared thermal imagers have been widely used in various fields of society, and they are currently showing a very broad market prospect. The continuously developing infrared thermal imager has shifted from the military field to the civilian field and plays an important role that is difficult for other products to replace. In the civilian field, infrared thermal imagers are widely used in prevention and detection, fire protection, process control and security, automotive night vision environment monitoring, power, construction, petrochemical and medical fields. In addition, with the continuous expansion of the application fields of infrared thermal imagers, it will penetrate into all sectors of the national economy in the future. It can be predicted that the market for infrared thermal imagers in the civilian field is very likely to show explosive growth, and the potential demand market will reach hundreds of billions of US dollars. [4]
