Digital Mini Clamp Meter 4000 Counts

GVDA Digital Mini Clamp Meter 4000 Counts Multimeter Ammeter AC/DC Voltage Tester Car Amps Hz Capacitance NCV Test Voltmeter



Special Features

---



1) HD Backlight LCD Display
2) Display: Maximum 4000 Counts display
3) Non-contact AC voltage measurement(NCV)
4) Temperature measurement
5) MAX/MIN value measurement
6) Live wire detection
7) Auto power off
8) Low voltage display: low battery indication
9) Over range indication



Technical Data

---



AC Current:40A;200A, ±(2.5%+10d) for GD160A;4A;40A;200A, ±(2.5%+10d) for GD160B
DC Current:40A;200A,±(2.5%+10d) (only for GD160A, GD160B without this function)
AC Voltage:4V;40V;400V;600V
DC Voltage:400mV;4V;40V;400V;600V
Resistance: 400W; 4kW; 40kW; 400kW; 6MW; 60MW
Frequency: 10Hz~10MHz, resolution 0.001Hz~0.01MHz, ±(0.5%+2d)
Capacitance:40nF; 400nF~400μF; 4mF
Diode and Continuity: yes
Non-Contact Voltage Detection:yes
LINE Test (Live Wire Recognition):yes
Temperature range: -20℃~1000℃/-4℉~1832℉
Temperature Resolution: 1℃/1℉
Operating temperature:0~40°C(<80%RH
Storage temperature:-10~60°C(<70%RH,exclude batteries)
Maximum input voltage between input socket and the earth:600VRMS
The measuring principle: double integral A/D conversion
The sampling rate: about 2 times/s
Display：Max. reading 4000, based on measuring function to show function icons into the LCD automatically
Range selection: auto ranging switch
Over range indication: "OL"
Input polarity: display"-"
Low battery indication：yes
Backlight: yes
Data hold: yes
Battery：2*1.5V AAA batteries(not include)
Max jaw opening capacity: 19mm
The maximum measured conductor size: 19mm
Dimension:178×60×32mm
Weight: about 141g



Package contents

1*Clamp meter

1*Probe

1*Temperature probe

1*Bag

1*Manual

1*Box



Product Details Show

---



GVDA Digital Mini Clamp Meter 4000 Counts

GD160A is AC/DC clamp meter, it can measure both AC current and DC current.

GD160B is AC clamp meter, it can only measure AC current.





Multi Functions





AC Voltage Measurement





DC Current Measurement





AC Voltage Measurement

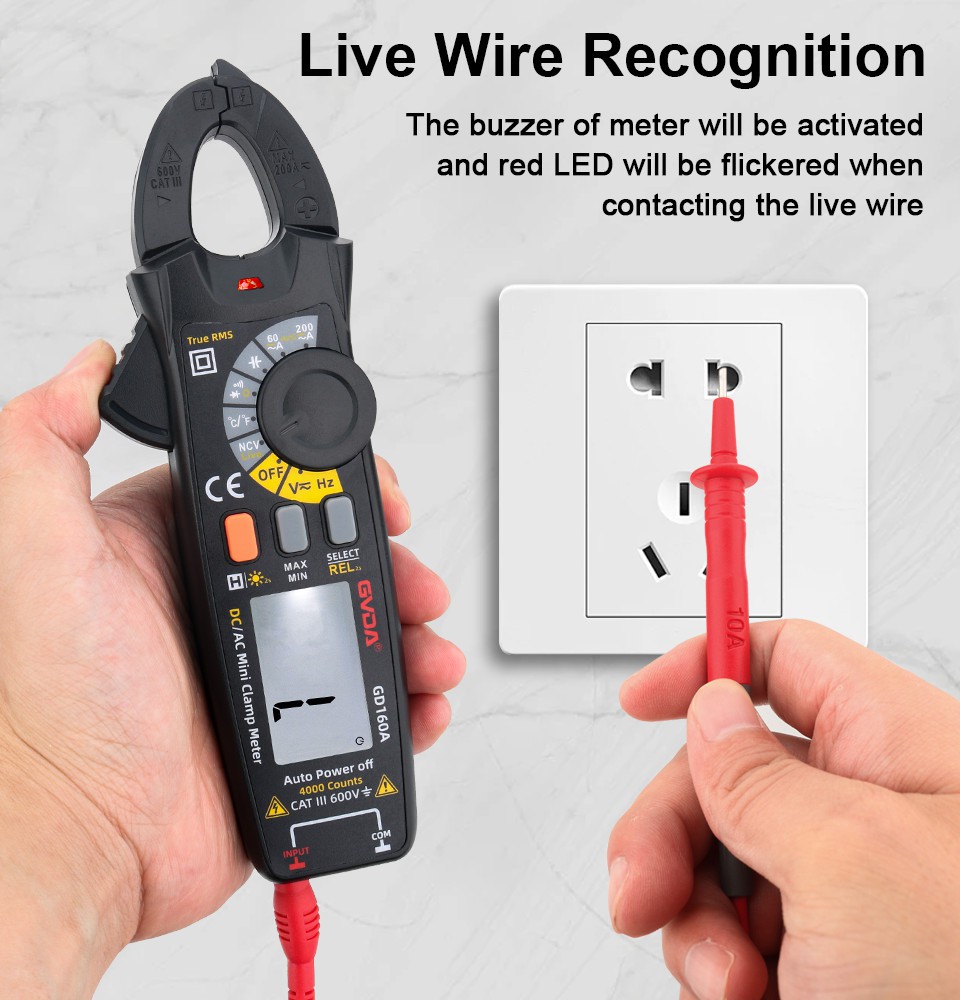

Live Wire Recognition





Buttom Introduction







Packing List





GVDA This range clamp meters have been designed according to IEC-61010-2-032concerning electronic measuring with 600V CAT III. The series lamp meters measure AC/DC voltage, AC/ DC current, resistance, capacitance, frequency, diode test, continuity check, temperature, non-contact voltage (NCV) and liver wire detection so on, which features a rugged design for heavy duty use, proper use and care of these clamp meters will provide many years of reliable service. To fully utilize this range clamp meters, please keep this manual for reference carefully.
