True RMS 6000 Counts Digital Clamp Meter

GVDA True RMS 6000 Counts Digital Clamp Meter Multimeter Auto Range NCV DC AC Voltage Inrush Current Temperature Tester Automatic Voltmeter GD166A GD166B



Special Features

---



1) HD Colour LCD Display

2) Display: Maximum 6000 Counts display

3) Non-contact AC voltage measurement(NCV)

4) AC Inrush current measurement

5) MAX/MIN value measurement

6) Live wire detection

7) Auto power off

8) Low voltage display: low battery indication

9) Over range indication

10) DCA zero (only GD166B GD168B)



Technical Data

---



Technical Indicator	Measuring Range
DC Voltage	600mV,6V,60V,600V
AC Voltage	600mV,6V,60V,600V
DC Current	60A,600A only for GD166B GD168B)
AC Current	60A,600A
Resistance	600Ω,6KΩ,60KΩ,600KΩ,6MΩ,60MΩ
AC Inrush current:	60A,600A
Capacitance	6nF,60nF,600uF,6uF,60uF,600uF;6mF,60mF
Frequency	100Hz,1000Hz,10KHz,100KHz,1000KHz,10MHz
Duty Cycle	1%~99%±(1.0%+2)
Temperature	-40℃~1000℃±(1.0%+2)/-40℉~1832℉±(1.0%+2)
Maximum count	6000 counts
VA HD display screen	√
Automatic/manual range	√
Continuity test (sound and light prompt)	√
Diode test (buzzer prompt)	√
Data-hold	√
NCV non-contact voltage detection (acousto-optic prompt)	√
Backlight	√
Flashlight	√
DCA ZERO function	√ yes (only GD166B GD168B)
Low voltage indication	√
Automatic shut-down	√
True RMS	√
INRUSH function	√
Maximum/MIN value measurement	√
REL (relative value) measurement	√
Power supply	3x1.5V AAA batteries(not include)
Product Weight	GD166A: 200g  GD166B: 206g
Product Size	199*81*32mm
Packing Weight	450g
Package Size	230x120x45mm
Safety Rating	EN61010-1 CAT III 600V
Packing Contents	1 x Clamp Meter(Battery Not Included) 2 x Probe 1 x Temperature Probe 1 x Carrying Case 1 x Manual



Product Details Show

---

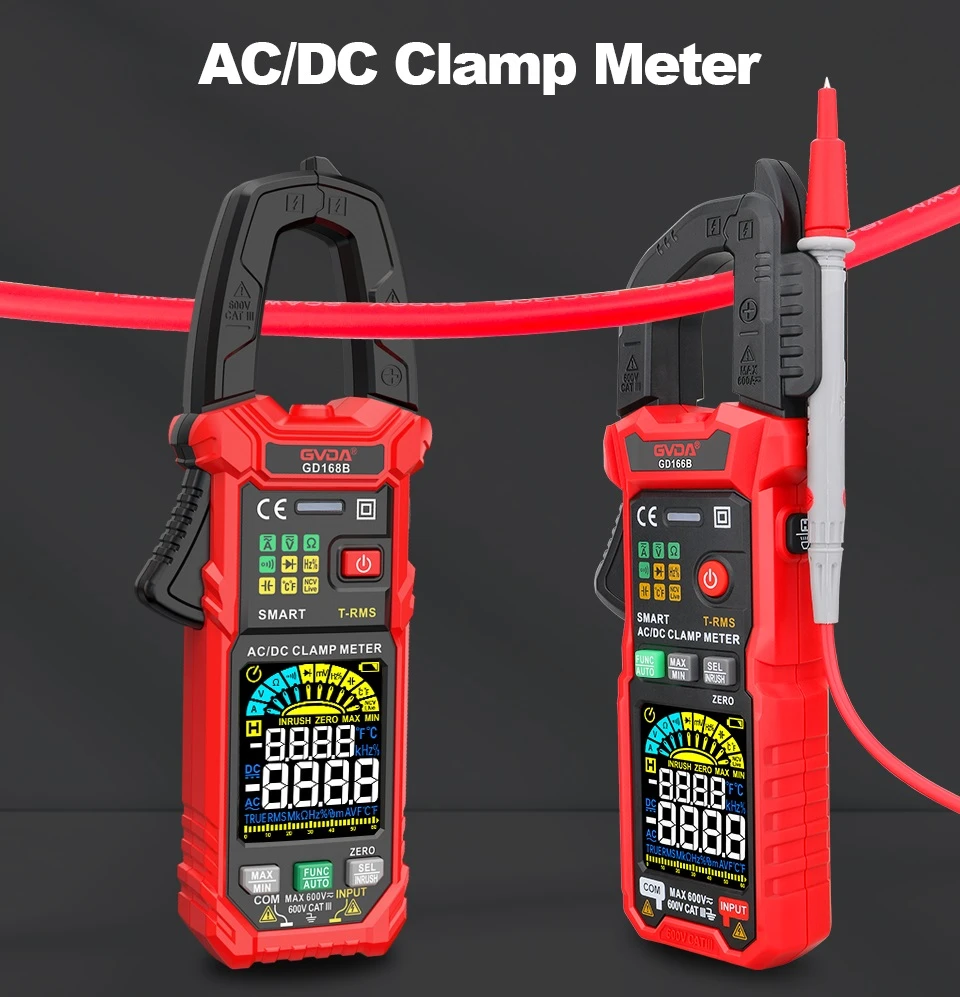

True RMS 6000 Counts Digital Clamp Meter

A new generation of true RMS high performance intelligent digital clamp meters that combine a wide range of functions to make your work easier, more efficient and sager. It is capable of measuring AC/DC voltage, AC/DC current, frequency, duty, resistance, capacitance, temperature, diode, continuity, NCV and more

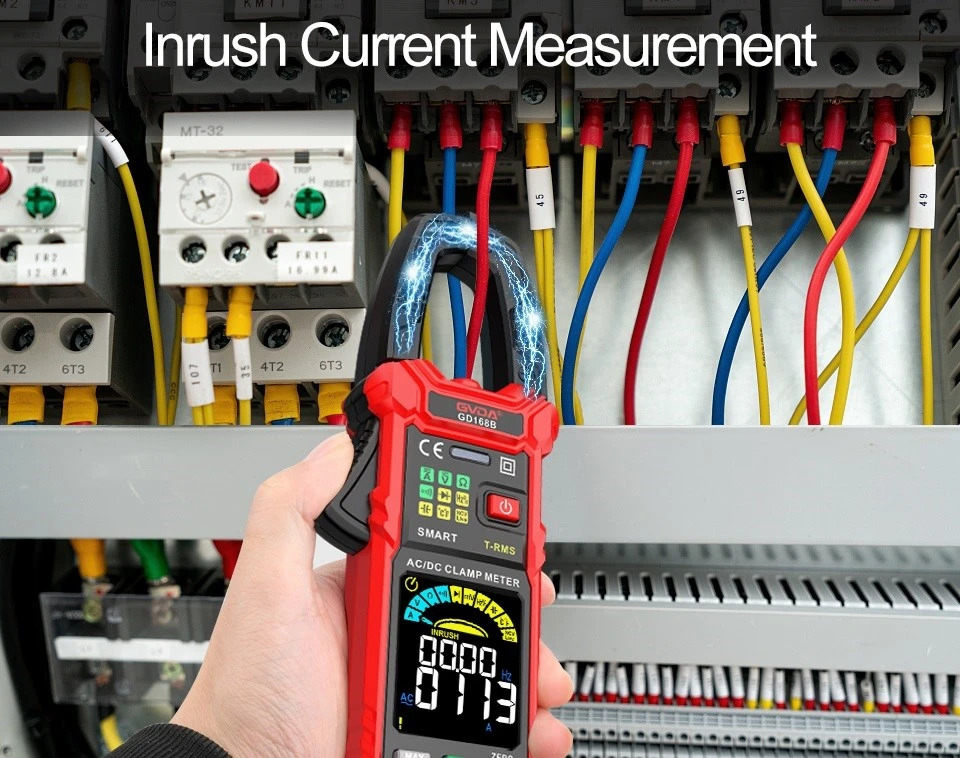

Inrush current measurement

Select the inrush current measurement function, then press the trigger to open the clamp,clamp the conductor to be tested, slowly release the
trigger until the clamp are completely closed,and determine whether the conductor is clamped in the center of the pliers.If the conductor is not in the center, additional errors will occur.

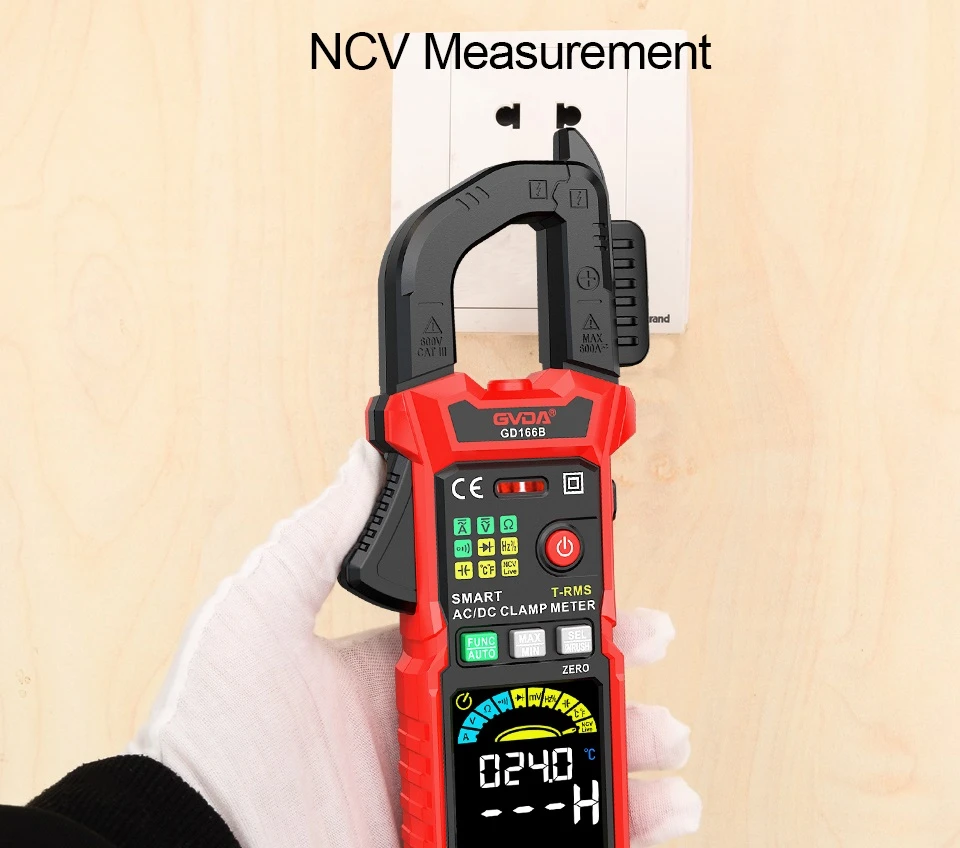

NCV measurement

When the weak electric field signal is induced, the "--L" symbol will be displayed, the beep will emit a slow beep sound, and the green LED indicator will light up.When the strong electric field signal is induced, the "--H" symbol will be displayed, the beep will emit a fast beep sound, and the red LED indicator will light up.

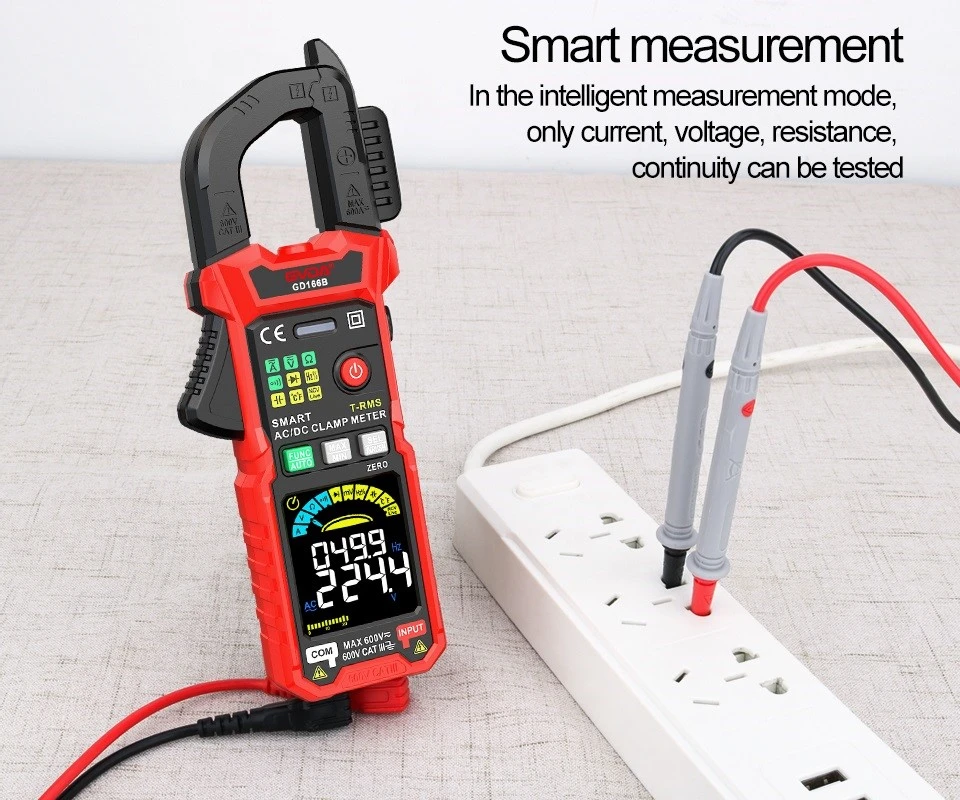

Smart measurement

The meter enters smart mode by default. It can measure voltage, current,resistance,continuity,and automatically identify the measurement signal. The current is measured with the clamp, and the other measurements are taken from the pen input.

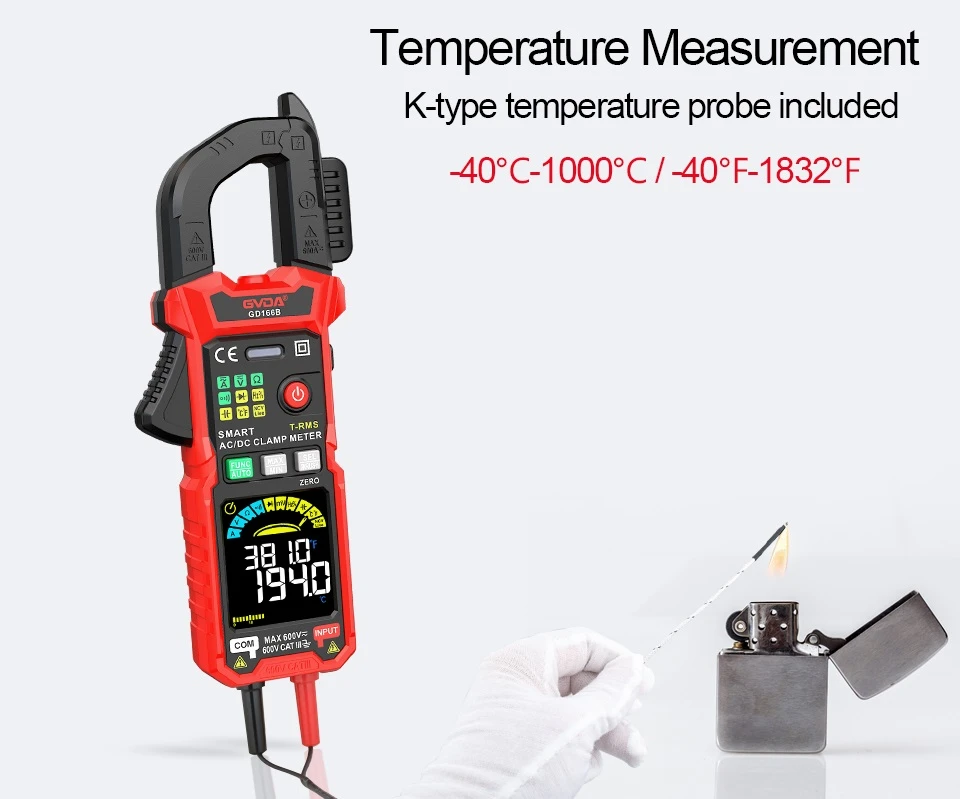

Temperature measurement

Measurement range is -40℃~1000℃ ,-40F~1832F. When measuring temperature,put the temperature probe into the object to be measured.





Packing Included









Certificates:

---
