GVDA Professional GD169A Digital Inrush Clamp Meter 1000A True RMS AC/DC Current Amp Meter, VFD, LOZ Mode, 6000 Counts, Measures Current Voltage Temperature Capacitance Resistance Diodes Continuity Duty-Cycle

Special Features

1. Scope of application, suitable for frequency conversion power supplies, air conditioners and refrigerators and other refrigeration equipment and motor performance testing.
2. With LCD digital display, full‑scale overload protection, data retention, and undervoltage indication.
3. 1000A AC/DC professional clamp meter, non‑contact voltage detection is suitable for laboratory, field measurement, household and large current measurement.
4. Multifunctional clamp meter, measuring AC current, AC and DC voltage, resistance continuity, temperature, capacitance, frequency test function.
5. Rugged and durable, it is made of ABS material and can be used for a long time without fear of damage.

Technical Data

Product Details Show

Professional Digital Inrush Clamp Meter

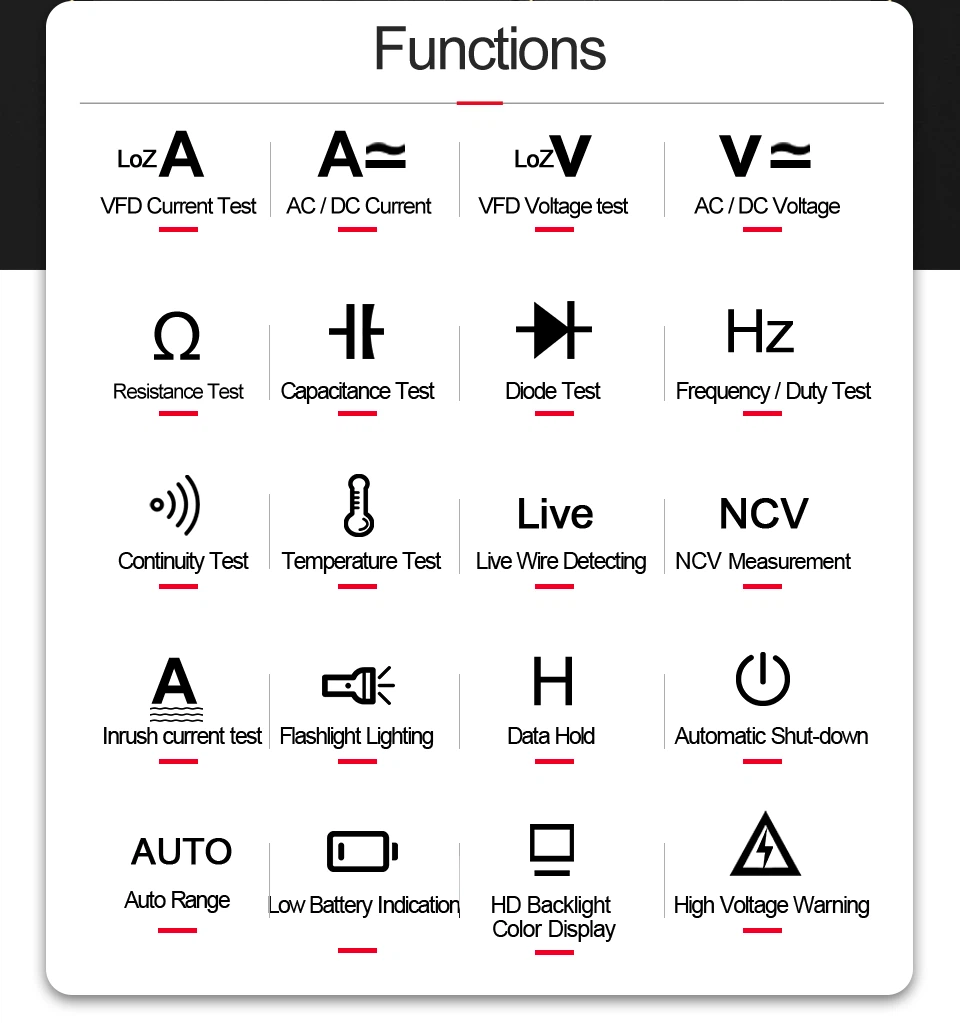

Multimeter Functions

This meter is a double impedance high performance true RMS digital clamp meter, which integrates multiple functions, makes your work easier, more efficient and safer. It can measure AC/DC voltage, AC/DC current, frequency, duty, resistance, capacitance, temperature, diode, NCV, VFD, inrush current, etc.

Inrush Current Meter

Knowing the value of inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. The measuring time of inrush current is about 100ms. When the current is greater than 10A, the Inrush function works well.

Advanced VFD Functions

The Clamp Meter has Variable Frequency Drive Filtering (VFD) and low Input Impedance (LoZ) modes, which can provide higher accuracy readings.

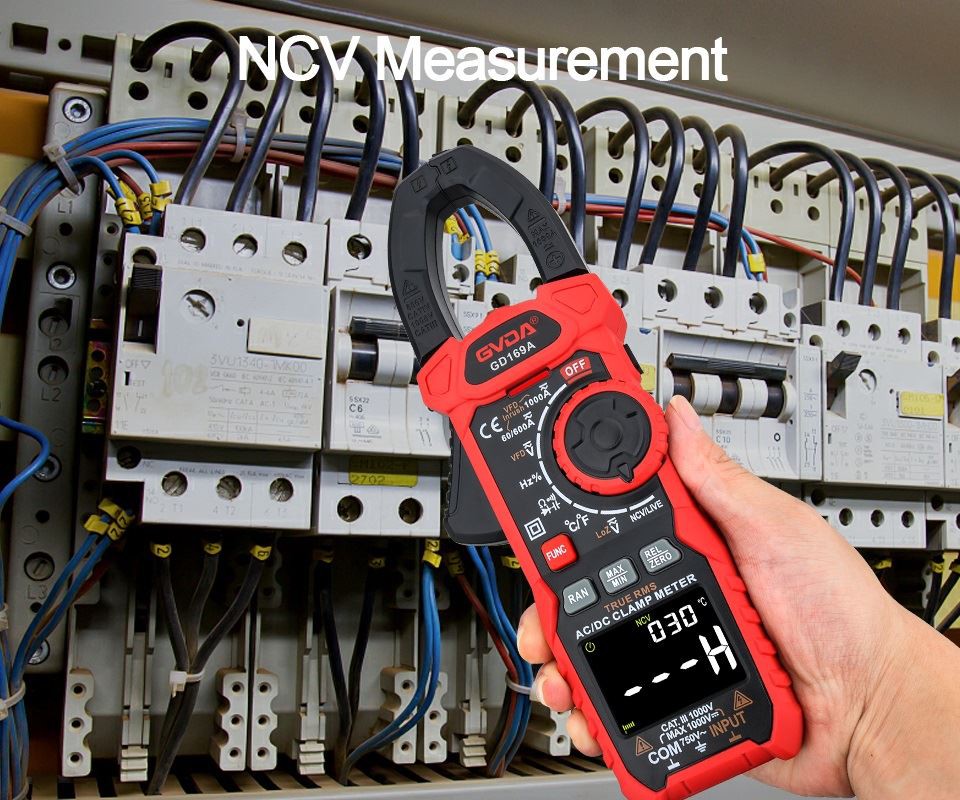

NCV Measurement

 Built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage.

Live Wire Detection

MAX / MINI Measurement

At current, voltage, resistance and temperature functions.  Press this key to cycle through the maximum and minimum values; Press this key for more than 2 seconds to exit this mode.  After entering this mode, the meter will automatically switch to manual range.

Temperature Measurement

Certificates:
