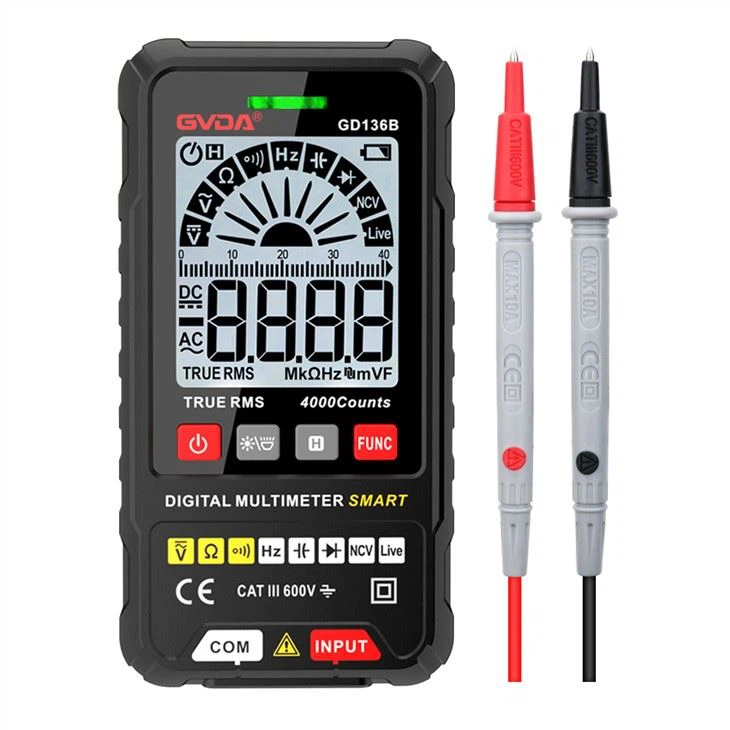

4000 Counts Auto-Ranging Digital Multimeter

1.Maximum 4000 Counts display
2.Smart Measurement
3.Auto range and Manual Range
4.Non-contact AC voltage detection
5.Auto power off

Send Inquiry

Description

Handheld Intelligent 4000 Counts Auto-Ranging Digital Multimeter True RMS LCD Display AC/DC Voltmeter Ammeter Ohmmeter Test with Flash Light

Special Features

1) Auto power off

2) Maximum display: Maximum 4000 Counts display

3) Non-contact AC voltage detection

4) Auto range and Manual Range

5) Smart Measurement

6) Sampling Rate: About 3 times per second

7) Over range display: the highest position shows "OL"

8) Low voltage display: low battery indication

9) Working environment: 0-40°C,relative humidity ＜80%

10) Power Supply: 2x1.5V Batteries ( NOT include)

Specification Data

Model: GD136A GD136B (Optional)
--GD136A: without Capacitance Measurement/ Diode Test
--GD136B: with Capacitance Measurement/ Diode Test
Color: Black
Material: ABS
Screen: LCD with Backlight
Max. Count: 4000 Counts
Max. Voltage: 600V DC or AC
Max. Resistance: 40MΩ
Continuity: ＜Approx. 50Ω, buzzer will sound and the indicator light will be on
Max. Frequency: 4MHz
Max. Capacitance: 4mF (GD136B only)
Display Diode Voltage Drop: (GD136B only)
Power Supply: 2 * 1.5V AAA Battery (NOT included)
Auto Shutdown: about 15min
Operating Height: ＜2000m
Operating Environment: 0~40℃ (＜80% RH, ＜10℃ non condensing)
Storage Environment: -10~60℃ (＜70% RH, remove the battery)
Item Size: 125 * 65 * 20mm / 4.92 * 2.56 * 0.79in
Item Weight: 106g / 3.75oz
Package Size: 16.5 * 9.5 * 5cm / 6.50 * 3.74 * 1.97in
Package Weight: 234g / 8.26oz

Package List:
1 * Smart Digital Multimeter
2 * Measuring Pen

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
