GVDA Professional True RMS Multimeter Digital Auto range 600V 10A with 40M ohms Capacitance Continuity Diode Test Battery Test
Need to test electricity or solve automotive & household electrical problems with multimeter? Want more accurate range display as 4000 counts, leading top of current technology? You can choose our GVDA multimeter. This brand new multi-functional multimeter with high precision and high performance MCU processor can measure DC/AC voltage/current, resistance. It can also test NCV(non-contact voltage), diode and continuity. With a bracket on the back, convenient to place it on the table and read the values.
Special points

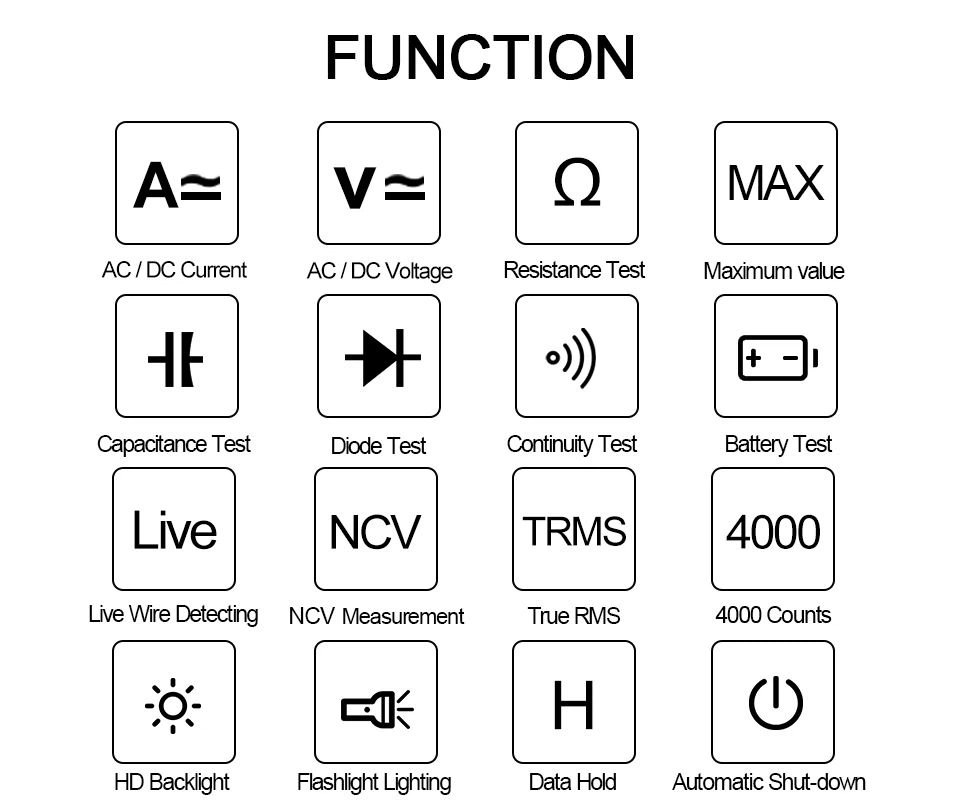

1. 4000 Counts & Multi-function: Max. display value 4000 counts and test AC/DC voltage, DC/AC current, NCV, resistance, 1.5V/9V battery test, continuity, diode with true RMS and full-featured design.
2. Precision Circuit Board & Overload Protection - With over load protection, quickly identifies existing voltage, shielding
interference & continuity test can be 60Ω. Show "OL" on the LCD if overload.
3. More Functions Selection: NCV test with visual and audible alarm ensure your life safety, with low battery indication, maximum measurement, data hold, auto power off function and full symbol display clearly.

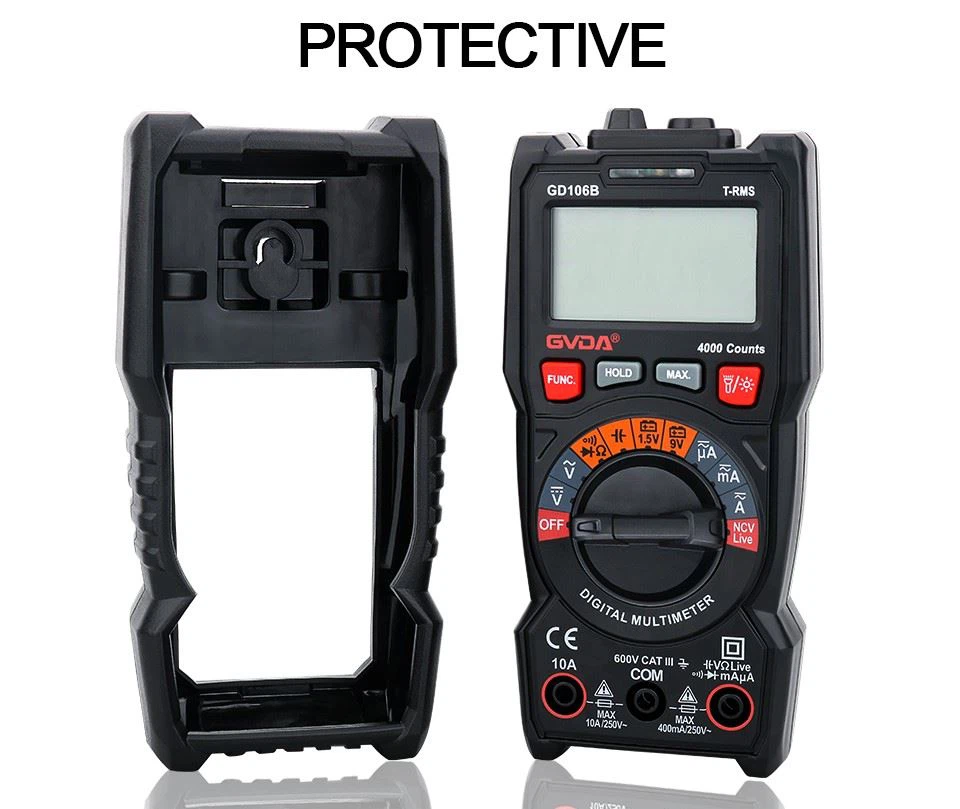

4. Easy to Use & Clear to Read: Easy to operate, accurate readings, low power consumption, perfect home tool for the laboratory, home, factory, etc. Protected by rubber for drop protection.

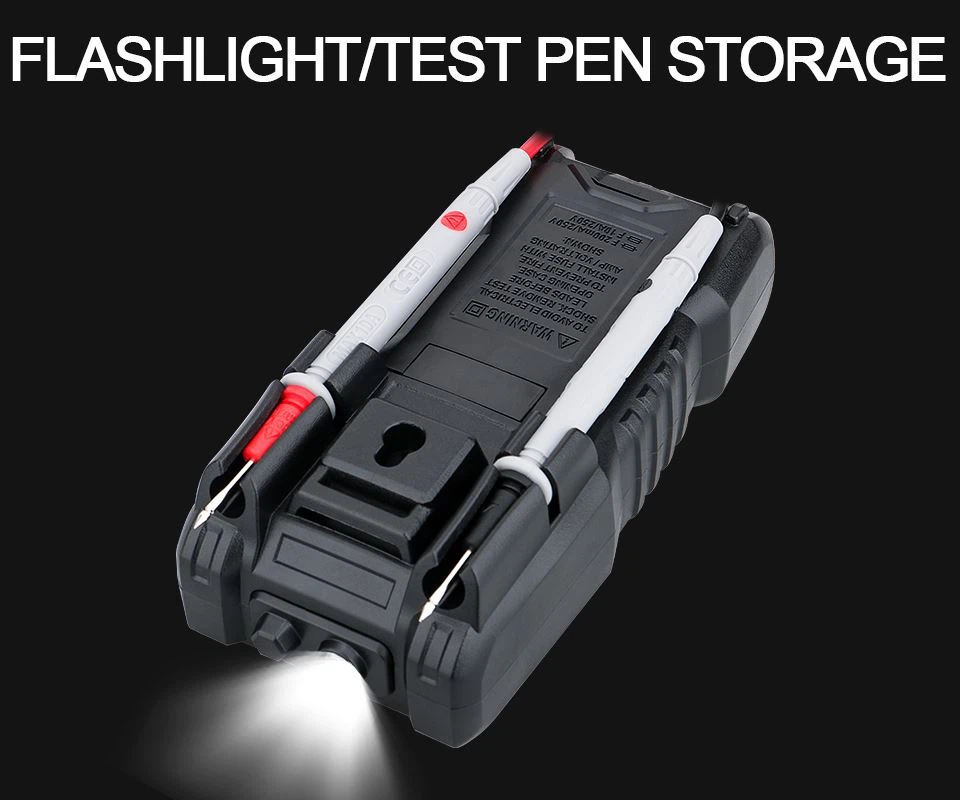

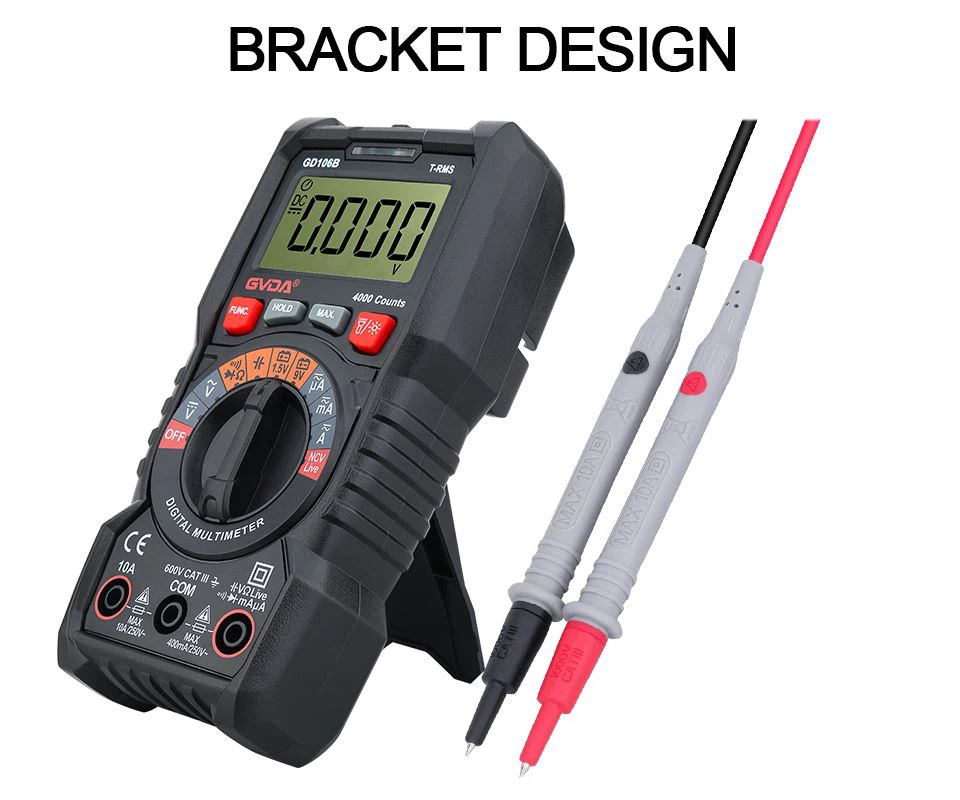

5. Portable Design: There is a back bracket for supporting multimeter, and also can collect test probe for your convenience. Backlight LCD and flashlight for easy operation in dimly lit areas.
Tech. Data
| Specifications | Range | Accuracy |
| DC Voltage | 400mV/4V/40V/400V/600V | (0.5%+3) |
| AC Voltage | 400mV/4V/40V/400V/600V | (0.8%+3) |
DC Current | 400uA/4000uA/40mA/400mA | (1.2%+3) |
| 10A | (2.0%+3) | |
| AC Current | 400uA/4000uA/40mA/400mA | (1.5%+3) |
| 10A | (2.0%+3) | |
| Resistance | 400/4K/40K/400k/4M/40MΩ | (1.0%+3) |
| Capacitance | 4nF/40nF/400nF4μF/10μF/40μF/ 400μF/4mF | |
| Display | 4000 Counts | |
| Auto/Manual Range | Auto | |

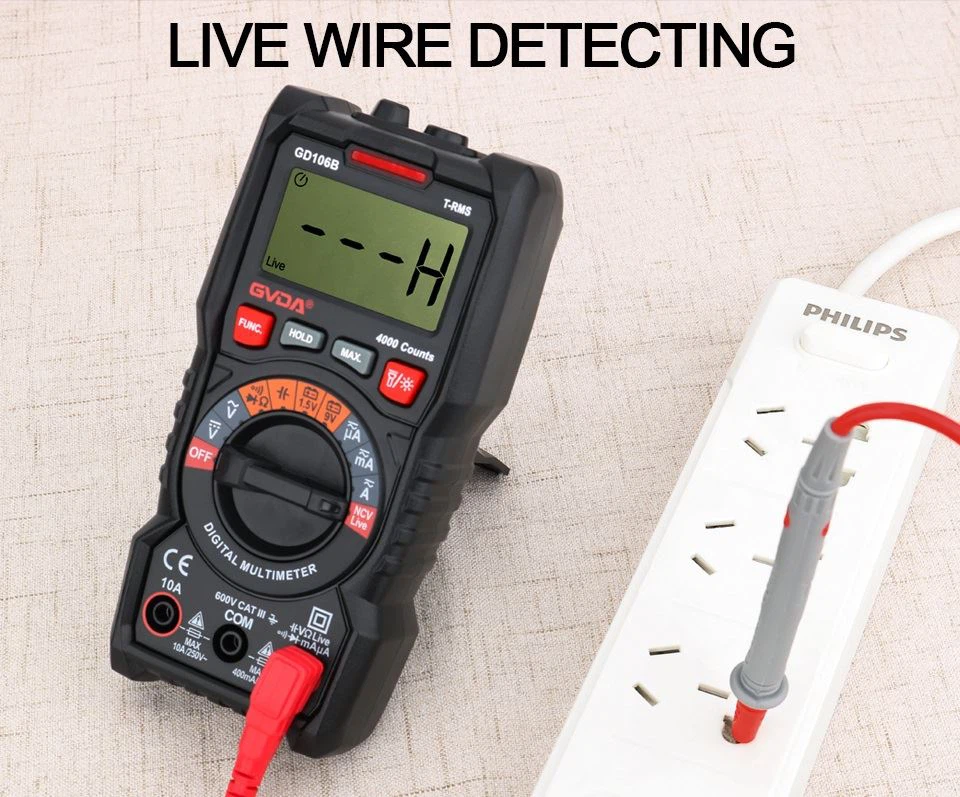

| Live Wire detection | Yes | |
| NCV | Yes(LED and Buzz) | |
| Diode Test | Yes | |
| Continuity | Yes(LED and Buzz) | |
| Max data hold | Yes | |
| Data hold | Yes | |
| True RMS | Yes | |
| Bandwidth | 40-400Hz | |
| Battery Test(1.5v/9v) | Yes | |
| Low battery indication | Yes | |
| Auto Power off | Yes | |

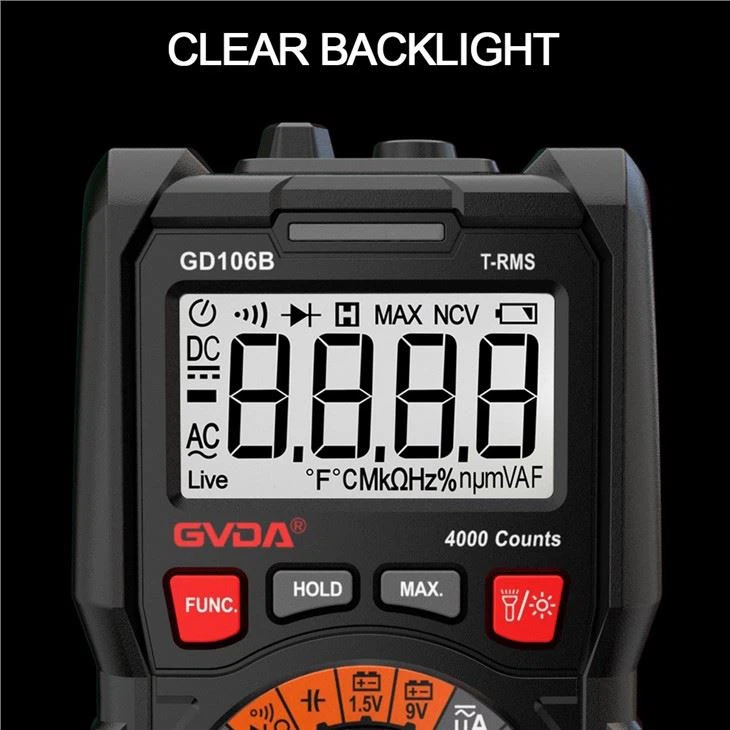

| Back light | Yes | |
| Work Light | Yes | |

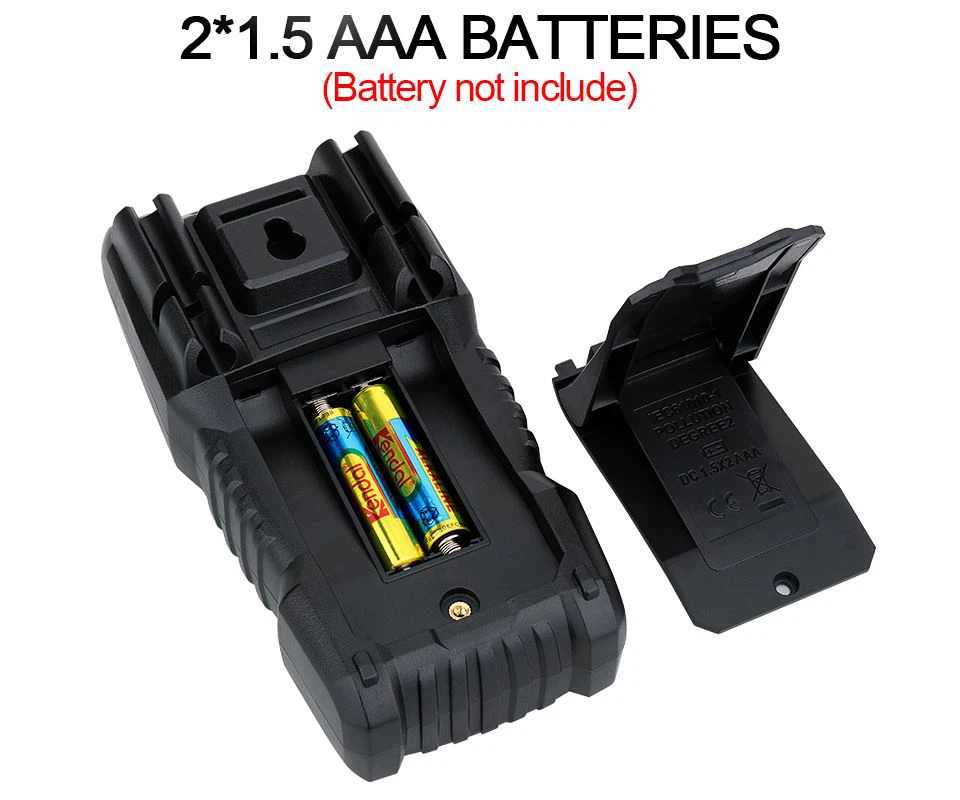

| Power | 2*1.5V AAA batteries | |
| Weight | Approx.220g | |
| Size | 151mm*75mm*48mm | |
| Safety Rating | EN61010-1,-2-030 EN61010-2-033 CATIII 600V | |

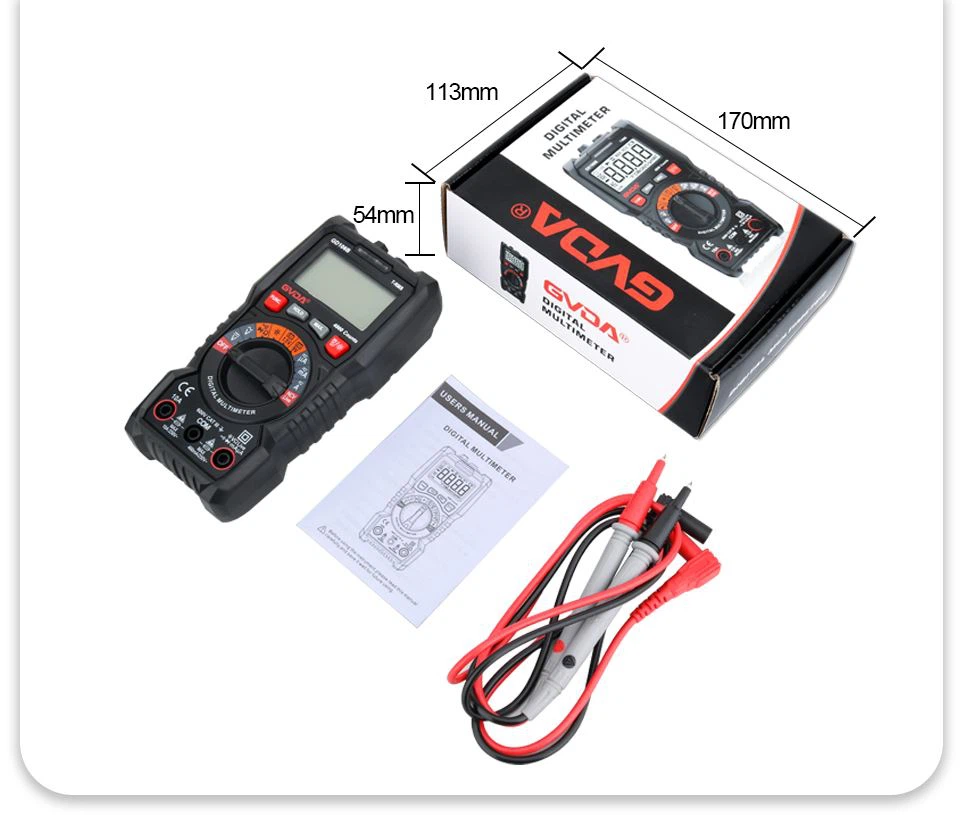

| Packing Contents | 1pc Multimeter / 1pc pen cable / 1pc cloth bag/ 1pc user manaul | |
Details Show
4000 Counts True RMS Digital Multimeter
