Portable Tester Digital Multimeter Profesional

GVDA NEW Portable Tester Digital Multimeter Professional 6000 Counts Multimetro 1000V 10A AC DC Ohm Hz NCV Live Temperature Duty Voltage Meter

GVDA An advanced multimeter designed to be used safely and accurately by electricians at work places or homeowners and DIYers who need more capabilities than the standard measuring tool.

Highlights Features

1) GD108A dual Color LCD Screen

2) Maximum display: Maximum 6000 Counts display

3) GD108A is Auto range

4) Sampling Rate: About 3 times per second

5) Over range display: the highest position shows "OL"

6) Low voltage display: low battery indication

7) Working environment: (0-40)°C,relative humidity ＜80%

8) Power Supply: 2PCS 1.5V AAA Batteries ( NOT included)

9) It is a stable performance, high precision, high reliability clear readings, and overload protection.

Technical Details

DC Voltage: 600mV/6V/60V/600V/1000V Accurate: (±(0.5%+3)

AC Voltage:  600mV ±(1.0%+5) 6V/60V/600V/750V Accurate: ±(1.0%+5)

DC Current:  600uA/6000uA/60mA/600mA Accurate: ±(0.8%+3) 6A/10A ±(1.2%+3)

AC Current:  600uA/6000uA/60mA/600mA Accurate: ±(1.0%+3) 10A ±(1.5%+3)

Temperature:  40°C~1000°C ±(1.0%+3) -40°F~1832°F ±(1.0%+3)

Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(0.8%+3)

Capacitance:10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+3) 100mF:±(5.0%+5)

Frequency:10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3)

Auto/Manual range: Auto Range

Display:GD108A: Dual Color LCD Screen GD108B/GD108C: LCD Display

Bargraph: yes

Battery test(1.5V/9V): not have this function

Duty:1%~99% ±(1.0%+2)

Counts:6000 Counts

Live Test:Yes (sound and light alarm)

NCV: Yes (sound and light alarm)

Diode Test:Yes

Continuity: Yes (sound and light alarm)

Max/Min Hold: Yes

Data Hold: Yes

True RMS: Yes

Bandwidth:1kHz

Low Battery Indication: Yes

Auto Power Off: Yes

Backlight: Double Color

Input Jack : LED Indicate

Work Light:√

Power:2xAA Batteries

Produce Weight / Size: Approx. 350g / 188 x 88 x 58mm

Safety Rating:EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V,CATIV 600V

Paking Contents:

1PC Professional Digital Multimeter

1PC User manual

1pc Test Pen

Product Show:

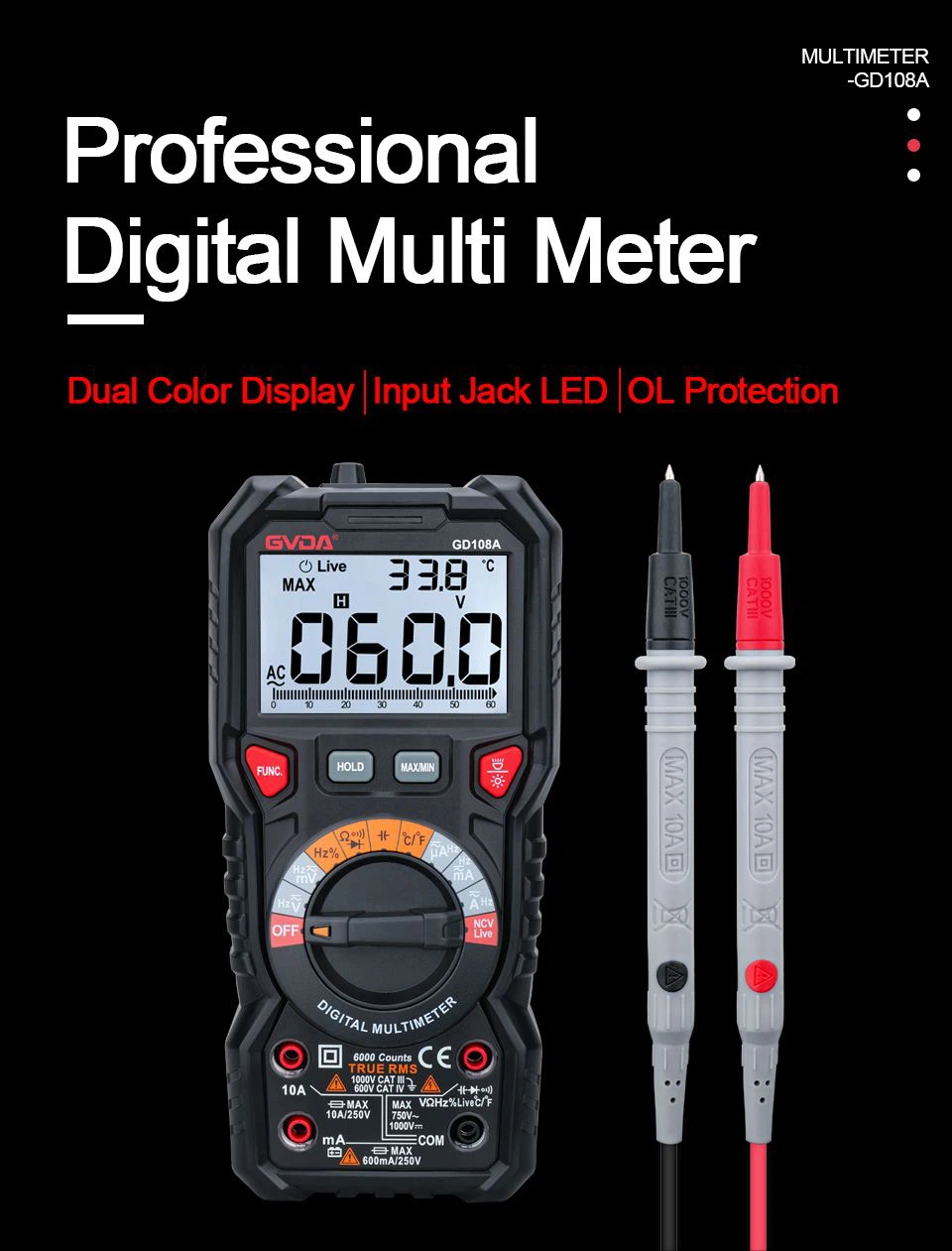

Portable tester digital multimeter profesional

Dual Colr Display / Input Jace LED / OL Protector

Live Wire Checking

A single red tester pen can quickly and accurately find the live wire in the line

NCV Measurement

The stronger the induction AC signal, the faster the buzzer, and te indicator light will be red.

Overload Protection

Accoring to the pen connection method of this chart 220V measurement state, 360 degree shifting does not burn the meter

Capacitance Test

Up to 100MF (100MF=100000PF)

Package Included:
