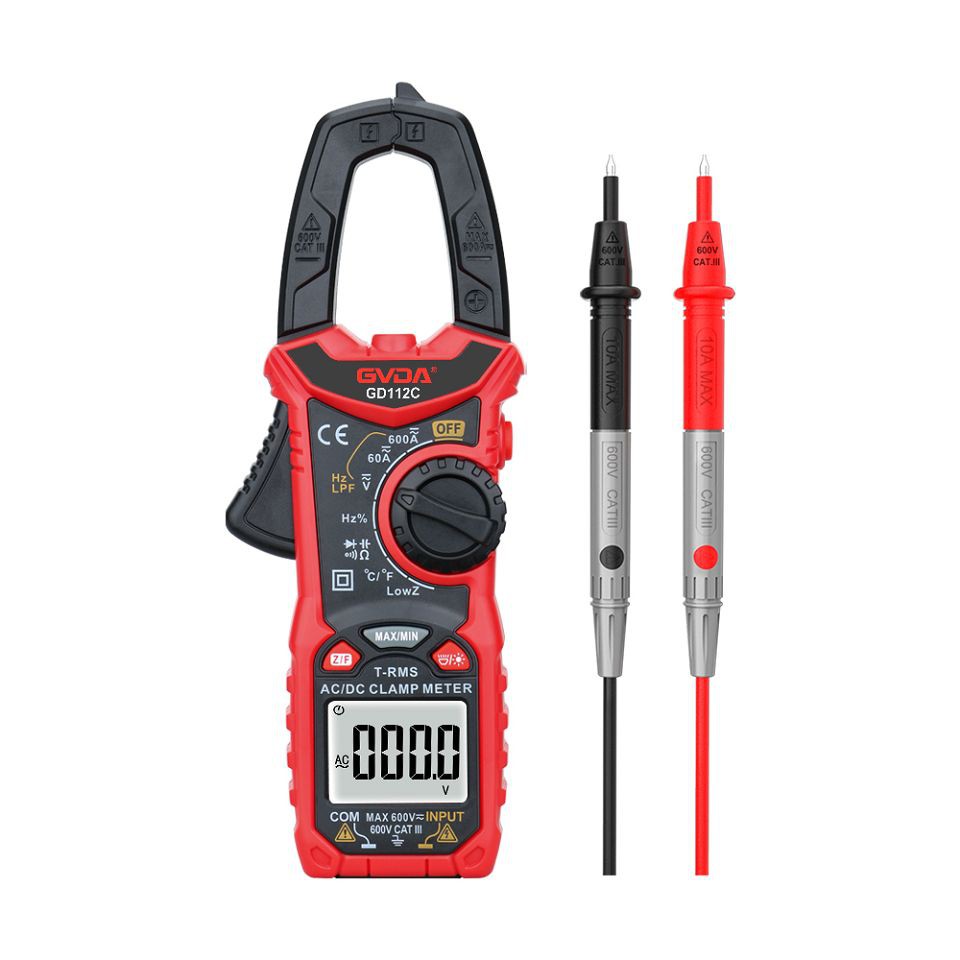

6000 Counts Digital AUTO Range Clamp Meter

Name: 6000 Counts Digital AUTO Range Clamp Meter
Brand: GVDA
SKU: 166210287

GVDA Clamp Meter is an intelligent true effective value multimeter, Intelligent identification and manual function are integrated, which can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode, NCV,etc.; It is the best choice for professional electrician, engineer, electronic enthusiast or family use.

Send Inquiry

Description

GVDA 6000 Counts Digital AUTO Range Clamp meter High Precision Voltage Current Tester Ohm Capacitance 600V AC DC True RMS Tester

Product Features

1) Maximum display: Maxium 6000 Counts display

2) Temperature Measurement only for GD112B GD112C

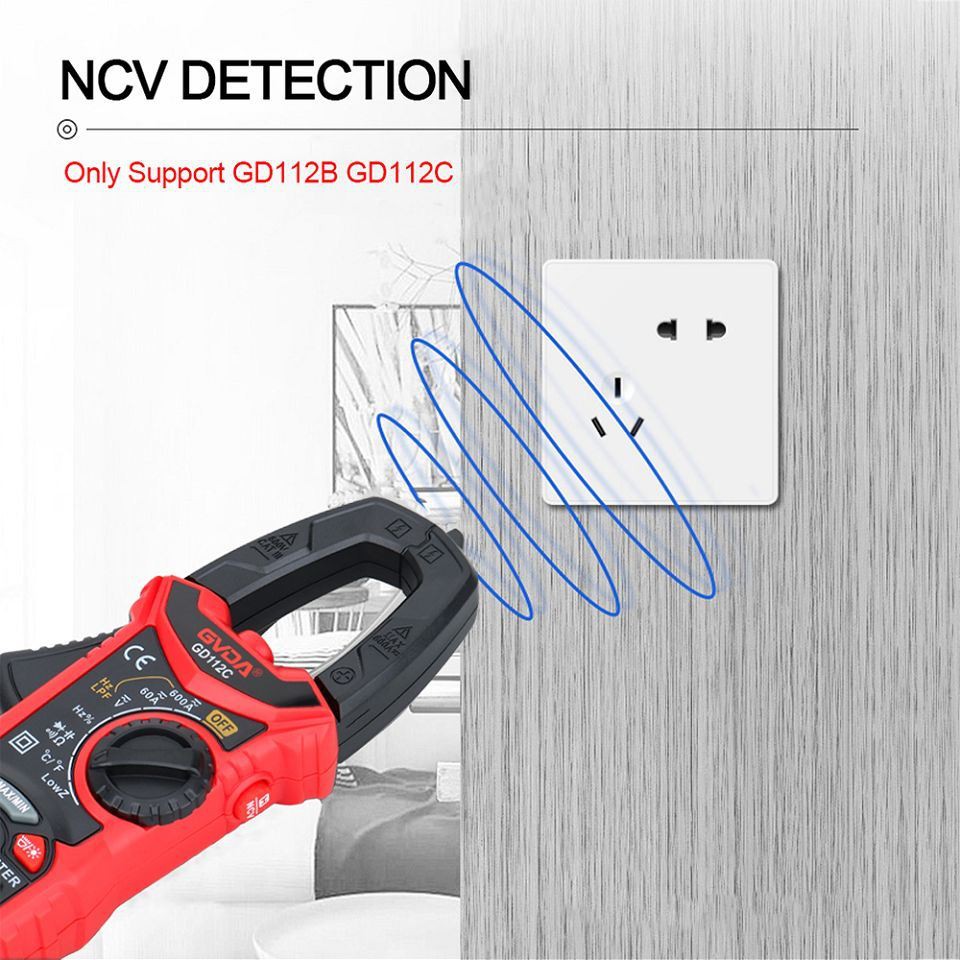

3) NCV Detection with 26mm Larger Jaw Design

4) When more than 3A, or more than 80V Orange backlights will appear on LCD and Warn the user it is dangerous

5) Working environment: (0-40)°C,relative humidity ＜80%

6) Power Supply: 2x 3AAA Batteries ( not include)

7) True RMS Value

Technical Data:

Functions	GD112C
Range	Auto
AC Voltage	600mV/6V/60V/600V
DC Voltage	6V/60V/600V
AC Current	6A/60A/600A
DC Current	6A/60A/600A
Resistance	600 Ω/ 6K Ω/ 60K Ω/600KΩ/6MΩ/60MΩ
Capacitance	10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1mHz/10mHz
Duty Cycle	1%-99%
Temperature	-40~1000C, -40F~1832F
Display Counts	6000 Counts
Max/Min	V
Continuity	V
Auto off	V
Data Hold	V
Double backlight	V >3A, >80V

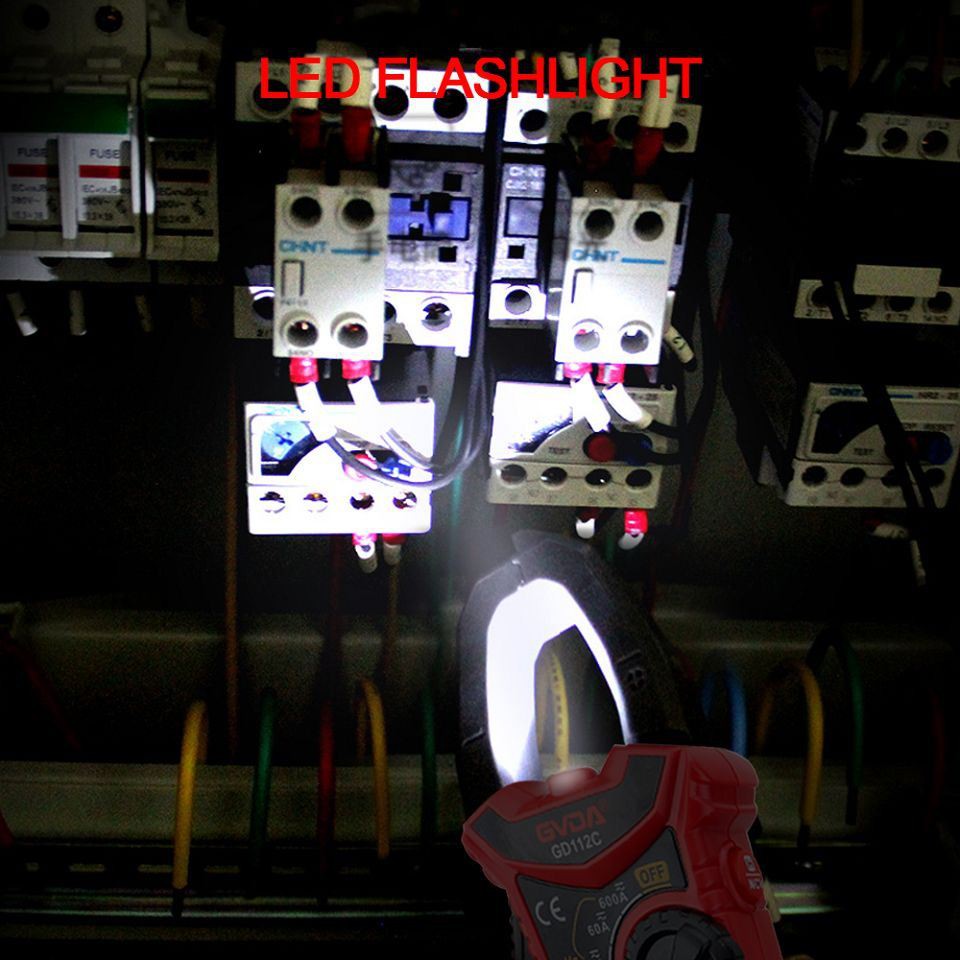

Flashlight	V
Diode Test	V
Temperature	V
NCV Detection	V
Frequency /Duty	V
DCA Zero	V
Ture RMS	V T-RMS
Capacitance	V 99.9mF
LowZ	V
LPF	V

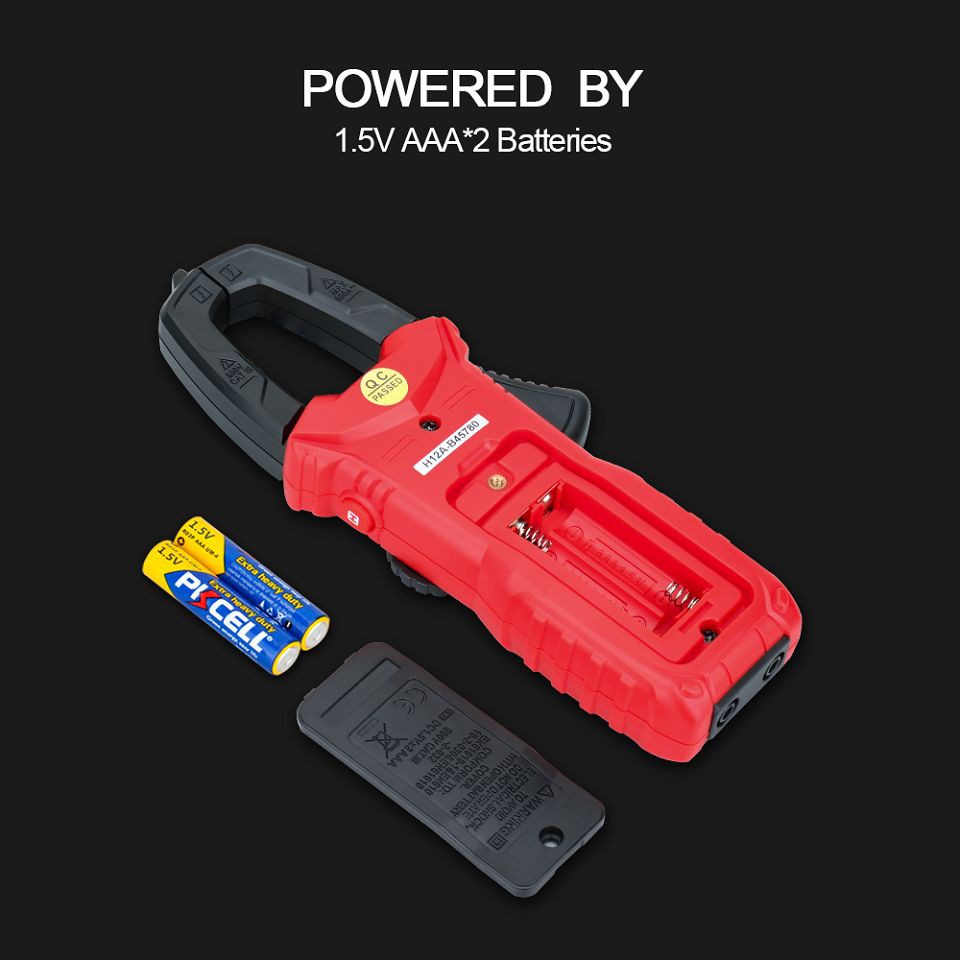

Powered By	2x 1.5V Batteries
Product Size	193mm x 73mm x 34mm

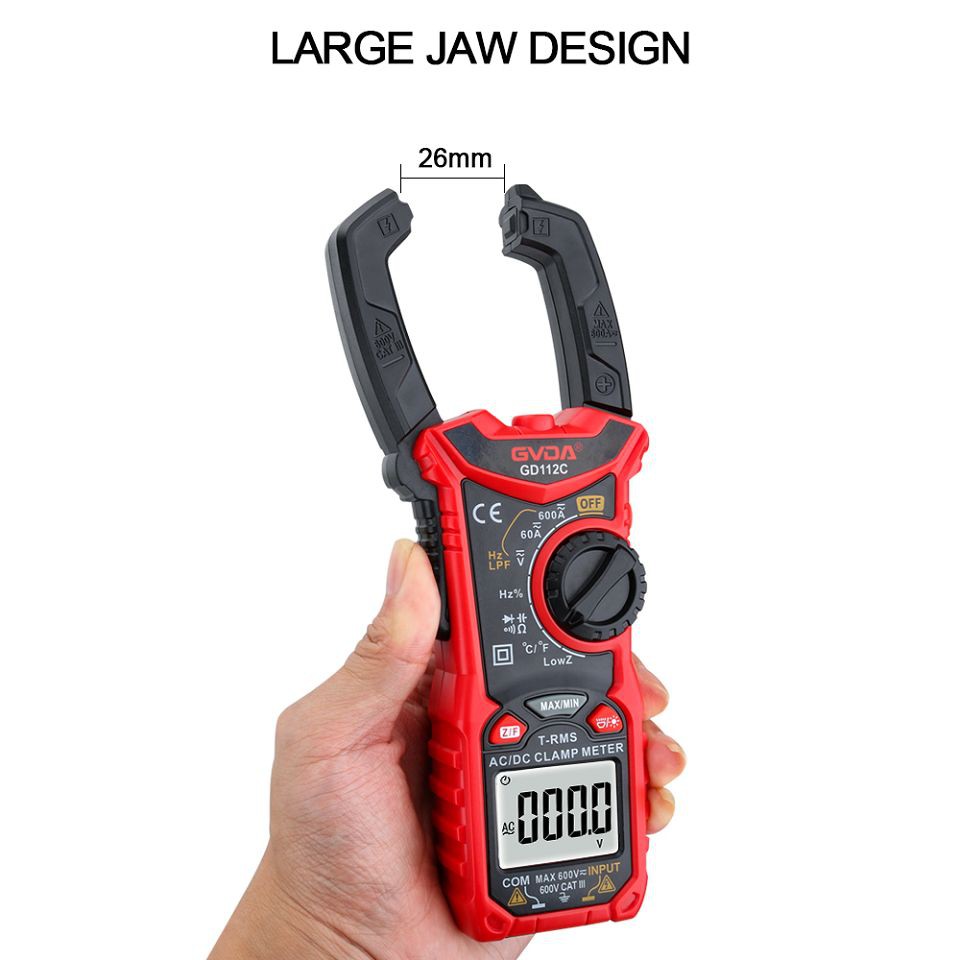

Jaw Size	26mm
Safety Rating	EN61010-1, -2-030 EN61010-2-033, EN61326-1 CATIII 600V

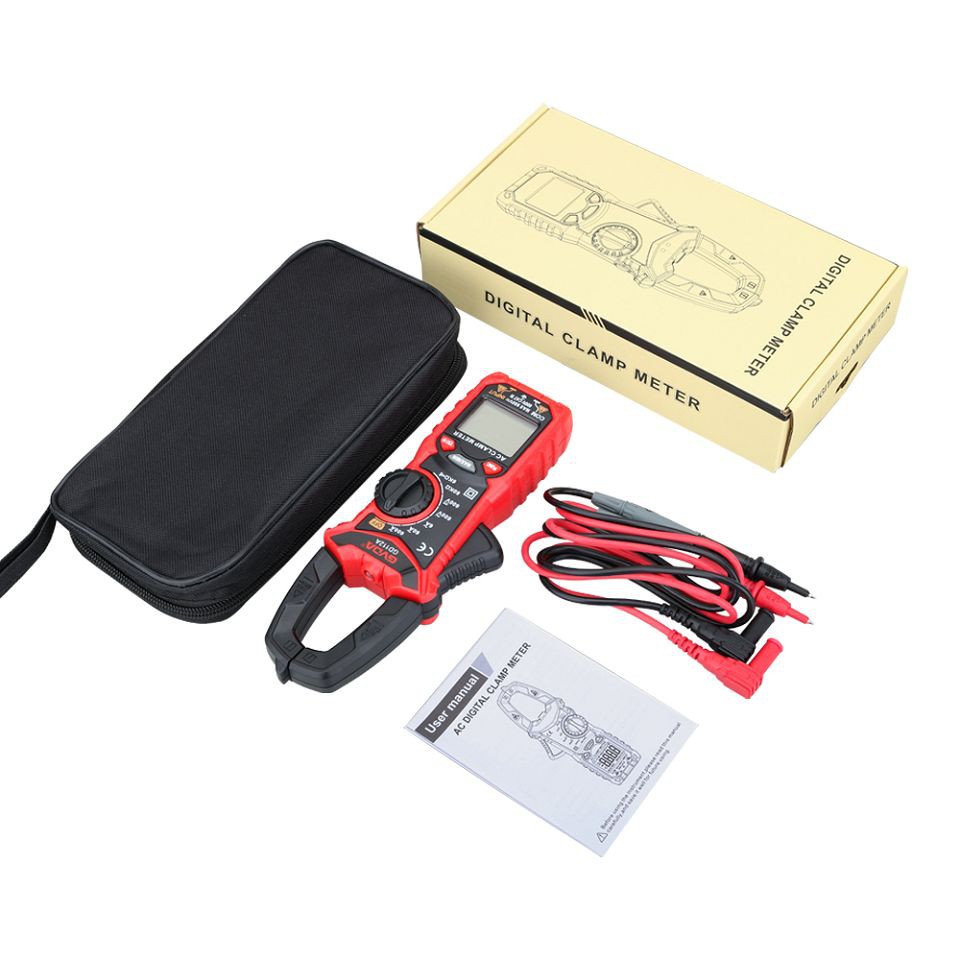

Packing Contents	1X Clamp Meter, 1pc User manual , 1pc Test Pen
