GVDA digital True RMS clamp meter multimeter High Precision Voltage Current Tester Ohm Capacitance 600V AC DC True RMS Tester
The new generation of high-performance digital clamp meter makes your work easier, more efficient and safer. Measurable AC/DC voltage, AC/DC current, frequency, duty cycle, resistance, temperature, diode, continuity, NCV, etc.
NOTE:
The voltage over 600V can’t be measured; otherwise the instrument may be damaged.
Be careful when measuring high voltage to avoid electric shock or personal injury.
Test the known voltage with the meter before use, confirm the instrument function is intact.
Please allow 1-3cm differences due to manual measurement.
Product Features
Made of high-quality materials, it is durable, very practical, wear-resistant and stable in performance.
It features hold result and max value buttons that makes it quicker and easier to use.
A two-wire display that displays AC voltage/current and frequency or Celsius and Fahrenheit on the screen.
LCD Display: Ultra-clear display, clear reading, easy to read the values when you operate.
Hold and backlight button:The data hold button and backlight button are on the side of the meter. A short press will hold the data for you, and a long press will turn the backlight on. It is convenient for one-handed operation when measuring.
Avoid hazardous situations by using the convenient clamp to safely measure AC currents without having to strip a cord or break a circuit.
Auto power off: no operation in 15 minutes. The instrument will shut down automatically to save battery energy.
Multifunctional: Accurate AC/DC voltage, AC/DC current, frequency, duty cycle, capacitance, resistance, temperature, diode, continuity, NCV, etc.
Wide range of applications, ideal for home and professional use, automotive, home and industrial electrical troubleshooting.
Technical Data:
Model Number | GD112C | ||
Range | Auto | ||
Functions | Range | Resolution | Accuracy |
AC Voltage | 6V | 0.001V | ±(0.8% reading+5) |
60V | 0.01V | ||
600V | 0.1V | ||
DC Voltage | 600mV | 0.1mV | ±(0.5% reading+5 |
6V | 0.001V | ||
60V | 0.01V | ||
600V | 0.1V | ||
AC Current | 60A | 0.01A | 40-400Hz: |
±(2.5% reading+5) | |||
Other: | |||
600A | 0.1A | ±(3.0% reading+10) | |
DC Current | 60A | 0.01A | ±(2.5% reading+5) |
600A | 0.1A | ||
Resistance | 600Ω | 0.1Ω | ±(% reading+5) |
6kΩ | 0.001KΩ | ||
60kΩ | 0.01KΩ | ||
600kΩ | 0.1KΩ | ||
6MΩ | 0.001MΩ | ||
60MΩ | 0.01MΩ | ||
Capacitance | 10nF | 0.001nF | ±(4.0% reading+5) |
100nF | 0.01nF | ||
1000nF | 0.1nF | ||
10μF | 0.001μF | ||
100μF | 0.01μF | ||
1000μF | 0.1μF | ||
10mF | 0.001mF | ||
100mF | 0.01mF | ||
Frequency/Duty | 10Hz | 0.001Hz | ±(1.0% reading+3) |
100Hz | 0.01Hz | ||
1000Hz | 0.1Hz | ||
10kHz | 10kHz | ||
100kHz | 0.01kHz | ||
1000kHz | 0.1kHz | ||
10MHz | 0.001MHz | ±(3.0% reading+3) | |
Package list:
1 * Digital clamp meter
1 * User Manual(English)
1 * Pair of Test Leads
1 * Temperature Probe
Product Details

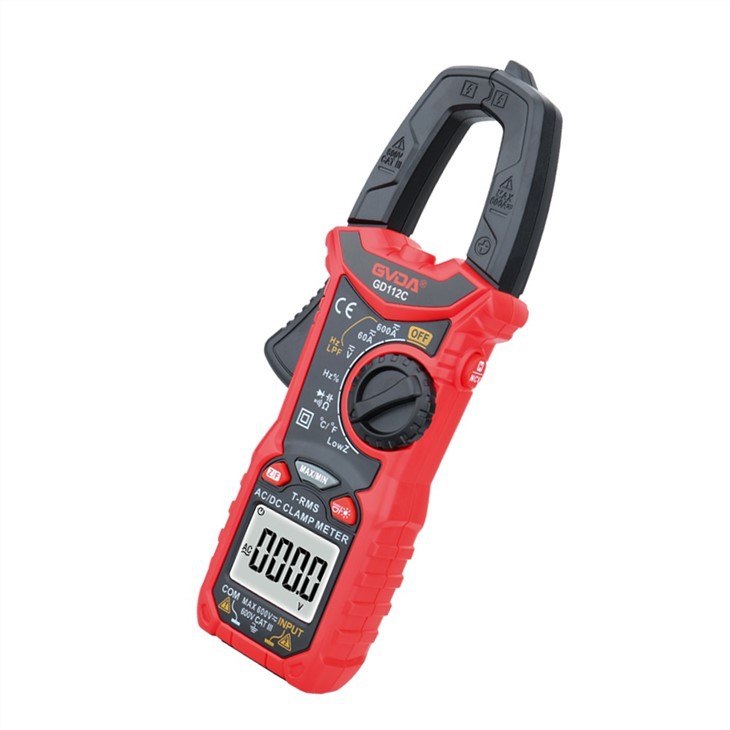

Digital True RMS clamp meter multimeter
Input Jack INDICATOR

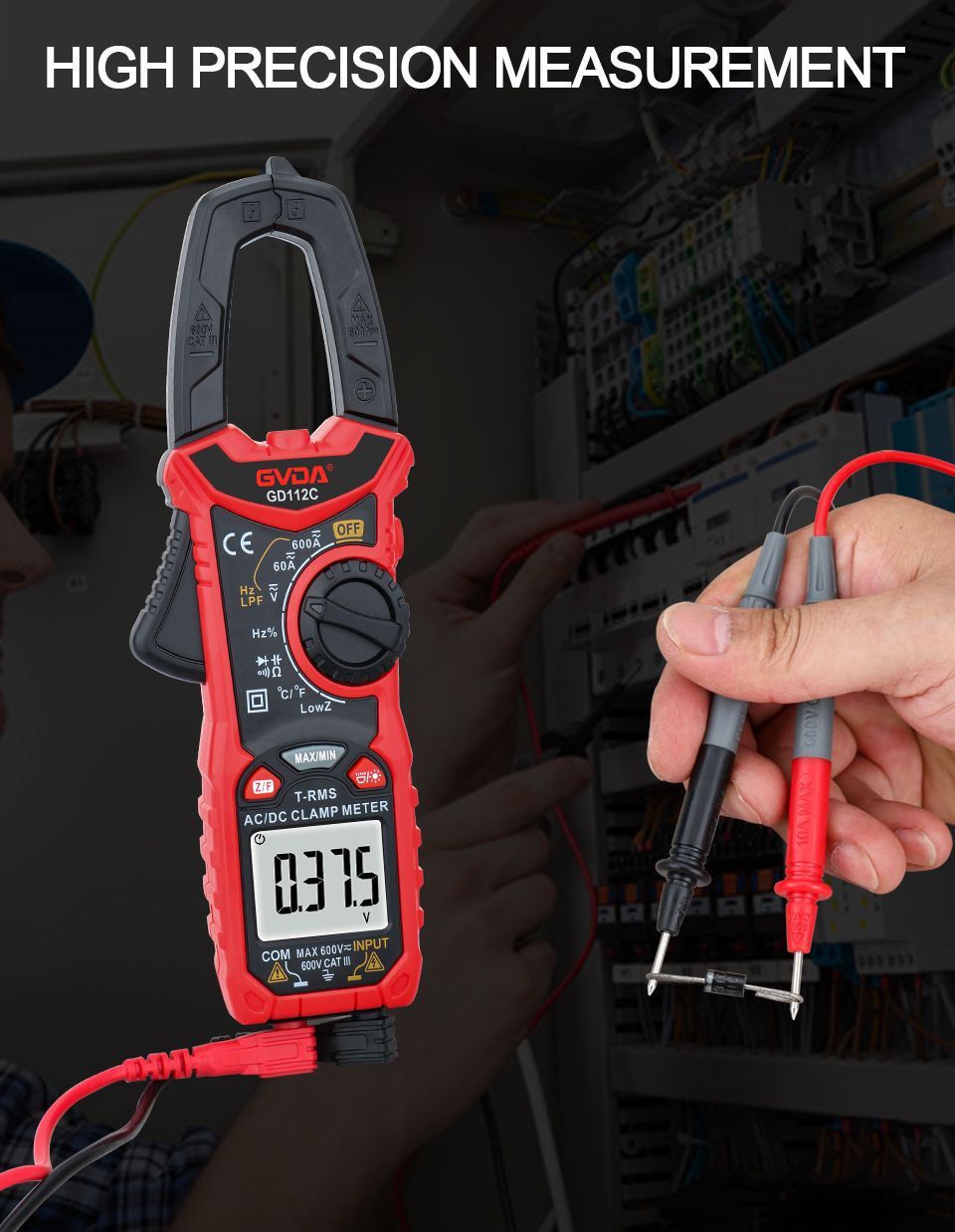

High Precision Measurement
MAX / MINI Measurement

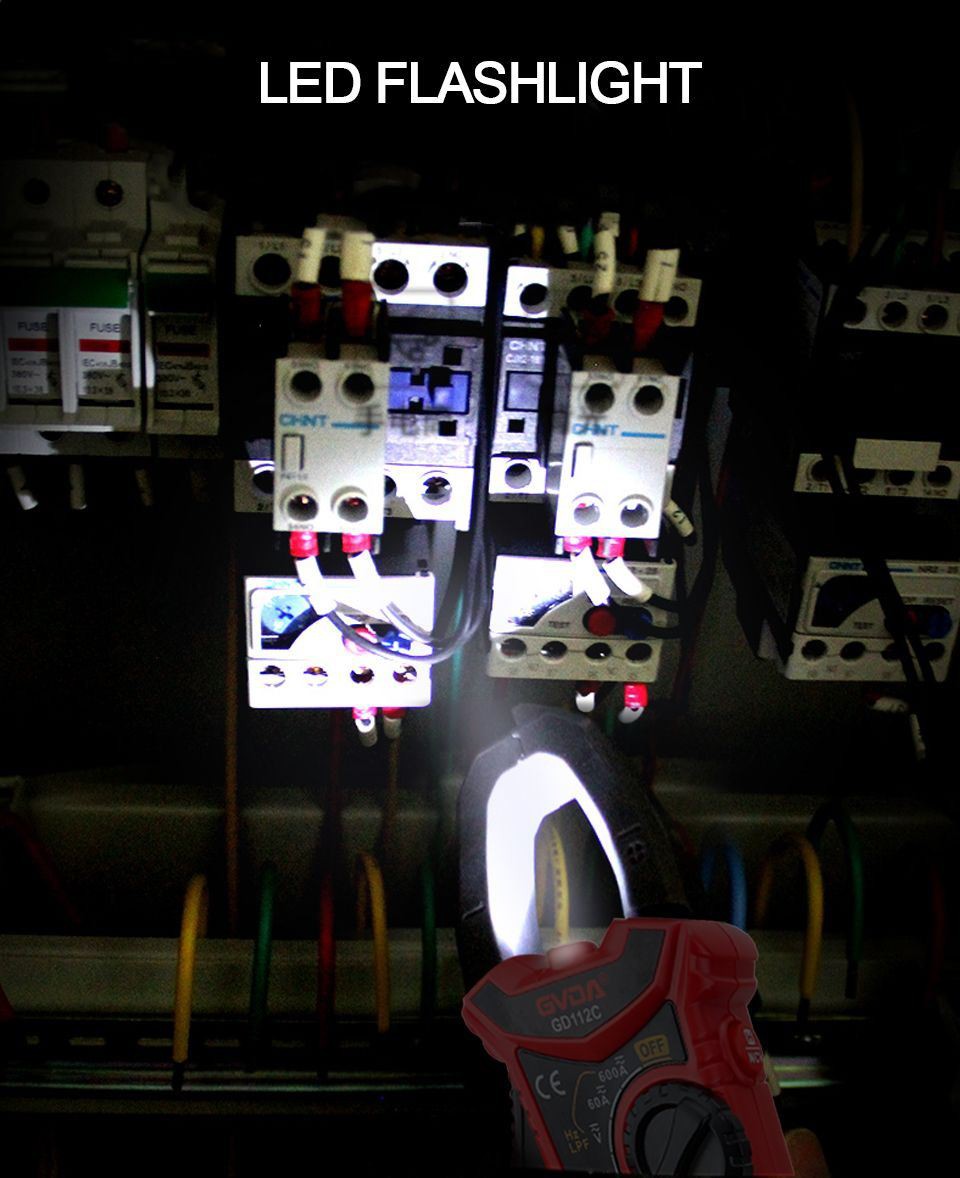

LED Flashlight

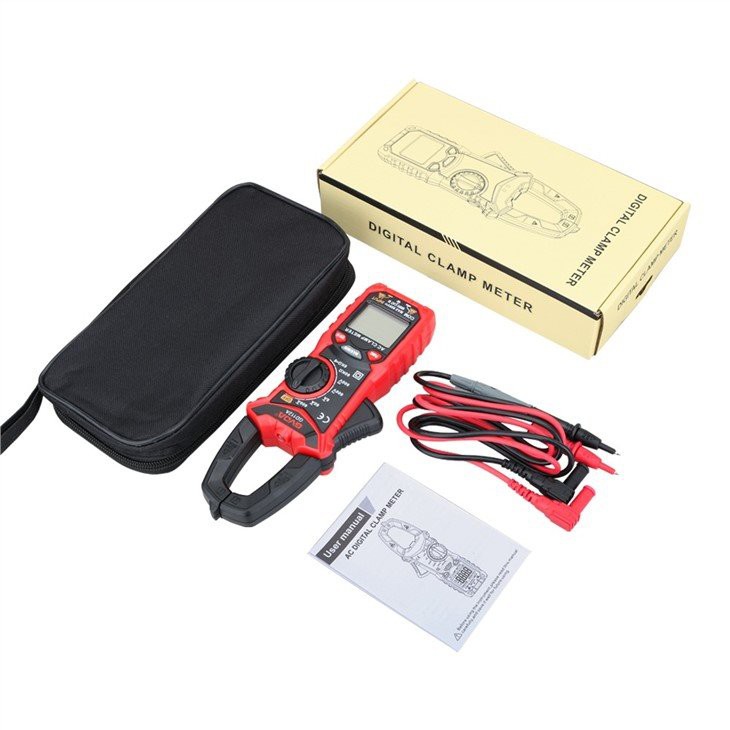

Product Size and Packing Contents
FAQ
1. What is your delivery date?
The product delivery date is about 7-45 days after receipt of payment according to your order quantity.
2. How can I get your price list ?
A: Please contact with me, I will send you the price list as soon as possible.
3. What are the certificates for your products?
It depends products, normally ROHS,CE, FCC are available, some with QI or MFI or other certificate.]
4. How to control the quality?
1). Compare and source the competitive 1st hand raw material
2). Inspection start from raw material sourcing and along the manufacturing
3). Stick check before shipment and safty packing
Hot Tags: digital true RMS clamp meter multimeter, China, suppliers, manufacturers, factory, customized, wholesale, best, low price, in stock, buy discount
