3 in 1 Digital Oscilloscope Multimeter Signal Generator

GVDA GD188 3 in 1 Digital Oscilloscope 12MHz Analog Bandwidth 6000 Counts Smart Multimeter Rechargeable Multimetro Auto Current Voltage Tester Signal Generator



Product Details

---



General parameters

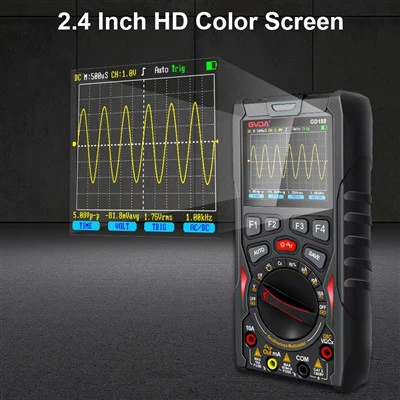

Display:240*320 Color Screen

Observation area:49.0*36.7mm

Backlight:Ever Bright

Input resistance: 500mV/div~200V/div about 5MΩ,50mV/div~200mV/div about 1MΩ

Battery:One 18650 lithium battery(1500mAH)

Automatic sleep:15 minutes or disabled

Static operating current:Multimeter about 80mA,Oscilloscope about 300mA

Shutdown:＜10uA

Duration of continuous use: ＞8 小时

Save Capability:100 records of DMM data, 10 records of OSC waveforms

Usage environment: 0°C~+40°C;<75%RH

Storage conditions: -10°C ~ +60°C ; <90%RH

Product size:83*160*32mm

Product weight:250g

Charging:5V/1A,Type-C

Package contents:1*Oscilloscope,1*test pen,1*cloth bag,1*manual



Oscilloscope parameters

Simulation bandwidth: DC~8MHz(50mV/div~200mV/div),

DC~12MHz(500mV/div~20V/div)20V/div The above is for reference only

Maximum equivalent sampling rate: 50Msps

Number of channels: 1

Input resistance: 5MΩ

Vertical sensitivity range:500mV~200V/div

Time base range:200ns~10s/div

Vertical range accuracy: ±(5%+0.2div)

Time base accuracy:±(0.01%+0.1div)

Scan mode:auto/normal/single

Trigger edge selection:Rising/falling edge

Automatic settings:Automatic setting of time base and vertical range

Automatic measurement function: Vp-p, Vavg, Vrms, Hz



Signal Source parameters

Sine wave frequency: 100Hz~100kHz (fixed-point output in 1-2-5 steps)

Square wave frequency: 100Hz~20kHz (fixed-point output in 1-2-5 steps)

Triangular wave frequency: 100Hz~50kHz (fixed-point output in 1-2-5 step mode)

Output amplitude:3Vpp,2.5Vpp,2Vpp,1.5Vpp,1Vpp,0.5Vpp,0.4Vpp,0.3Vpp,0.2Vpp,0.1Vpp,0Vpp



Multimeter parameters

DC voltage: 60.00mV/600.0mV/600mV/6V/60V/600V/1000V

AC voltage: 60.00mV/600.0mV/600mV/6V/60V/600V/750V

DC current: 600.0uA/6000uA/60mA/600mA/6A/10A

AC current: 600uA/6000uA/60mA/600mA/6A/10A

Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

Capacitance:99.99nF/999.9nF/9.99μF/99.99μF/999.9μF/9.999mF/99.99mF

Frequency: 1.000Hz~20.00MHz

Diode/on/off test: Open circuit voltage about 2.8V; judgment resistance about 50Ω

Fuse:750mA/250V ,10A/250V

Operation mode: AUTO/manual



Digital 3 in 1 Oscilloscope + Multimeter + Signal Source

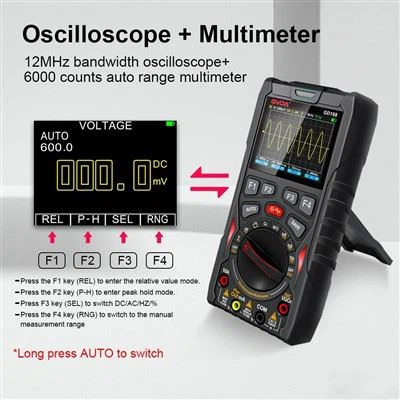

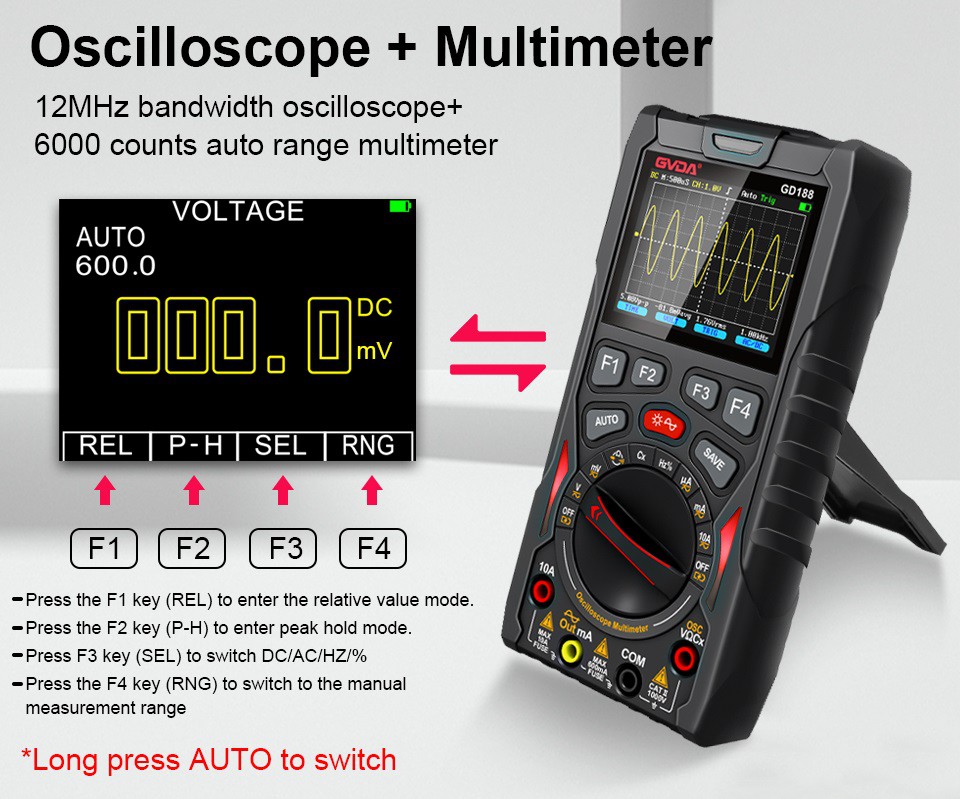

12MHz bandwidth Oscilloscope, 6000 counts Multimeter

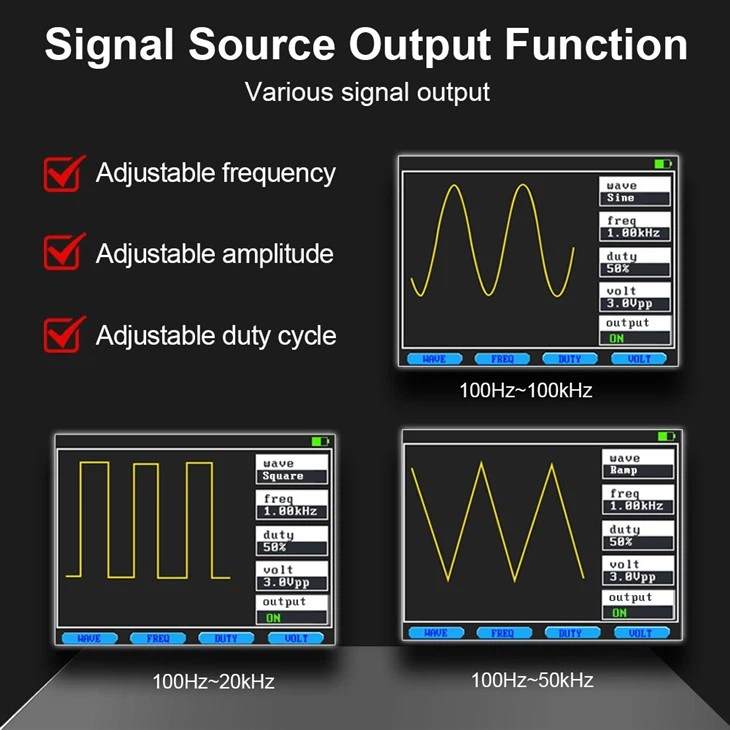

Singal Source output function  Sine wave,Square wave,Triangular wave

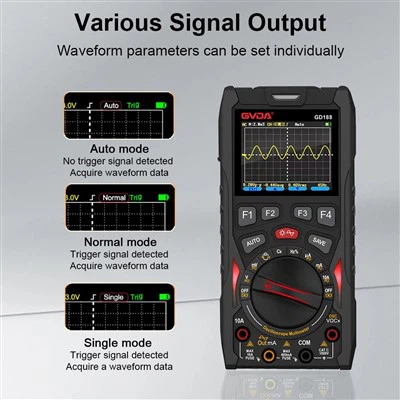

Various signal output  / Waveform parameters can be set individually





Storage function

100 records of DMM data, 10 records of OSC waveforms

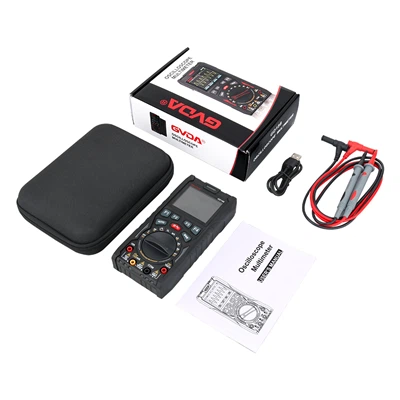

Packing List
