Soldering method for electric tools soldering iron
1、Soldering iron manual welding technology

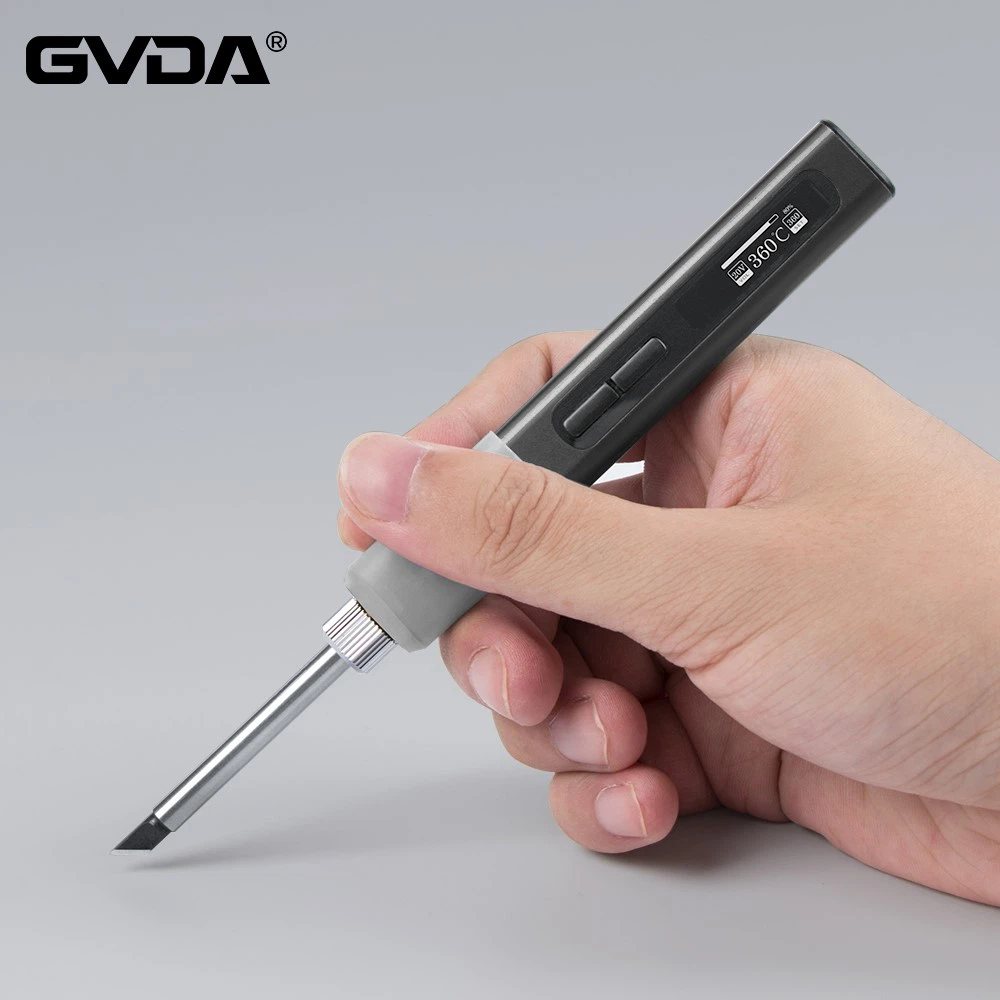

① Three kinds of holding method of soldering iron when soldering
② Cleaning and tin-lining before soldering on the soldering surface.
③ Master the soldering temperature and time.
④ Properly master the fire of solder joint formation.
2, soldering iron welding steps
For the slightly larger heat capacity of the weldment, you can use the five-step welding method:
① Preparation: the soldered parts, soldering iron, soldering wire, soldering iron stand, solder, etc. on the workbench in an easy to operate place. Heating and cleaning of the soldering iron tip work surface, enameled with a small amount of solder.
② Heating the soldered parts: place the soldering iron tip on the soldering point, the soldering point heating; soldering iron tip working surface lined with solder, can speed up the heating speed. If there are more than two components on a soldering point, should try to heat all the soldered parts of the soldered parts at the same time.
③ melting solder: solder joints heated to the working temperature, immediately touch the solder wire to the soldered parts of the soldering surface, as shown in Figure (c). The solder wire should be added in the direction of the soldering iron tip, but not directly touching the tip of the soldering iron.
④ Remove the soldering wire: When the soldering wire is melted in the right amount, it should be removed quickly.
⑤ Remove the soldering iron: Remove the soldering iron quickly before the solder joint has been formed but before the flux has evaporated.
For soldering parts with small heat capacity, the above five-step operation method can be simplified into a three-step operation method:
① Preparation: the right hand after preheating, clean and enameled with tin soldering iron, the left hand to take the solder wire near the iron head, for welding posture.
② simultaneous heating of the soldered parts and solder wire: soldering iron and solder wire from the sides of the soldered parts at the same time to contact the welding point, so that the appropriate amount of solder melting, soaked with soldering parts.
③ Remove the soldering iron and wire at the same time: When the soldering point is formed and the fire is reached, remove the soldering iron and wire at the same time.
Common soldering iron soldering practice
① Welding of general structure.
② Printed circuit board components on the installation method is as follows:
a. General soldering method of installation: general soldering mainly refers to the resistive components, diodes, etc., usually vertical and horizontal two kinds of mounting method. It has a casing and no casing, plus padding and no padding points.
b. Installation of low-power transistors: positive, inverted, horizontal, horizontal and padded installation.
c. The installation of integrated circuits.
d. Wire installation: printed circuit board components, some components and circuits, commonly used wire connection.
③ printed wiring board on the soldering steps. With the previously described soldering iron welding steps of the five-step operation method and three-step operation method is basically the same.
