AC voltage Range of AC/DC Digital Clamp Meter Multifunctional Multimeter GVDA GD169A
Range | Resolution | Accuracy |
600mV | 0.1mV | ±(0.8%reading+5) |
6V | 0.001V | |
60V | 0.01V | |
600V | 0.1V | |
750V | 1V | ±(1.0%reading+5) |

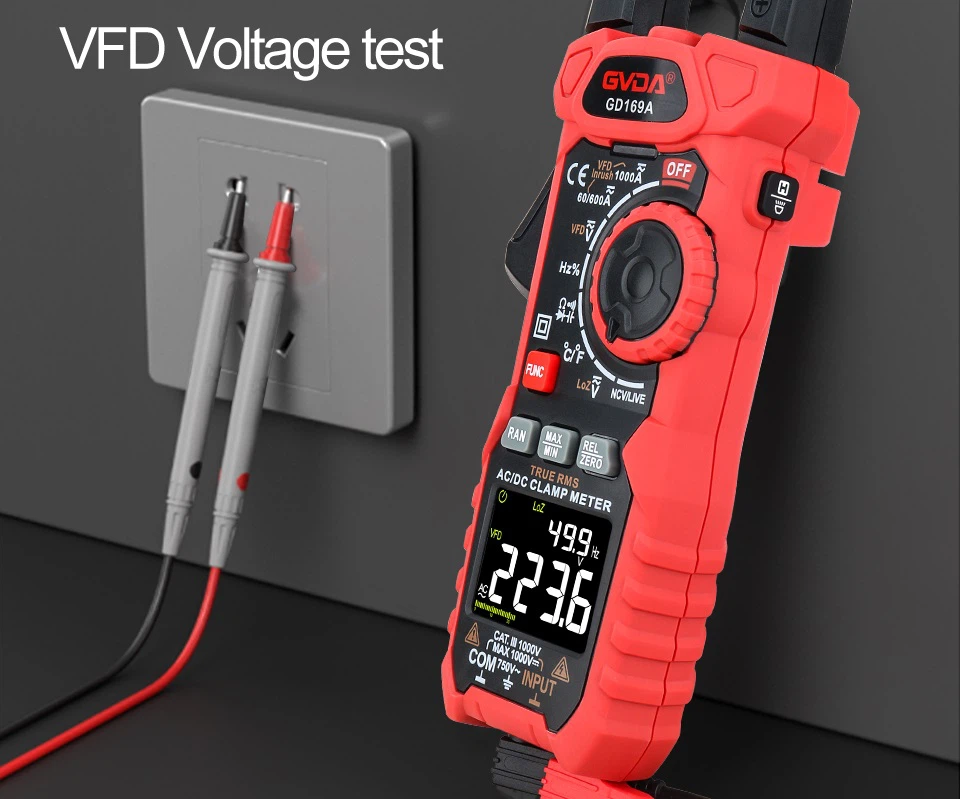

VFD(750V) | 0.1V | ±(2.0%reading+5) |
Input impedance：10MΩ(LoZ:300kΩ)
Overload protection: AC750V/DC1000V
Maximum input voltage: AC750V/DC1000V
Frequency range: 40Hz ~ 1kHz; True RMS
Note: In the small voltage range, when the probe is not connected to the measuring circuit, the meter display reading may not be zero, which is normal and will not affect the normal measurement.
