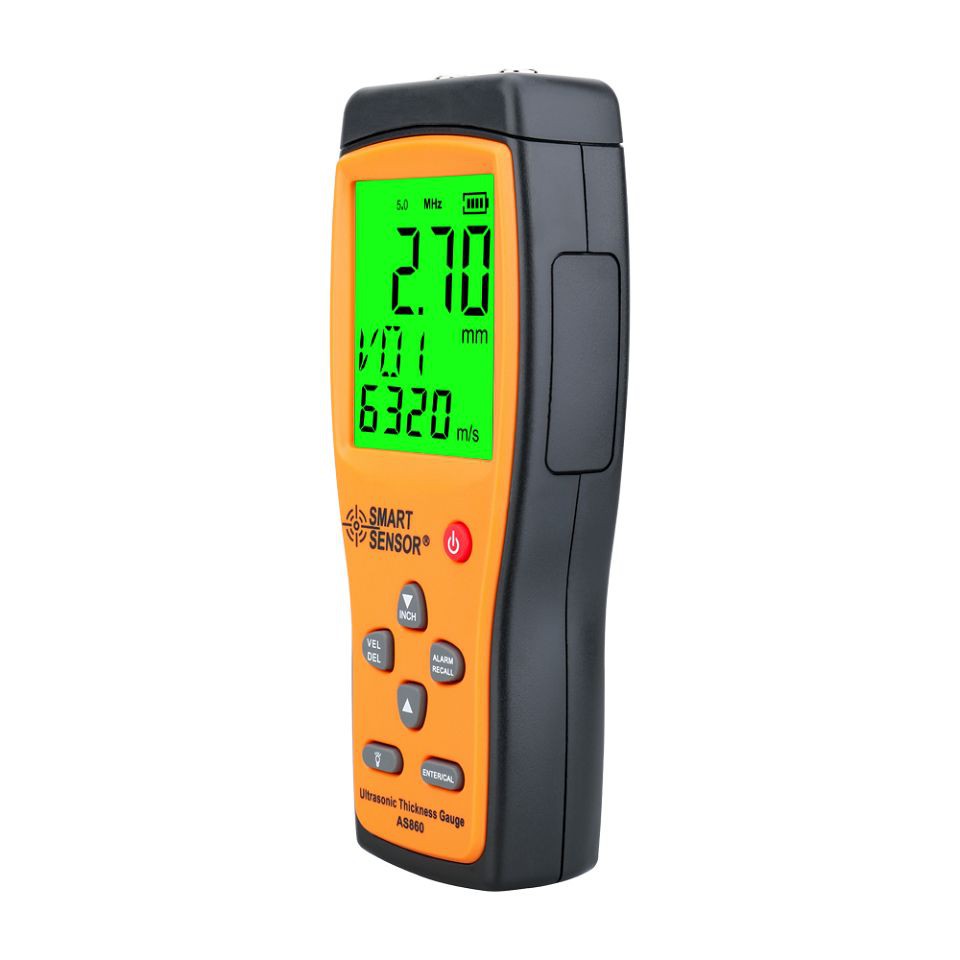

Handheld Digital Ultrasonic Thickness Gauge

Ultrasonic Thickness Gauge Measuring Thickness of Steel Paper 1.0-300mm AS860

Handheld Digital Ultrasonic Thickness gauge

Features

AS860 ultrasonic vibration meter objectthicknessmeasurementinstruments. In industrial production is often used to continuously measure the thickness of products (such as steel, steel, paper, etc.). This kind of instrument, there are alpha, beta, gamma ray penetration characteristics of radiation thickness gauge; the ultrasonic frequency variation of ultrasonic thickness gauge; the principle of eddy current of eddy current thickness gauge; and capacitive thickness meter. By using microwave and laser technology, the thickness gauge.

Specification

Technical parameter

Measuring range 1.0-300mm (steel)

Measurement error + (1% + 0.1) mm

Sound speed regulation range 1000-9999m/s

Lower limit of pipe measurement 10mm probe: Phi Phi 20*3mm (steel)

6mm probe: Phi Phi 12*2mm (steel)

Working frequency 5MHz / 2.5MHz

Operating temperature range 0-45 C

Inverse measurement of sound velocity function B.

Data storage function B.

Low power indication B.

Auto Power Off B.

Packaging specifications

Product size / weight 159*63*33mm/175 G

Packing method color box

Product Details

Handheld Digital Ultrasonic Thickness gauge

Our Service

* Warranty Term: 12 months warranty

* Delivery time: 3-45 days base on different q;ty

* Online presentation if necessary

* Spare parts delivery

* Company & Factory Visit ( Site or Online)

* New product exchange

* Free Samples (Shipping Cost Excluded)

* All of items have CE FCC certificate .

* Russia Oversea Warehouse

Product Certificates:

FAQ

1. Can I ask for samples before placing an order?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable

2. Cab I Mix models & colors ?
Yes, sure, mixed orders or colors are acceptable. You can leave us a message about what models colors you may need. But if you would like to take different models, please kindly send us an email.

3. Is there any spare parts service if the order is large?

Of course, we will evaluate the quantity of spare parts according to your order.

4. How does your company do regarding quality control?

Our QC team will do strict quality control inspection before shipment to assure best quality.
