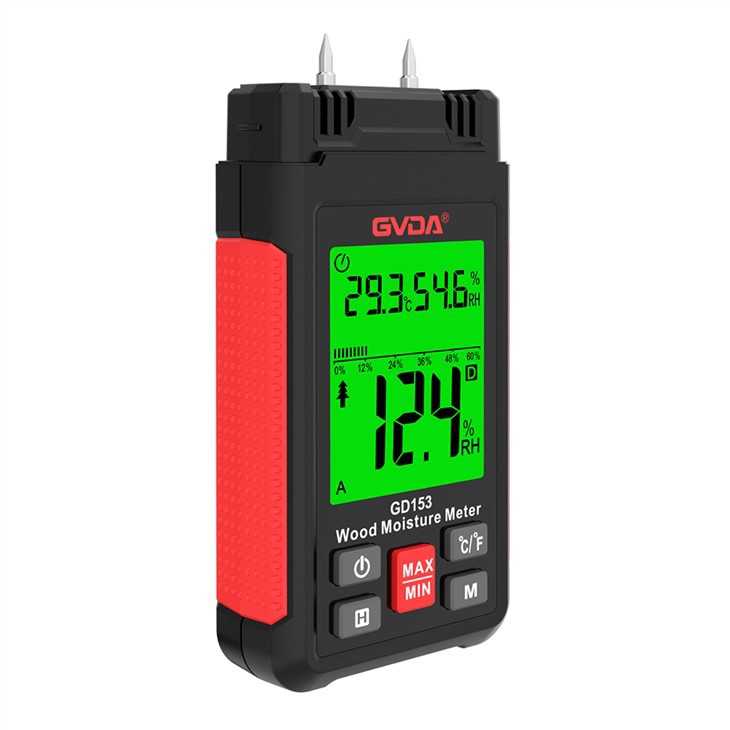

Digital Wood Moisture Meter

GVDA Digital Wood Moisture Meter Wood Humidity Tester Hygrometer Timber Damp Detector LCD Backlight Display Cement Brick Moisture Meter

This product is a DC resistance type (pin type) material moisture meter, commonly used to measure the moisture content of wood or building materials. The moisture content of the material is displayed directly as a percentage. The instrument has built-in characteristic parameters of 7 different kinds of wood and building materials. This measurement can provide a basis for the need for further drying.

In addition to measuring the moisture content of the material, the ambient humidity and temperature can also be measured so that the dry environment can be evaluated directly on site.

Product Features

1, Built in characteristic parameters of 7 different kinds of wood and building materials

2, Single point measurement

3, Multi-point average measurement

4, Data hold Function

5, Maximum and minimum measurement

6, Automatic shutdown

7, Ambient temperature measurement

8, Environmental humidity measurement

9, Low battery indicator

10,Red, Orange and Green tricolor Backlight

11, Temperature unit ℃/℉

Product Specification:

1, Sensor:Resistance type (conductivity measurement), high precision temperature and humidity sensor

2, Measurement range/accuracy:

   Material A：9.0%~57.0% ±2.0%

  Material B：7.0%~52.0% ±2.0%

  Material C：0.9%~23.0% ±2.0%

  Material D：0.0%~12.0% ±2.0%

  Material E：0.7%~9.0% ±2.0%

   Material F：0.5%~10.0% ±2.0%

  Material G：0.0%~17.0% ±2.0%

3,Temperature range:-20.0℃~60.0℃(-4.0℉~140.0℉)

4,Temperature Accuracy:0.0℃~45.0℃(32℉~113℉) ±1.0℃/2.0℉; Other ±1.5℃/3.0℉

5, Humidity range:0.0% ~99.9%RH

6, Humidity Accuracy: 20%~80% ±5.0RH; Other ±6.0RH

7, Ambient temperature：,-20.0~60.0℃(-4.0~140℉) ±1.5℃

8, Ambient humidity：,0.0~99.9% ±4.0%RH

9, Use environment: -10 ~50°C/20 ~90%RH

10,Storage environment: -10 ~60°C/20 ~90%RH

11,Display: 2.4inch Backlight display

12,Power: 3x1.5V AAA battery(NOT include)

Package contents

1*Wood moisture meter

1*Manual

1*Bag

1*Box

Product Details

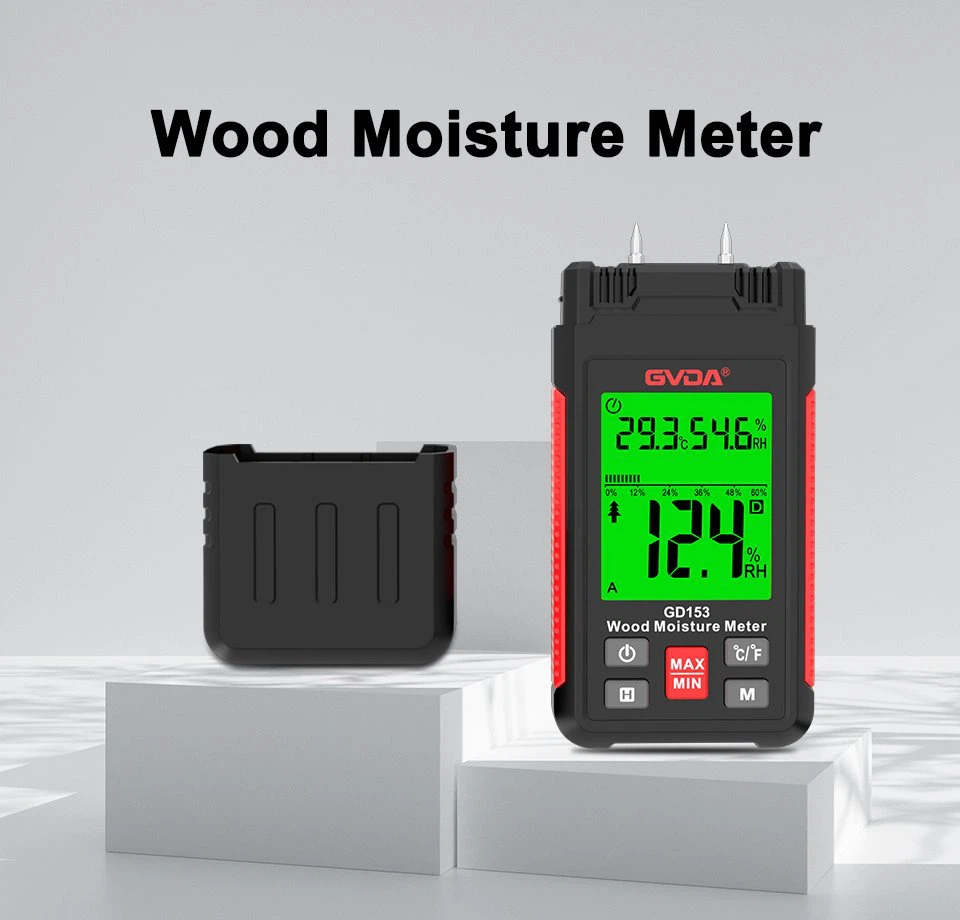

Digital Wood Moisture Meter

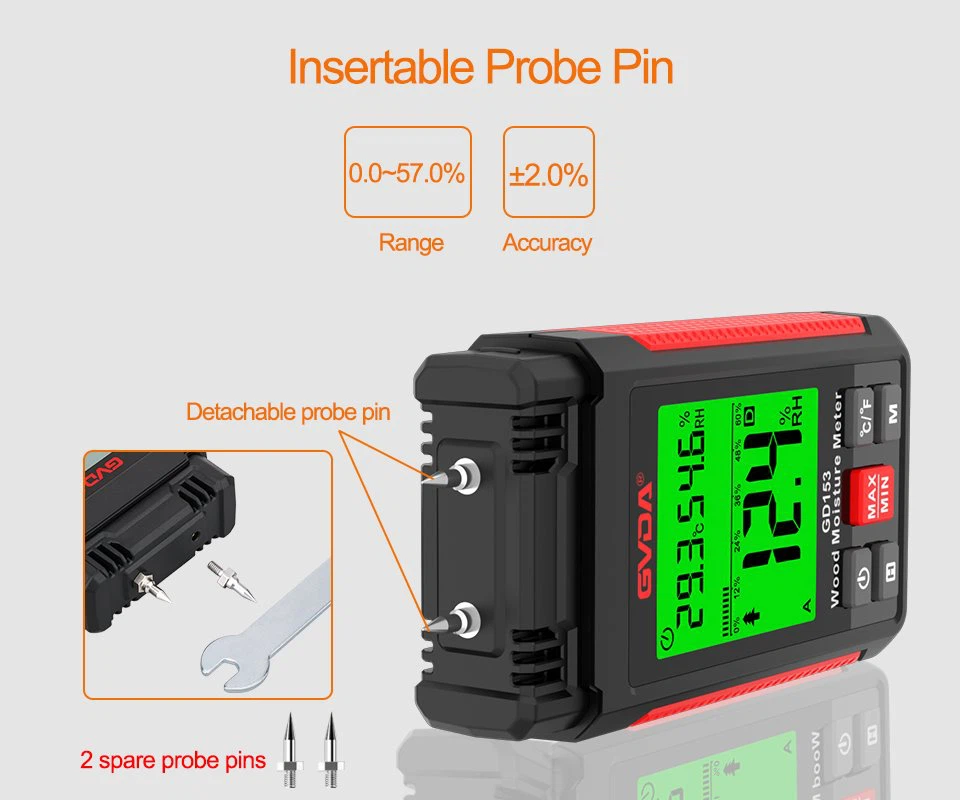

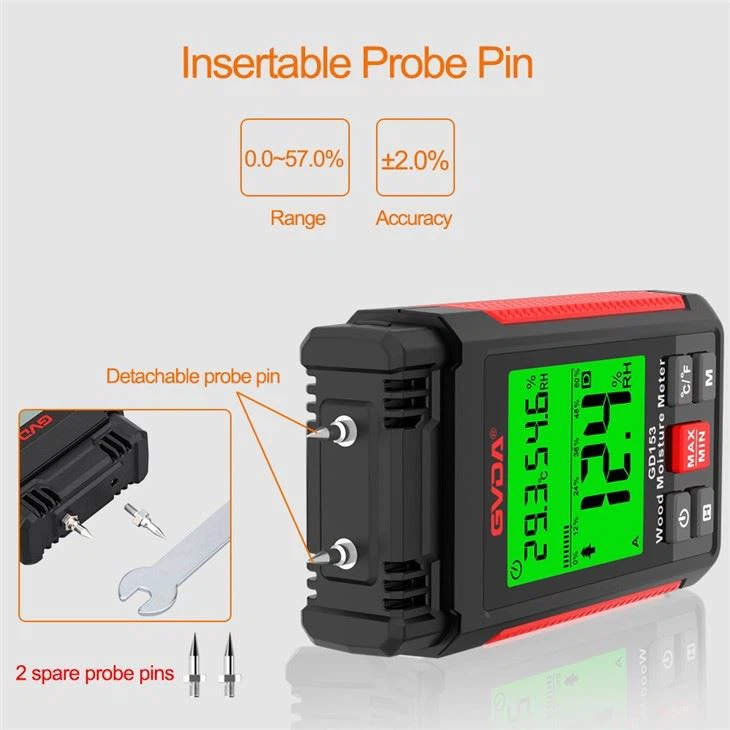

Insertable Probe Pin (Sensor)

Sensor: Resistance type (conductivity measurement), high precision temperature and humidity sensor

Material Humidity Range: 0.0~57.0%, ±2.0%

Wood moisture measurement

Ambient temperature and humidity are measured automatically when the device is turned on

Ambient Temperature: -20.0~60.0℃ (-4.0~140℉), ±1.5℃
Ambient Humidity: 0.0~99.9%, ±5.0%RH

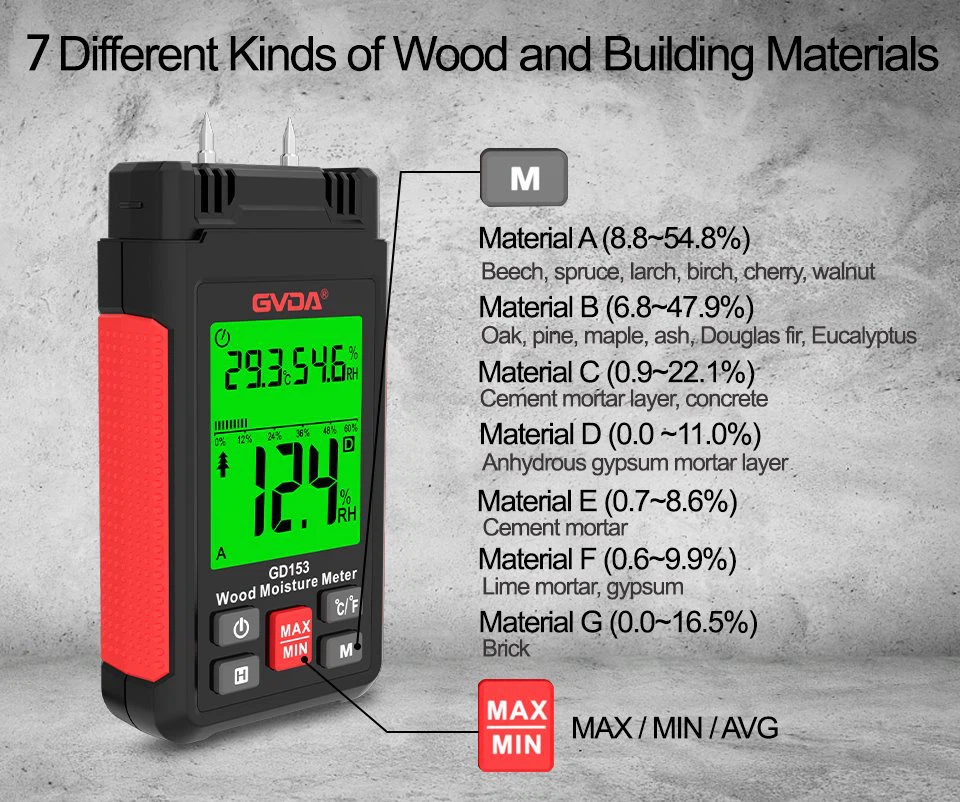

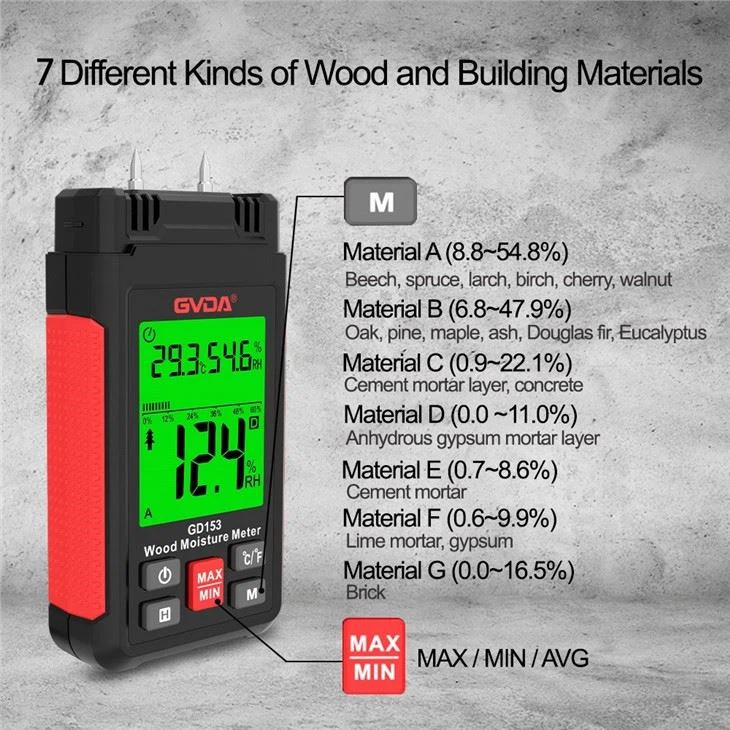

7 Different Kinds of Wood and Building Material

The instrument has built-in characteristic parameters of 7 different kinds of wood and building materials. This measurement can provide a basis for the need for further drying.

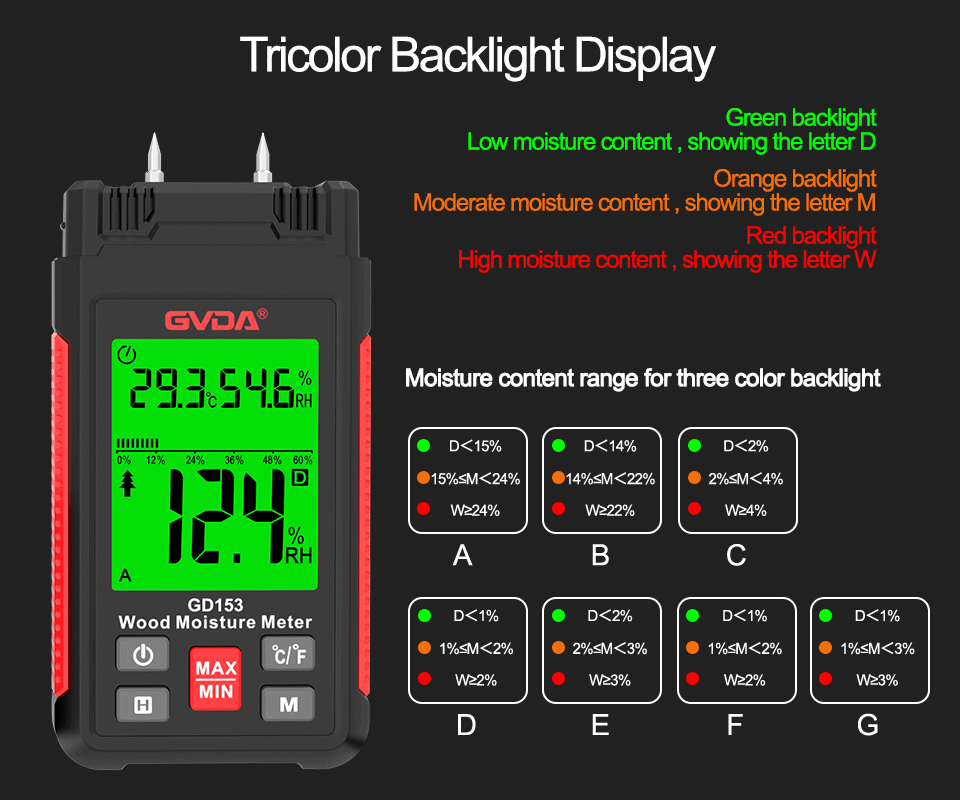

Tricolor Backlight Display

Green Backlight: Low moisture content, showing the letter D

Orange Backlight: Moderate moisture content, showing the letter M

Red Backlight: High Moisture content, showing the letter W

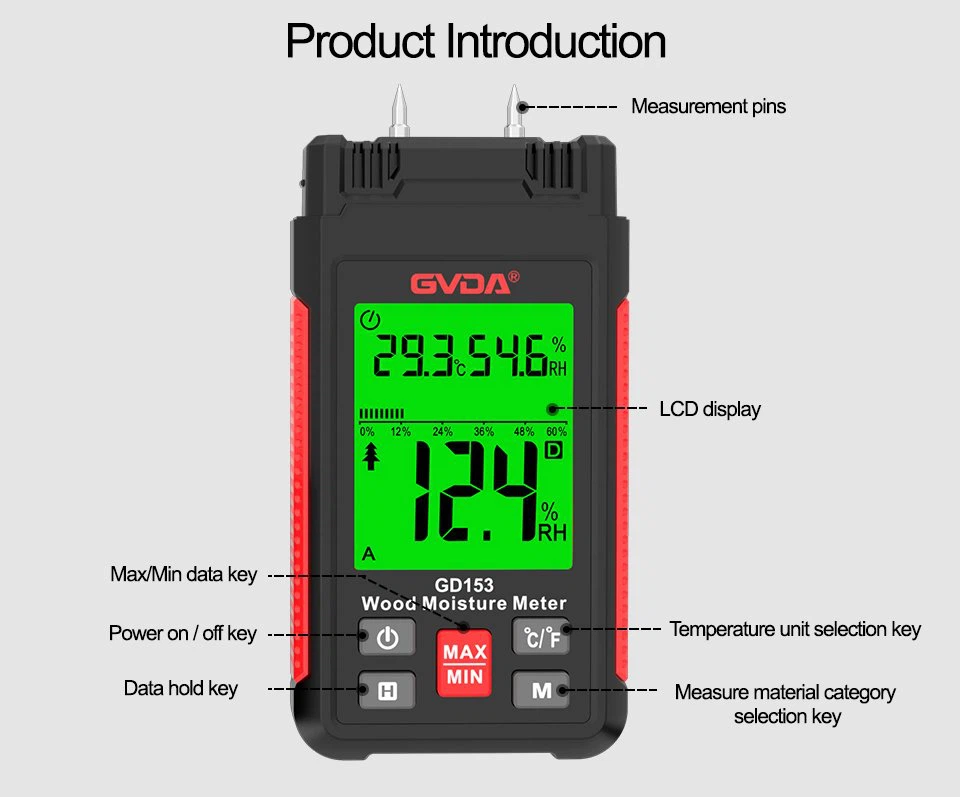

Product Introduction

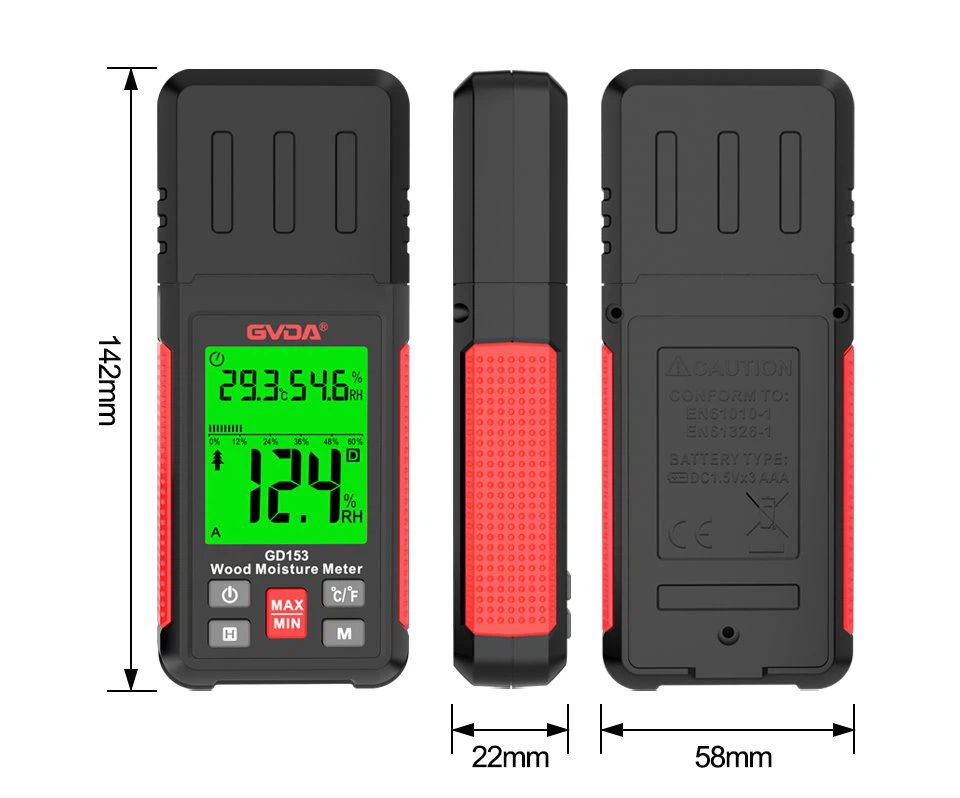

Product Dimension

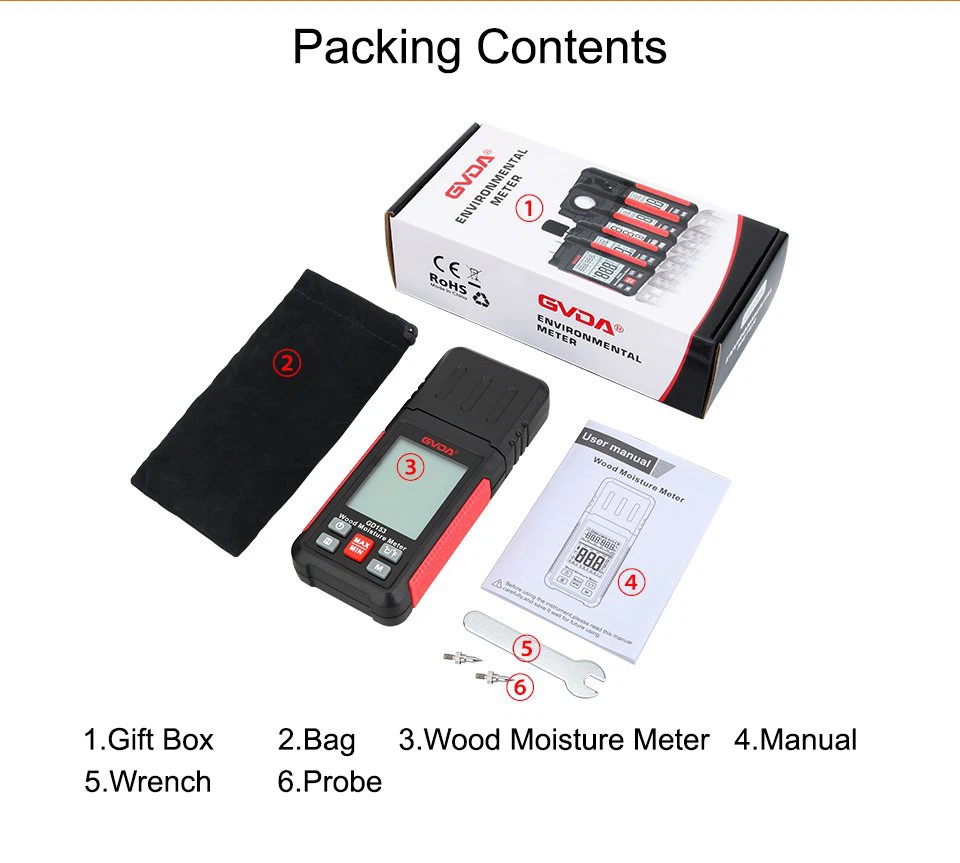

Packing Contents:

Note:

1. Operate the product correctly within the parameters specified in the technical data sheet according to the purpose of the product.
2. Due to manual measurement, the size may be slightly different. Thank you for your understanding.
3. Due to different light conditions and different monitors, item color displayed in photos may be showing slightly different from real object.
