Bench DC Power Source

GVDA New USB Laboratory Switching DC Power Supply 30V 10A Adjustable Variable LAB Voltage Regulator Bench Source White with Digital Color LCD Display

 Features

【Automatic Power Calculation】

Different from other dc power supplies, dc power supply can automatically calculate the power value according to the voltage and current, but also can simultaneously display the 4-digit voltage, current and power values, numerical accuracy of 0.01V and 0.001A.

【5V/2A USB Interface】

The variable power supply has built-in fast charging protocol identification chip that supports USB fast charging function, which is different from the ordinary USB charging interface in that it has a 5V/3.6A output that can quickly charge your mobile phones and or other devices or be used to charge the device to be repaired.

【Short Circuit Alarm】

In order to improve the safety of the dc power supply and prolonging its service life, we have designed a short circuit alarm for the dc power supply. When a short circuit occurs, the variable DC power supply will stop output and send out an alarm to remind you. Bench power supply also have safety protections such as overvoltage, overcurrent, overheating and overload.

【Wide Applications】

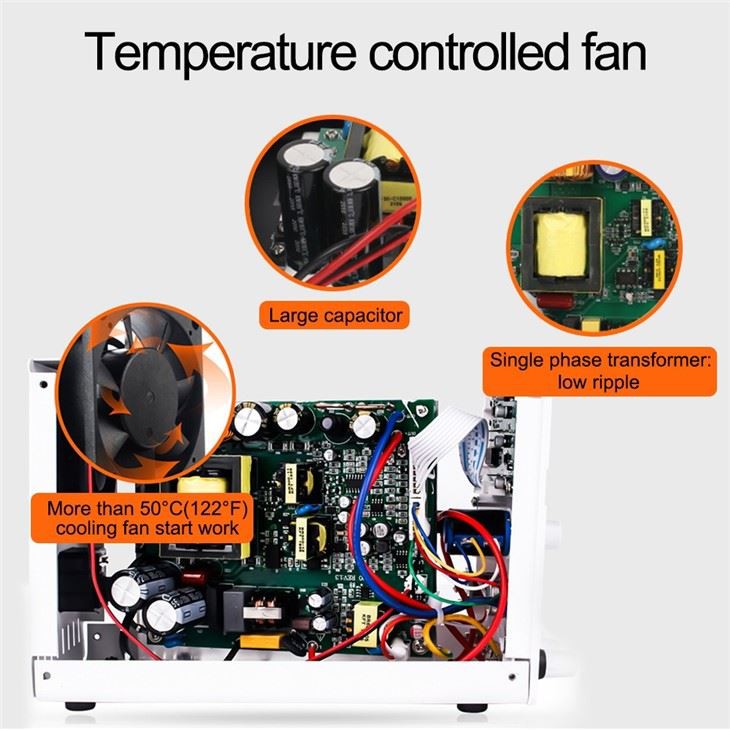

The adjustable power supply features an intelligent temperature-controlled fan and heat sink for excellent heat dissipation and is especially suitable for laboratory, electronic repair DIY, communication equipment maintenance, products line, scientific research and teaching units.

Spec. Details

Name: LCD Screen Stabilized Power Supply

Model: GD-F305C GD-F3010C GD-F605C  GD-F1203C

Input voltage: 110V / 220V (optional)

Output voltage: 0~30V 60V 120V

Output current: 0~5A 10A 3A

Working temperature: 0℃~40℃, relative humidity <80%RH

Storage temperature: -10℃~70℃, relative humidity <70%RH

Constant pressure state:

1. Voltage stability: ≤0.1%±3mV Low voltage: 0.2%-0.3%+3mV

2. Load stability: ≤0.5%±3mV

3. Ripple noise: ≤30mVrms (average effective value)

Constant current state:

1. Current temperature setting: ≤0.2%±3mA

2. Load stability: ≤0.2%±3mA

3. Ripple noise: ≤20mAems (average effective value)

Display accuracy: 0.5% ± 2 digits

Display resolution: Voltage: 00.01V Current: 0.001A

Product size: 24*8.5*15.5cm

Color: White  Certification: CE   Manual: English

Fuse specification: 3.15A (220V input) / 5A (110V input)

(Note: the above parameters are at ambient temperature 25+5%C;

relative humidity: < 80%RH, and preheated for 30 minutes, the actual

parameters will be slightly different)

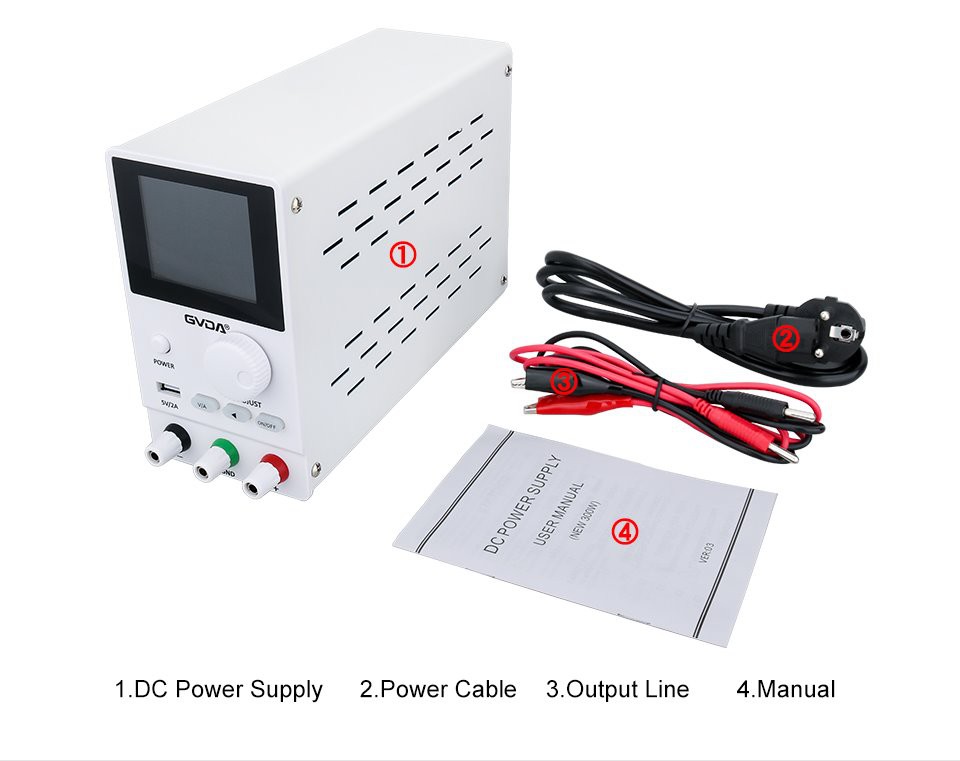

Package Included:

Power Supply*1

Power Adapter*1

Output Cable*1

English Manual*1

Product Show

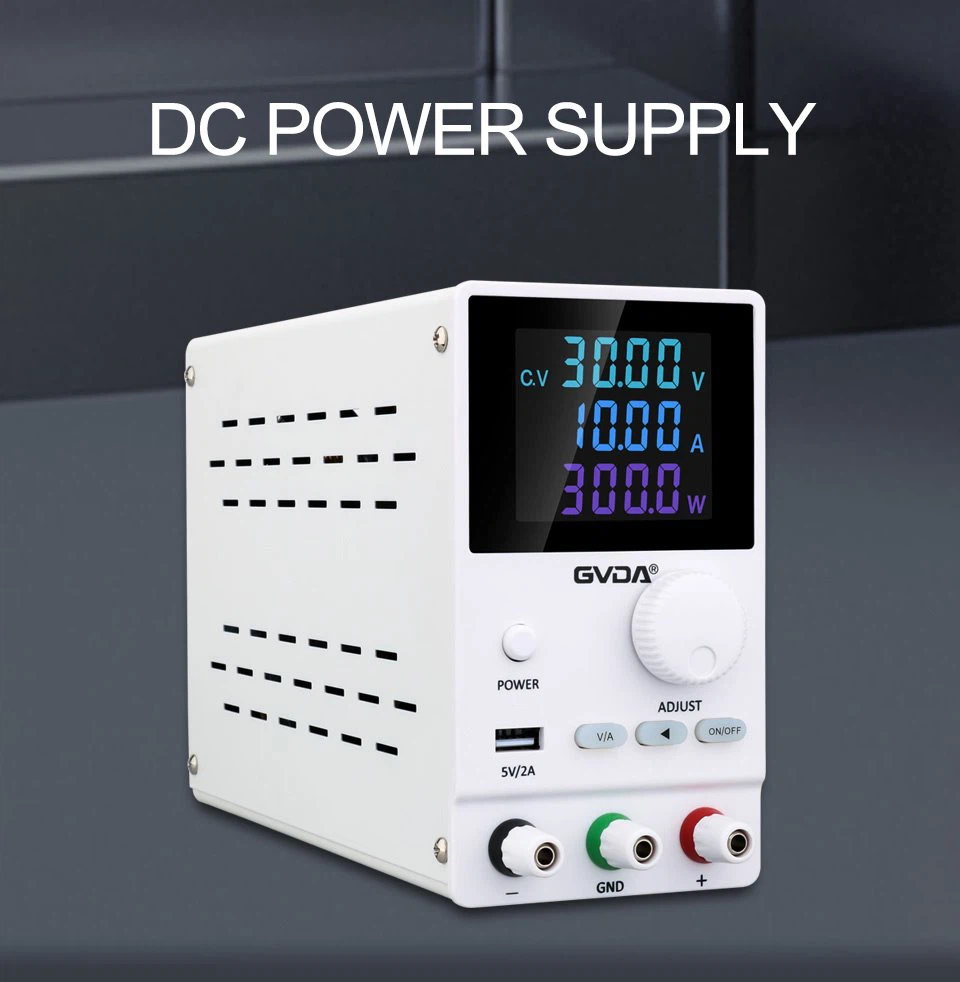

Bench DC Power Source

Rotary Encoder

PRODUCT MAINTANCE

1. Disconnect the power when the product is not in use.

2.Unplug the power supply before cleaning.

3.Do not use hydrocarbons, chlorides or similar solvents, oruse abrasive cleaners.

FUSE REPLACEMENT

lf the fuse blows, the power supply will stop working.To find andcorrect the cause of the blown fuse, then replace it with a fuse ofthe same specification.

PRODUCT WARRANTY

1. This product is offered free maintenance service within oneyear from the date of purchase.Except in the following cases:

A: Lack of this product warranty card

B: Failures caused by improper use, such as improper handlingand improper repair, modification or adjustment of the device.

C: Consumable materials are not covered by the warranty.

D: Naturally irresistible disasters such as floods, fires,earthquakes, etc.

2. Maintenance costs are charged for repairs that exceed thewarranty period,and the costs incurred for maintenance are theresponsibility of the user.
