Programmable Memory Function DC Power Supply

GVDA 30V 5A 10A  60V 5A  200V 300V 1A Programmable DC Power Supply Adjustable High Precision Memory Function Switching Regulated Power Supply



Highlights Features

---

HIGH ACCURACY WITH EASY CONTROL INTERFACE

MPU micro-system, encoded-controlled fine & coarse adjustment knob assures not only high precision but also high trueness. Featured keyboard lock function, 4 digitals LED display (0.01V and 0.001A) and auto power calculation guarantee stable current output and clearly visible readout.



STORAGE AND RECALL MEMORY FUNCTION

Features 3 buttons with Storage and recall memory function. Easily storage or recall the commonly used current/voltage only by pressing the button. Support Constant Current (C.C.) and Constant Voltage (C.V.) modes.



EXTRA COMPACT & PORTABLE

With power switch function and current output button, bench power supply is well suited for laboratories, schools, electrical maintenance, diy electronics, amateur, suitable for lab & industrial use



BUILD TO LAST

FCC & CE certified product. Built-in OCP (Over Current Protection), OVP (Over Voltage Protection), and short circuit protection. Special left & right vents and internal cooling fan to prevent overheating.



Tech. Details

---

Programmable Memory function DC Power Supply



Items	Spefications
Model Name	GD-E305 GD-E3010 GD-E605 GD-E1203 GD-E2001 GD-E3001
Output Voltage	0-30V 60V 120V 200V 300V
Output Current	0-5A 10A 3A 1A
Output Power	150W 300W 360W 200W
Input Voltage	230V±10% 50Hz or 115V±10% 50Hz
Working Temperature	Working temperature:0℃-40℃;relative humidity:<80%RH
Storage temperature	-10℃-70℃;relative humidity:<70%RH
Data storage function	Four groups of voltages and currents can be stored
Constant voltage State	Voltage stability:0.1%±3mV
	Low Voltage:0.2-0.3%+3mV
	Load stability: 0.5%±3mV
	Ripple noise ≤30mVrms
	0 to rated voltage continuously adjustable
Constant Current State	Current stability:0.2%+3mA
	Load stability: 0.2%±3mA
	Ripple noise ≤20mArms(Valid Value)
	Recovery time:≤500μS
	Temperature coefficient:≤100ppm/℃
	0 to rated current continuously adjustable
Display	Display size:5.3cm*4.8cm
	Screen type:LCD Screen (Protect eyes 24hours working)
	Display accuracy:0.5%±2digits
	Display resolution voltage :0.01V
	Display resolution Current :0.001A
	Display resolution power :0.001W
Product size	Long 25.2cm x Wide 17cm x High 8.4cm
Net weight	1.2Kg
Fuse standard	3.15A(AC 230V inpute) ,5A (AC 115V inpute)
Product color	White / Black
Built-in cooling fan	Smart turn on when temperature over 50℃

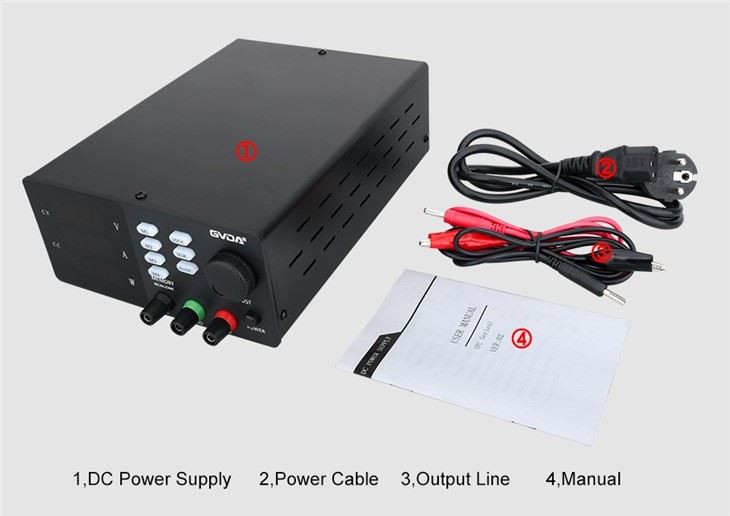

Packing Contents	1X DC Power Supply 1X Power Adapter(EU/AU/UK/US we will send 1 according to you country) 1X Black Output Line 1X Red Output Line 1X Instruction Book (English) 1X Pakcgae Box(Hard) 2X Protective Sponge



Product Display

---



Programmable Memory function DC Power Supply





Locking the front Panel



Press" Lock", the button light is on, all buttons and knob operation except for on/off will be locked, and press " lock" again, will release the lock.

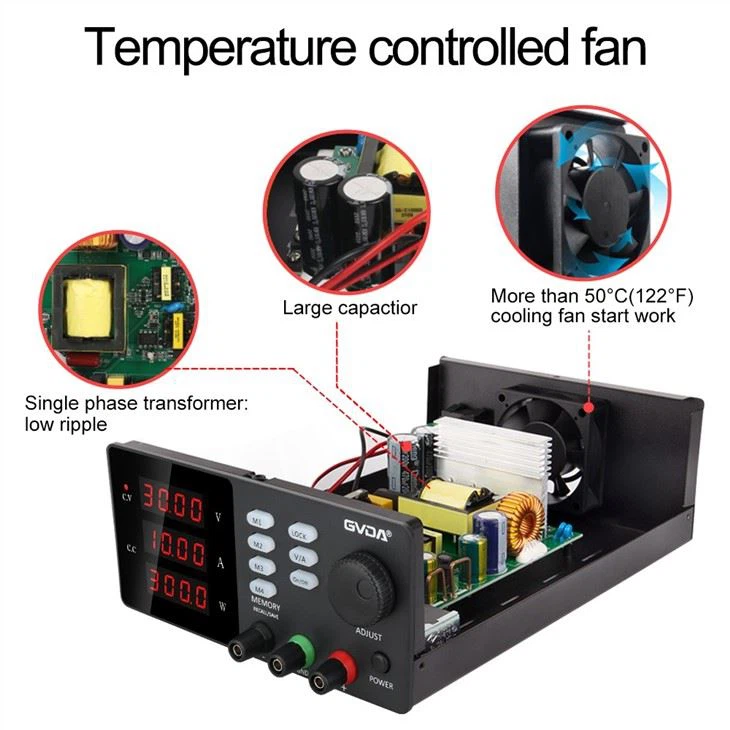

Temperature Controlled Fans



The cooling fans will  Auto Start working when the temperature is more 50℃



M1 M2 M3 M4 Four Groups of Data Storage



Press the M1 to M4 store/recall button, the indicator lights up, recall the data to be stored, and press it again to complete the storage





How adjust the current without Load?



Questions & Answer

Q 1:The current knob has been turned,why can't the current be adjusted?

A 1:You must connecte a load and the voltage setting cannot be 0, and then the current is adjusted

Q 2:Why isn't the cooling fan working?

A 2:We installed a smart cooling fan with a built-in temperature control sensor that turns on when

                  the temperature reaches 50 degrees Celsius.



Q 3:I can't choose the input voltage 220V or 110V?And the EU/AU/US/UK plug ?

A 3:We will send the corresponding products and plug according to your country, if you have

                 special needs, please contact us, we will send the correct products to you.



Q 3:Scratches on the screen?

A 3:There is a protective film on the screen that can be peeled off.
