Smart Voltage Detector Tester Multimeter

GVDA Digital Multimeter Non-Contact Voltage Tester Dual Range Live Wire Detector Ohm Hz NCV Meter Smart Multimeter Voltmeter Multitester

This is a smart voltage detector multimeter from GVDA. Exquisite appearance ,reliable performance,complete functions, it can meet the needs of different groups of people, and is very suitable as gift. 2.2-inch large LCD display, pen shaped design,it is convenient to operate and carry.

Special Features

1,2.2-inch red/green two-color display

2,Non-contact and pen shaped design

3,Non-contact voltage Detection(NCV)

4,Automatic measuring range/manual range

5,Full measuring range overload protection

6,Induction dangerous voltage alarm

7,Live/Neutral wire distinction

8,Live Wire Breakpoint Locate

9,Continuity check

10,DC/AC voltage measurement

11,Resistance measurement

12,Frequency measurement

13,Flashlight lighting

14,Alarm mode:Sound and light (Red/Green).

15,Battery low voltage reminder

16,Temperature unit ℃/F

Tech. Details

Display: 2000 counts

Screen: 2.2 inch LCD display

Max voltage allowed at the measuring end: 500V DC or 500V AC(RMS)

Sampling time: the meter figures show about 0.4s

DC Voltage: 500V, 0.01V, ±(0.8%+3)

AC Voltage: 500V, 0.01V, ±(1.2%+5)

Resistance: 0Ω-10MΩ, 1Ω, ±(1.2%+3)

Frequency: 1000Hz, 0.1Hz, ±(2.0%+3)

Continuity: If the resistance less than 30Ω, the beeper sounds

Non-contact voltage Detection(NCV):yes

Non-contact voltage Detection high sensitivity mode:yes

Live Wire Check: Yes

Over-range display:yes

Battery low voltage indication: yes

Ambient temperature:0-50℃, 0.1℃, ±2℃

Auto power off:about 5 minutes

Power: 2*1.5V AAA battery (not include)

Operation Temperature:0℃~ 40℃/32-104F

Storage Temperature:-10℃~ 60℃/-4-140F

Size: 127*42*25mm

Weight: 67g

Package Includes:

1 x Voltage Detector

1 x Test Leads

1 x Screwdriver

1 x User Manual

More Details

Smart voltage detector tester multimeter

Smart Measureemnt

GD110A Smart Multimeter can automatically measure DC/AC voltage, Frequency, Resistance, Continuity.

Non-contact Voltage Detection

Live/Neutral wire checking, safe and easy to distinguish the live and neutral wire by comparing the strength of the detected voltage, the wire that detect the stronger voltage signal is live wire

Live Wire Checking

Insert red test probe into the socket jack, if the screen will display LIVE, the 110V signal indicator or the 220V signal indicator lights up and the buzzer sound an alarm indicating that the line is live wire

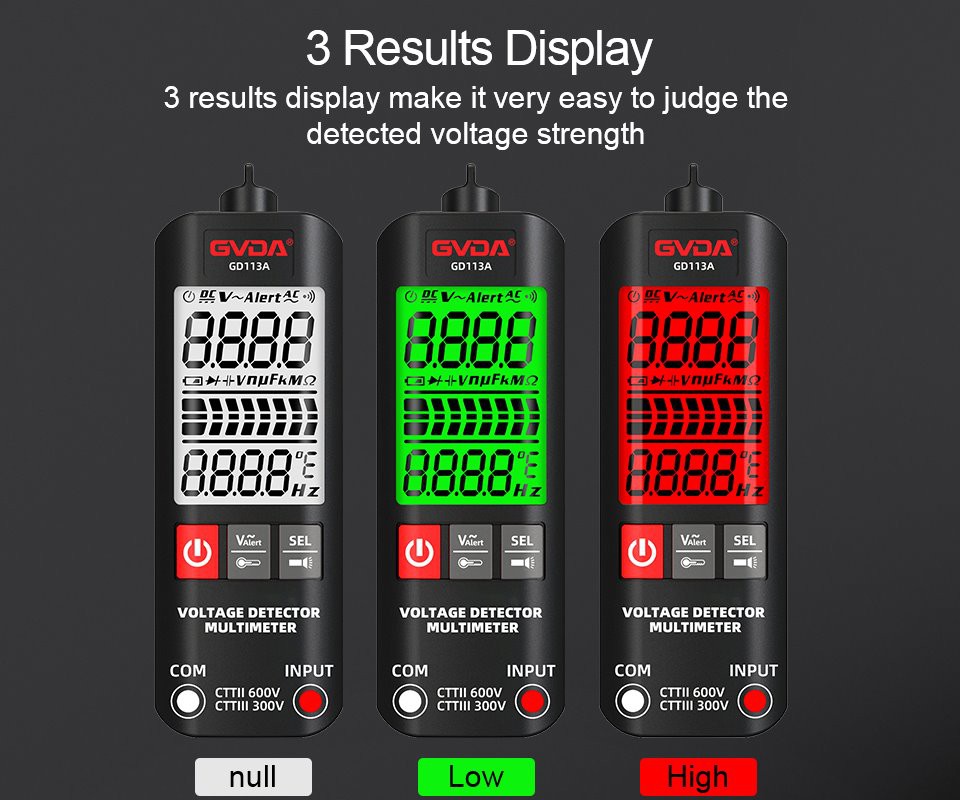

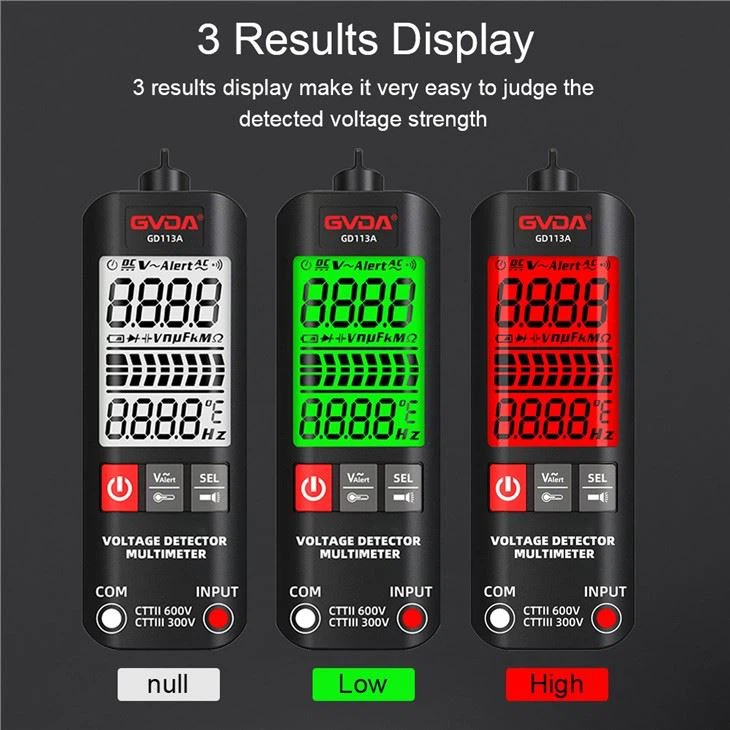

Tricolor LCD Display

3 Measuring resultes display make it easy to judge the detected voltage strength

Small and Portage

Compact Size and it is very convenience to carry it in your packet

Packing contents

Wide Applications
