Automotive Car Fault Maintenance Circuit Test Pen

GVDA Digital Car Multimeter Voltage Tester Pen Smart DC 100V Voltage Detector Automotive Car Fault Maintenance Circuit Test Pen Diagnostic tolols



Product Features

---

1. Multi-function real-time detection: DC Voltage detection, On-off testing, Resistance test, data hold.

2. Compact body and easy to carry.

3. Voltage detection: The GD181 Detect the DC voltage.

4. On-off testing, Find break points: If the wire resistance is below 500Ω, the buzzer will be prompt.

5. HD LCD backlight screen: High definition LCD display, suitable for measurement in various environments.

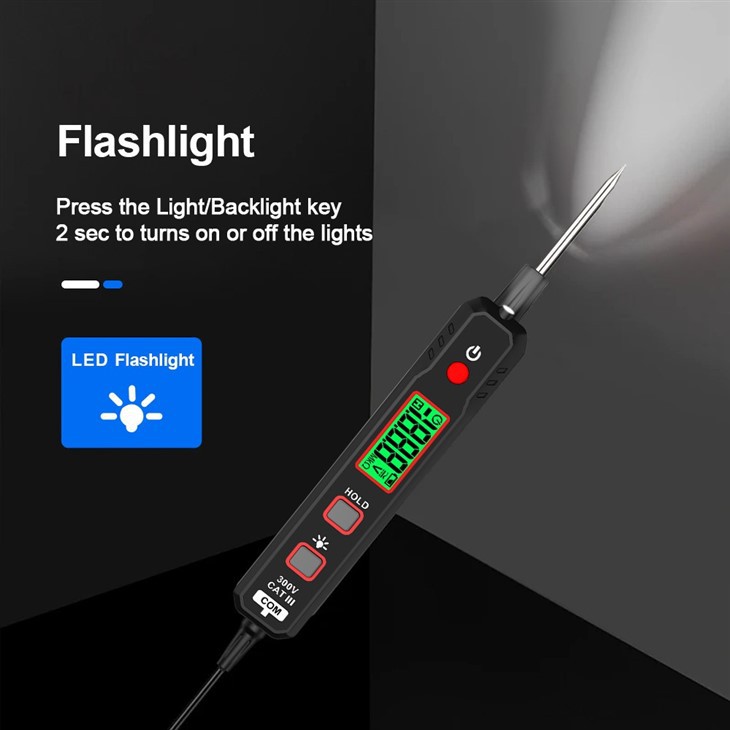

6. LED lighting function: Provides lighting in dark environments.

7. Auto power off: The pen will shut down automatically if there is no operation after a few minutes.



Technical Details

---



DC Voltage range: 0.8V~2V/20V/100V

DC Voltage resolution: 0.001V/0.01V/0.1V

DC Voltage accuracy: ±(10%+5)

Resistance range:2000Ω/20kΩ/200kΩ/2MΩ/20MΩ

Resistance accuracy:1Ω/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ

Resistance accuracy:±(1.2%+5)

Continuity:YES

Operating temperature: 0~40°C

Operating Humidity: ＜80%RH

Storage temperature: -10~60°C

Storage: ＜70%RH

Safety compliance: CAT.II 300V

Pollution level: 2

Altitude:＜2000m

Sampling rate: about 3 times/sec

Battery: 1*1.5V AAA batteries(not include)

Product size: 175*23*25mm

Product weight: about 63g

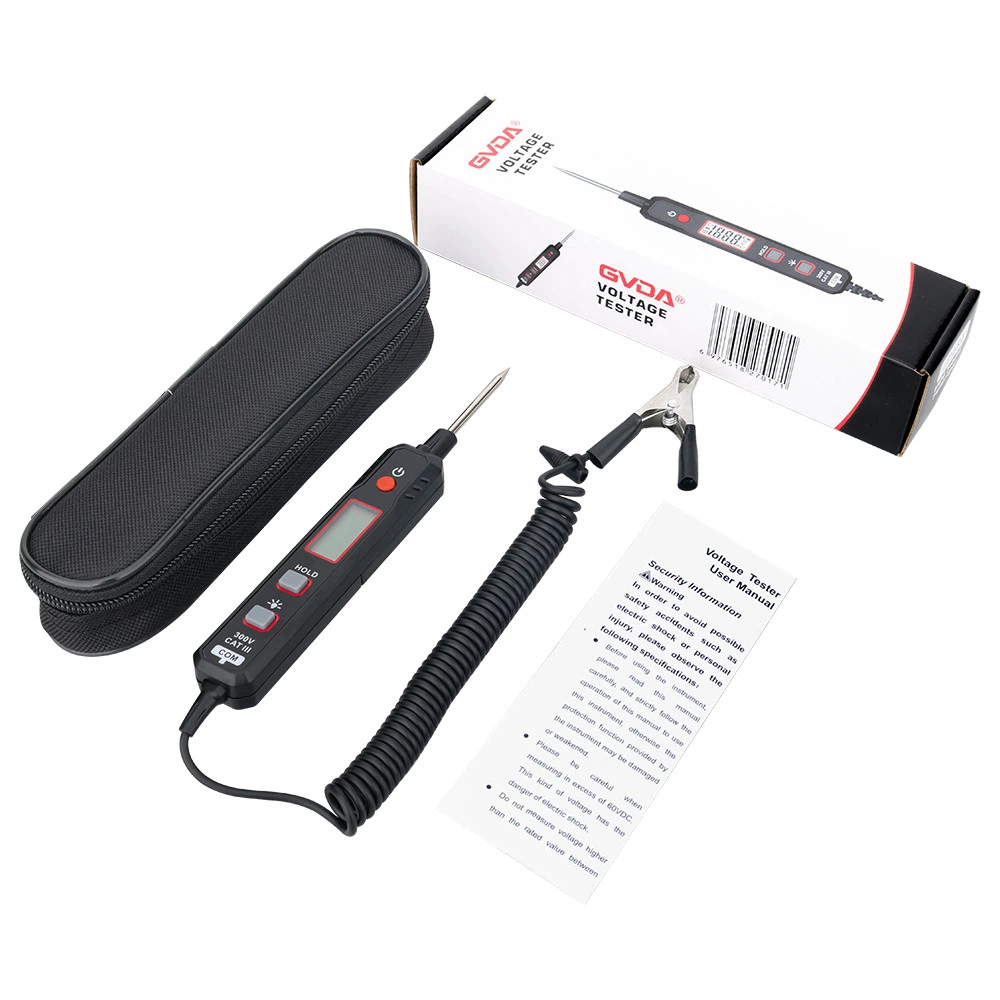

Package contents

1*DC Voltage tester

1*Bag

1*Box

1*Manual

The fuse or circuit can be tested under the following conditions:

1. Fog lights don't work

2. The car horn doesn't work

3. The headlights don't work

4. The car won't start

5. Car navigation does not work

6. The air conditioner doesn't work

7. The skylight does not open

8. The air conditioner doesn't work

9. Cigar lighter does not work

10. Backup lamp does not work

11. The stereo does not work

12. Turn signal lamp does not work

Notes:

1. Please allow slight dimension difference due to different manual measurement.

2. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

3. After receiving the goods, if you have any questions, please contact us first, we will be responsible for every buyer.





Product Details

---

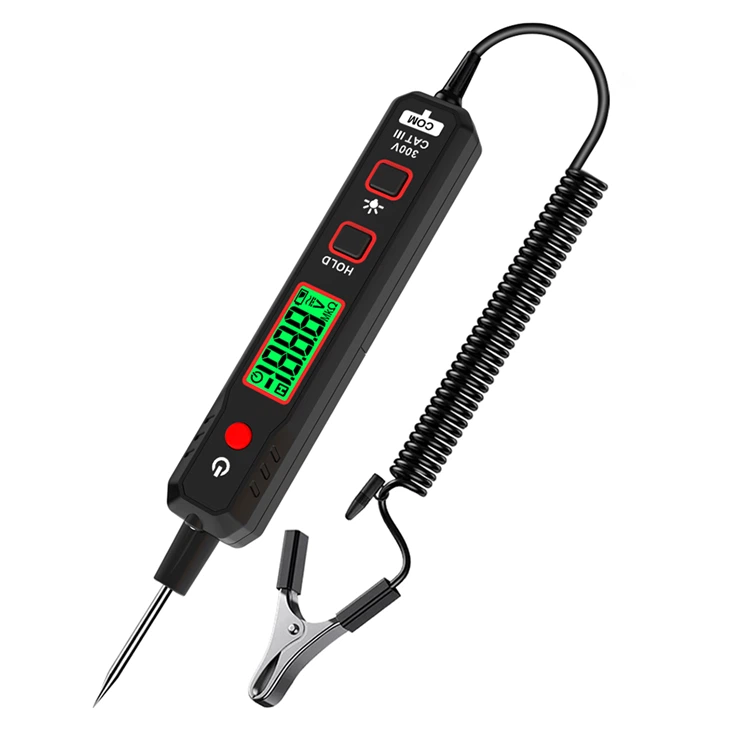

GVDA GD181 Automotive Car Fault Maintenance Circuit Test Pen

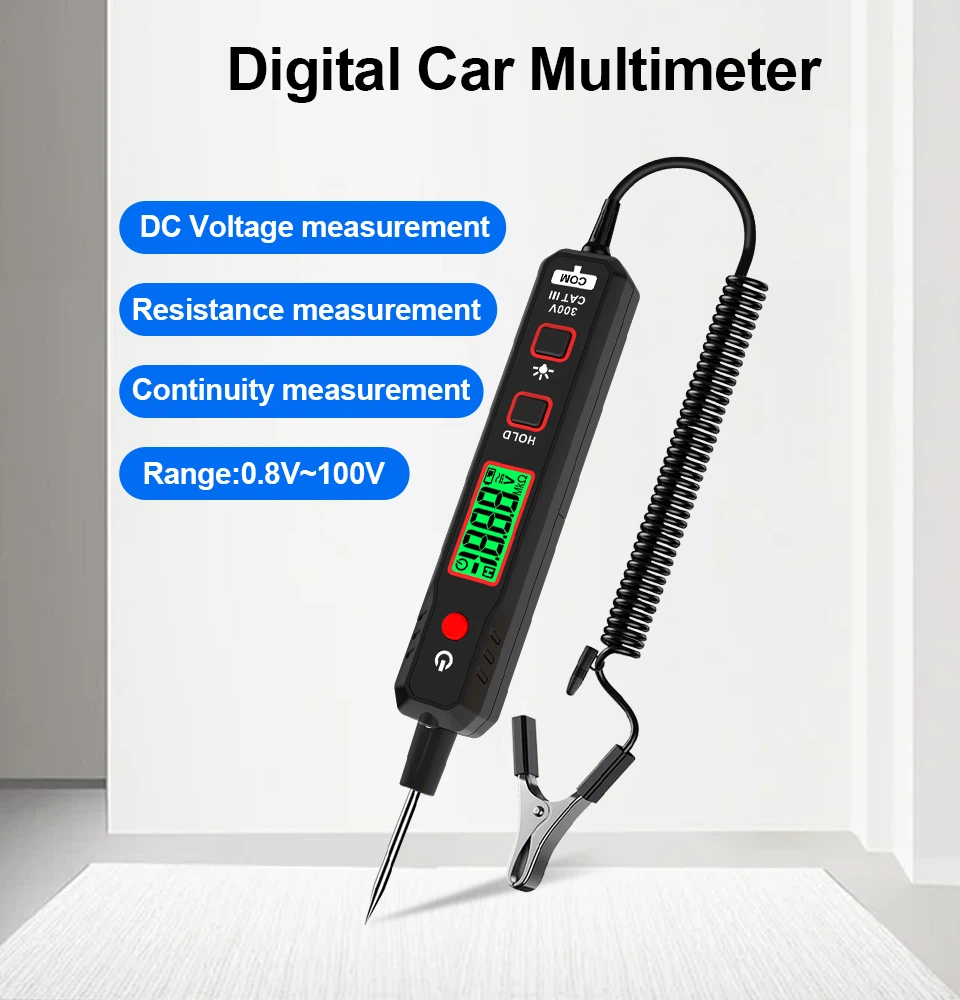

DC Voltage measurement / Resistance measurement / Continuity test / Range: 0.8-100V





Multi Functions

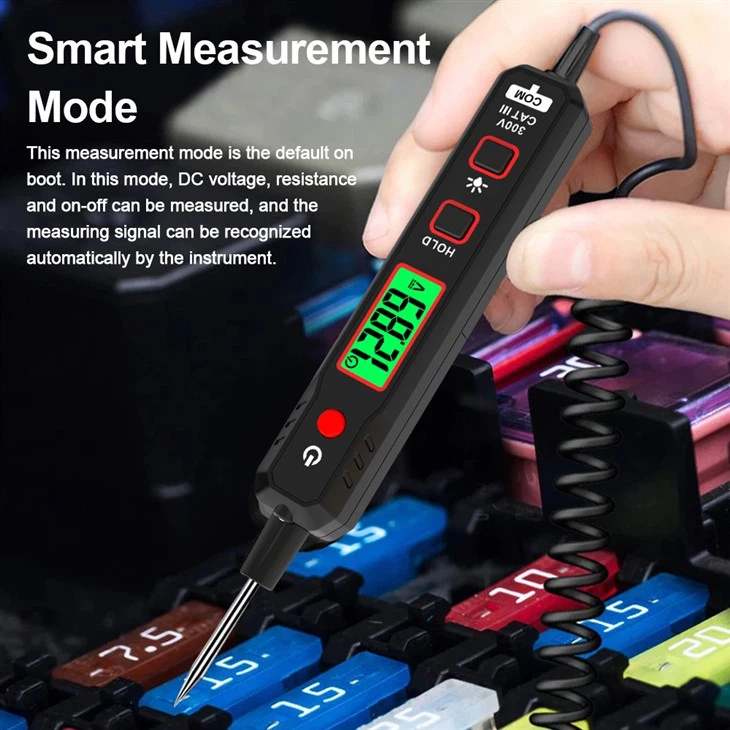

Smart measurement mode

This measurement mode is the default on boot. In this mode, DC voltage, resistance and on-off can be measured, and the measuring signal can be recognized automatically by the instrument.

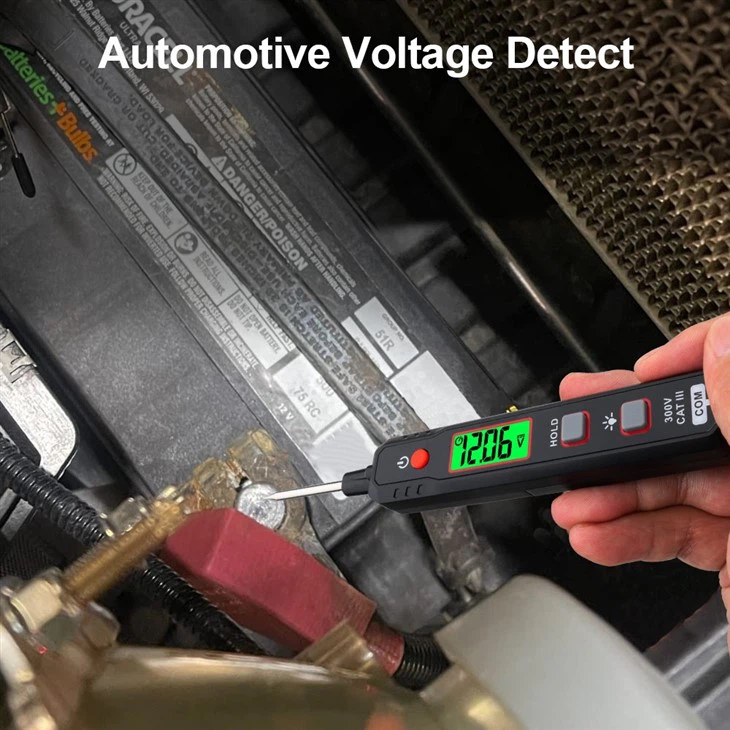

Automotive voltage detect

Automotive circuit fault inspection, Locate automotive fuse circuit faults and check constant power/ACC, making troublesome-shooting easy

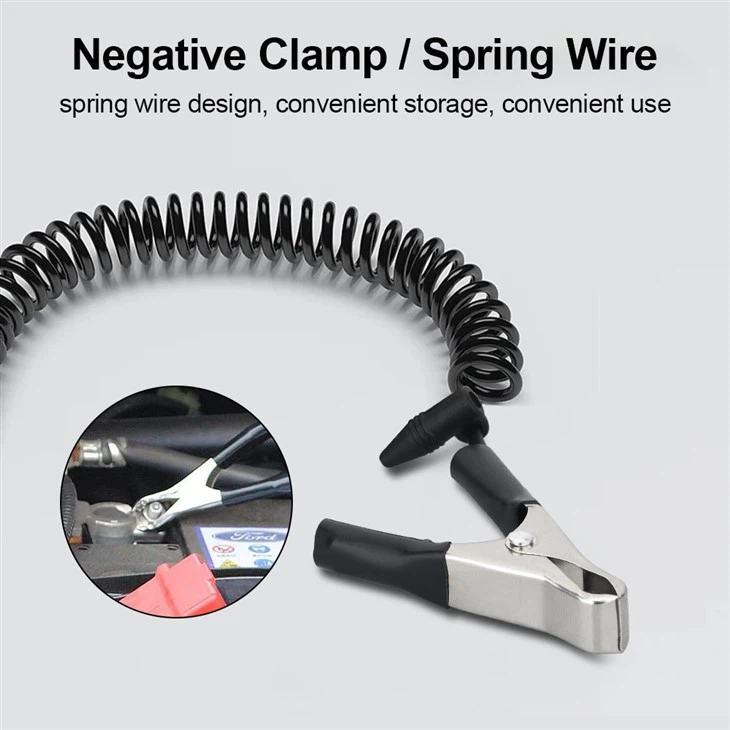

Flexible spiral spring line

Constructed with TPU engineering material, featuring excellent elasticity and stretchability, the line body self-recovers without tangling. It also exhibits resistance to pulling, durability and freeze resistance.







Product Introduction





Paking List:









FAQ

---

1. Can you provide products that meet CE requirements?

Yes, we have many products that have passed the CE test. If the products you require need to pass the CE test, we can arrange to send them for testing.

2. Can I sell the products with your brand online/offline?

A: Yes, we allow you to sell the products with our brand online/offline.

3: Do you have any after-sales service?

A: There will be 24*7 after-sales service team to reply you within 24h.

4. What's the standard MOQ?

Sample to test available

Wholesale order: 100pieces

OEM Order :1000pieces - 5000pcs
