The structure and use of video microscopes
The video microscope is a relatively unique magnifying device. It is different from other optical instruments. Other optical instruments can be observed directly with the eyes towards the eyepiece, but the video microscope is obviously different. The video microscope can also be transformed into There are many names for electron microscopes. Professionals generally call them video microscopes, which is more professional, while ordinary people call them electron microscopes.

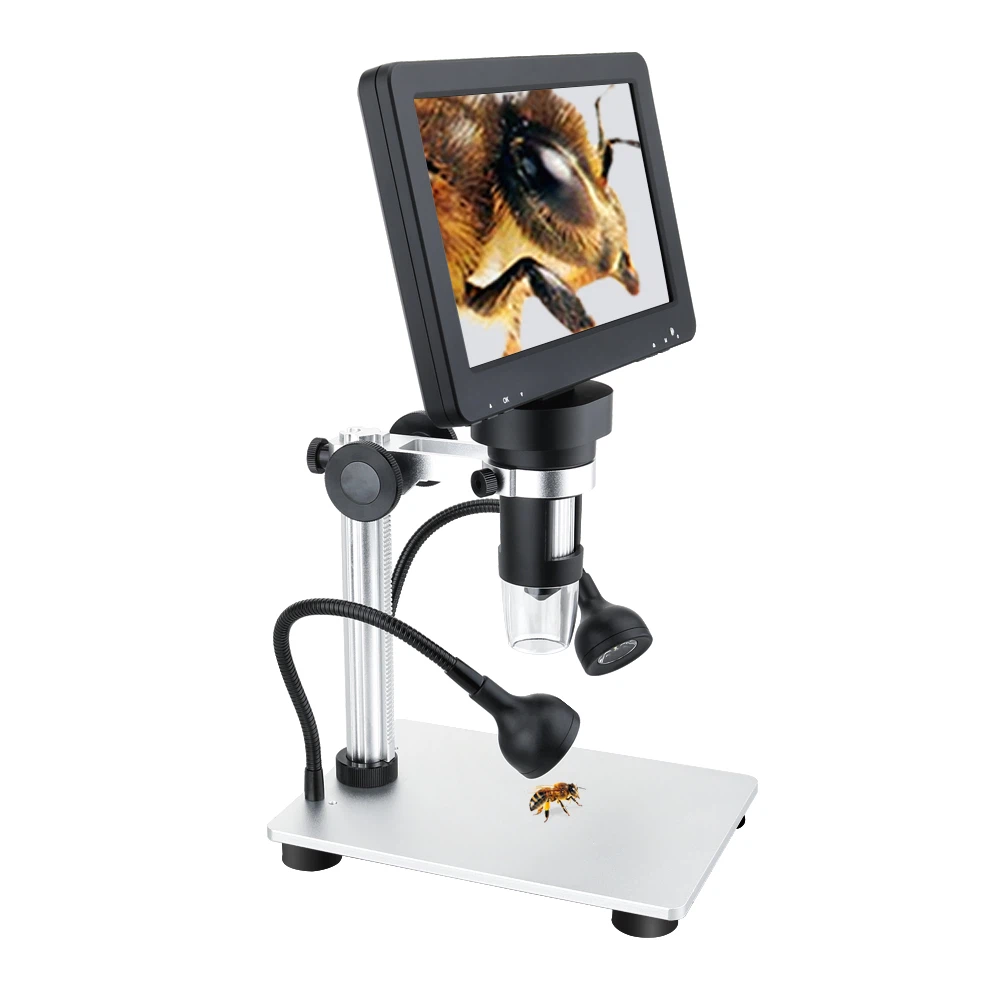

First of all, what is the structure of a video microscope? That is, its structure includes a microscope, a gimbal, and a camera. These four main accessories, of course, there are also other spare parts such as the microscope light source and some connecting lines. The microscope mainly refers to Lenses are relatively noble in the entire video microscope, equivalent to its core. Some good lenses are imported from abroad. Of course, with the rapid improvement of the domestic economy, domestic lenses have gradually reached the world level. That's almost it; the gimbal is a shelf that supports the microscope lens, monitor, and camera. There is an iron plate below and a stainless steel pipe above. One supports the monitor and the other supports the microscope and camera. This is the basic of a video microscope. structure.
In addition, the use of video microscopes: roughly divided into 4 parts:
First, prepare several large parts of the video microscope and assemble the gimbal bracket first. Note here that the brackets for the lens and camera should be at the bottom, and the bracket supporting the monitor should be placed on top, so that it is easy to observe.
Second, install the lens on the gimbal bracket, and install it inside a circle, which just fixes the lens. The lens is relatively fragile, so be careful when installing it. Then install the camera on top of the lens. Where Just plug it in if it has the diameter of the interface. This step is very important, so be careful.
Third, after the bracket and lens are installed, fix the monitor. After fixing, connect some link cables and that's it.
Fourth, if you feel that the light is relatively dark after completing the previous steps, you can also install the light source on it, so that you can have enough light to observe the product.
