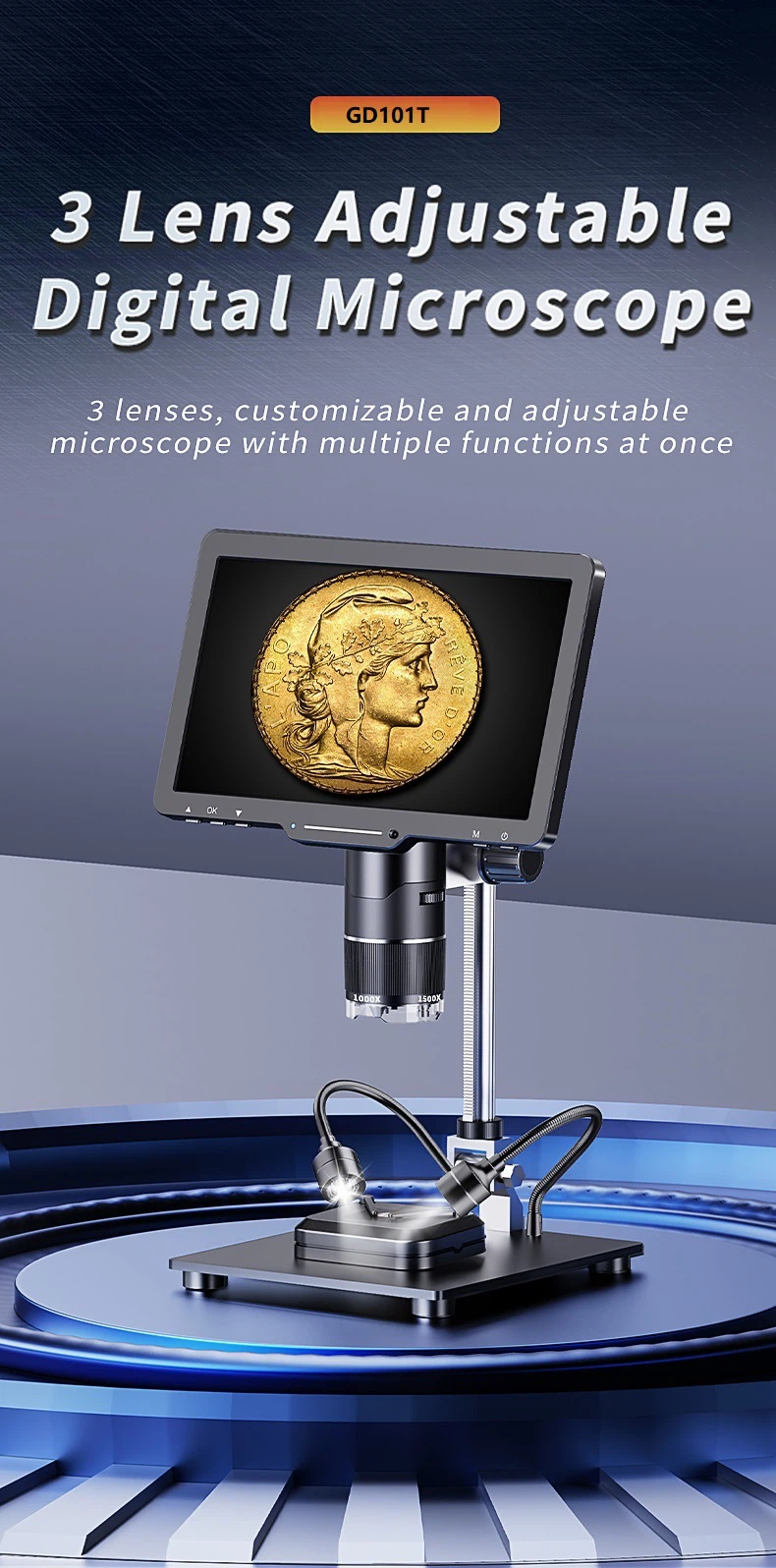

10.1inch 3 Lens Electron Soldering Microscope

GVDA GD101T-A is  10.1inch 3 Lens Electron Soldering Microscope, IPS LCD 2K 24 MP Digital Video Microscope is with 1000X 1500X 2500X 3 Lens and HDMl for Mobile Repair PCB Soldering

Technical Details

Screen: 10.1 inches, IPS LCD screen, screen resolution: 1024*600
Video maximum pixel: 2K / CMOS size: 1/2.8"
Photo resolution: 24M, 20M, 16M, 12M, 10M, 8M, 5M, 3M, 2M
Video resolution: 2K, 1080P, 720P
Video format: MP4 / Focus mode: manual
Image format: JPG / Magnification: 1000X-1500X-2500X
Digital zoom: support
Light source: 12 LED lights (brightness adjustable)
PC resolution and image transmission rate: 1280*1080/25fps
White balance: automatic / Exposure: automatic
PC operating system: Windows xp, win7, win8.1, win10, Mac OS x 10.5 or higher
Supported languages: Simplified Chinese, Traditional Chinese, English, French, Spanish, Portuguese, German, Italian, Russian, Japanese, Korean / Lens structure: 5G+IR
Aperture: F6.0
Interface and signal transmission method: TYPE-C/USB2.0
Operating temperature: -10°C ~ +55°C
Working humidity: 30%~85%Rh
Power consumption: 3.5W


Packing Contents:

Microscope *1
Base *1
Bracket *1
Remote control *1
Light shield *1
Type-C Cable *2
HDMI Cable *1
User Manual *1

Application:

Electronic circuit board inspection, industrial inspection, textile inspection, watch and mobile phone repair, skin inspection,
scalp inspection, planing experiment test, printing inspection, teaching and research tools, magnification and measurement of precision objects, reading assistance, hobby research, etc.

Product Details

This is New Arrive GVDA 3 Lens 2K 24 MP 1000X 1500X 2500X  10.1inch Electron Soldering Microscope

This GVDA Electron Microscope is very popular recently in the market, it have 8 Core Selling Points

The Max Magnification of this 10.1inch  Electron Soldering Microscope is 2500X Magnifications

This Electron Soldering Microscope is with Newly upgraded Height Adjustment Bracket

This 3 Lens Electron Soldering Microscope is with Large Memory Usage up to 64GB

Digital microscopes, also known as video microscopes, convert the image of a subject seen through a traditional optical microscope into a digital image, projecting it onto a screen on the microscope or a computer. They are primarily used for educational purposes.

The main advantage of digital microscopes is that traditional optical microscopes are designed for single-user use, making it difficult to share the image. Furthermore, capturing images from within the microscope often requires specialized equipment. However, digital microscopes can connect to computers, allowing the image to be projected into a classroom, enabling students to view the image together and improving classroom management. GVDA GD101T-A digital microscopes, as products combining optics and digital technology, have wide applications in scientific research, industrial inspection, and biological analysis.
