New 2 Lines Green Red Laser Level Self Levelling nivel laser Horizontal & Vertical Cross-Line 1/4 inch Threaded mount

Energy saving mode

when opening the instrument, the brightness of the laser will be 60% at first. Press the operation button once, the brightness will upto100%; press the button for the second time. the brightness will be reduced to 60%; press the button for the third time, and the brightness will be reduced to 35%. Press the button for the fourth time, the brightness will be back to 60% again.

Specification

1: Laser class: II

2: laser color: KE2LR red laser beam, KE2LG green laser beam

3: Laser wavelength:  KE2LR: 635G±5nm,KE2LG: 505-550nm

4: Leveling accuracy:±3mm/10m

5: Leveling/compensatin range: 4 degree ±1 degree

6: Working distance(line): KE2LR: 15-20m ;KE2LG:20-30m

7: Power by: AA 1.5V battery( not included)

8: Waterproof: IP54

Notic:

When the laser at Lock Mode, the line emitted by the laser can only be used as a tilting lines, not for vertical reference.

If you need a vertical line, please open the self-leveling mode.

Product Details

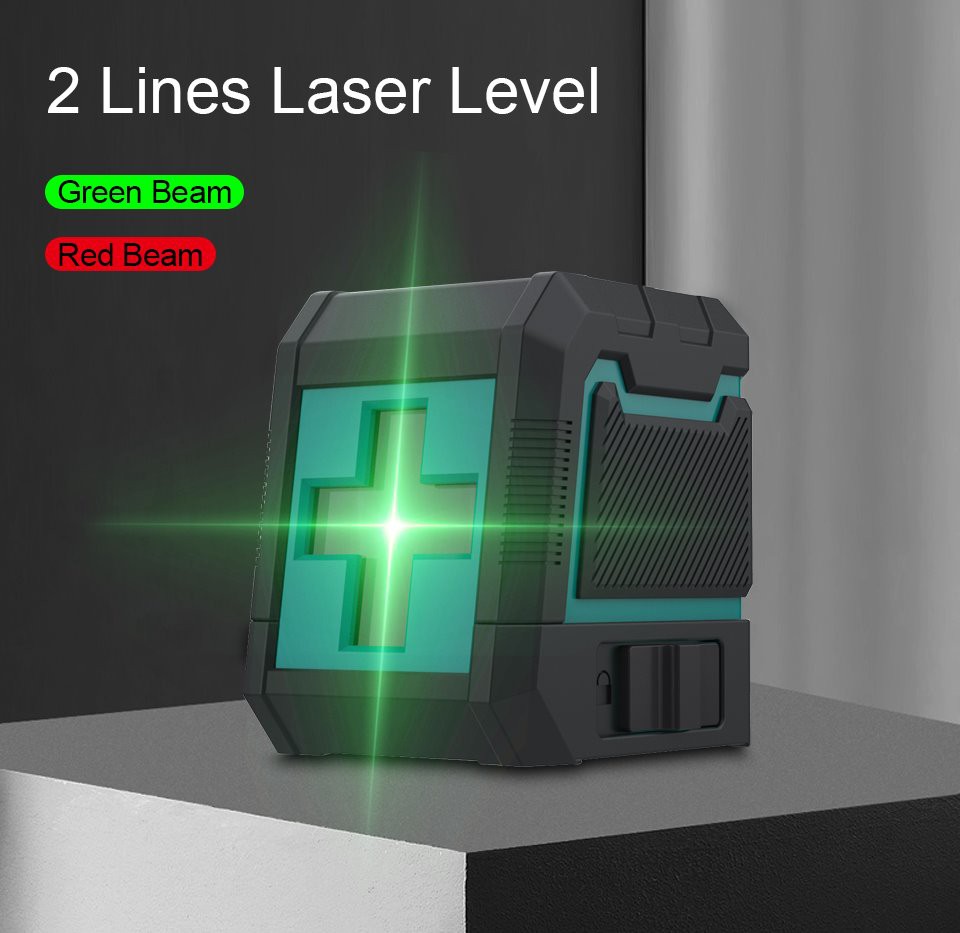

Green Beam 2 Cross Lines Self Levelling Laser Level

Green beam or Red Beam Laser level

Laser wavelength:  KE2LR: 635G±5nm,KE2LG: 505-550nm

Core Technology, More Stable and Durable

Laser wavelength:  KE2LR: 635G±5nm,KE2LG: 505-550nm

Self Leveling

Leveling/compensatin range: 4 degree ±1 degree, Turn Lock Switch at position, vertical and  horizontal laser beams both light up, and the machine will be self-leveling. The self-leveling  range is about 4°, If over leveling, laser lines flash

Locked Mode

When Lock Switch at LOCK position, press key button 2 seconds, vertical and horizontal laser beams both light up the indication light is Green. Support for tilting laser lines manually at any angle.

Waterproof, Dust Proof and Drop Proof

With a protection level of IP54, and has the functions of waterproof, dustproof, and shockproof.

Wide Applications

Getting Started

1. Operation button 2. Laser window

3. Lock switch 4. Battery compartment

5. 1/4‘mounting thread

Use only AA batteries (1.5V) LASER LEVEL. 1. Open the battery compartment cover on the back.

2. Insert the batteries into the instrument,observing  the correct poles.

3. Close the battery compartment cover.

No I te: f the power mode light is dimmed it means that the battery is weak and the battery needs to be replaced. If you encounter the laser does not work, please check the positive and negative battery terminals.
