Digital Electronic Continuous Amplification Magnifier

GD7010 High definition 1200X USB Digital Microscope, 1200x industrial magnifier Camera with wire control, suitable for PCB Soldering Inspection and Repair Identification.

Digital Electronic Continuous Amplification Magnifier

Features

Complete functions, clear imaging, exquisite workmanship, large screen display, external remote control, easy operation, external LED fill light, self-replaceable battery, can be connected to a computer, support up to 12 languages, etc.

Note: use 18650 rechargeable specifications battery,please use charger to activate the device when the battery is first installed and replaced

High-definition 1200X USB Digital Microscope with 7 inch screen and Bracket LED light.

Specification

Product model: GD7010

Maximum video pixel: 1080FHD

Lens optical size: 1/4"

Camera resolution: 12M, 10M, 8M, 5M, 3M

Video resolution: 1080FHD, 1080P, 720P

Video format: AVI

Focus mode: manual

Picture format: JPG

Magnification: 1200X

Digital zoom:not support

Light source: 8 LED lights (adjustable brightness)

Focusing range: 10~40mm (you can watch the distant view)

PC resolution and image transfer rate: 1280*720/30fps

White balance: automatic

Exposure: automatic

PC operating system: windows xp,win7,win8.1,win 10,mac os x 10.5 or higher

Support languages: 12 languages

Lens structure: 2G+IR

Aperture: F4.5

Lens angle of view: 16°

Interface and signal transmission method: Micro/usb2.0

Operating temperature: -20°C ~ +60°C

Working humidity: 30%~85%Rh

Working current: 390mA

Power onsumption : 1.95w

Application:

Electronic circuit board inspection, industrial inspection, textile inspection, watch and mobile phone repair, skin inspection, scalp inspection, planing experiment test, printing inspection, teaching and research tools, magnification and measurement of precision objects, reading assistance, hobby research, etc.

Function Description:

Video resolution: There are 3 formats to choose from: 1080FHD, 1080P, 720P.

Camera resolution: There are 5 formats to choose from: 12M, 10M, 8M, 5M, 3M.

Continuous shooting: After turning on this option, you can take 5 photos continuously.

Image quality: There are 3 choices of high quality, standard and economic.

Sharpness: There are 3 options for strong, standard and soft.

ISO: There are 3 options for automatic, 100, and 200.

Exposure compensation: There are 13 kinds of exposure compensation values from +2.0 to -2.0 to choose from.

Date label: After selecting the date or date/time, the photos and videos are marked with the date or date and time.

Playback mode: Users can view the photos or video files they need according to their needs. Long press the menu button on the device or the switch button on the remote control to switch modes.

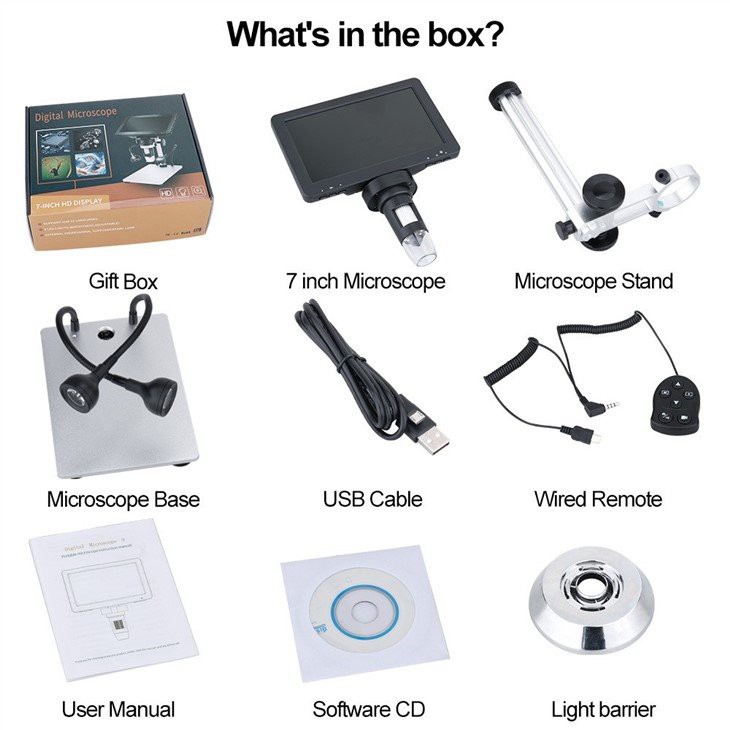

Package list :

1 X Microscope (Not Including Battery)

1 X Bracket

1 X Base with Light

1 X USB Cable

1 X Wired Remote Control

1 X Reflector

1 X CD

1 X Manual

Product Details

Digital Electronic Continuous Amplification Magnifier

7.0 inch Larger LCD Digital Microscope

Hook up to PC

18650 Rechargeable Battery

Support 32GB TF card

Convenient Wired Remote

12 Languages to Choose

Product Introduction and Packing Contents
