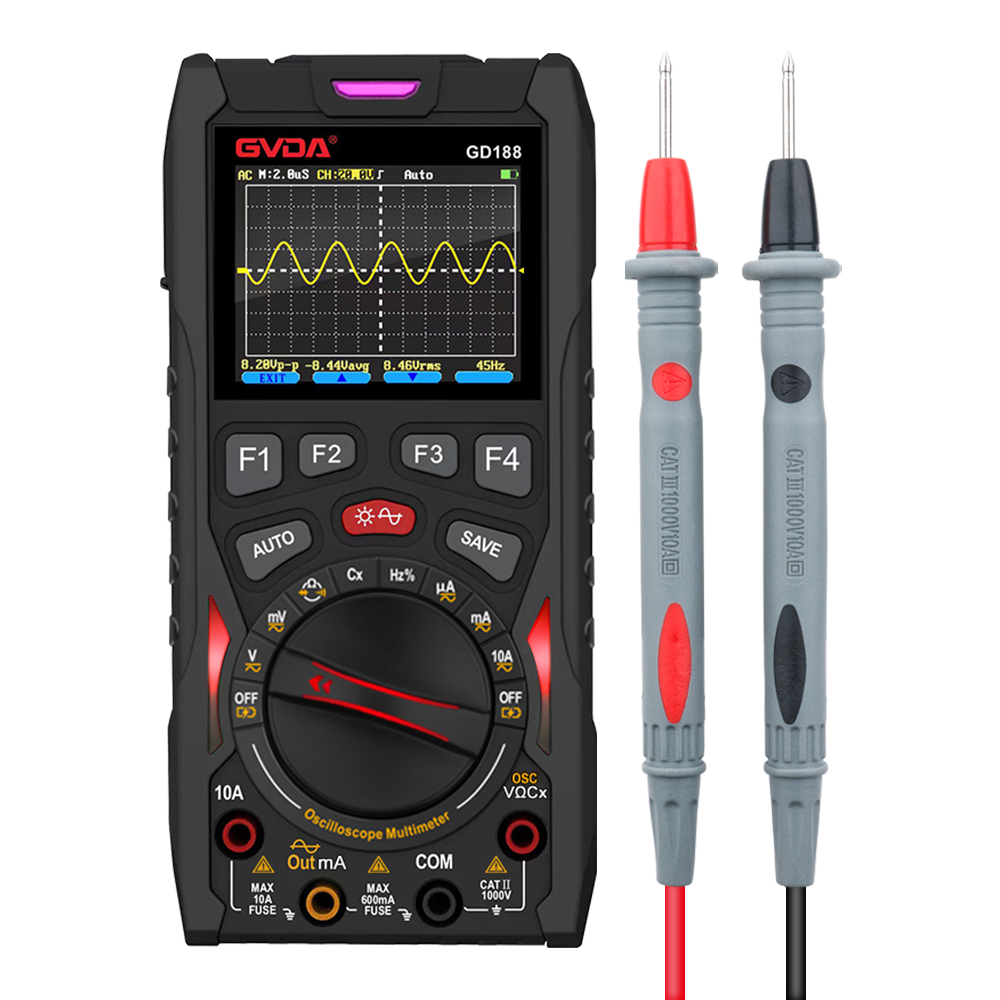

GVDA 3 In 1 Digital Oscilloscope Multimeter Signal Source Ammeter Waveform Capture AC DC Current Voltage True RMS Multimetro
Feature:

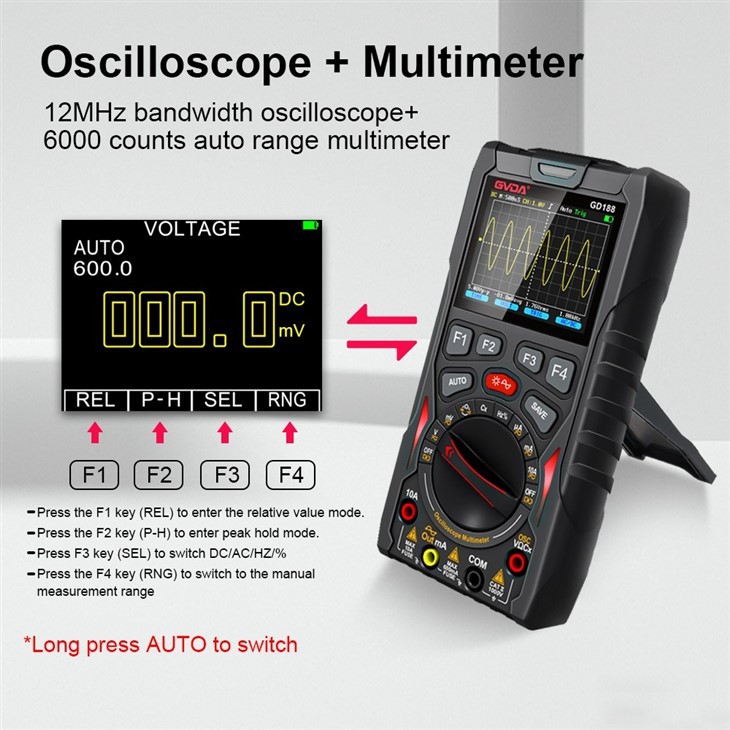

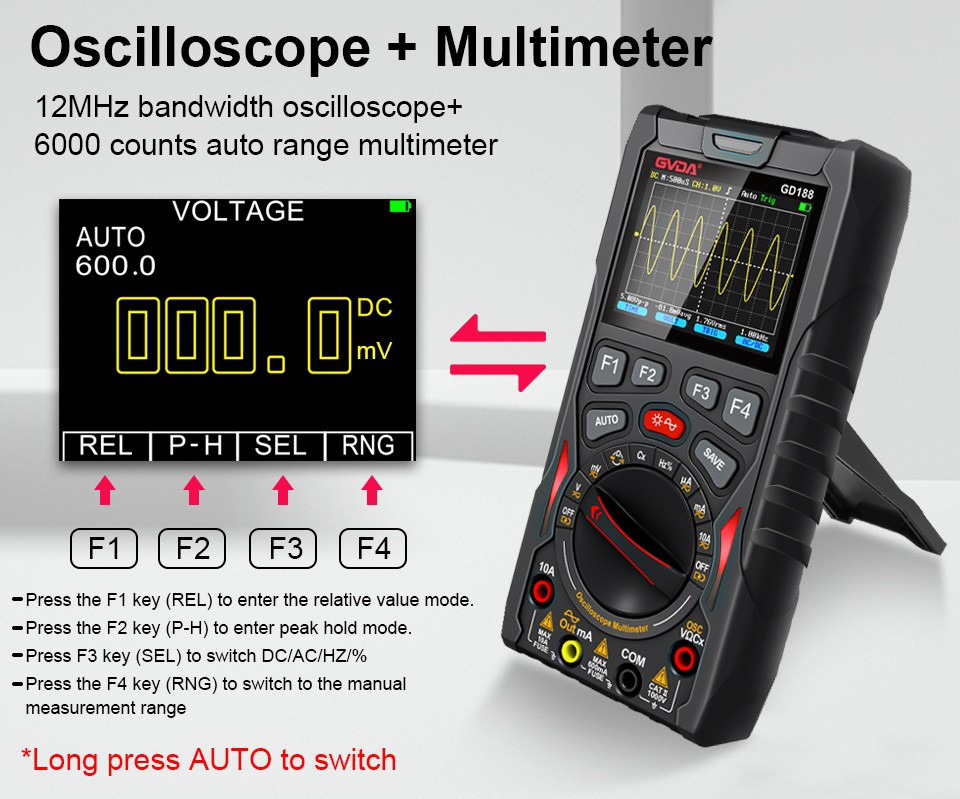

1. 50Msps high-speed sampling chip 12MHz analog bandwidth 6000 code digital multimeter.

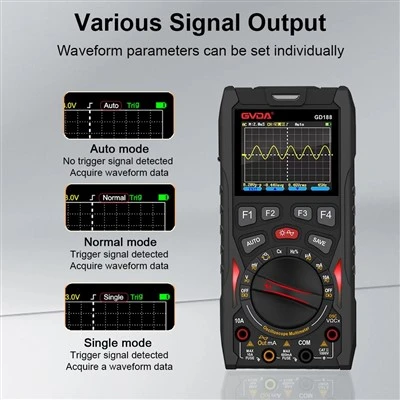

2. One key to see the wave of the voltage gear,there are three waveform scanning modes such as automatic/conventional/single

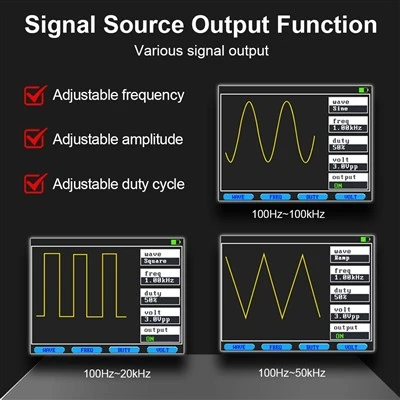

3. Signal souce outputs three types of waveforms,such as sine,triangle and square waveforms.
4. Signal souce output range,frequency,duty cycle,fixed point,adjustable.
5. Configured with replaceable 18650 lithium batteries,more environmentally friendly.

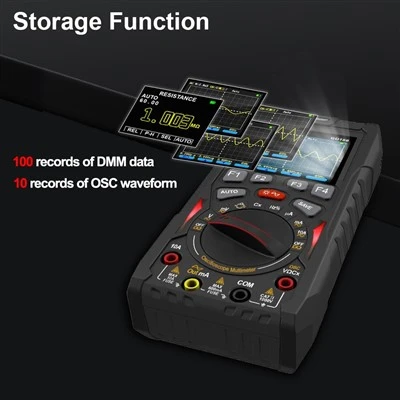

6. Data waveform hold function during measurement,100 sets of data and 10 waveforms can be stored.
7. Waveform range up to 200V/grid,the highest up to 1600Vpp measurement.
8. Relative value measurement,effectively eliminating lead resistance,distributed capacitance or interference signal.

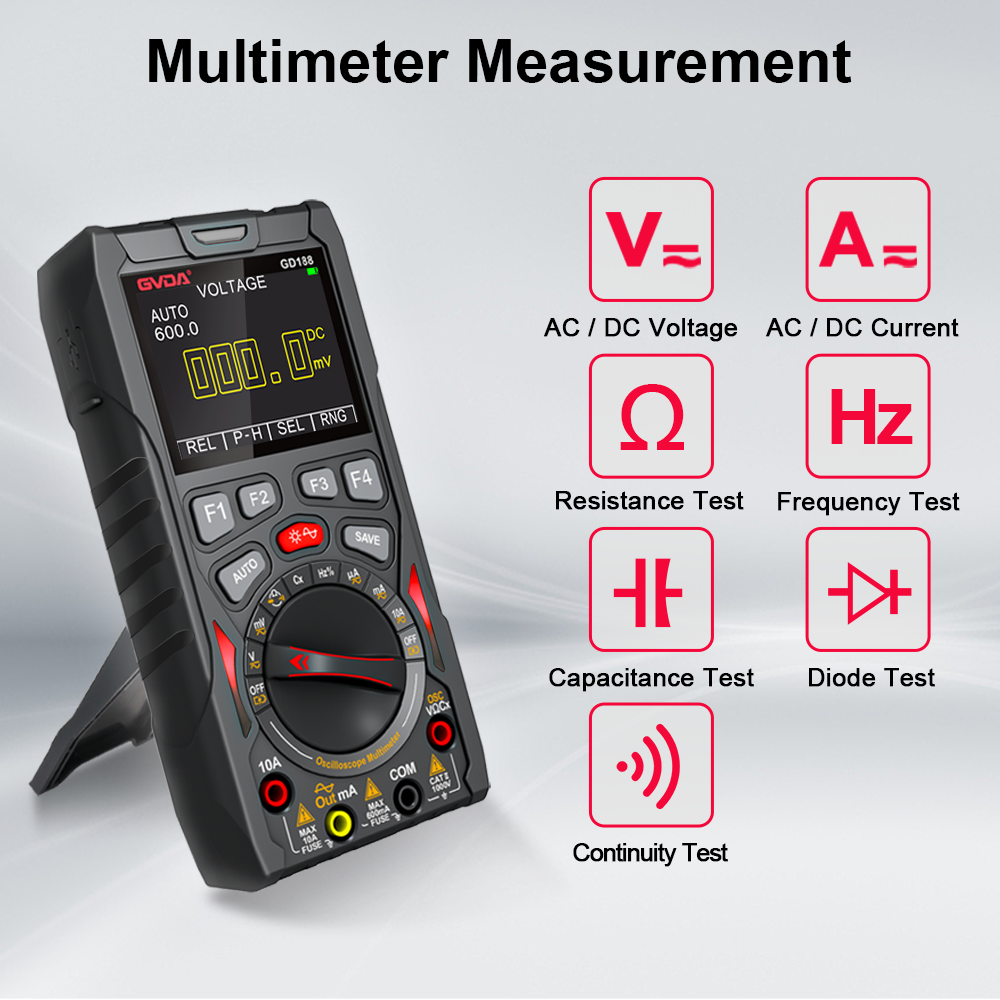

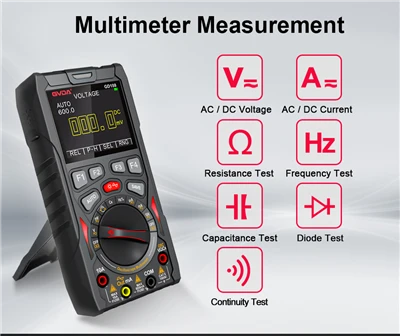

9. Multimeter functions include voltage/current,resistance,capacitance,frequency,duty cycle,diode/on/off testing.
10. Automatic/manual range switching,displaying real-time data and stored data on the same screen.
11. Overload protection 750mA;10A double fuse,double protection instrument.
12. 15 minutes no operation auto-sleep function.

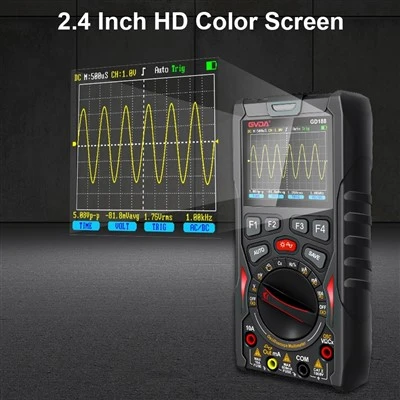

13. 2.4 inch color screen display,clear display.
14. Panel calibration,menory calibration factor without protentiometer adjustment,higher reliability.
General parameters
Display:240*320 Color Screen
Observation area:49.0*36.7mm
Backlight:Ever Bright
Input resistance: 500mV/div~200V/div about 5MΩ，50mV/div~200mV/div about 1MΩ
Battery:One 18650 lithium battery(1500mAH)
Automatic sleep:15 minutes or disabled
Static operating current:Multimeter about 80mA,Oscilloscope about 300mA
Shutdown:＜10uA
Duration of continuous use: ＞8 小时
Save Capability:100 records of DMM data, 10 records of OSC waveforms
Usage environment: 0°C~+40°C;<75%RH
Storage conditions: -10°C ~ +60°C ; <90%RH

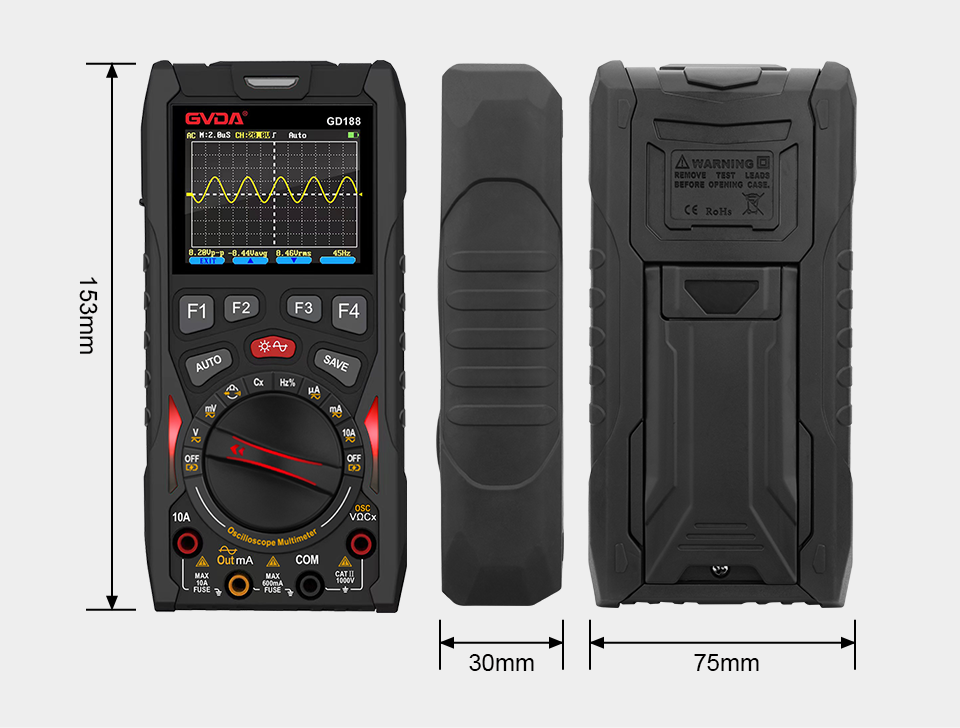

Product size:83*160*32mm
Product weight:250g
Charging:5V/1A,Type-C

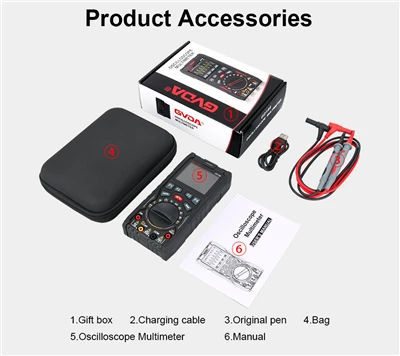

Package contents:1*Oscilloscope,1*test pen,1*cloth bag,1*manual
