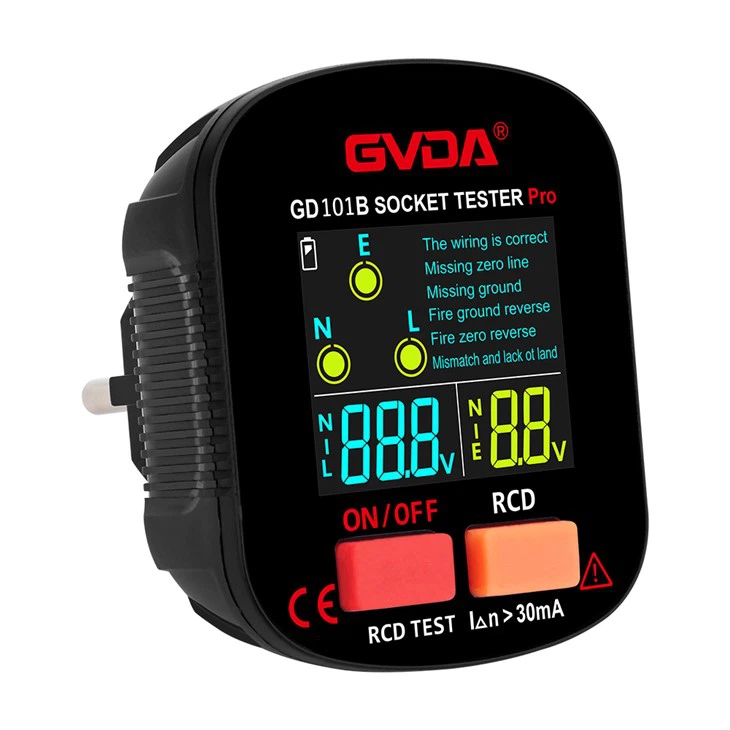

Digital Color Screen Socket Tester

GVDA GD101B Color LCD Socket Tester is mainly used for the polarity detection of the three-hole power socket wiring and the protection function detection of the leakage switch. It can quickly and accurately detect the wiring condition of the socket, and can timely detect the socket lines that cause electric shocks, electrical fires, and abnormal equipment operation. question. It is widely used in fire protection, safety supervision, home improvement, laboratory, factory and home line inspection and maintenance.

Features:

***1.Three kinds of plug for your choice: EU, UK, US Plug ( but now only EU plug was in stocks)
***2. Portable Socket Tester --- Advanced socket tester, used to quickly detect whether the wiring of the socket is correct. Small size, light weight, easy to use. Backlit LCD display with voltage for testing voltage.
***3. RCD function --- Designed with RCD button, one key to know the working status of the leakage protector. Great for keeping you safe from the risk of electric shock.
***4. Bright LED Display---Clear and high-brightness screen display, can light up clearly even in strong sunlight, the product can also be used in the dark, allowing you to read quickly.
***5. GD101B socket tester has 6 circuit status display modes---helping you to judge the wiring status simply and quickly. The 6 statuses include: correct wire, missing zero wire, fire zero reverse, missing ground wire, fire ground reverse, mismatch and lack of land.
***6.Wide range of applications - Widely used for electrical maintenance testing, office socket testing, power strip testing and wall socket testing in schools, laboratories, factories and other social areas. Home improvement acceptance and safety inspection, saving you a lot of time testing socket problems.

Details introduction

Zero-live voltage measure(L-N)：30-250V/ (50-60HZ)
Zero-earth voltage measure(N-E)：0.1-10V /(50-60HZ)
Working environment：Temp 0℃-40℃ / humidity (20℅-70℅)
Storage environment：Temp 10℃-50℃/ humidity(20℅-80℅)
RCD Current：>30mA
RCD Working voltage：220V ± 20V
Battery：AAA X 2
Item Weight：84g

Package weight: 107g

Package List:
1 * Socket Tester
1 * User manual


GVDA GD101B is EU Plug Socket Tester

Plug and play / Line Detection / Leakage protection

RCD Test

Insert the tester into the three-hole socket, and make sure to press the RCD button when the display prompts "correct wiring" (pressing time is less than 3 seconds), then the normal leakage switch will trip. Indicates that the leakage switch has failed or is missing. Please seek professional electrician maintenance in time.

Socket Polarity Detection

-The polarity detection of the three hole power socket wiring
-The protection function detection of the leakage switch
-It can quickly and accurately detect the wiring

Operation Introduction

1.Before using, please open the battery cover ,Install two AAA batteries.

2. Long press the power button for 2 seconds, then it is power on.

3) Plug the product into the socket to be tested to test the current socket line status and voltage.

Packing List

1x Socket Tester

1x User Manual

GVDA GD101B Advanced outlet testers can help you check house wiring and outlet connection polarity, and can also be used to test for earth leakage trips. It is a professional socket tester that can quickly detect whether the wiring of the socket is correct. With RCD test function, it is more practical and safer.
