Digital Infrared Thermometer Non Contact Laser IR Temperature LCD Display Gun Pyrometer Tester Aquarium Temperature Instruments Digital Non contact infrared thermometer Color LCD Digital Color LCD Non-contact Pyrometer

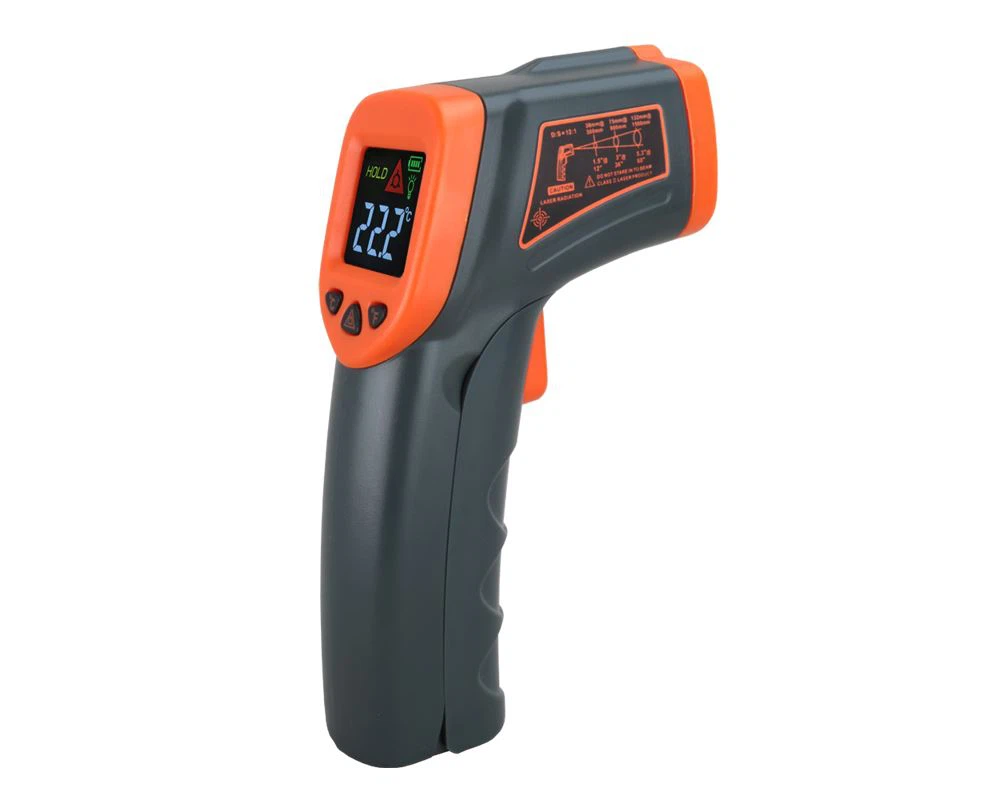

AT380+ infrared thermometer are safely and quickly used for measuring the temperature of the object's surface without contact. The most basic design consists of a lens to focus the infrared (IR) energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation.

Features

1. Temperature range: -32 ̊C~380 ̊C/-26 ̊F~716 ̊F

2. Non-contact rapid temperature measurement: It is very convenient and safe

3. Backlight function: It can clear observation in dark places

4. Automatic shutdown function: It is economical and power saving

5. Widely using range: It can use in water temperature, oil temperature, baking, heating, refrigeration, etc.

Specification

Temperature range		AT380:-32 °C to 380 °C (-26 to 716 °F ) AT380+:-50C~380C(-58F~716F)
Accuracy(In the condition of 23°C±3°C)		-32°C (-26°F) to 0°C (32°F) ±3°C 0°C(32°F) to 100°C (212°F) ±2°C 100°C here in before ±2°C or ±2% whichever is greater
Repeatability		1% of reading or 0.1°C
Response time		500 mSec, 95% response
Spectral response		8-14 um
Emissivity		pre-set 0.95
Ambient operating range		0 to 40°C (32 °Fto 104°F)
Relative humidity		10-95% RH noncondensing,@up to 30°C (86°F)
Storage temperature		-20 to 60°C (-4°Fto 140°F)
Weight		130g without battery
Dimensions		132.892.837mm
Distance to Spot Size		12:1
Power Supply		2 x AAA battery (not inlcude)

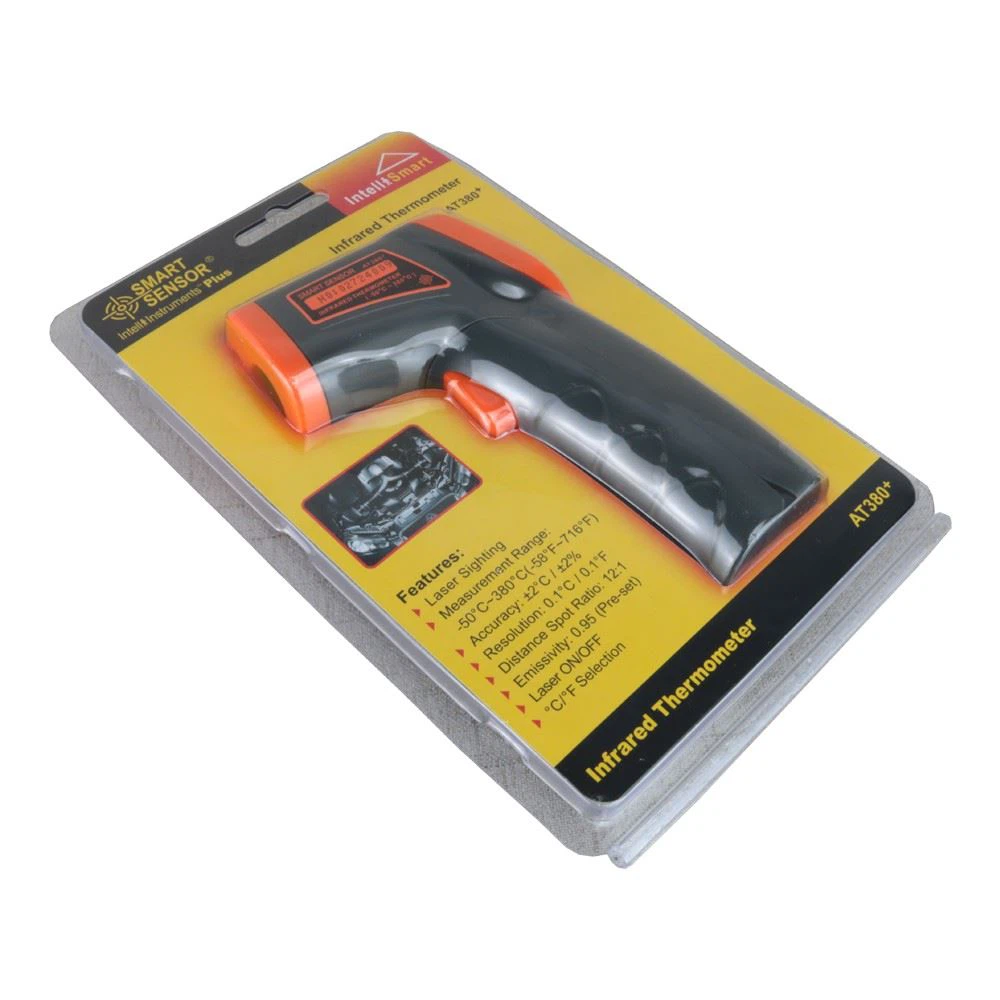

Package Contents		1pc AT380 Therometer 1pc user's manual English 1p blister package
Quick Start Instruction:
Step 1		Press battery door clip, install battery correctly. Pull the trigger, LCD display reading& battery icon. Release the trigger and the reading will hold for 7 seconds.
Step 2		Locating a hot spot: To find a hot spot aim the thermometer outside the area of interest, then scan across with up and down motions until you locate the hot spot.(please turn on the laser for accurate measuring)
User's Guide:
Instructions		Compact, rugged and easy to use. Just aim and push the button, read current surface temperature in less than a second. Safely measure surface temperature of hot,hazardous or hard-to-reach objects without contact.
How it works		temperature of an object, The optical detector sense the object s emitted energy with different wavelength. It is collected and focus onto a detector. The electronics system translated the information into a temperature reading which is displayed on the unit.
Cautions		Infrared thermometer should be protected from the following: --EMF (electro-magnetic fields) from welding equipment, inductive heaters. --Thermal shock (cause by large or abrupt ambient temperature changes allow 30 minutes for unit to stabilize before use). -- do not leave the unit on or near objects of high temperature.
