Product

AC 600A Inrush Clamp Meter

Name: AC 600A Inrush Clamp Meter
Brand: GVDA
SKU: 198918499

1.Model:GD166A
2.Maximum 6000 Counts
3.Inrush current test
4.NCV Measurement

Description

GD166A GVDA True RMS 6000 Counts Digital Clamp Meter Multimeter Auto Range NCV DC AC Voltage Inrush Current Temperature Tester

I am an automotive electrical technician and own multiple DVOMs including two expensive Flukes. This is now my new favorite meter. It is easy to use with more built in functions than any of my other meters. I especially love the built in inductive clamp (600 amp) DC amp meter. Can’t beat it for the price! Would highly recommend to newer technicians getting into the automotive field.

Special Features

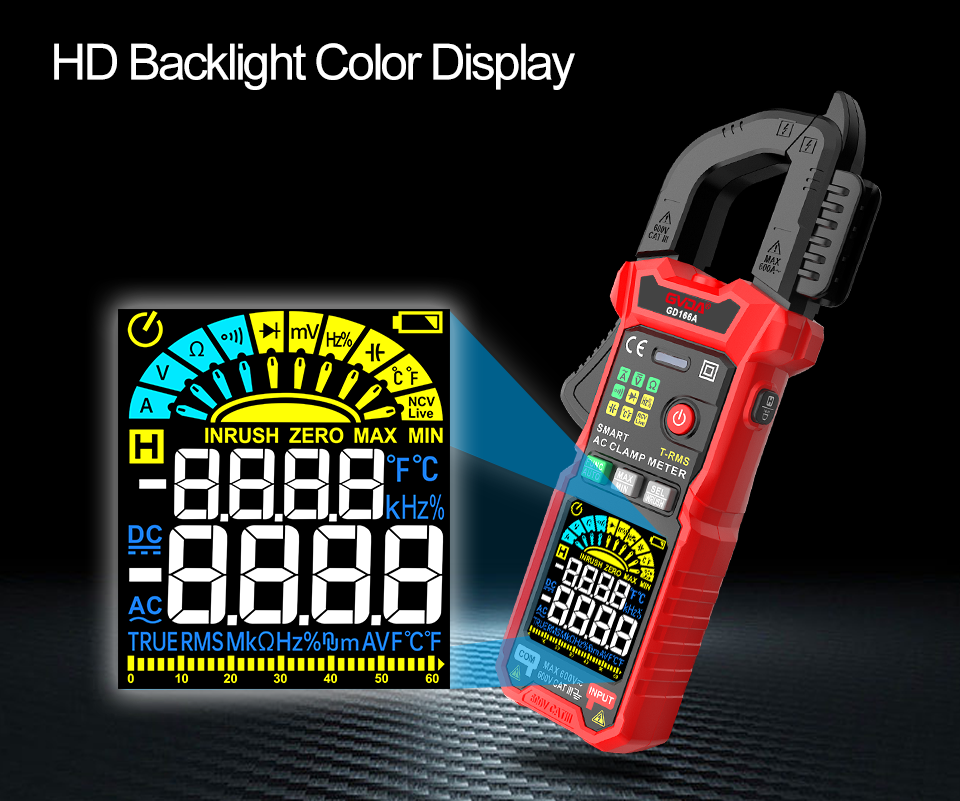

1) Larger Screen reverse HD Colour LCD

2) Max:6000 Counts

3) NCV Non contact voltage Measurement

4) AC Inrush current measurement

5) Manural and Auto range with one buttom switching

6)Temperature measurement

7) Anti Loss Portable pen storage

8) Power supply: 1.5V AAA Battery

Technical Data

DC Voltage:600mV/6V/60V/600V
AC Voltage:600mV/6V/60V/600V
AC Current:60A/600A (have no DC Current measurement)
Resistance:600Ω/6kΩ/60kΩ/600kΩ/6ΜΩ/60ΜΩ
Capacitance:6nF/60nF/600nF /6μF/60μF/600μF/6mF/60mF
Frequency:100Hz/1000Hz/10kHz/100kHz/1MHz/10ΜHz
Duty:1%-99%
Temperature (C/°F):-40°C-1000℃/-40°F-1832°F
Continuity:600Ω
Diode/NCV/Live/Analog bar/Data hold: YES
Max/Min/ Backlight/ lashlight/SMART（AUTO: YES
Low battery indication/Auto power off/True RMS:YES
Power:3x1.5VAAA batteries(Package not include battery)
Size Approx.206g199x73x34mm
