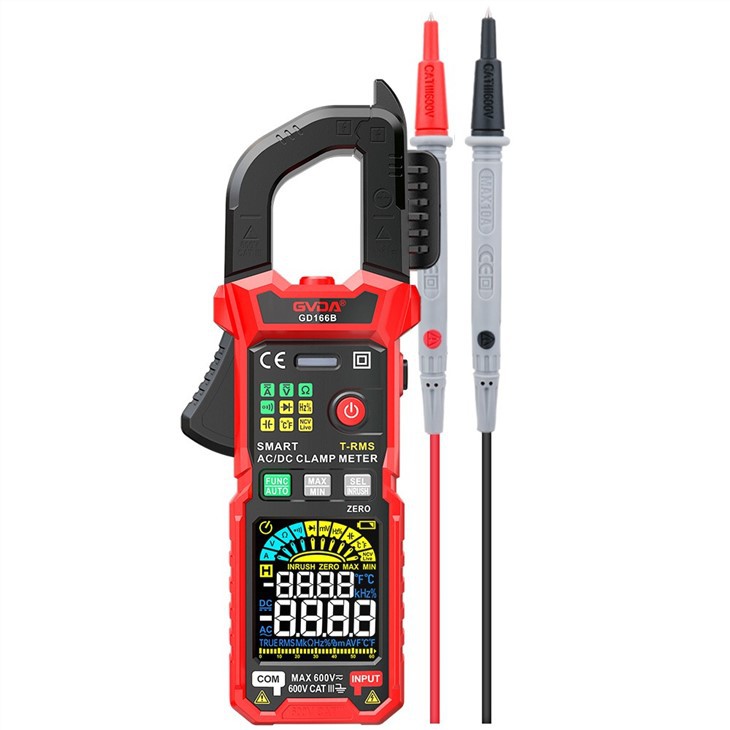

Auto Ranging 600A AC/DC TRMS Clamp Meter

GVDA GD166B GD166A Digital Clamp Meter 600A Current True RMS Smart Plier Ammeter Auto Rang 6000 Counts Multimeter 600V DC AC Voltage Tester

Special Features

●Manual range / automatic range
One-button switching
●Large-screen full-function display
VA HD reverse color display
The gear display is more intuitive and the full-function
symbol display is more convenient
●NCV non connected
voltage detection
GD166B model is equipped with this function
Strong current detection safety maintenance
●Temperature measurement
Equipped with a K-type thermocouple
temperature probe as standard
Contactable temperature measurement

Technical Data

DC Voltage:600mV/6V/60V/600V
AC Voltage:600mV/6V/60V/600V
DC Current:60A/600A (Only for GD166B GD168B)
AC Current:60A/600A
Resistance:600Ω/6kΩ/60kΩ/600kΩ/6ΜΩ/60ΜΩ
Capacitance:6nF/60nF/600nF /6μF/60μF/600μF/6mF/60mF
Frequency:100Hz/1000Hz/10kHz/100kHz/1MHz/10ΜHz
Duty:1%-99%
Temperature (C/°F):-40°C-1000℃/-40°F-1832°F
Continuity:600Ω
Diode /NCV / Live/Analog bar/Data hold/Max/Min/Backlight/Flashlight/ DCA ZERO/SMART（AUTO
Low battery indication /Auto power off /True RMS

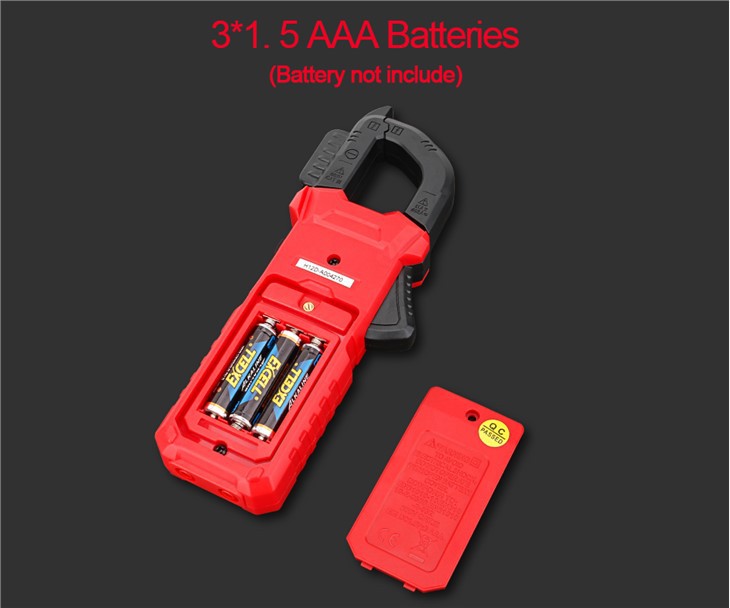

Power：3PCS1.5VAAA batteries
Product Weight/Size Approx.206g/199x73x34mm

Product Details Show

Auto Ranging 600A AC/DC TRMS Clamp meter

Manual and auto range with switching one button will be ok

Measurement of Current and Voltage with High Precision
GVDA GD169A Digital Clamp Meter Measures AC and DC from 600mV to 600V

Measurement of Inrush Current

Select the inrush current measurement function, then open the clamp, clamp the conductor to be tested, slowly release the trigger until the clamp is completely closed, and check to see if the conductor is clamped in the center of the pliers. Additional errors will occur if the conductor is not in the center.

Larger Color VA HD Color Screen Display

The gear display  is more intuitive and full function symbol display is more convenent

Clamp Opening Size is about 36mm

Certificates:
