Network Ethernet Cable Tester

GVDA Multifuctional Network Ethernet Cable Tester, LAN Telephone Wire Tracker Diagnose Tone Tracer RJ45 Cable Detector Line Finder Wire Tracker, This instrument is a handheld cable tester. Cable applicable type of enhanced functions make it more applicable to a wider range. It is a necessary test tool for telecommunication engineers, cabling engineers, network maintenance personnel,etc.

Product Features

Wire tracking function/Anti-interference Digital Cable Scanning
The wire tracking function is to quickly to find the desired cable pair among many pairs. Adopting advanced digital cable scanning technology, anti-interference, noiseless, high sensitivity, stronger and more stable than ordinary analog signal. The Ethernet Cable Tester can be used in all kinds of POE switches, and it supports 60V withstand voltage, which is more compatible. This instrument is suitable for RJ45 interface network cables, receiver sensitivity adjustable.

Wire map test function
The wire map test function is to detect the physical connection of the network cable, such as open circuit, short circuit, wrong connection, and reverse connection.

Length Measurement/Fault Distance Location
The Network Tester use TDR (Time Domain Reflectometry) technology to measure the length and fault point of network cable/telephone cable/BNC coaxial cable without calibration, fast response, high accuracy, wide range, measuring distance up to 500m, support length unit ft/m switching. Note: Must be measured in open circuit.

Humanized Design
The transmitter of the Ethernet tester is equipped with a full view 2.5 inch color screen that can be clearly read even in a dark environment, with soft rubber wrapping on the outside for a comfortable feel and 2m drop protection. The receiver is equipped with a flashlight for easy operation in the dark. The package is equipped with a cloth pouch, easy to store and carry.
Battery Undervoltage Alert
Transmitter undervoltage prompt: when the transmitter battery voltage is lower than the working voltage, the display will show the battery symbol, please replace the battery in time. Receiver battery voltage indication: When the indicator light on the receiver becomes dark or the sound of the search line becomes small, please replace the battery in time.



Product Details
Material: ABS

Model: GD603
Operating temperature: 0~40℃, max 80% relative humidity(non-condensing)
Storage temperature: -10~50℃, max 80% relative humidity(non-condensing)
Length unit: ft/m
Length accuracy: ±2%+0.5m, the farthest distance of Length measurement: <500m
Altitude: <2000m
Explosion-proof type:IP40
Transmitting signal distance: >300m
Sensitivity adjustable: yes
POE: 60V voltage
Flashlight:YES
Network Cable Breakpoints:YES
Power:Transmitter 3*1.5V AAA batteries(not included), Receiver 3*1.5V AAA batteries(not included)
Size: Transmitter 135*74*31mm, Receiver 198*43*32mm
Transmitter Weight: 167g
Receiver Weight: 110g

Package contents
1*Transmitter
1*Receiver
1*RJ45 adapter cable
1*Alligator clips
1*Cloth bag
1*Manual
1*Box



GVDA GD603 Network Ethernet Cable Tester

POE live line tracing/Cable length/Breakpoints/Alignment function



Alignment function

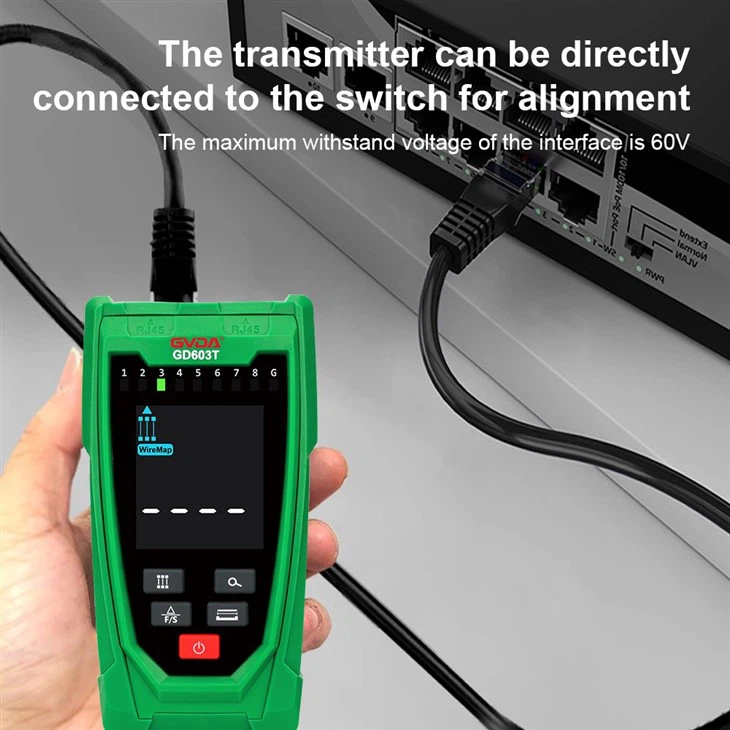

The transmitter can be directly connected to the switch for alignment

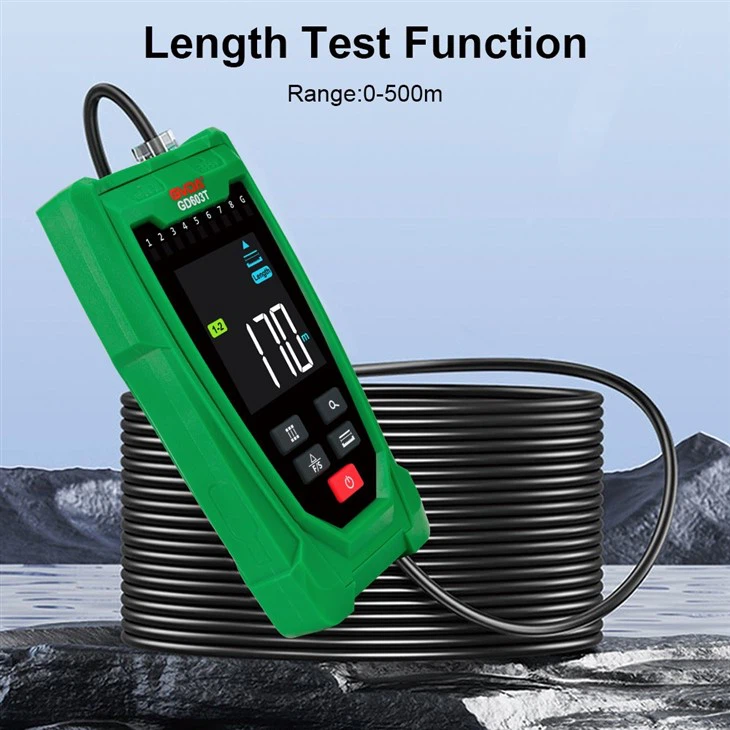

Length test function







Search Breakpoints Position









To avoid electric shock or personal injury,
follow these guidelines:
1. Do not directly search for cables that have been connected to strong electricity (such as the power lines in your home); otherwise, injuries and equipment damage will be caused.
2. Pay attention to lightning protection when using the instrument during thunderstorms to avoid personnel injury and equipment
damage caused by lightning induced by the line.
3. If the Scan and Sequence indicators of the line finder are blinking at the same time, the battery voltage is low. Replace the battery.
4. When you do not use this product for a long time, please remove the battery to avoid battery water leakage and corrosion of the battery holder, resulting in poor contact.
5. Do not open the case at will, if there is a fault, please professional maintenance
