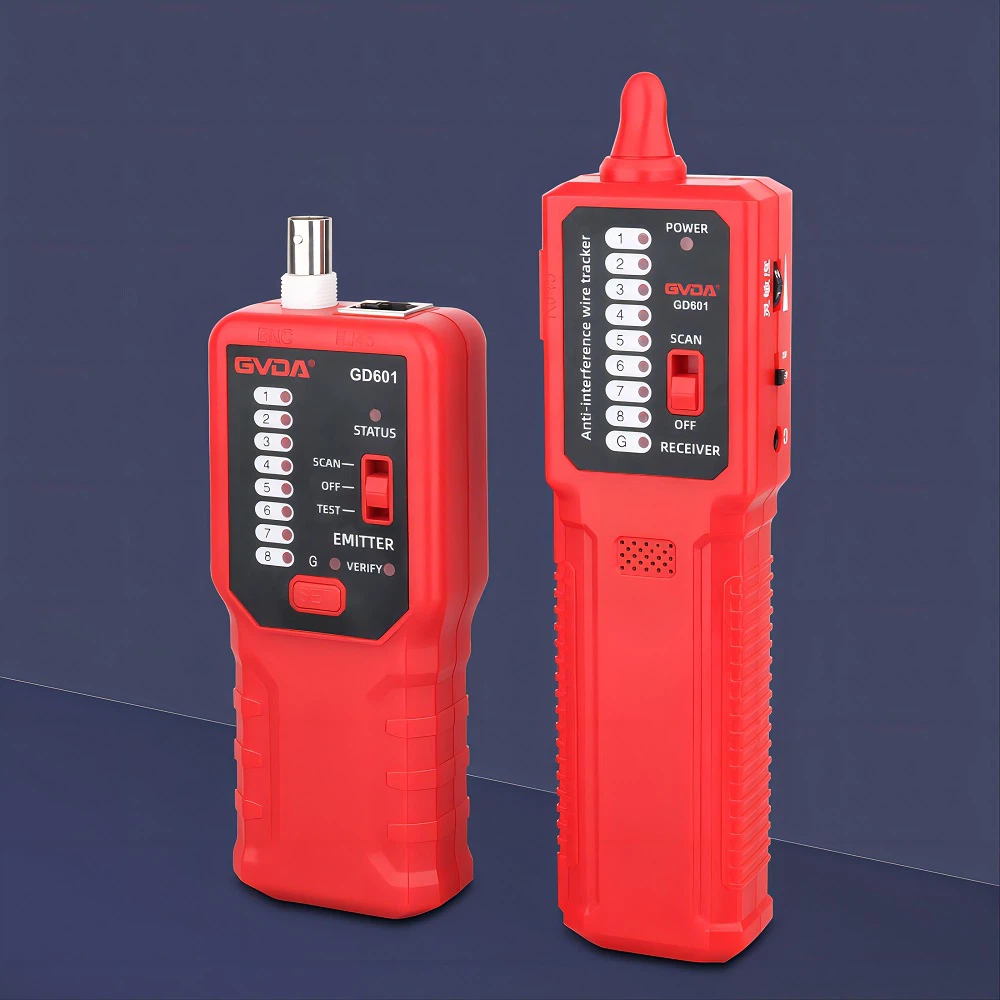

Network Cable Wire Tracker

GVDA Wire Tracker Network Cable Tester LAN Telephone Wire Tracker Diagnose Tone Tracer RJ45 RJ11 Multifunctional Cable Detector Line Finder



Product Features

Line finding function

Alignment function

Network line to line function

Transmitter low voltage prompt function

Delayed shutdown after 30 minutes without any operation

Headphone function

Sensitivity adjustable function

Lighting function

Product Details

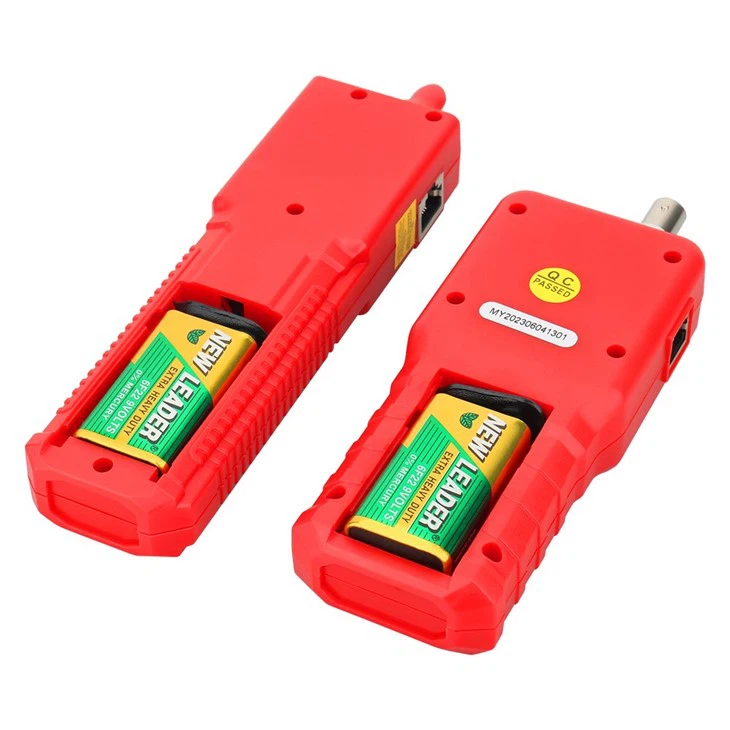

Power supply: DC 9V laminated battery(not include)

Max working current: transmitter ≤20mA, receiver ≤30mA

Signal transmission format: multifrequency pulse

Signal output level: 8Vp-p

Signal distance: ≥3km

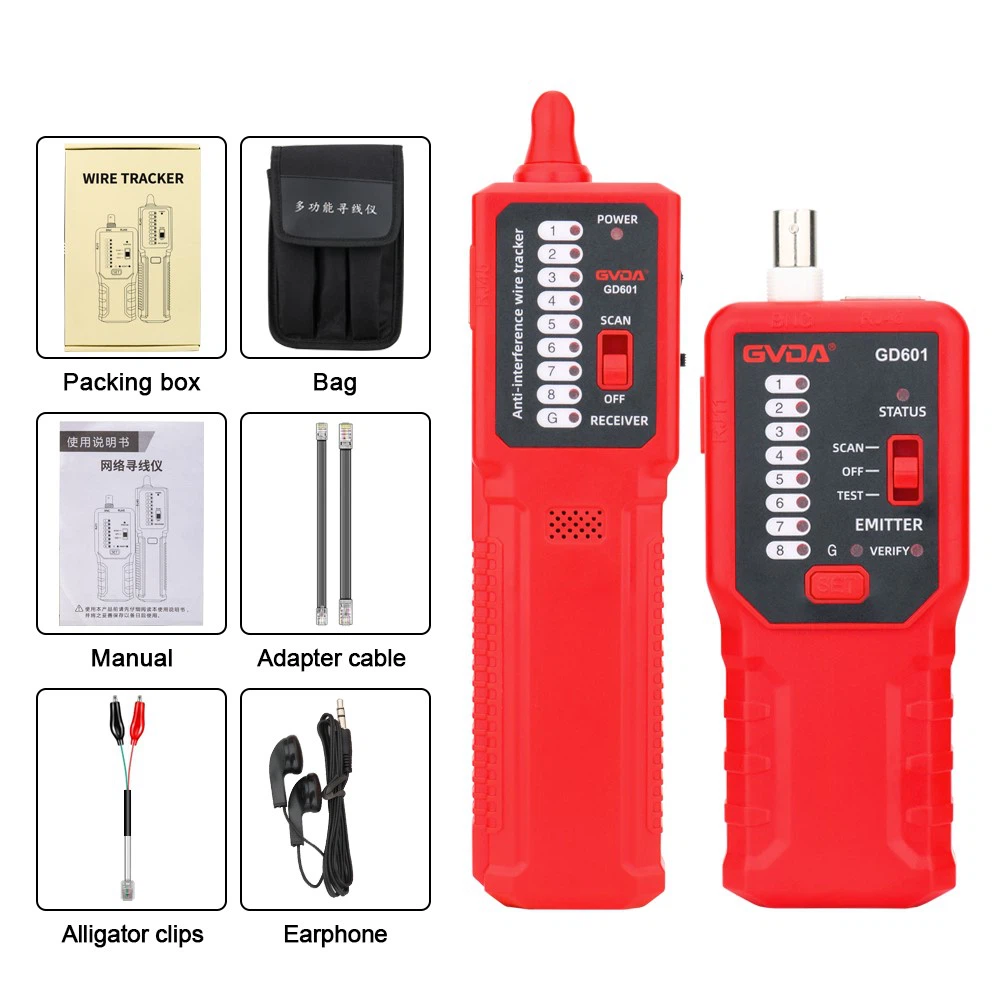

Package contents

1*Transmitter

1*Receiver

1*RJ45 adapter cable

1*RJ11 adapter cable

1*Alligator clip

1*Earphone

1*Bag

1*Box

1*Manual



Network Cable Wire Tracker

With line finding and Alignment function

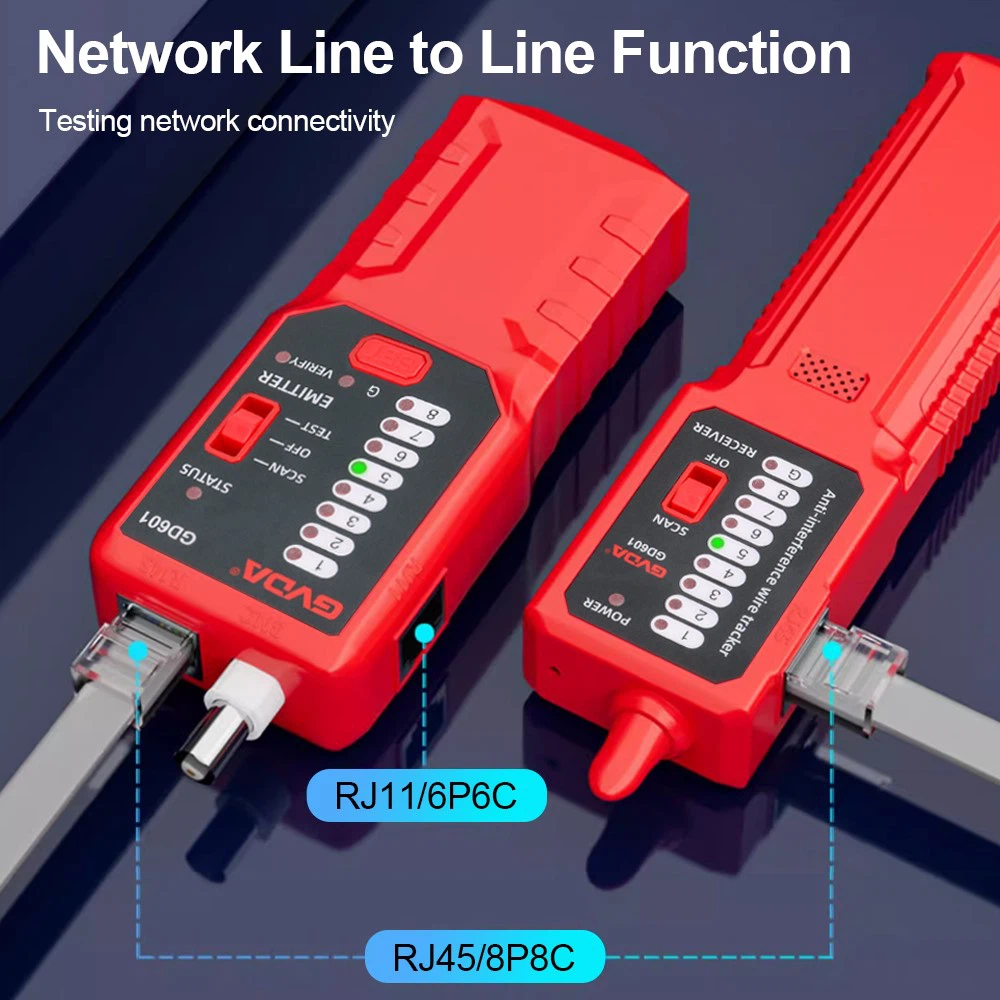

Network line to line function

1.lf the wiring is correct, the transmitter indicator light and receiver indicator light are illuminated one by one from 1 to 8 and cycle.
2.When the network cable is disconnected, example,when the network cable is disconnected, indicators 2 and 3 of the transmitter,receiver are off.
3.When the network cable is short-circuited, for example, 2 and 3 are short-circuited, No. 2 and 3 indicator lights of the receiver are off, and the indicator lights of the transmitter are illuminated one by one from 1 to 8 in a cycle, among which 2 and 3 are illuminated (flash dazzling).

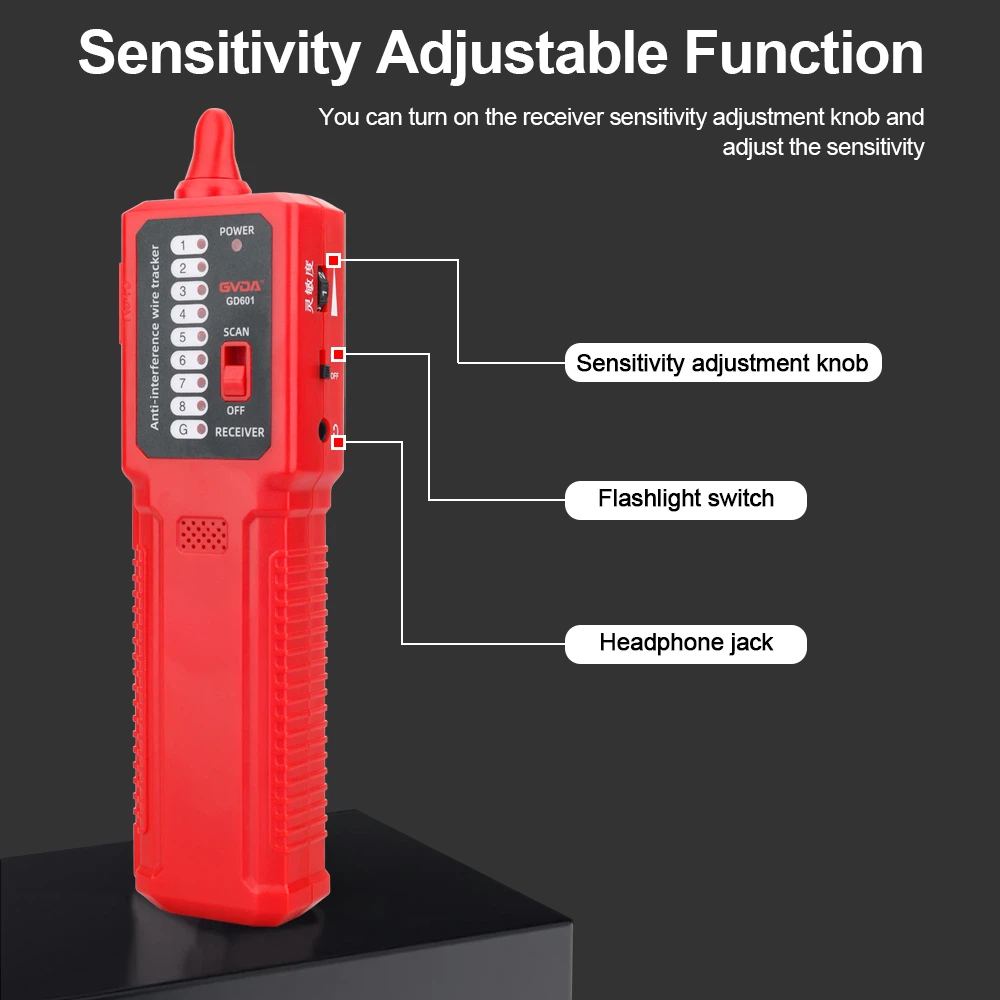

Sensitivity Adjustable Function

you can turn on the receiver sensitivity adjustment knob and adjust the sensitivity





Breakpoint Detection

The receiver probe near the wire, if the " drip drip" sound is normal, move along the wire, if the sound stops suddenly, it means

that line is disconnected here.

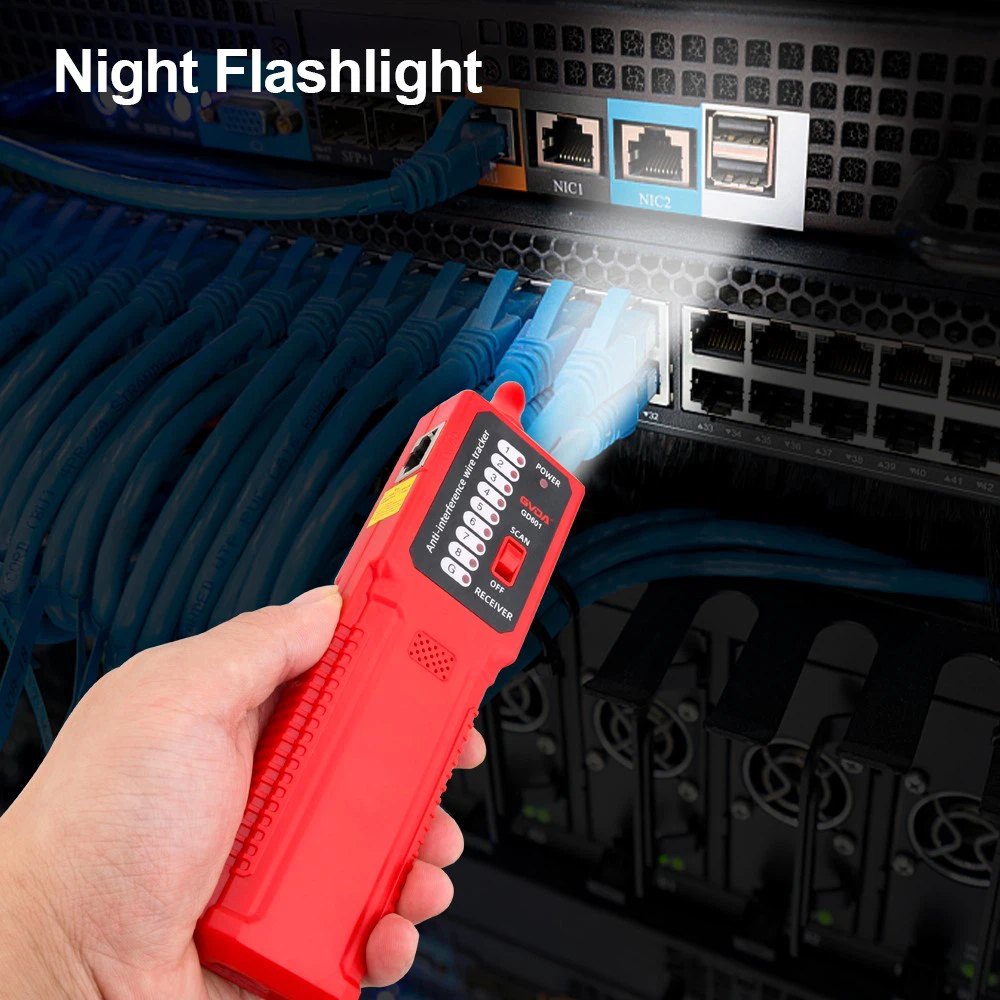

Night Flashlight

Suitable for working in dark environment.







Package List:
1 * Receiver / 1 * Emitter /1 * Clip Line /2 * Network Cable/1 * Tool Bag



To avoid electric shock or personal injury,
follow these guidelines:
1. Do not directly search for cables that have been connected to strong electricity (such as the power lines in your home); otherwise, injuries and equipment damage will be caused.
2. Pay attention to lightning protection when using the instrument during thunderstorms to avoid personnel injury and equipment
damage caused by lightning induced by the line.
3. If the Scan and Sequence indicators of the line finder are blinking at the same time, the battery voltage is low. Replace the battery.
4. When you do not use this product for a long time, please remove the battery to avoid battery water leakage and corrosion of the battery holder, resulting in poor contact.
5. Do not open the case at will, if there is a fault, please professional maintenance
