Electromagnetic Magnetic Field Radiation Detector

GVDA Multi-field EMF Meter,  Professional Electromagnetic Magnetic Field Radiation Detector , Radio High Frequency RF Microwave AC Magnetic Field Radiation Tester  is a portable health and safety field detector, which can detect AC magnetic field, electric field and high-frequency (RF) radiation. It is mainly used to detect and evaluate the impact on human body of non-ionizing electromagnetic field, magnetic field and high-frequency radiation in living and working environment.

Product Features

1,Detect AC magnetic field, electric field and high-frequency/microwave radiation intensity

1,Detect AC magnetic field, electric field and high-frequency/microwave radiation intensity
2,AC magnetic field measurement is in 3-axis mode, which can be measured in any direction
3,Magnetic field measurement range 0.01~200.0 uT , 0.1~2000mG
4,Electric field measurement range 1~2000V/m
5,RF measurement range 0.001~100.0mW/m²
6,Peak measurement, Data hold, Max hold
7,Three color backlight display
8,Auto power off, Low battery indication, Analog bar
9,Audible and light alarm, alarm tone on/off
10, The measurement value, peak value and trend graph are displayed at the same time.

Product Specifications

Magnetic: 3-axis
Magnetic measure range: 0.01~200.0 uT , 0.1~2000mG
Magnetic range:20uT/200uT, 200mG/2000mG
Magnetic resolution:0.01/0.1uT, 0.1/1mG
Magnetic frequency range: 30~1000Hz
Electric: 1-axis
Electric measure range:1~2000V/m
Electric resolution: 1V/m
Electric frequency range: 30~1000Hz
RF: 1-axis
RF measure range: 0.001~100.0mW/m²
RF range: 2/20/100mW/m²
RF resolution: 0.001/0.01/0.1mW/m²
RF frequency range: 50MHz~3.5GHz
Alarm: sound and light(green,orange,red) alarm exceeding the built-in threshold
Auto power off: 15 munites
Use environment:0~40°C/40~80%RH
Power:3*1.5V AAA batteries(not included)
Product size: 142*58*28mm

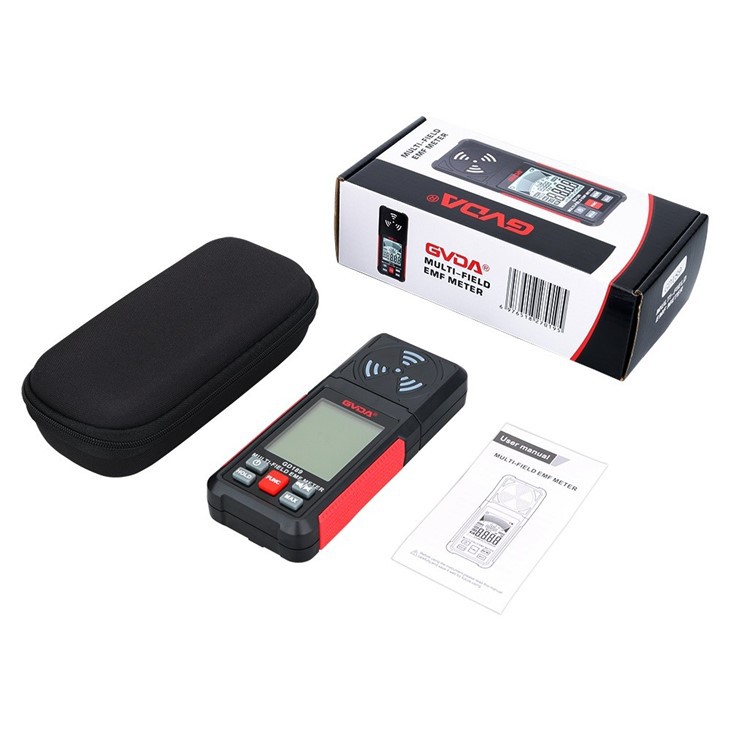

Package contents
1*EMF meter
1*Bag
1*Box
1*Manual



GVDA  GD189 Electromagnetic Magnetic Field Radiation Detector with Multiple Measurment Mode



High Frequency( RF) Radiation

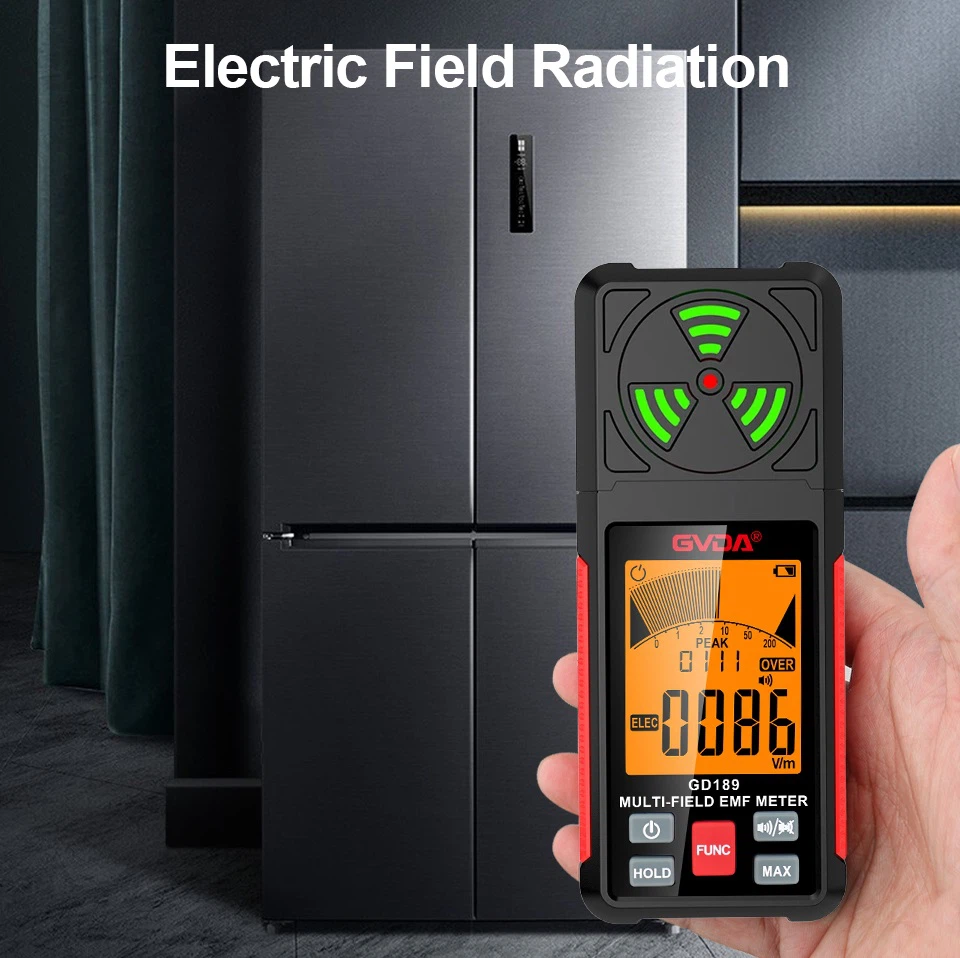

Electric Field Radiation

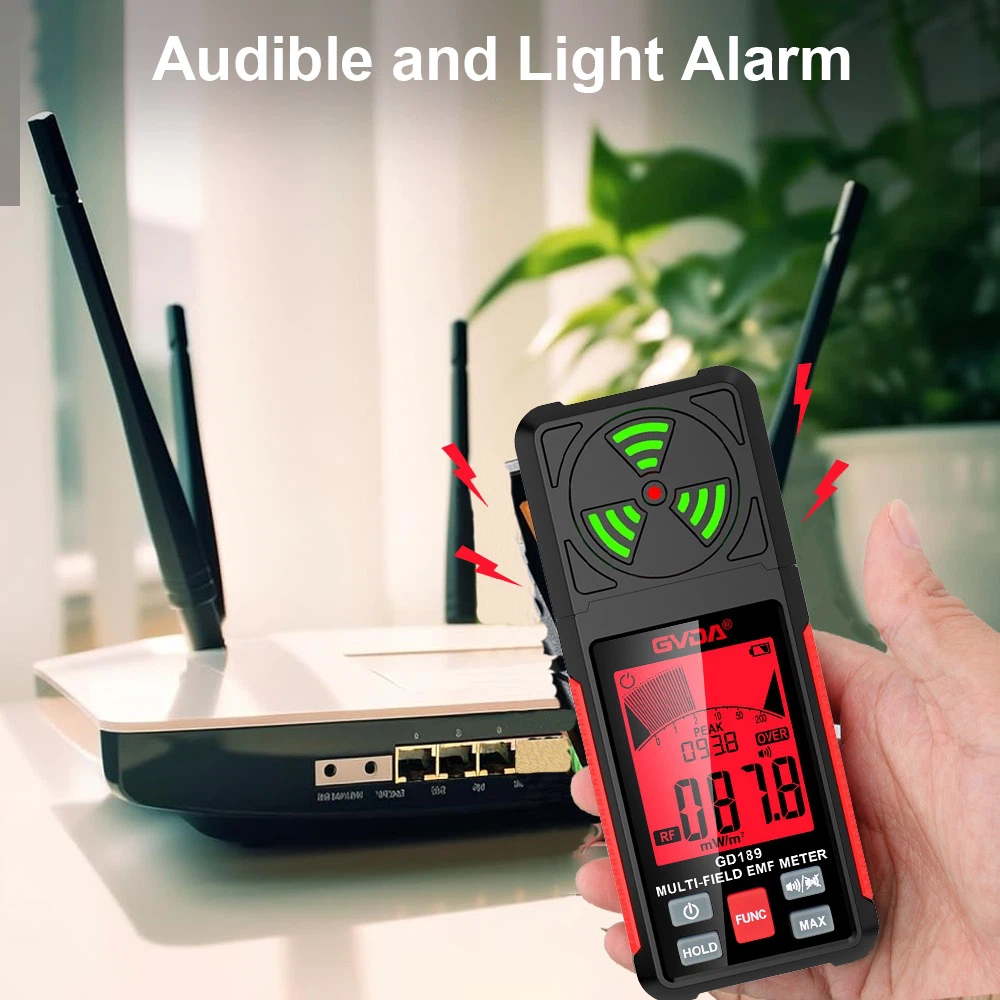

Audible and light alarm

AC Magnetic field radiation

When the measured value is ＜0.12uT(1.2mG), the display will light green.

When the measured value is ＜0.40uT(4.0mG), the display will light orange.

When the measured value is ≥0.40uT(4.0mG), the display will light red.

Electric radiation

When the measured value is ＜40V/m, the display will light green.

When the measured value is ＜400V/m, the display will light orange.

When the measured value is ≥400V/m, the display will light red.

High-frequency (RF) radiation

When the measured value is ＜10mW/m², the display will light green.

When the measured value is ＜50mW/m², the display will light orange.

When the measured value is ≥50mW/m², the display will light red.

Packing List
