Large LCD Intelligent Socket Tester

GVDA GD104 Large LCD Intelligent Socket Tester , Digital Socket Tester Voltage Test US/UK/EU Plug Socket Detector Intelligent Leakage Testing Multifunctional Phase Tester

Feature:

①SIMPLE OPRATION:Simply insert the tester into an already powered three-pin socket. The socket wiringcondition and AC voltage can be easily determined based on the information displayed on the instrument screen.
②SOCKET WIRING SEQUENCE TEST:Insert the tester into a standard three-pin power socket. If a wiring sequence error is detected, the orange backlight will illuminate to indicate a wiring error. Refer to thedisplay to identify the specific type of wiring error.

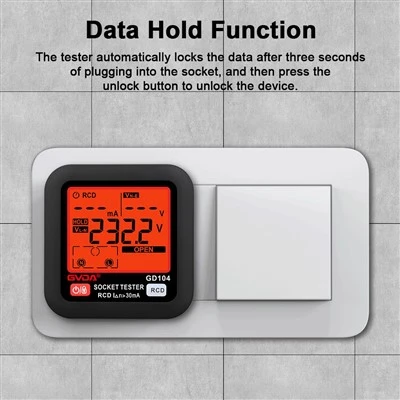

③DATA RETENTION:After inserting into the socket, the data automatically locks after three seconds.
Once locked, press the unlock button to release the data.
④LEAKAGE SWITCH DETECTION:Insert the tester into a three-pin socket, ensuring that the display indicates correct wiring. Press and hold the RCD button for more than 2 seconds. In this case, a functioning residual current device (RCD) should trip, displaying the ripping time. The button indicator willflash, indicating the completion of the tripping process. If it does not trip, it suggests a malfunction in the residual current device.
⑤AUTOMATIC SHUTDOWN:If there is no operation within 5 minutes of powering on, the instrument will automatically shut down.
⑥PRODUCT SAFETY AND RELIABILITY:Rated safety level CAT II 300V ensures safe usage and quality assurance.
⑦PORTABLE AND CОMPАСТ:Portable for easy carrying, convenient operation.

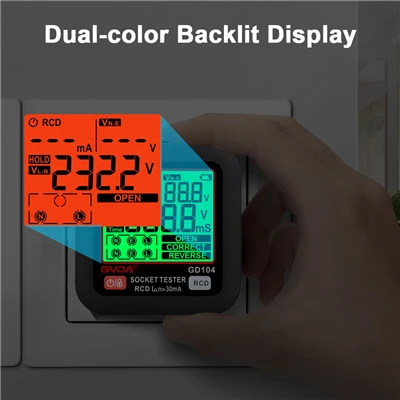

⑧HIGH-DEFINITION BACKLIT LARGE SCREEN:The high-definition backlit display screen ensures clear visibility of measurement content even in dimenvironments, providing a clear and easily understandable view of the test results.
⑨WIDELY APPLICABLE SCENARIOS:Can be used to inspect the safety of socket wiring in homes, offices, shopping malls, and other places.

Specifications:

Voltage range:AC 30-260V/45-65Hz,± (2.0%+2)
Leakage voltage range:0~99V/45~65Hz, ± (2.0%+2)
Trip time test:10-1000mS, ± (2.0%+4)
RCD test:>30mA
Voltage measurement (48V-250V/45-65Hz):Yes
LCD display:Yes
Backlight:Yes
Socket connection detection:
1.10-1000mS, ± (2.0%+4)
2. Open ground
3. Open neutral
4. Open live
5. Live wire and ground wire reverse
6. Live wire and neutral wire reverse
7. Live wire and ground wire reverse, missing ground wire

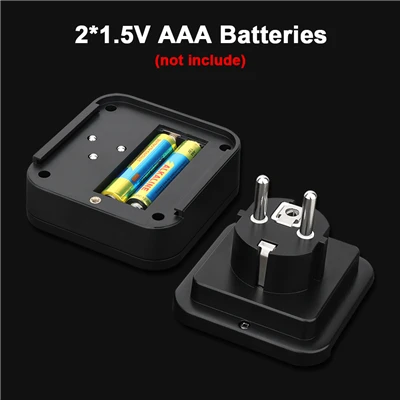

Power supply:2x1.5V AAA batteries(The battery is not included in the product)
Size:67mm x 65mm x 63mm
Safety rating EN61010-1,-2-030; EN61326-1, CAT II 300V

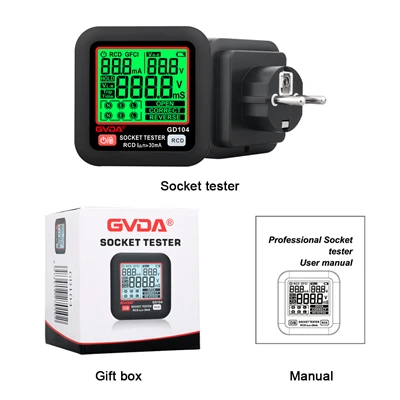

Package include:
1*Socket Tester
1*User Manual

Product Details

Large LCD Intelligent Socket Tester

Plug and Test

Visual display of circuit status

RCD Test

Data Hold Function

Packing List

Special attention：

1. The normal voltage range of zero fire line is plus or minus 10% of the local standard voltage. If it is too high or too low, it may be because the circuit load is too high or the power supply is too low / too high.

2. The normal voltage of zero-earth wire is less than 2V, if too high maybe it is because there is current leakage, or the three phase-sequence is out of balance or there is signal interference in the circuit.
