Core Differences and Typical Applications of Multimeters vs. Oscilloscopes

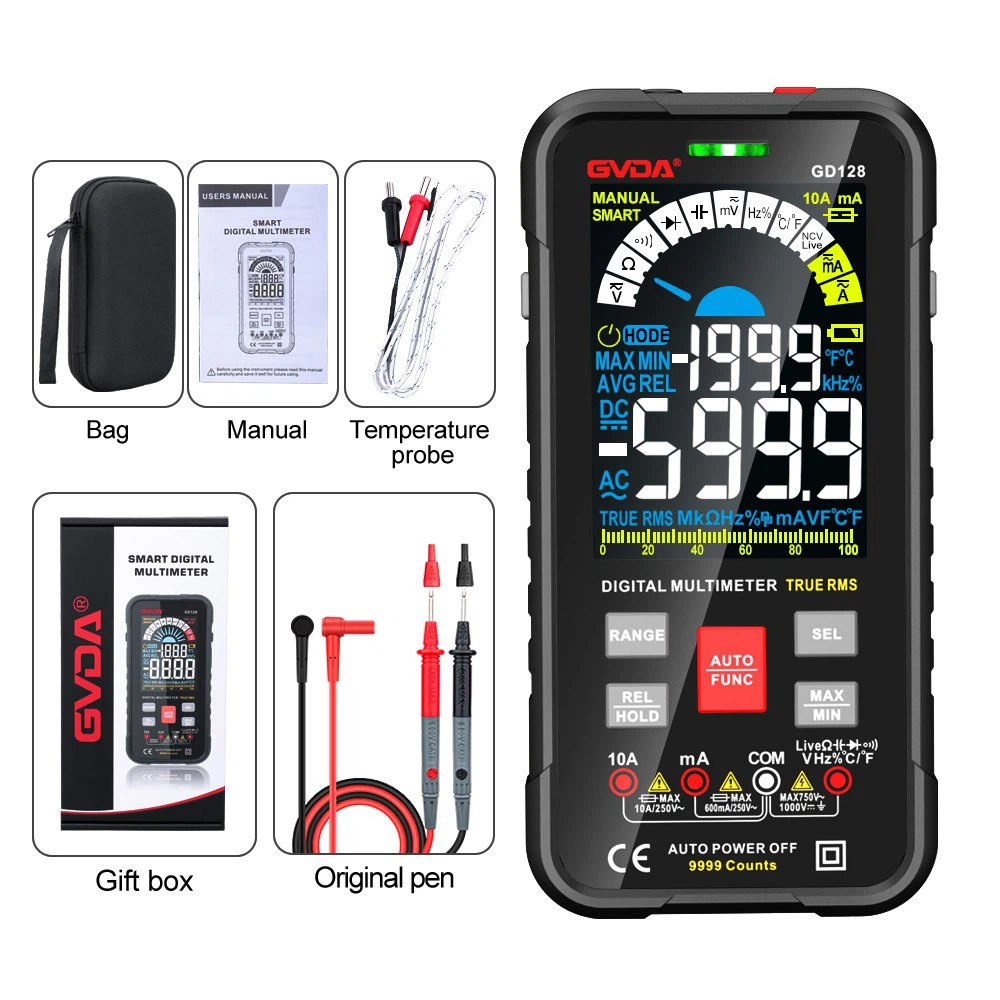

A digital multimeter, as its name suggests, is a multifunctional measuring instrument that can provide measurements of various electrical parameters including voltage, current, and resistance. Compared to analog multimeters, digital multimeters achieve higher precision measurements through digital technology and typically have LCD or LED displays to display readings in digital form, making measurement results more intuitive and accurate.
The core advantage of a digital multimeter lies in its precise measurement capability for DC bias. It uses an integral ADC (Analog to Digital Converter), which reduces noise and interference by averaging the signal, thereby improving the accuracy of DC measurement. This makes digital multimeters particularly suitable for precise measurement of low-frequency or constant signals, such as battery voltage, DC operating points in circuits, etc.
Characteristics and Applications of Oscilloscope
The original intention of oscilloscope design is to observe and analyze the changes of signals over time. It is an instrument that can display the waveform of voltage changes over time, commonly used for measuring, monitoring, and debugging electronic circuits. The core function of an oscilloscope is to capture and display signal waveforms, allowing users to clearly see how the signal changes over time, which is particularly important for the analysis of high-frequency signals or complex waveforms.
Oscilloscopes typically use non integral ADCs, which means they can measure and reconstruct signal waveforms point by point. This point by point measurement method enables oscilloscopes to measure signals at higher frequencies and accurately display characteristics such as signal shape, amplitude, and period. In addition, modern oscilloscopes also integrate various advanced functions such as Fast Fourier Transform (FFT), waveform storage and playback, and trigger settings, providing users with powerful signal analysis and fault diagnosis capabilities.
Comparison of application scenarios
When choosing between using a digital multimeter or an oscilloscope, it is necessary to consider the specific testing requirements. A digital multimeter is suitable for situations that require precise measurement of DC bias, resistance, and low-frequency signals. For example, in the maintenance of electronic devices, measuring power supply voltage or checking whether solder joints in circuits are conducting are very suitable for using a digital multimeter.
Oscilloscopes are more suitable for analyzing signal waveforms, measuring high-frequency signals, or observing signal changes over time. In the design and development stage of electronic products, oscilloscopes are used to verify the correctness of circuit design, monitor the integrity of signals, and debug timing issues in digital circuits.
