4.3" IPS Single Lens Borescope Sewer Camera

GVDA GD4301 4.3inch IPS 8mm Single Lens Car Inspection Borescope is IP67 Waterproof,  Sewer Camera 1080P HD Industrial Endoscope Camera

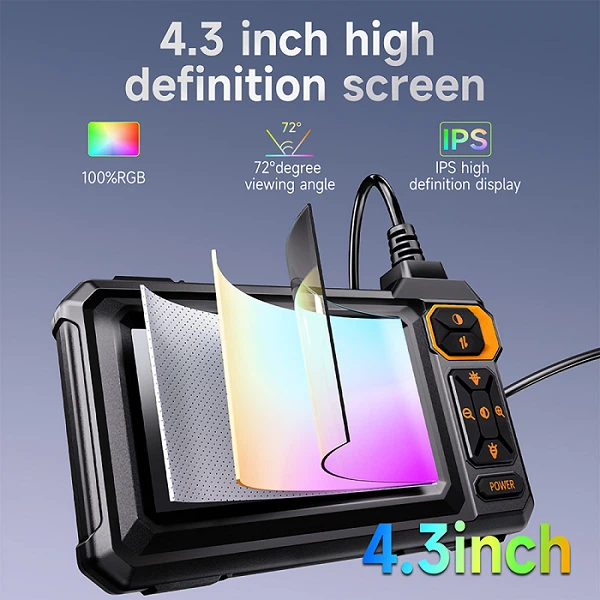

The endoscope camera with light adopts a 4.3-inch IPS screen, which can provide a horizontal viewing angle of approximately 170°, and a highly sensitive chip that captures 1920x1080P HD images in real time. With colour flip and brightness shift functions, you get vivid, saturated and natural images from any angle.

Product Features

-4.3 inch IPS high definition screen.
-Ready to use after power on with zero delay.
-Smooth Picture,with 5 meters camera cable.
-IP67 waterproof camera for Pipe Sewer Inspection.
-Build-in 1800mAh battery for about 3-5 hours working time.
-Adjustable LED Lights.
-Rigid Cable can easily shape what you need,which is better at getting over obstacles.

Specifications:

Display screen: 4.3 inch
Magnification: 1.0x, 1.5x, 2.0x
Illuminant: 8 LED light(brightness adjustable)
Product viewing angle: 72°
Probe diameter: 8.5 mm
Cable length:5 meters
Focal length range:2-10CM/0.787-3.94 inch
Operating temperature:-10°C ~ +55°C
Color mode: Black/white, color
Working humidity:30%-85%RH
Waterproof rating: IP67(probe)
Supported language: English, simplified Chinese
Interface and signal transmission mode: Type-C
Working current: 460mA
Power dissipation: 1.9W
Battery:1800mA
Charging time: 2.5 hours
Product size: 160*106*36mm

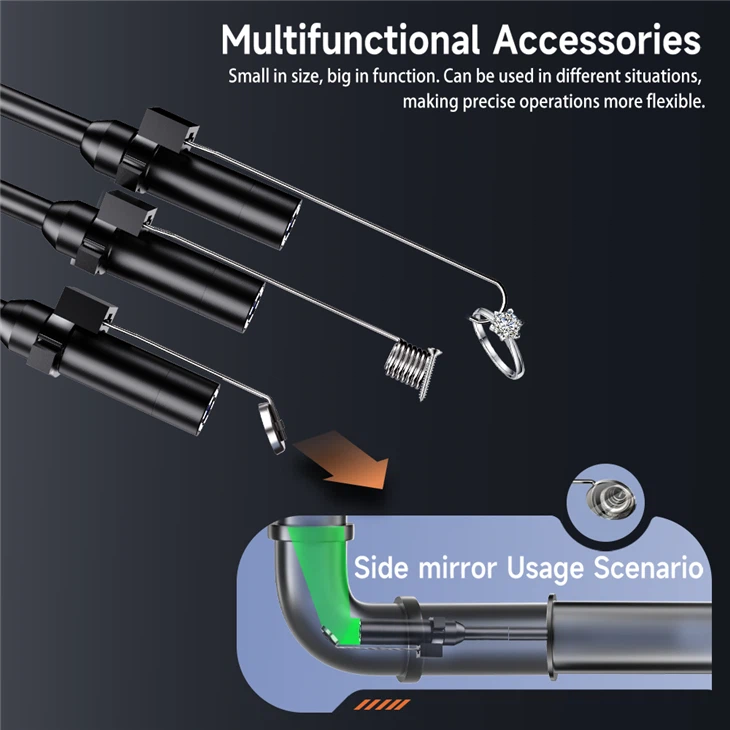

Packing List
1*4.3 inch endoscope
1*user manual
1*Type-C cable
1*Side mirror
1*Magnet
1*Hook

4.3" IPS Screen Single Lens Borescope Sewer Camera is with with 8 LED Lights

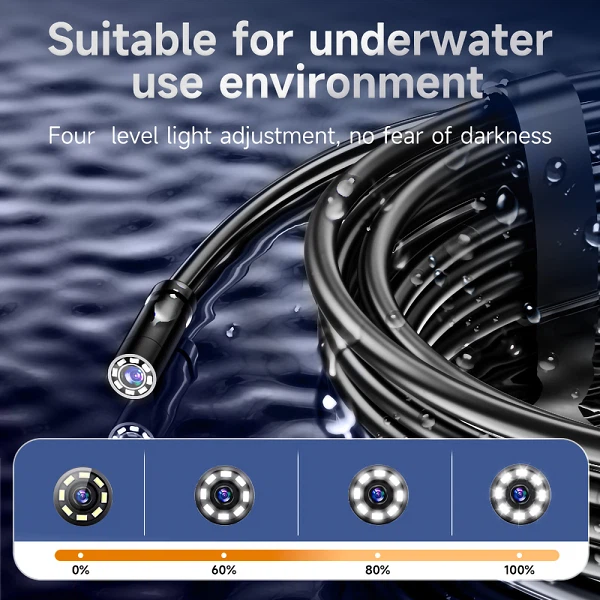

] 8 adjustable LED lights to ensure a clear image even under dark conditions. Best focusing distance (2cm-10cm) making inspections easier. 5M (16.5 feet) Semi-Rigid cable allows the usb endoscope to be bent arbitrarily and can easily reach various narrow and small areas.

Ready to use When Powed on

IP67 waterproof borescopes can easily handle rainy days and wet environments, enough to meet various needs in your work. 1800mah Rechargeable battery, a full charge can work up to 2.5-3 hours.

180° Rotated Image

The endoscope camera with light adopts a 4.3-inch IPS screen, which can provide a horizontal viewing angle of approximately 180°, and a highly sensitive chip that captures 1920x1080P HD images in real time. With colour flip and brightness shift functions, you get vivid, saturated and natural images from any angle.

Details Display

Excellent Peerformance, not limited to this

Basic Parameters

Development Trend of Industrial Endoscope ( Borescope Sewer Camera)

Industrial endoscope technology has unique advantages. It can extend people's visual distance and change the direction of sight at will, accurately observing the real condition of the inner surface of the object, which cannot be replaced by other detection instruments. For example, in aviation applications, the industrial endoscope can be extended into the interior of the aircraft engine to directly observe the real internal condition after operation or the internal surface condition of equipment parts; the surface condition of relatively hidden or narrow parts can be effectively detected without disassembling the equipment or parts for destructive inspection. The method is simple and reliable, very intuitive and effective. Whether in the field of aerospace or the electronics industry and other manufacturing and maintenance industries, the use of endoscopes for NDT inspections has achieved good results, solved many difficult problems, ensured the normal operation of the entire set of equipment, and avoided some accidents. The application of industrial endoscope technology has developed to the use of computer image processing technology, printing technology, and network technology to complete the capture, storage, processing and analysis of endoscopic images, the writing of standardized reports, advanced document management, accurate image measurement and analysis, local magnification, and clear graphic and text integrated report output.
