120x90 Pixel Infrared Thermal Imaging Camera

Smart Sensor ST8550 Thermal Imaging Camera 120x90 Pixel Construction Thermal Imager For Repair Floor Heating Tube Testing

This product is an infrared imaging camera that integrates surface temperature measurement and real-time thermal image. The traditional inferred thermometer needs to measure every component one by one while it is not necessary for infrared imaging camera, thus saving time. The potential problems may be displayed on color display screen clearly. Moreover, the central point measurement cursor is used to locate quickly and accurately to measure the temperature of the target object.In order to increase the differentiation, This infrared imaging camera is provided with a visible light camera. The thermal images and visible images are stored in the device and can be read through USB or stored in a computer to generate a report or for print. With small volume, the product is easy to operate and has strong function. it is the ideal selection for electric power, electronic manufacturing, Industrial inspection and other fields.

Features

● infrared resolution: 120 × 90

● temperature measurement range: - 25-550 ℃

● temperature measurement mode: center point, high and low temperature tracking

● high and low temperature alarm: image, beep, LED flashing

● laser indication/LED lighting

● three prevention design: IP54/two meter fall prevention

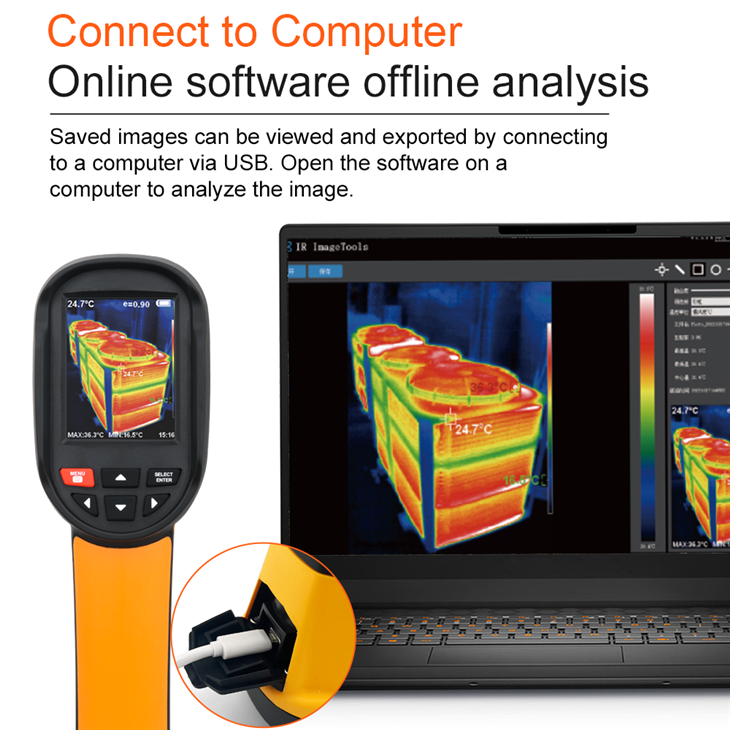

● connect to the computer analysis the picture

● five palette options

● adjustable emissivity

● the service time shall not be less than 9 hours

● 2000mah rechargeable lithium battery

Specifications

● Brand name: Smart Sensor

● Model number: ST8550

● Infrared detector type: Vanadium Oxide Uncooled Infrared Focal Plane

● Infrared resolution: 120x90

● Field angle: 26°×19°

● Cell size: 12μm

● NETD: ≤50mK @25℃,@F/1.1

● Thermal imaging frame rate: ≤25Hz

● Lens focal length: 3.2mm

● Emissivity setting: Adjustable from 0.01 to 1.00

● Infrared response band: 8 to14μm

● Focus mode: Free focus

● Temperature measurement range: -25℃ to +550℃(-4 ℉ to 1022 ℉)

● Measurement accuracy: ±2℃(35.6℉) or ±2%

● Temperature measurement mode: Center point/hot and cold spot tracking

● Color palette: Rainbow,iron,cold color,white hot,black hot

● Display size: 2.8-inch(240×320)

● Image display mode: Infrared/visible light/dual light fusion

● Lighting system: LED fill light

● Device storage: Built-in 4G eMMC (user available storage space is about 3G)

● Storage Image/Video Format: JPG/MP4

● Image/video export method: USB connection to computer export

● Menu language: English/Chinese/Italian/German

● Battery Type: Removable Rechargeable Lithium Battery (18650)

● Battery capacity: 2000mAh

● Working time: 2 to 3 hours

● Power interface: Micro USB

● Power configuration: 5 minutes/20 minutes/no automatic shutdown

● Work temperature: -10℃ to +45℃ (14 ℉ to 122 ℉)

● Storage temperature: -20℃ to +60℃ (-4℉ to 140℉)

● Relative humidity: 10% to 85%RH (non-condensing)

● Product weight: 375g

● Product size: 96mm×72mm×226mm

● Package weight:About 780g

● Packing List:

1* Thermal Imaging Camera

1* English manual;

1* Retail box;

1* Cloth bag;

1* Data cable

Product Details

Smart Sensor professional handheld infrared thermal camera

Video Recording / 5 kinds color Palette / Cold spot hot spot tracking / On line Analysis

High precision infrared sensor

High-precision thermal imaging sensor, 26°x19° field of view, quickly captures measured temperature values

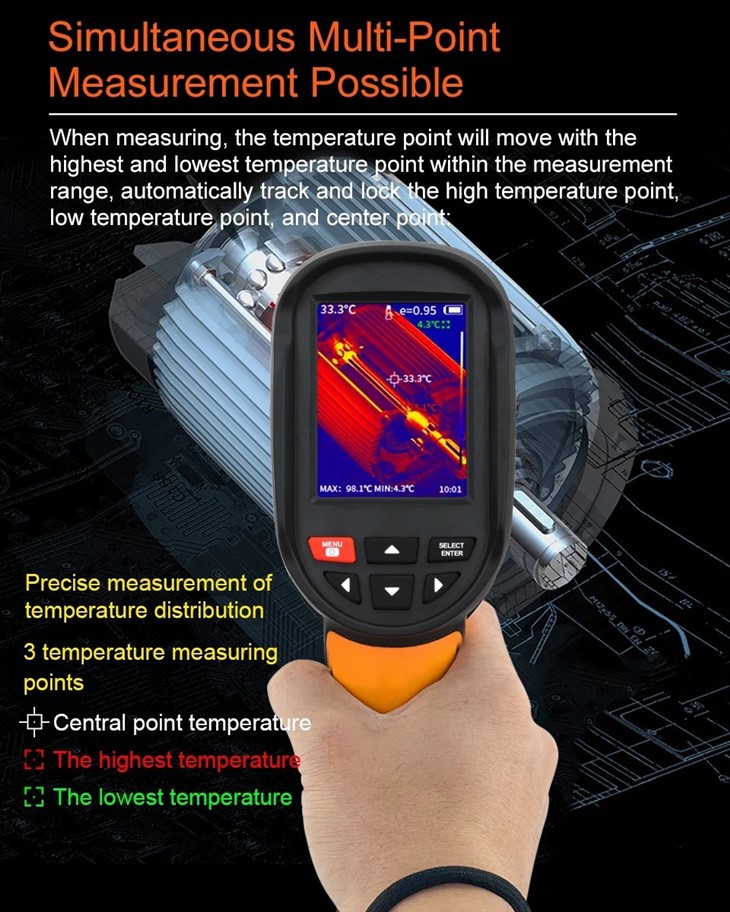

Simultaneous multi-point measurement possible

When measuring, the temperature point will move with the highest and lowest temperature point within the measurement range, automatically track and lock the high temperature point, low temperature point, and center point

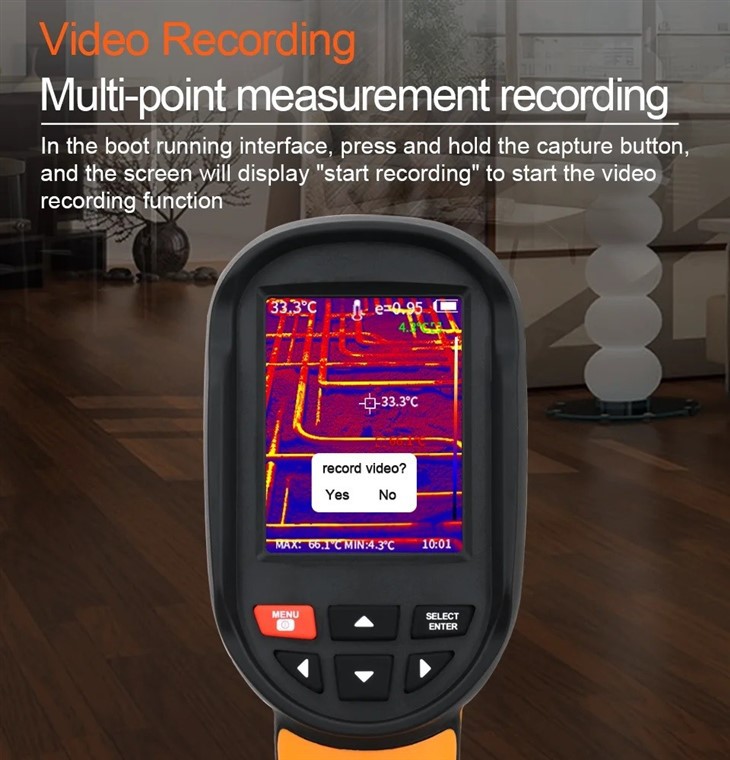

Video recording,Multi-point measurement recording

In the boot running interface, press and hold the capture button, and the screen will display "start recording" to start the video recording function

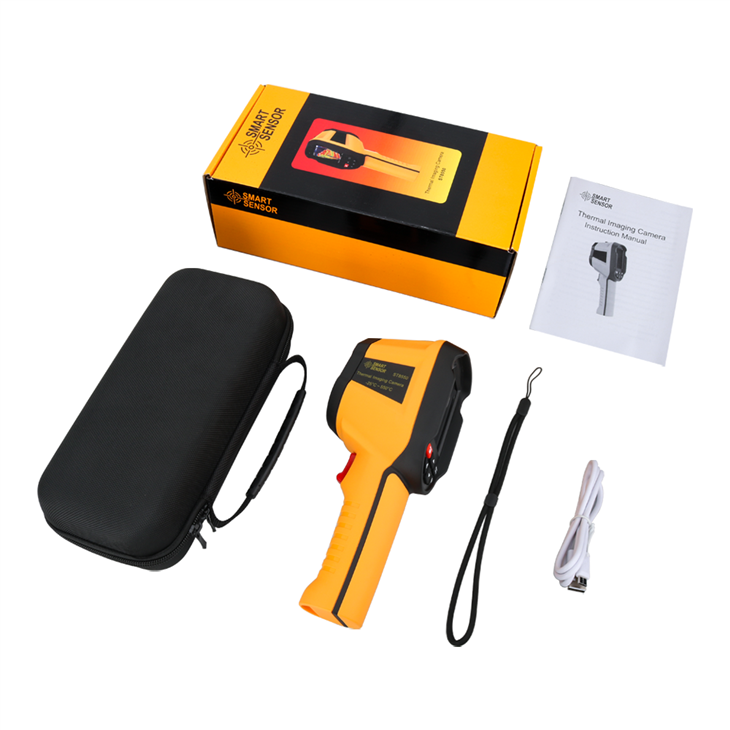

Packing List

1* Thermal Imaging Camera /1* English manual /1* Retail box /1* Cloth bag /1* Data cable / 1pc hand Strap
