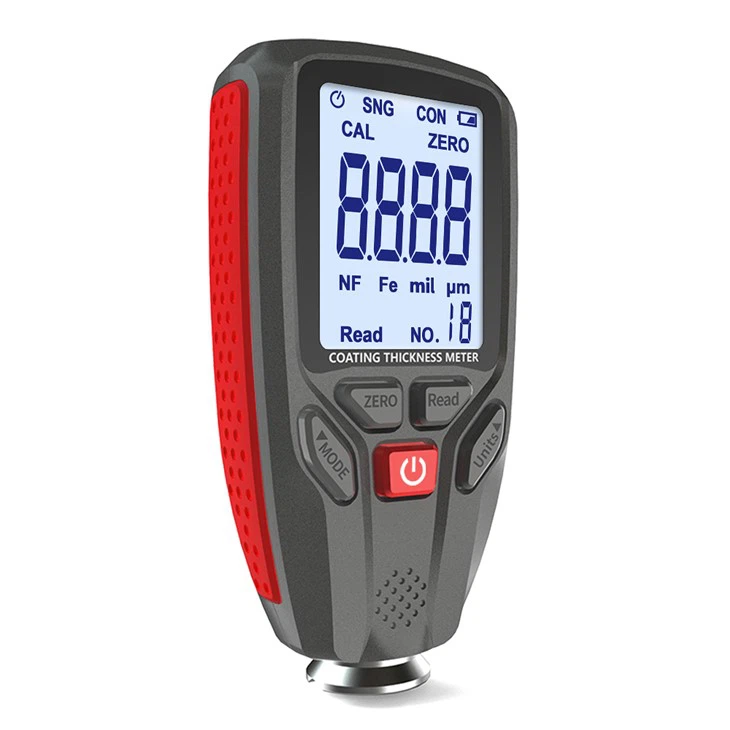

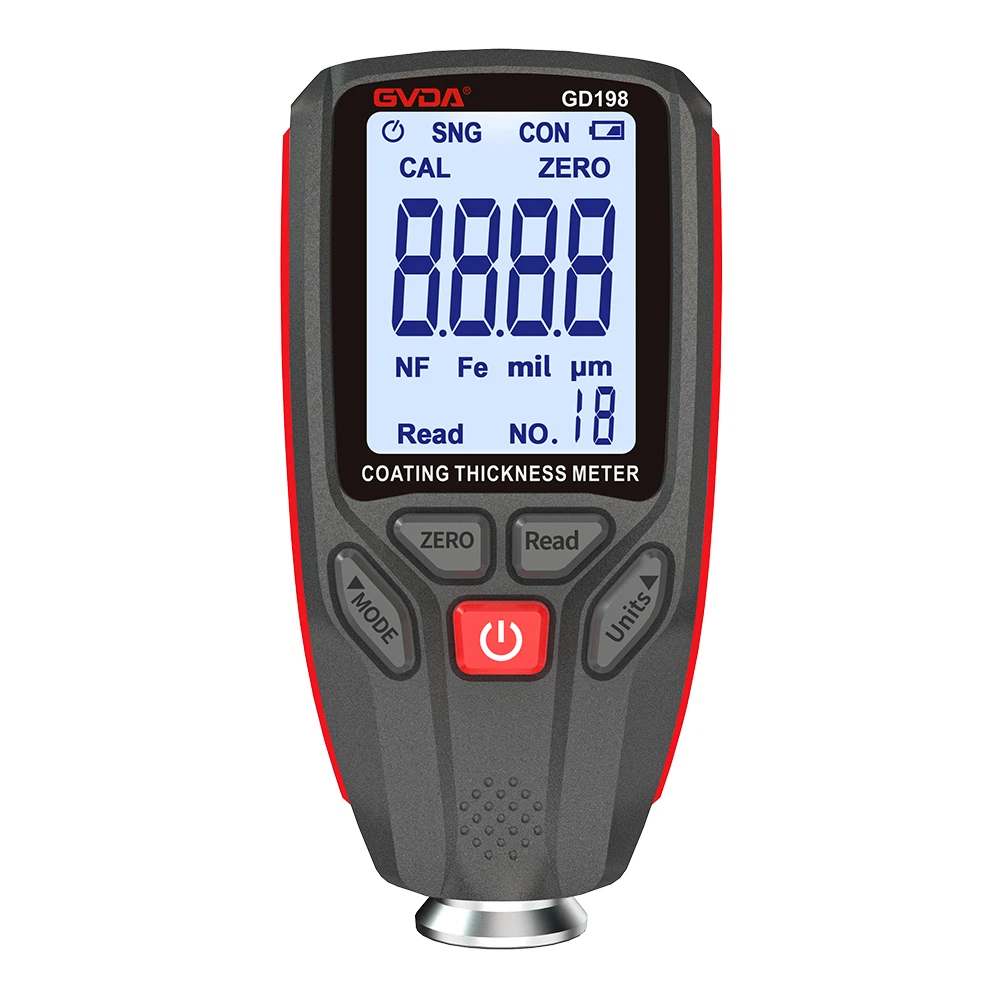

Car Paint Film Thickness Tester

GVDA car paint coating thickness gauge , car paint electroplate metal coating thickness tester meter with Measuring range 0-1300um and Fe & NFe probe

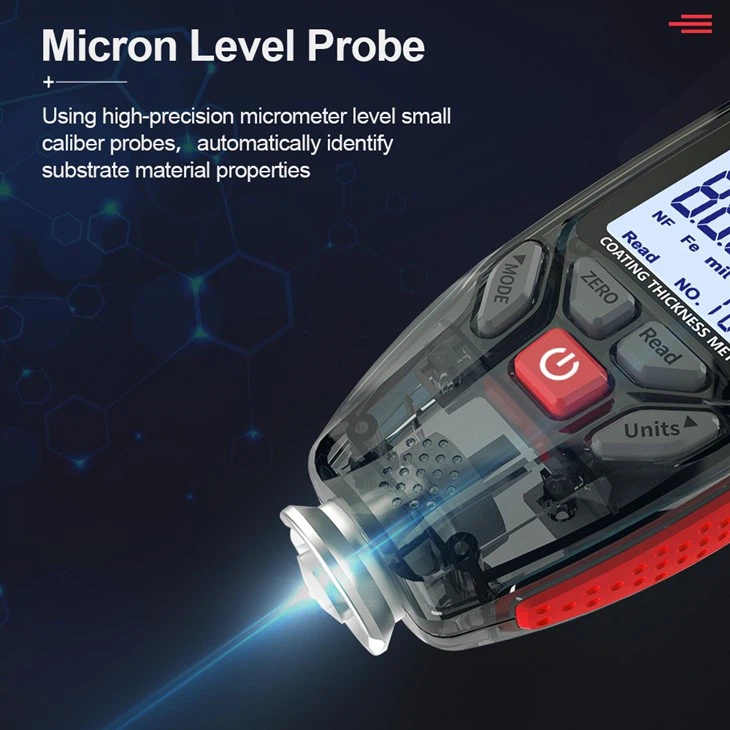

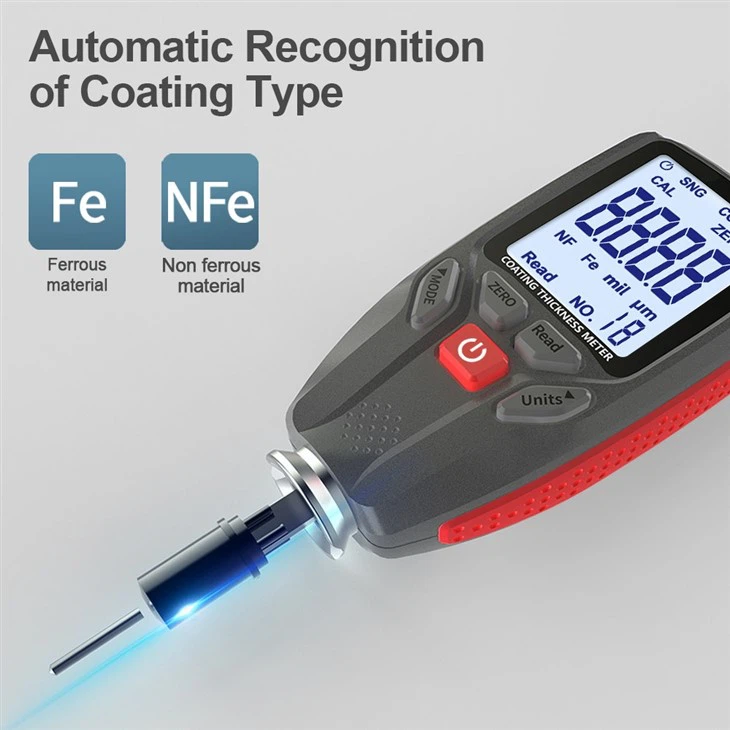

The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper. The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.
The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

​ ​

Car Paint Film Thickness Tester

Data Storages

20 Groups of Data Storages record Measurement

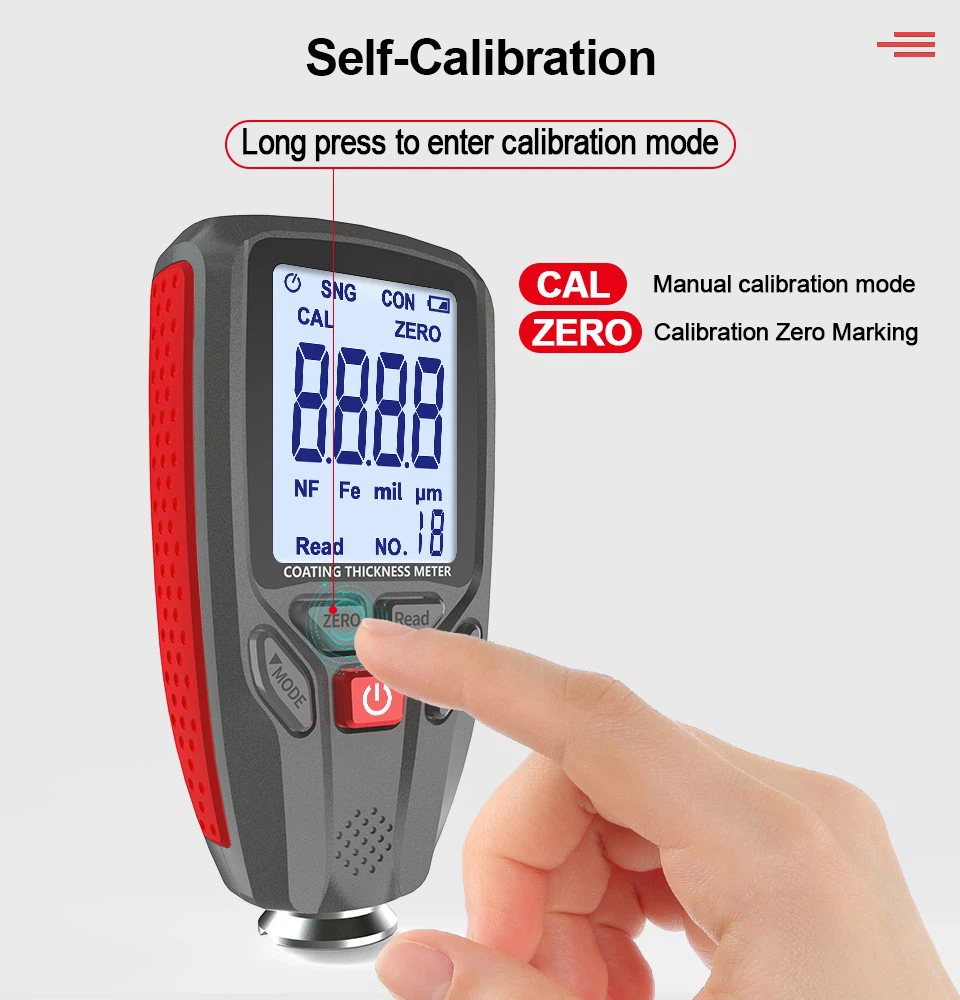

Self Calibration

Note: The gauge just supports total 6 Points (0/50/100/250/500/1000um) calibration. The other points (e.g. 750um) are not allowed. Please seriously note this. Once you did a misoperation, please press and hold "um/mil" 3 seconds for resetting the factory default.

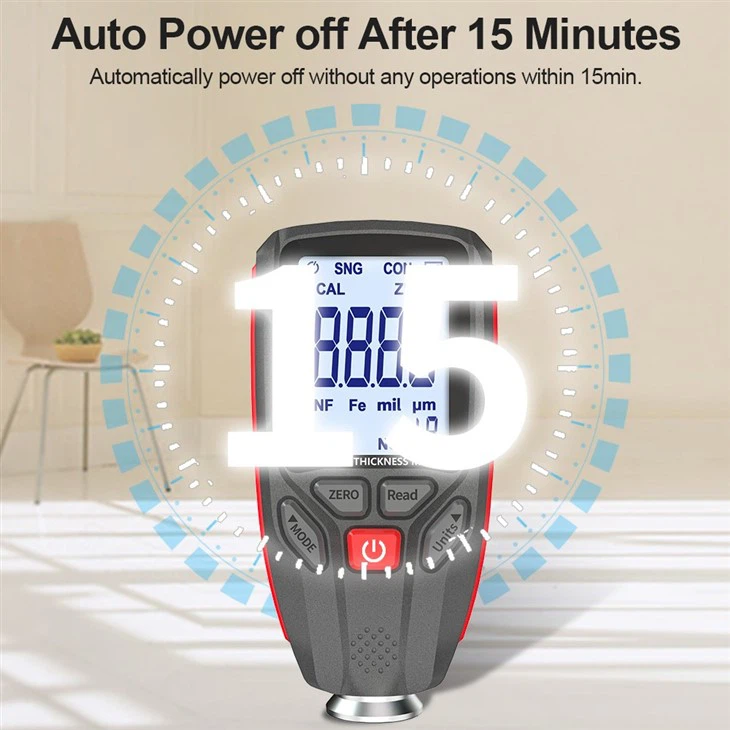

Auto Power offer

Automatically power off without any operation within 15 minutes

Power supply

2pcs 1.5V AAA Batteries

Button  Introduction

Wide Application
