SNDWAY Handheld Digital Vibration Meter Digital Vibration Measuring Tool Vibration Instrument SW-65A Vibration Analyzer Precision Measure Vibrator Tester Handheld

This digital vibration meter is suitable for monitoring all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The vibrometer can measure acceleration, velocity and displacement, widely used in mechanical manufacture, electric power metallurgy and general aviation, etc.

Features

1.The application gets piezoelectric accelerated sensor which turns vibration signal into electrical signal, the device works by processing and analysing the input signal, and shows vibration acceleration, velocity, displacement value on screen.
2. 360 degree screen flip for different views of user during measuring of process.
3. LCD display and light with backlight for easy operation in darkness.
4. Functions of low power indication, auto power-off, data-locking, acceleration/velocity/ displacement full display, view records, switching between Chinese and English.
5. Compact and portable design, simple and easy for use.
6. Widely Application: it is used widely in machine manufacturing, electric power, metallurgy and vehicle manufacturing fields.

Technical Data

Material: ABS plastic
Sensor: Piezoelectric accelerated sensor
Measurement Range:
Acceleration: 0.1～199.9m/ s2
Velocity: 0.1～199.9mm/s(real-time valid value)
Displacement: 0.001～1.999mm
Low Frequency Acceleration Measuring Frequency Range: 10Hz~1KHz
High Frequency Acceleration Measuring Frequency Range: 1KHz~10KHz
Speed Measurement Frequency Range: 10Hz~1KHz
Displacement Measurement Frequency Range: 10Hz~500Hz
Storage Capacity: 200 sets
Data Refresh Time: 500ms
Auto Power-off: 5 minutes / 10 minutes / 30 minutes / no auto power-off selectable
Operating Conditions: 0℃～50℃(20% ~ 80%RH)
Storage Conditions: -20℃～60℃(20% ~ 80%RH)
Power Supply: 2 * 1.5V AAA battery (NOT included)
Storage Case Size: 250 * 198 * 60mm / 9.84 * 7.79 * 2.36in
Item Size: Approx. 180 * 54 * 25mm / 7.09 * 2.13 * 0.99in
Item Weight: Approx. 123g / 4.34oz
Package Weight: Approx. 646g / 22.79oz
Package Size: Approx. 27 * 20.5 * 6.5cm / 10.63 * 8.07 * 2.56in

Package List:
1 * Digital Vibrometer
1 * Lanyard
1 * Long Probe
1 * Storage Case
1 * User Manual (English)

Product Display

Handheld Digital Vibration Meter

Multifunctional Handheld Vibration Tester

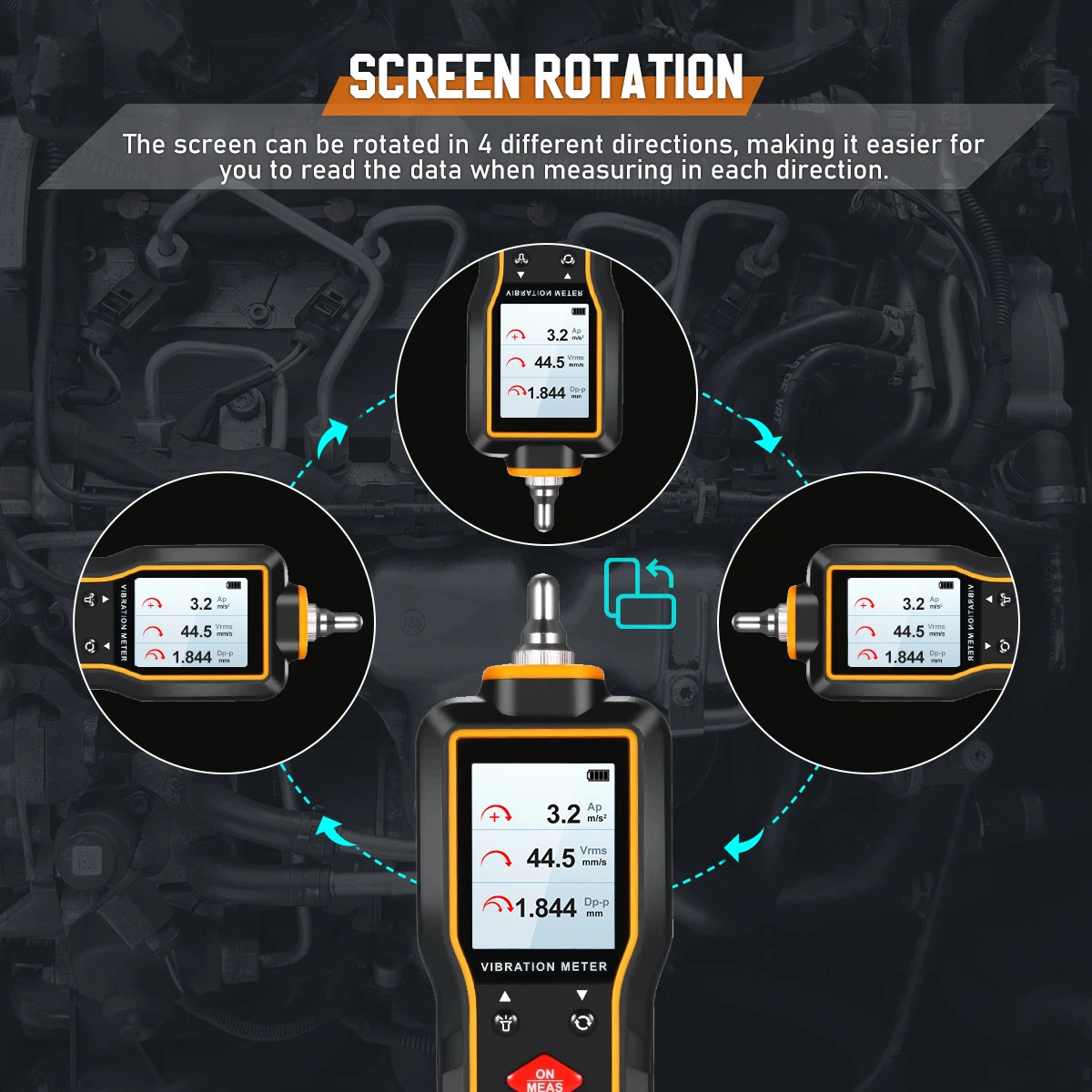

Screen Rotation

The Screen can be rotated in 4 different directions, making it easier for you to read the data when measuring in each direction.

Interface Display Switch

The interfaces of single-item and three-item data can be flexibly switched, which deliveries a more intuitive measurement experience.

Dual Measurement Buttons

 It allows you to better control the direc-tion and contact the measured object when measuring at various angles.

Package Include
