Smart Sensor ST8550 120x90 Pixel Infrared Thermal Imager -20~550℃ with PC Software Analysis for Floor Heating Automotive Inspect
This product is an infrared imaging camera that integrates surface temperature measurement and real-time thermal image. The traditional
This ST8550 Infrared Thermal Imager is an affordable temperature measuring tool widely used for building diagnostics, HVAC inspections, electrical system inspections and more. It perfectly overcomes the shortcomings of the single spot infrared thermometers and helps work smarter, safer and faster.
Specifications
| Infrared detector type | Vanadium Oxide Uncooled Infrared Focal Plane |
| Infrared resolution | 120x90 |
| Field angle | 26°×19° |
| Cell size | 12μm |
| NETD | ≤50mK @25℃,@F/1.1 |
| Thermal imaging frame rate | ≤25Hz |
| Lens focal length | 3.2mm |
| Emissivity setting | Adjustable from 0.01 to 1.00 |
| Infrared response band | 8 to14μm |
| Focus mode | Free focus |
| Temperature measurement range |
-25℃ to +550℃(-4 ℉ to 1022 ℉) |
| Measurement accuracy | ±2℃(35.6℉) or ±2% |
| Temperature measurement mode |
Center point/hot and cold spot tracking |
| Color palette | Rainbow, iron, cold color, white hot, black hot |
| Display size | 2.8-inch(240×320) |
| Image display mode | Infrared/visible light/dual light fusion | |||||
| Lighting system | LED fill light | |||||
| Device storage | Built-in 4G eMMC (user available storage space is about 3G) |
|||||
| Storage Image/Video Format | JPG/MP4 | |||||
| Image/video export method | USB connection to computer export | |||||
| Menu language | English、Chinese、Italian、German | |||||
| Battery Type | Removable Rechargeable Lithium Battery (18650) |
|||||
| Battery capacity | 2000mAh | |||||
| Working time | 2 to 3 hours | |||||
| Power interface | Micro USB | |||||
| Power configuration | 5 minutes / 20 minutes / no automatic shutdown |
|||||
| Work temperature | -10℃ to +45℃ (14 ℉ to 122 ℉) | |||||
| Storage temperature | -20℃ to +60℃ (-4℉ to 140℉) | |||||
| Relative humidity | 10% to 85%RH (non-condensing) | |||||
| Product weight | 375g | |||||
| Product size | 96mm×72mm×226mm | |||||
Product Details

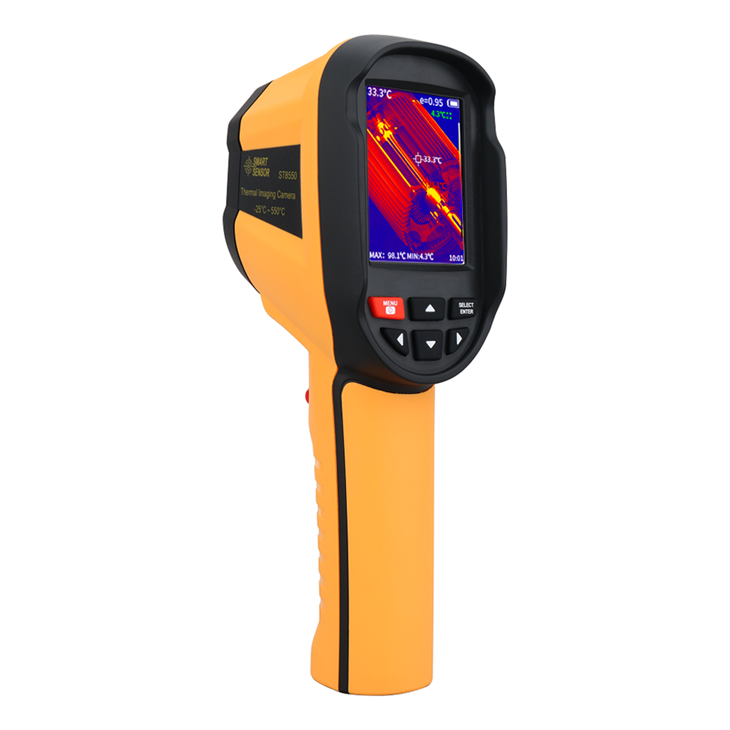

ST8550 Infrared thermal imager has thermal imaging function and can display hot and cold spots on the screen, enabing users to oberve the object temperature changes more effectively. It helpls you to quickly lock the target area.it support TF card, can save a large number of images and data and generate high-quality infrared images, which is a useful tool for fault maintenance.
5 Kinds Color Palette Mode
Select the appropriate false color mode to better show the details of the target object in the case of high heat pairs
Connect to computer,Online software offline analysis
Saved images can be viewed and exported by connecting to a computer via USB. Open the software on a computer to analyze the image.
The supported operating system through verification includes: winxp, win7, win 8, win10, Apple system.
Product Detaisl Display

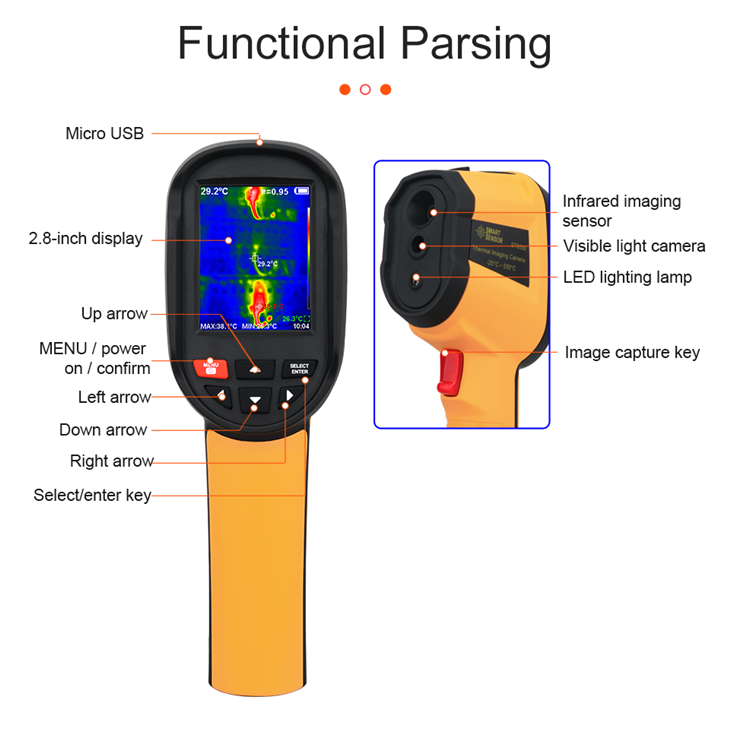

1. USB interface design / 2. Safety lock design /3.Ergonomic design

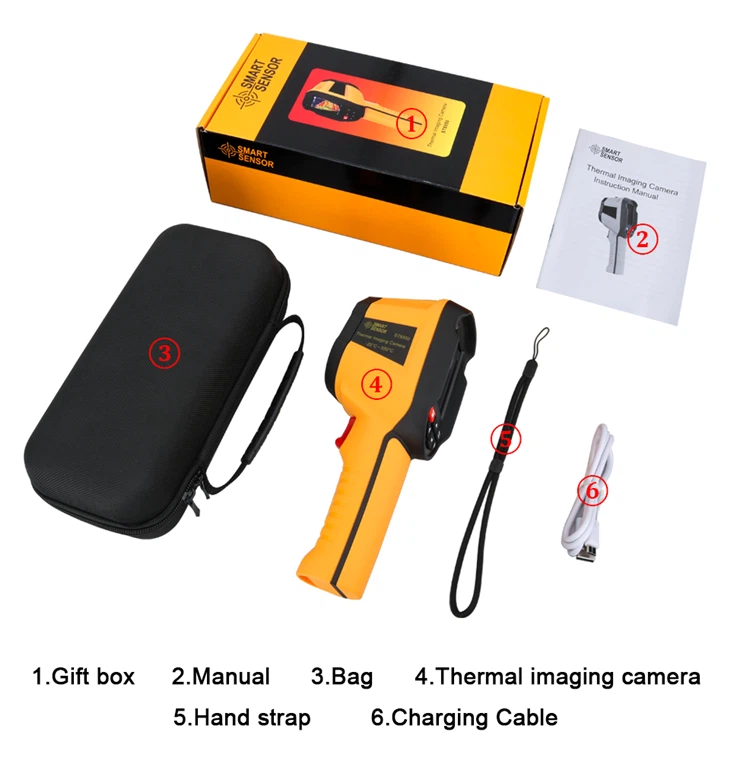

Packing List
1* Thermal Imaging Camera /1* English manual /1* Retail box /1* Cloth bag /1* Data cable / 1pc hand Strap
The product is provided with four types of object measurement modes: Coarse object (0.95) Semi-matte object (0.85) Semi-shiny object (0.60) Shiny object (0.30) According to the characteristics of the measured objects, users may set the emissivity value through the “self-define” option (please refer to the table of “emissivity of common materials”).
FAQ
1. How do you make sure the price competitive based on the same quality?
1). Own factory assembly lines
2). First hand raw material sourcing
3). More than 10 year manufacturing experience
2. How does your company do regarding quality control?
Our QC team will do strict quality control inspection before shipment to assure best quality.
3. Can I ask for samples before placing an order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
4. What's the standard MOQ?
Sample to test available Wholesale order: 100pieces OEM Order :1000pieces - 5000pcs
