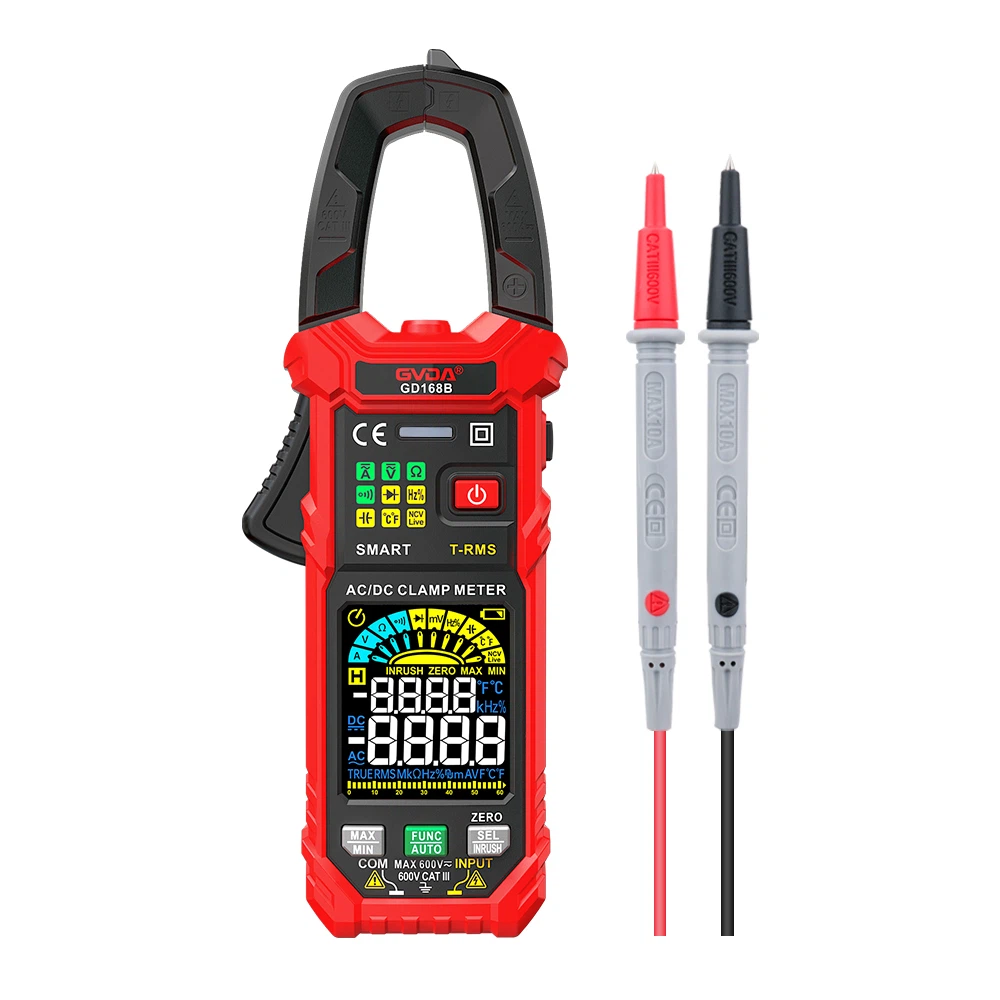

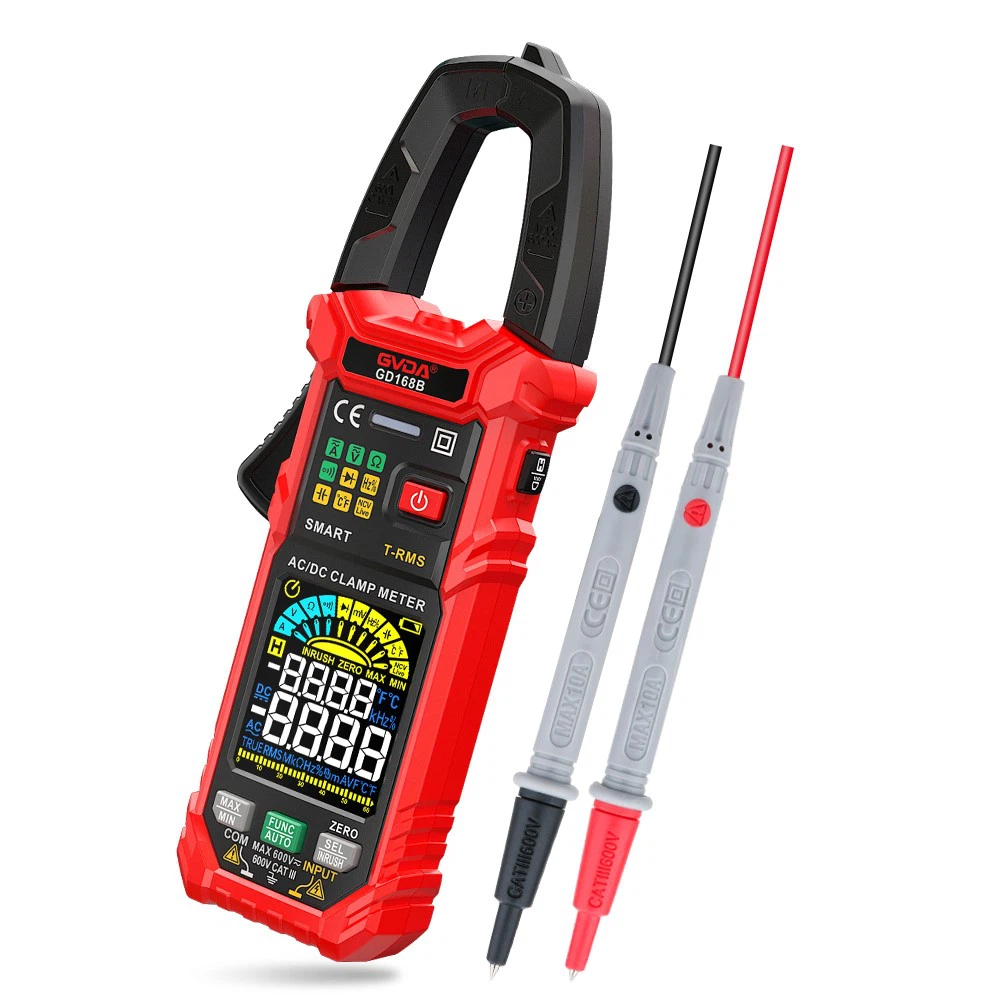

High Precision 600A AC DC Clamp Ammeter

GVDA High Precision 600A AC DC Clamp Ammeter Inrush Clamp Meter 600A True RMS AC/DC Current Amp Meter Measures Current Voltage Temperature Capacitance Tester

Special Features

1) High-Definition Color LCD Display
2) Display: A maximum of 6000 counts are displayed.
3) AC voltage measurement without contact (NCV)
4) Measurement of AC Inrush Current
5) MAX/MIN value calculation
6) Detection of live wires
7) Power off automatically
8) Low voltage indication: low battery
9) Over-the-range warning
10) DCA = 0 (only GD166B GD168B)

Technical Data

1, DC: 600mV,6V,60V,600V DC voltage
2,AC voltage: 600mV, 6V, 60V, and 600V
3, AC 60A,600A alternating current
4. DC Current 60A 600A (only for GD166B GD168B)
5,Resistance:600Ω,6KΩ,60KΩ,600KΩ,6MΩ,60MΩ
6. Inrush current (AC): 60A,600A
7,Capacitance:6nF,60nF,600uF,6uF,60uF,600uF;6mF,60mF \s
8,Frequency:100Hz,1000Hz,10KHz,100KHz,1000KHz,10MHz
9,Duty:1-99%
10,Temperature: -40°C1000°C,-40F1832F
11,Temperature unit:°C/F
12,Maximum voltage between terminals and earth ground: 600V
13,Show: 6000 counts
14,Indication of over-range: "OL"
15,Low battery warning: yes
16,Indication of input polarity: display "-"
17. AC Inrush current measurement : yes
18, AC/DC mV measurement, yes,
19, Continuity test, yes,
20, Max/min measurement, yes
21,Autonomous (AUTO) measurement: yes
22, Diode measurement: yes,
23. True RMS: yes
24. DCA zero: yes (only GD166B GD168B)
25,Detection of live wires: yes 26,Detection of non-contact AC voltage: yes
Yes, yes, yes, yes, yes, yes, yes, yes, yes, yes, yes, yes, yes, yes
30,Clamp opening size: 36mm 29,Data hold: yes
31,Power supply: 3x1.5V AAA batteries (not include)
32, Weight of the package: 440g

33,Product dimensions: 199*81*32mm

Package include:

1 multimeter,
1 pair of pen cables,
1 cloth bag,
1 thermocouple probe,
1 box
1 manual

Product Details Show

High Precision 600A AC DC Clamp Ammeter

Manual range and auto range one button switching

High Precision Current and Voltage Measurement

GVDA GD169A Digital Clamp meter 600mv to 600V Measureble AC and DC

Certificates:
