GVDA Trues RMS Digital Clamp Meter Multimeter 9999 Counts Max 1000V 1200A Amp Voltage Tester with AC/DC voltage, AC/DC current, frequency, duty, resistance, capacitance, temperature, diode, continuity, NCV, VFD, inrush current, inductance and etc.
Specifications
|
Technical Data
|
Measuring Range
|
|
DC Voltage range
|
600mV/6V/60V/600V/±(0.5%+5)1000V±(0.8%+5)
|
|
AC Voltage range
|
600mV/6V/60V/600VV±(0.8%+5)/750V±(1.0%+5)
|
|
DC Current range
|
60A/600A/1200A±(2.5%+8)
|
|
AC Current range
|
60A/600A/1200A±(2.5%+8)
|
|
VFD Current range
|
6V-750V±(2%+5)
|
|
Inductance range
|
2mH/20mH/200mH±(1.0%+3)/2H±(1.5%+3)/20H±(3.0%+3)
|
|
Resistance range
|
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(1.0%+5)
|
|
Capacitance range
|
10nF/100nF/1uF/10uF/100uF/1mF/10mF±(4.0%+5)/100mF±(5.0%+10)
|
|
Frequency range
|
10Hz/100Hz/1kHz/10KHz/100KHz/1MHz±(1.0%+3)/10MHz±(3.0%+3)
|
|
Duty Cycle
|
1%~99%±(3.0%+3)
|
|
Temperature range
|
-40℃~1000℃±(1.0%+2)/-40℉~1832℉±(1.0%+2)
|
|
Max count
|
9999 counts
|
|
VA HD LCD
|
Yes
|
|
Automatic/manual range
|
Yes
|
|
Continuity test (sound and light prompt)
|
Yes
|
|
Diode test (buzzer prompt)
|
Yes
|
|
Data-hold
|
Yes
|
|
NCV non-contact voltage detection (acousto-optic prompt)
|
Yes
|
|
Backliyes
|
Yes |
|
Flashlight
|
Yes
|
|
DCA ZERO function
|
Yes
|
|
Low voltage indication
|
Yes
|
|
Automatic shut-down
|
Yes
|
|
True RMS
|
Yes
|
|
VFD function
|
Yes
|
|
INRUSH function
|
Yes
|
|
Maximum/MIN value measurement
|
Yes
|
|
REL (relative value) measuremees
|
Yes |
|
LowZ
|
Yes
|
|
Power supply
|
3PCS 1.5V AAA Batteries
|
|
Product Size
|
96mmx39mx250mm
|
|
Product Weight
|
393g
|
|
Packing Weight
|
290mm*60mm*120mm
|
|
Package Size
|
670g
|
|
Q'Y/CTN
|
20PCS
|
|
Packing Contents
|
1 x Clamp Meter(Battery Not Included)
2 x Probe 1 x Temperature Probe 1 x Carrying Case 1 x Manual 1x Screwdriver
|
Product Details

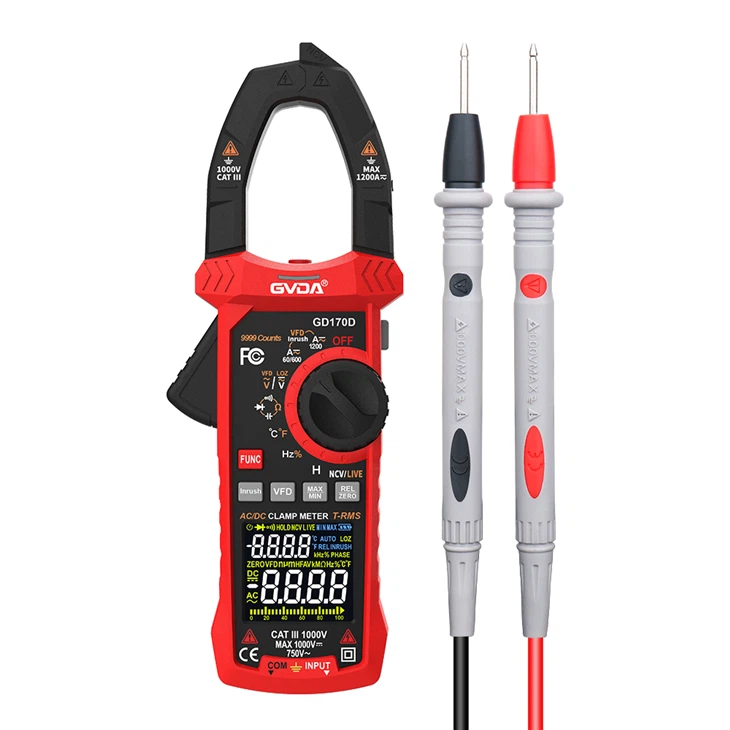

THIS is New Upgrade GVDA GD170D AC DC Digital Clamp Meter with True RMS and Lowz mode.
Multifunction
AC Voltage Measurement

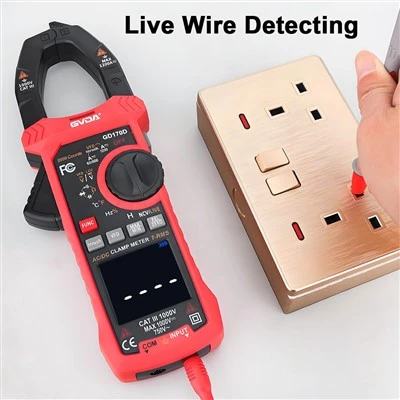

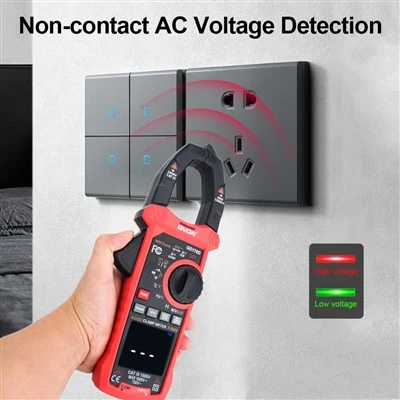

this Ture RMS Clamp leter is with Non Contact AC Voltage Detection function

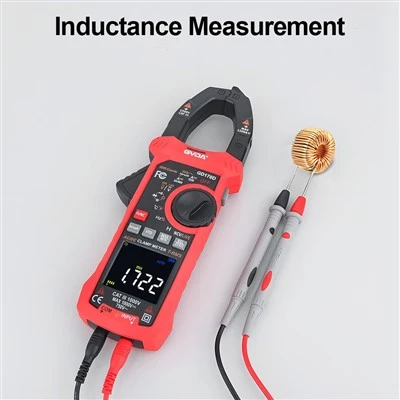

this GD170D Digital Clamp Meter also can have Inductance Measurement mode

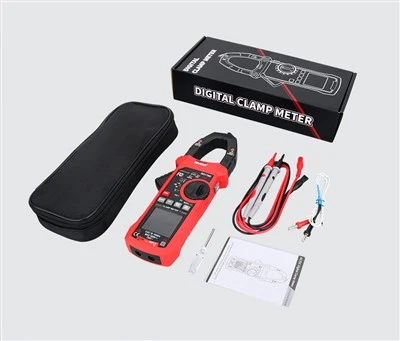

Here is Packing list for GVDA GD170D Clamp Meter
Wide Applications
GVDA digital clamp meter is to measure current without interrupting power. It can also measure parameters such as voltage and resistance, making it a valuable tool for electricians and industrial maintenance workers. GVDA GD170D is Professsiona, High quality Clamp meter,
was popular recently in the market
Its applications are very broad:
Power Maintenance: this clamp meter Measuring current in distribution boxes and transformer cabinets without disconnecting power or breaking the circuit.
Industrial Inspection: GVDA GD170D Clamp meter was Used for the installation, commissioning, routine maintenance, and troubleshooting of electrical equipment, such as checking the electrical parameters of motors, distribution cabinets, and other equipment.
Automation Commissioning: Real-time monitoring of load current in motors, coils, etc., during the installation and commissioning of PLCs, programmable controllers, and other equipment.
Household Circuit Inspection: Helping electricians or ordinary users check household circuits and electrical appliances, such as checking whether socket voltage is normal and whether appliances are leaking current.
General maintenance for this GVDA GD170D True RMS AC DC Clamp meter;
● Maintenance and service of this Clamp Meter must be carried out by professional qualified maintenance personnel or maintenance department.
●Use wet cloth or mild detergent regularly to clean the shell. Do not use abrasives or solvents. Wipe the contacts in the socket with a clean cotton swab soaked in alcohol.
