Car Paint Coating Thickness Gauge
GVDA GD198 Coating thickness gauge is used to measure the thickness of the plated and coatedsheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.The gauge takes the precision integrated probe, and uses principles of electro-magnetic inductionand the eddy current effect, which automatically detects the attributeof substrates.
Description
GVDA Car Coating Thickness Gauge is also named Car Paint Film Thickness Tester 0 to 1300um Measuring Meter FE NFE for Automotive Metal Ceramic
The thickness gauge is used to measure the thickness of the plated and coatedsheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.The gauge takes the precision integrated probe, and uses principles of electro-magnetic inductionand the eddy current effect, which automatically detects the attributeof substrates.
Operating Principle:
Thegauge adopts the principle of electromagnetic induction and eddy current effect.It has F probe and N probe.
F probe works on the magnetic induction principle and should be used for detecting the non-magnetic coating's thickness such as chrome/copper/zinc/varnish/rubber on the iron/steel substrate.
N probe works on the eddy current principle and should be used for detecting the insulating coating's thickness such as paint/anodizing/ceramics on the aluminum/copper/brass substrate.
Application Field:
The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspectionarea, and also able to work steadily in the laboratory, workshop and outdoor.
Product Features
1. High precision integrated probe F / N
Product Details
Mode; GD198
Brand: GVDA
Probe F:
Principle: : Magnetic Induction
Range: 0~1300um
Accuracy: ±(3%+2um
Resolution: 0.1um
minimum thickness of substrate：0.5mm(0.02")
Probe N:
Principle: : Eddy Current
Range: 0~51.2mil
Accuracy: 0~51.2mil
Resolution: 0.01mil
minimum thickness of substrate：0.3mm(0.012")
Units：um,mil
Calibratio Points:ZERO/50/100/250/500/1000um
minimum curvature radius convex:1.5mm
minimum curvature radius concave:25mm
minimum measuring area:Diameter 6mm
Operation Environment: Temperature:0~40 ℃(32~104 F ) Humidity:20%~90%RH
Size: 102mmx52mmx25mm
Weight: 84g (without battery)
Power: 2PCS 1.5V AAA battery

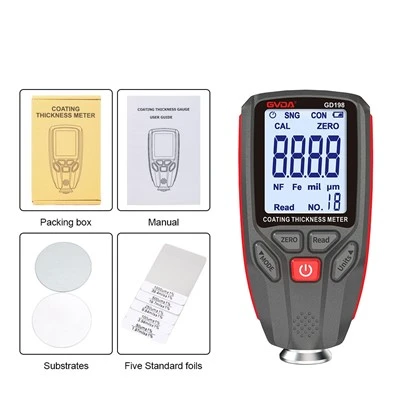

Package contents
1x Coating Thickness Gauge
2x Substrates
5x Standard foils
1x User Guide
Product Details
Car Paint Coating Thickness Gauge

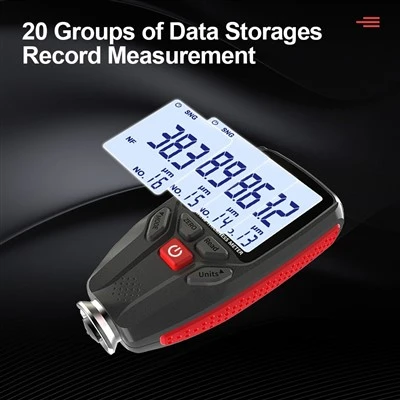

20set data storages / Testing Automotive Coating / Micron level probe

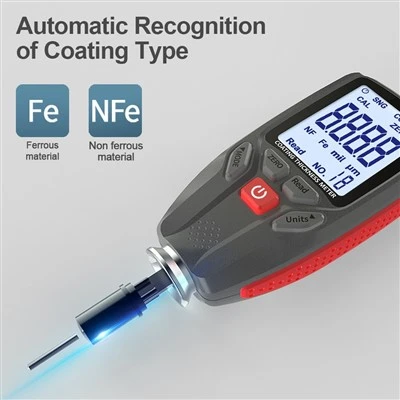

Automatic Recognition of Coating Type
Fe: Ferrous material / NFe: Non ferrous material
High Definition Screen Display

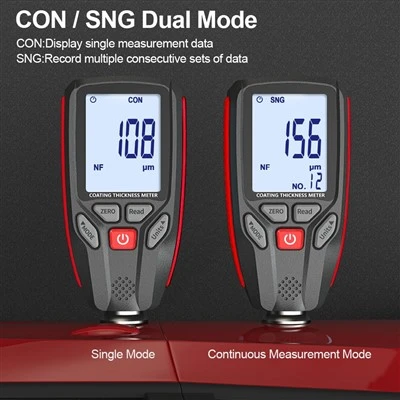

CON / SNG Dual Mode
CON: Display single measurement data / SNG: Record multiple consecutive sets of data
Micron Level Probe
Using high-precision micrometer level small caliber probes, automatically identify substrate material properties

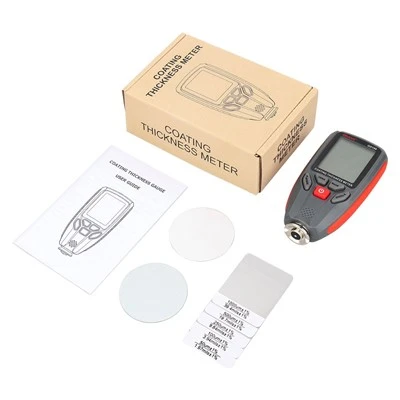

Packing List
1x Coating Thickness Gauge / 2x Substrates / 5x Standard foils / 1x User Guide
